Einleitung

Before disassembling, unplug the Camera from the PS4.

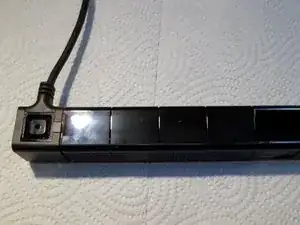

  1. uQ12kLbbFXDXK6GK
    uQ12kLbbFXDXK6GK
    Y51ANjqaXF5tdSBi
    JS1RtyEfpxPJcHyH

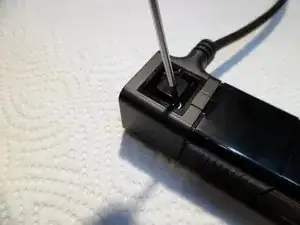

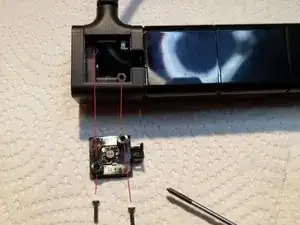

    • There are two PH0 Screws in the socket which hold the cable.

    • Unscrew two PH0 Screws and pull off the cable holder.

  2. LXDqO3I3MOKeOP2F
    LXDqO3I3MOKeOP2F
    eDxZBGeMohURVJqJ
    LsABRHvXM2ZGGQQR

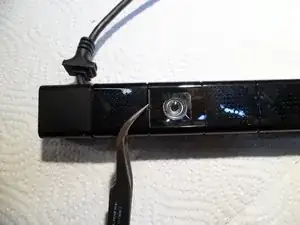

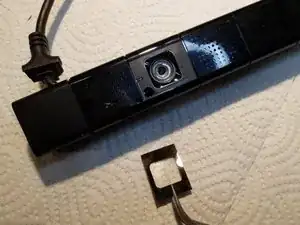

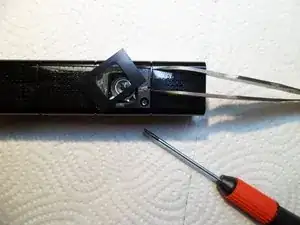

    • The next two PH0 Screws are located BEHIND the two polycarbonate-plates of the two camera-lenses. Take a sharp tweezer and stab under that plate. The plates are glued with a sticky tape to the housing. These plates are very fragile and will break if handled incautious.

  3. JGflCd1ICZLvXTKB

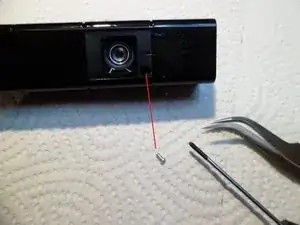

    • There is one more PH0 screw to remove. This one is behind the other lens.

    • This was the easy part.

  4. yhO2iWmKSrYpAuIv
    yhO2iWmKSrYpAuIv
    pKZqQ3rfBHiHQ62Y
    GiRGXcic4ItNNFhY

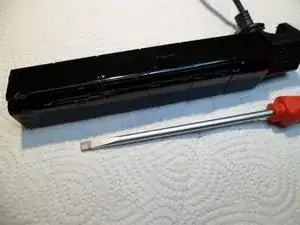

    • There are many clips in there.

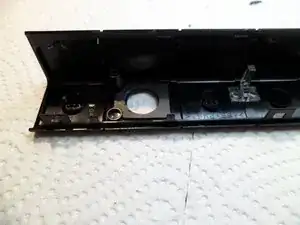

  5. CfaEbANN5jUV3e2J
    CfaEbANN5jUV3e2J
    lqELoVsqLnoZgIYy

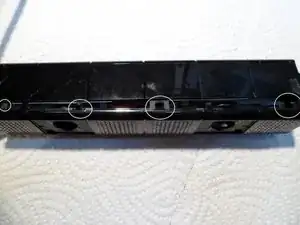

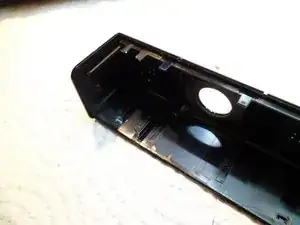

    • Encore two photos where to locate these nasty clips

  6. IQAsaK1QekvI3B25
    IQAsaK1QekvI3B25
    rNe5BprYah1NPk44
    xhGlQK2dnSVWLNta

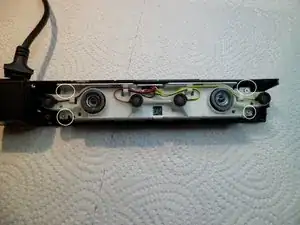

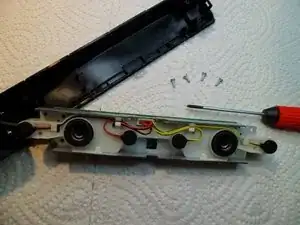

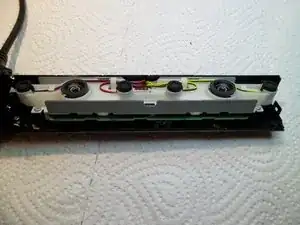

    • The other half of the housing is attached to a solid U-Frame with the electronics.

    • There are four silver screws, PH0.

    • Four microphones, two with black/yellow cables and two with black/red wiring.

  7. qiHwEvYgvTdQ2WkF
    qiHwEvYgvTdQ2WkF
    2GReVlkTgQhG5V4i

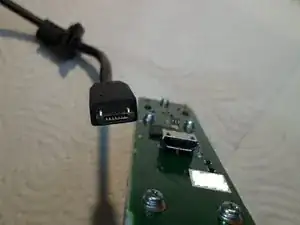

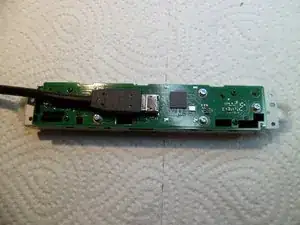

    • The backside of the U-frame. The cable is not soldered, there is a plug.

    • Detail of the plug.

    Whats the make of the cable.. What do I search for in order to buy a new one

    Chris -

  8. NjLM1HI1caMx3C2Y
    NjLM1HI1caMx3C2Y
    3s1GD26iu1R4RRvZ

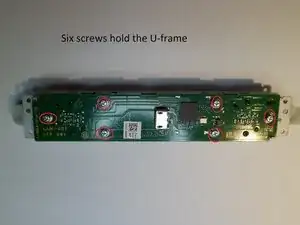

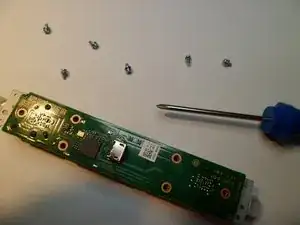

    • 6 PH1 screws. Take a small magnet to hold them.

  9. 241tXFYot4OeMAXE
    241tXFYot4OeMAXE
    TsFriQEEgJWHMcp1

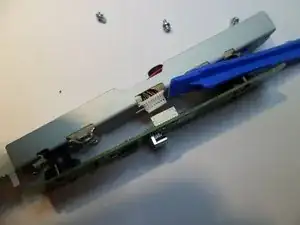

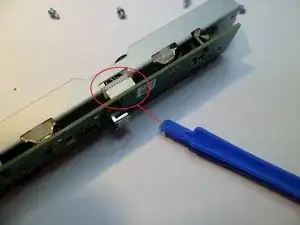

    • The connector of the mikrophone-array

  10. 6OgIVLxLQvcvRrwB
    6OgIVLxLQvcvRrwB
    aMYXhgQYBuTXv1YI
    CgxsPFtGAXuHmgQJ

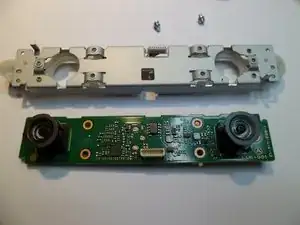

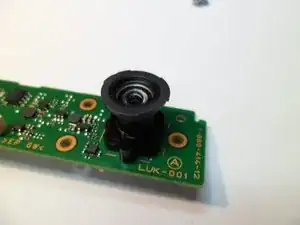

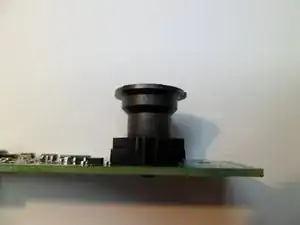

    • The lenses, plastic, glued tight.

    • NOT ADJUSTABLE.

  11. ZOyRGquUw1itZrJb
    ZOyRGquUw1itZrJb
    x2ZS2fRmjgptJNaM

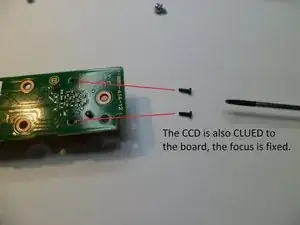

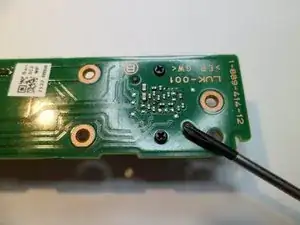

    • Backside, two small PH0 at each CCD. But the Cameramodules are clued to the board,too - without destruction, you can not open it.

    • I want to save it as spare-part, so i don't want to open it. So here is finito capito. :) Thanks for watching...

  12. lUApsQubmNUpMDTH
    • Extra: The wiring.

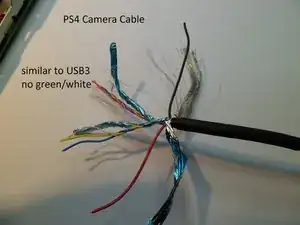

    • It's an USB3 cable without green/white Pimf. There are three SEPARATE ISOLATED metalfoil shields with wire, red-black-power and two Pimf yellow/blue and orange/green. So ja, thats it. Paulaner.
