Einleitung

This is a quick teardown of the playstation move controller.

  1. 6VHsh1iHblcQQiMU

    • Playstation Move Controller

  2. 6tPvatXdcILm4OJD

    • Remove the 4 screws holding the back over and trigger button on.

    I

    c

    a

    n

    t

    g

    e

    t

    t

    h

    e

    s

    c

    r

    e

    w

    s

    o

    u

    t

    aviv segal -

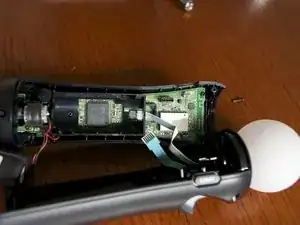

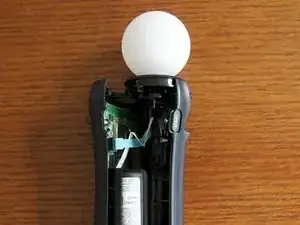

  3. qsKiwTLQkgC21KfK
    qsKiwTLQkgC21KfK
    PoDq4Nnb1ONN2SIc

    • Once open you will see two ribbon cables.

    • The one connected to the trigger button is removable.

    • The ribbon cable attached to light globe is soldered on.

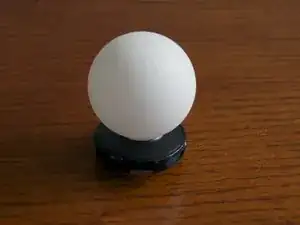

  4. RBWZqCBIWeXoPKuZ
    RBWZqCBIWeXoPKuZ
    SVkdxiJEBQ11oZyF
    WjNnHADl6ENO5MjZ

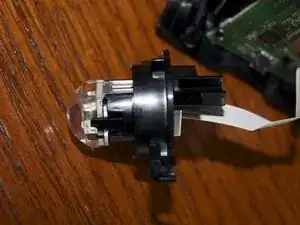

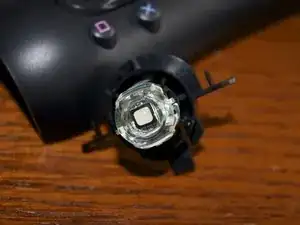

    • Light Globe Cover and the LED Module can be separated.

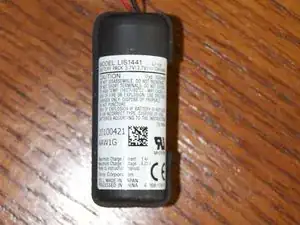

  5. tWRkh6ouCNHNNisv

    • The battery can easily be removed. There is connector on the side of the board.

    • Battery Specs: Single Cell 1380 mAh 3.7 Volt

    • Sony Part: LIS1441

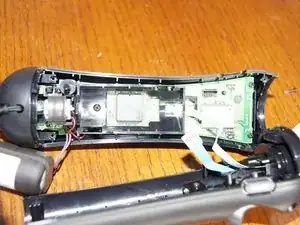

  6. bQ2YQTAkulfEYYNV

    • Remove the inner plastic (1 Screw) frame to expose the logic board

    • Remove the 2 top screws and one bottom screw to remove the logic board from the controller.

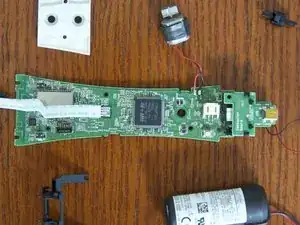

  7. wJl5sD2bFTEKdugC
    wJl5sD2bFTEKdugC
    KXIBtlRpGAQbcD4V
    QfMvBOTeeQcojeWV

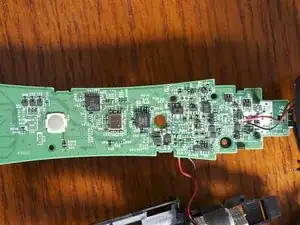

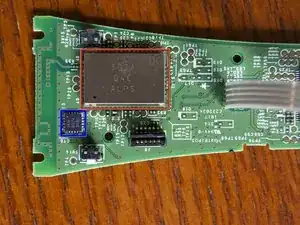

    • Logic Board

    • Chip Closeups Included

    • 503A 04c ALPS - Radio Module

    • AKM8974948D - MEMS Gyroscope

Tinte & Feder

mcwiggin

616 Reputation

Ein Kommentar

AKM 8974 - 3-axis Electronic Compass
