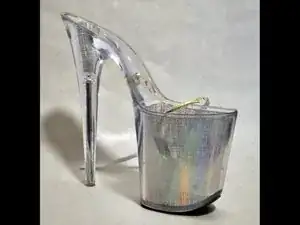

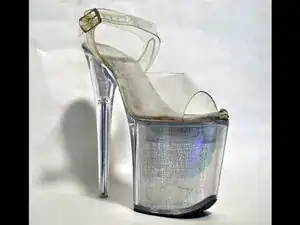

These shoes have been well worn and falling apart.
I was curious how they were constructed. I’ve seen complaints online about the electronics in these shoes stop working or the battery no longer charges.
I wanted to find out why and if there was a way to repair or provide feedback to the manufacturer.
I’m new to electronics and have never done a teardown before, feedback is welcomed.
Werkzeuge
-
-
When I went to pull apart the second one, I found that the last time the sole had been repaired, the bonding worked really really well.
-

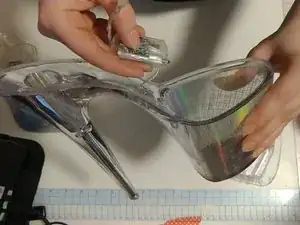

This made it very difficult to pull the shoe apart. So instead I'll show the shoe I had already pulled apart.
-
-
-

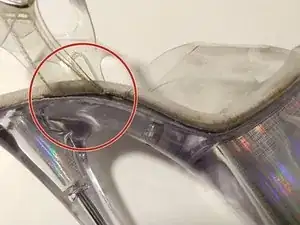

The sole starts to lift from the platform,
-
The suede on the front of the toe rips and peels,
-
The ankle strap tears,
-
The toe strap tears.
-
-
-

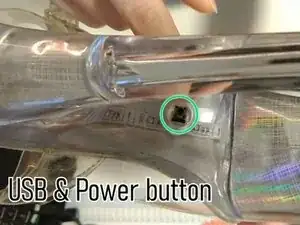

The shoe works by charging with a micro USB next to the power button on the shank of the shoe.
-
The power button also cycles the colours and modes.
-
To protect the electronics, the shoes come with a warning to avoid excessive banging and moister.
-
-
-

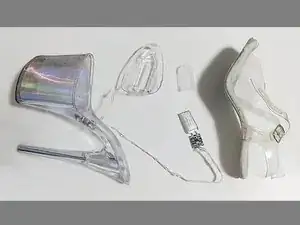

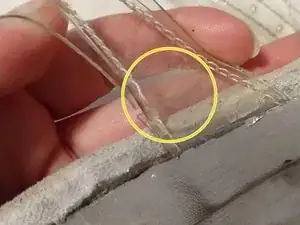

The RGB LED light strip is glued to the platform.
-

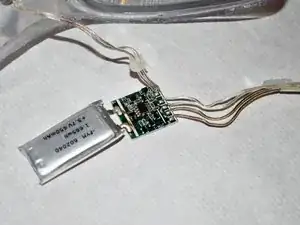

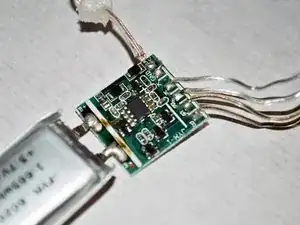

The strip ran down the shank of the shoe and then wrapped around the shell containing the battery and board.
-

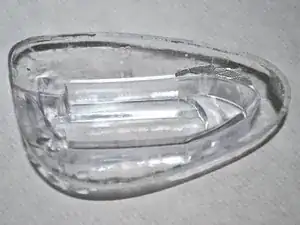

This board shell in held in place under the sole in the box of the platform. The plastic box was sealed with glue.
-
-
-

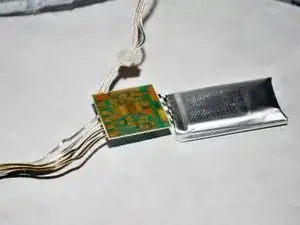

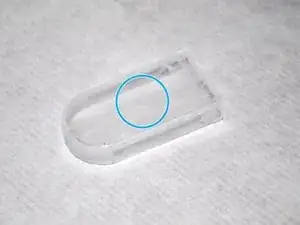

The shell cracked, especially at the center, there's a clear indent from the chip in the middle of the board.
-
