The Powermac G4 "Quicksilver," The 2nd Major revision to Apple's Powermac G4 Series. It was released in 2001, and came with a 533Mhz-Dual 1Ghz Motorola PowerPC G4 CPU. This Supported up to 1.5GB of PC133 133Mhz Ram. This computer looks neat, and was the last apple computer to incoorperate a possible ZIP Drive. It had AGP Graphics with a NVIDIA GeForce 2MX Mac Edition standard. This is incredibly silent compared to the G4 MDD and the G4 Graphite. Available CPU Speeds: 533Mhz, 667Mhz, 733Mhz, 800Mhz, 933Mhz, And 1.0Ghz . Most clock speeds were available in both single and dual configurations. This was the first Mac to reach 1.0Ghz. No wonder they call it the "Quicksilver."

  1. 1VHEe4VxH5WfuThA
    1VHEe4VxH5WfuThA
    gJjNNjhQhPW2IkKy
    dHQwHyZrRVPR3hR1

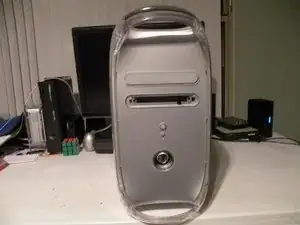

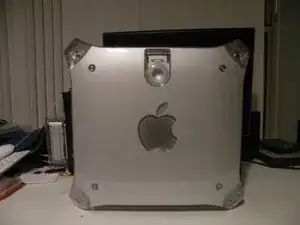

    • The Powermac G4 "QuickSilver"

    • Unfortunately, my zip drive bezel fell off.

  2. HBejT5jJwm1JyikQ
    HBejT5jJwm1JyikQ
    42mAZ33SMnmmJIQu
    JwPnWebfatJUDZqP

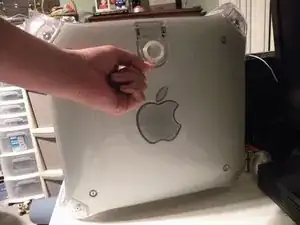

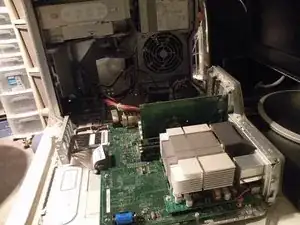

    • Start by opening the case.

    • The same way, the other powermac g3's and G4's open... Just lift the lever on the side of the case, and lower it down.

    • This gives us access to the guts.

  3. WYKXsM1MNwOaOQBq
    WYKXsM1MNwOaOQBq
    VG1rwCw4p4df5pWl
    Gs4sXuqRDdgEMJZ2

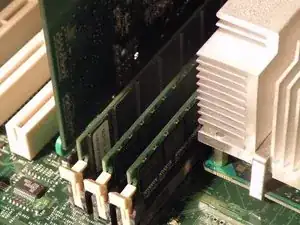

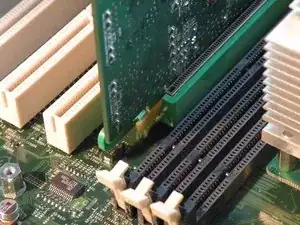

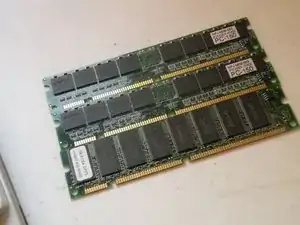

    • Hidden between the CPU and the Graphics Card is the RAM.

    • The Quicksilver uses PC133 133Mhz Ram and supports up to 1.5Gb, just like the cube.

    • The Original RAM is Labeled "KingMax." Some Type of Kingston Knockoff?

  4. jjQDdnFHHRquBOsy
    jjQDdnFHHRquBOsy
    qfd5d3aZANDXXbsD
    ShNCVGUvLCGgwORU

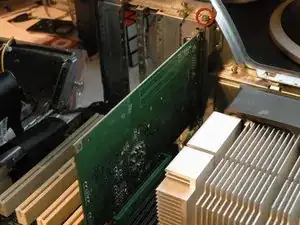

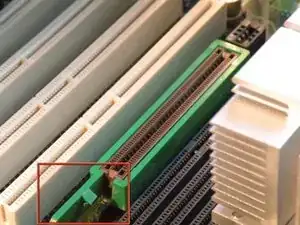

    • Remove this screw, then push in this tab outward, and pull the card out.

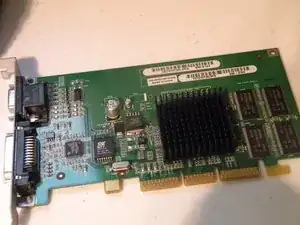

    • The Quicksilver came standard with this card, a 32MB NVIDIA GeForce 2MX AGP Mac Edition, this card supports the ADC Displays like the one we took apart last week.

  5. HgW1bBZXSds3cLBB
    HgW1bBZXSds3cLBB
    iRdRCNMy5BFDMIb5
    23C1kyP6Nc11T4Py

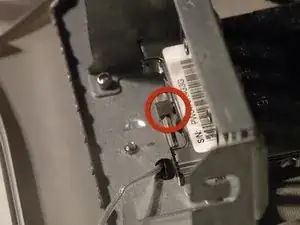

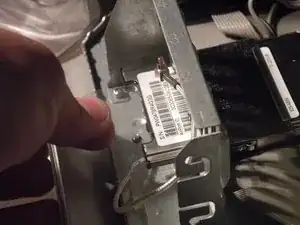

    • Remove the AirPort Antenna by pulling it out of the back of the card

    • Grab the plastic tab, and pull the card out.

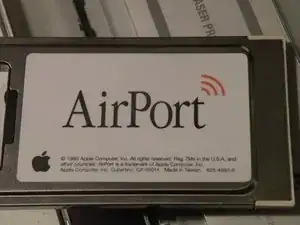

    • This is the same PCMCIA 802.11b Airport card found in every mac from 2000-2004, it is only wireless "B" so you only get 11Mbps, but that is enough for web browsing.

  6. tFrTBXXk4aocCOYH
    tFrTBXXk4aocCOYH
    GM1glfdmlvGClm1e
    gjCAEFIV4Ekf1FoU

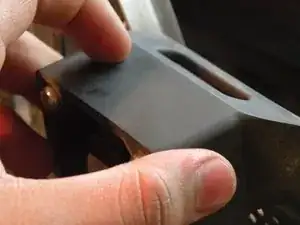

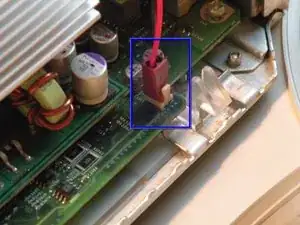

    • Removing The CPU Fan

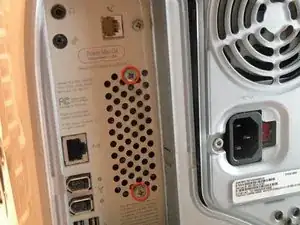

    • Remove these 2 Phillips screws.

    • Then Remove the fan connector.

    • Then, remove the fan.

  7. AXmDajvVXEkHIkoC
    AXmDajvVXEkHIkoC
    brsGMeAKtXHGqATQ
    UdAA5XicBHHiB4rh
    • This Computer boasts a 733Mhz Motorola PowerPC G4 CPU, though not fast enough to run leopard natively, it runs 10.4.11 "Tiger" fine.

    • It has a 733Mhz Motorola PowerPC 7450 (G4).

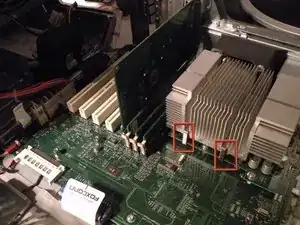

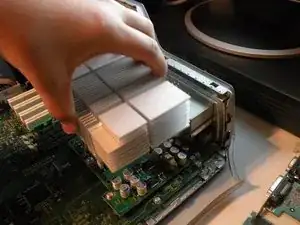

    • Start by removing the heatsink clamps with a flathead screwdriver.

    • Do the same for the other side.

    • Then Lift off the heatsink.

    • This will reveal the CPU.

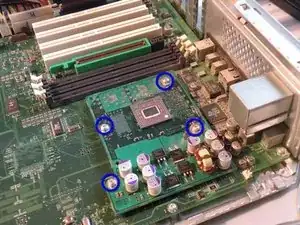

    • Remove these screws.

  8. 3bQ2r5sThcFIKCo3
    3bQ2r5sThcFIKCo3
    kPhiBRkURwEcEHai
    q5VXgmZ4tiMT6EEj

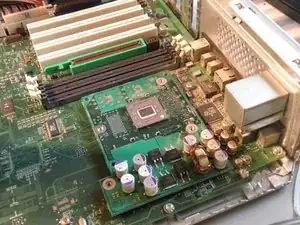

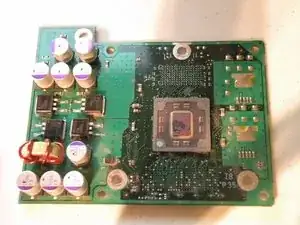

    • Once those screws are removed, carefully remove the CPU.

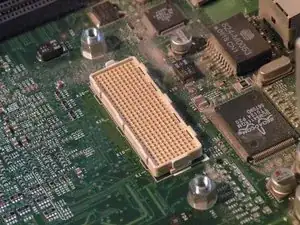

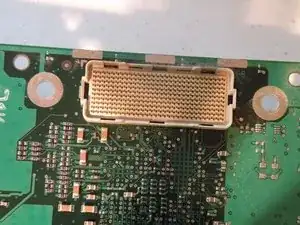

    • This is apple's 300-Pin connector, it is found on this Mac, and MDD's (This cpu won't work in an MDD) and similar to the one in PowerMac G5's.

    • This connector is incredibly hard to remove, because of the way it connects, it is also very hard to remove without damaging it, if you don't pull it straight up, you will, most likely damage it.

  9. TDVVCCOFlRw524lk
    TDVVCCOFlRw524lk
    xIPwKHCaD2jX3uHD
    d3DkAUlBvBMFuUjl

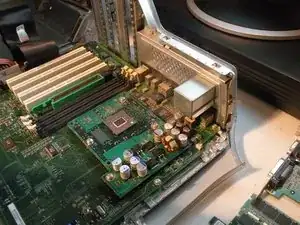

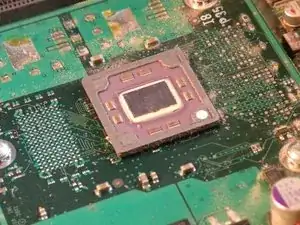

    • More CPU Shots

  10. YUiUFQwDlHVLjnwp
    YUiUFQwDlHVLjnwp
    ofUIUBqo1KX2DyHm
    gpSWC2IdpJ1A1oBs

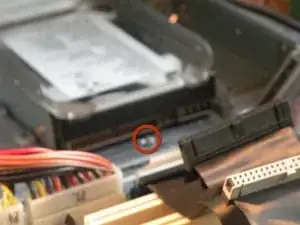

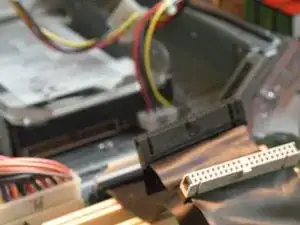

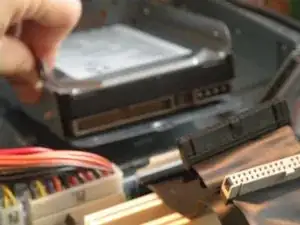

    • Disconnect the IDE Cable and Power Cables from any hard drives.

    • Remove this screw if present.

    • Slide the caddy out, then set it aside.

    • Many Apple Computers Including earlier versions of this one had a 128GB Limit on hard drives, only Quicksilvers made in 2002 and later will support hard drives larger than 128GB, but to bypass this, simply partition your hard drive in to multiple partitions under 128GB in Disk Utility.

    • This computer uses standard IDE hard disks, and originally shipped with 40GB or 80GB.

    • It will support up to 4 IDE drives, 2 Hard Disks, one Optical Drive, and one ZIP Drive.(You can put an IDE Hard Disk in the the ZIP Drive Slot if you wish, allowing for 3 Hard Drives).

  11. KGmWVpYrI1HH2cwh
    KGmWVpYrI1HH2cwh
    4qxxS2StxNphK1jE
    2JuTqXGWxm12KM4K

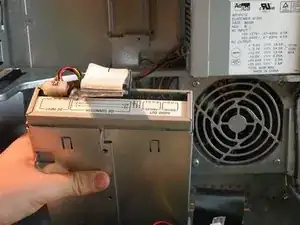

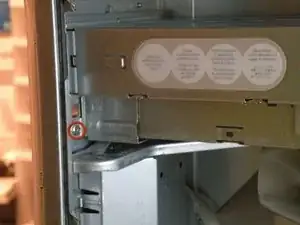

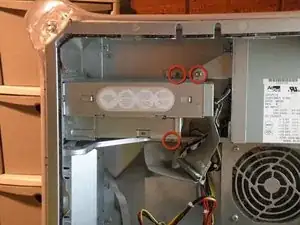

    • Start by removing all of these screws.

    • Then Slide the drive cage back, and pull it partially, tha remove the IDE And Power Cables, and set it aside.

    • Most Quicksilvers, Including Mine Shipped Standard With a DVD/CD-RW "ComboDrive"

  12. nHNL5IZPQVbOLcnC
    nHNL5IZPQVbOLcnC
    SnCbWFGoZuKrR5LV
    N5BScZXfjVsBYxnN

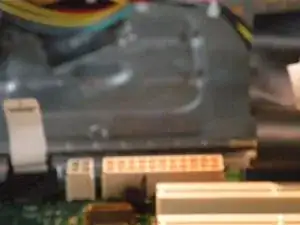

    • This computer uses a non-standard 22-Pin Apple power supply, plus a 4-Pin 12V connector commonly found in some power supplies.

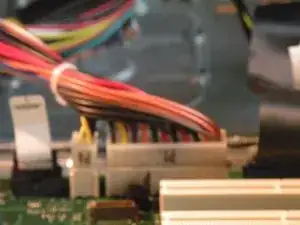

    • Start by disconnecting the power connectors from the motherboard, and routeing them up to the level of the power supply.

    • Also remove the fan connector, and route that up as well.

    • Remove this Screw as well.

    • Disconnect the Fan Connector.

    • Always be weary of power suppplies, they can be harmful if handled wrong.

    • Fan removal is only three screws. The one circled in yellow, one on the upper left of the frame cage (not shown), and one on the middle bottom of the frame (not shown).

  13. EP5PtJmFDbQSTYOI

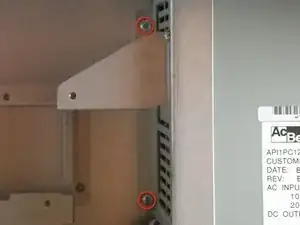

    • Now, remove these 2 screws, and slide the power supply out of the case.

    • This isn't a standard PC Power Supply like the one in the G3 Blue And White, attempting to use an ATX PC Power Supply will fry the logic board!

  14. WHl5CBhRPeCXkgGM
    WHl5CBhRPeCXkgGM
    fIEkGY4K1YqC3eZS
    • Start by disconnecting everything, cables, battery, etc.

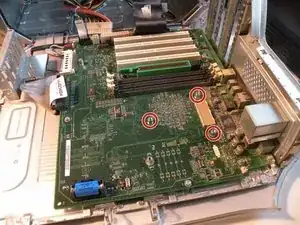

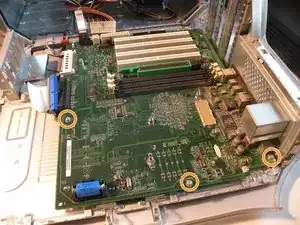

    • There are three hex-shaped screws holding the board, which are right where the CPU was. These also provide the screw holes to screw and hold the CPU. Use an English 1/4" size socket to remove these three screws left behind from the CPU.

    • I used a metric size socket(I believe it was 7mm), as I did not have an English size handy, and the metric seemed to work fine.

    • Then remove the 4 screws which are located around the edge of the board. If you have less than 4 screws, don't worry too much, if you don't have trouble removing the board at the next step, then you are fine.

    • REMEMBER TO GROUND YOURSELF! Use an anti-static wrist strap to prevent ESD damage to your logic board.

    • Now, slide the logic board away from the rear of the case about 1/2 inch, and lift it out. It should not be difficult to pull out or up, if it is, go back, and make sure you have removed all screws. I did, however, have to pull out towards the front, then up, then back towards the back of the case before I could completely remove the board.

  15. pvnqbcOmoUFSKD1j
    pvnqbcOmoUFSKD1j
    Z15o11iIjmrgjspm
    RZ2ZpksOMiPhZ3dR

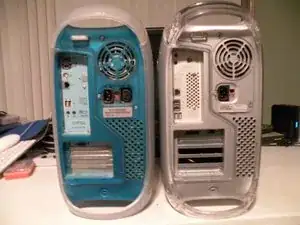

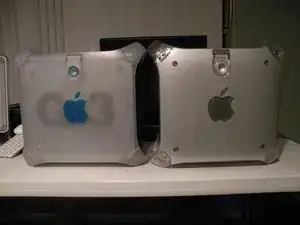

    • G4 Quicksilver (Left) (3rd Photo)

    • G3 B&W (Right) (3rd Photo)

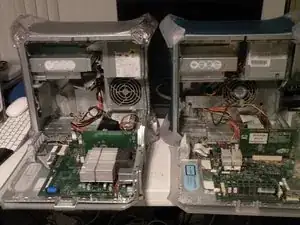

    • The computers are exactly the same size, but the Quicksilver Weighs more than the G3, due to heavier plastics, more case metal, and a much larger heatsink.

    • Standard PC Parts That Will Work In This Computer:

    • PC133 133Mhz Ram

    • Standard IDE Hard Drives

    • Standard IDE Optical Drives, Even DVD-Burning "SuperDrives"
