Retina MacBook 2016 Teardown

Geschrieben von: Evan Noronha
Veröffentlicht: 25/04/16
  • Kommentare: 68

Retina MacBook 2016 Teardown

Veröffentlicht: 25/04/16

Teardown

Einleitung

Ein Jahr nach dem Markteintritt kündigte Apple die erste Neuauflage des 12" MacBooks mit Retina Display an. Es ist eine Art winziges Update, so führen wir auch nur einen winzigen Teardown durch. Was hat sich außer einem schnelleren Prozessor und einem flotteren Flashspeicher eigentlich noch geändert? Da gibt es nur eine Möglichkeit, das herauszukriegen: Aufmachen und die Geheimnisse ausbaldowern. Begleite uns bei unserem Mini-Teardown des Retina MacBooks 2016.

Schaue unseren Retina MacBook 2015 Teardown des ersten Retina MacBooks an, wenn du ungefilterte Informationen haben willst.

Versäume nichts! Folge uns auf Instagram, Twitter und Facebook!

  1. rS6XlyFLveLtUVVl
    rS6XlyFLveLtUVVl
    ehOKPFGYCHPbPZBd

    • Das MacBook passt sich der aktuellen Rose Gold Mode an, aber was verbirgt sich im Inneren? Hier ist das, was wir wissen:

    • 12" 2304 × 1440 (226 ppi) IPS Retina Display

    • 1.1 GHz Dual-Core Intel Core m3 Prozessor (konfigurierbar bis zu einem 1,3 GHz Dual-Core Intel Core m7)

    • 8 GB 1866 MHz LPDDR3 RAM

    • 256 oder 512 GB PCI Flashspeicher

    • Intel HD Graphics 515

    • 802.11a/b/g/n/ac Wi-Fi und Bluetooth 4.0

    • Ein einziger USB-C Anschluss und eine 3,5 mm Kopfhörerbuchse

  2. KN6oAK2IKOiGDjHl
    KN6oAK2IKOiGDjHl
    tRymHEoawdkbfPry

    • Wenn da nicht das rose-goldene Äußere wäre, könnten wir das diesjährige Retina MacBook kaum vom letztjährigen unterscheiden.

    • Von außen sieht alles gleich aus, angefangen von den Pentalobe Schrauben am unteren Gehäuse bis hin zur Modellnummer - A1534.

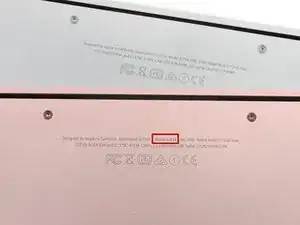

    • Der einzige klare Hinweis darauf, dass es Unterschiede gibt, ist die geänderte EMC-Nummer: 2991 gegenüber 2746 von letztem Jahr.

  3. DgO4M5UNBt1xfvqm
    DgO4M5UNBt1xfvqm
    nw1gqTivuIoZJLxF

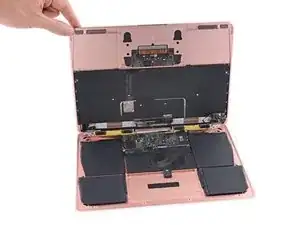

    • Ein Blick unter die Haube dieses MacBooks zeigt uns, dass diese rosegoldene Schönheit keinesfalls nur oberflächlich ist.

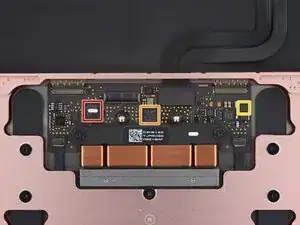

    • Bevor wir uns noch tiefer hineinwühlen, schauen wir kurz auf die Chips, die das Trackpad antreiben:

    • Broadcom BCM5976 Touchscreen Kontroller

    • STMicroelectronics 32F103 ARM Cortex-M3 Microcontroller

    • International Rectifier IRFH3702 Single N-Channel HEXFET Power MOSFET

  4. aWDLItHgmsWwPpjj
    aWDLItHgmsWwPpjj
    YLpMd2seeinBnnMy
    VQLarTWbJIadROwk

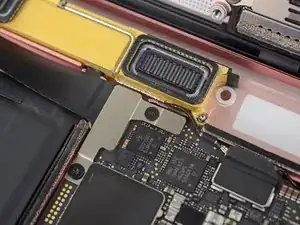

    • Was ist jetzt das? Diese lästige Tri-Wing Schraube aus dem letzten Jahr hat einen neuen "Flügel" dazugekriegt —und hat sich jetzt so in eine gute alte reparaturfreundliche Kreuzschlitzschraube verwandelt.

    • Wenn dich die Pentalobe Schrauben am unteren Gehäuse nicht gebremst haben, dann werden das eine Tri-Wing auch nicht tun — aber hey, wir nehmen, was wir kriegen können!

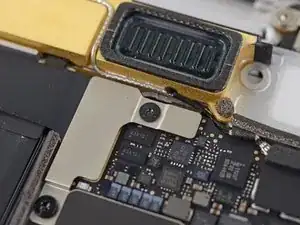

    • Glücklicherweise sind alle anderen Schrauben normale Kreuzschlitz- oder Torxschrauben.

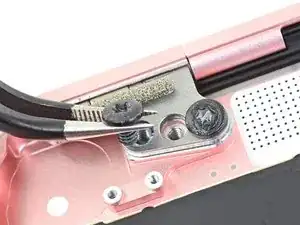

    • Trotzdem sorgen die Schrauben an den Scharnieren für eine Überraschung. Die Torxköpfe sind mit einer Substanz gefüllt, die zerbröselt, wenn man einen Schraubendreher einsetzt. Versiegelst du unser MacBook mit manipulationssicheren Schrauben, Apple?

    The "Blue" stuff is Loctite and has nothing to do with "Anti-Tamper"-Measuremts.

    What sort of experts are you? ;)

    Till -

    I promise you, we're not talking about the blue stuff. We know what threadlocker is. ;) The substance we're referring to fills the screw heads, not the threads. Have another read and take a closer look at the head of the removed screw vs. the installed one.

    Jeff Suovanen -

    as a former tech, I doubt they have the capacity to look out for that.

    YourMomsAndMe -

    Apple is likely using a corrosion sealer and in this case the sealer created a bubble in the hollow.

    Dan -

  5. YXJyNCauwon5IPOQ
    YXJyNCauwon5IPOQ
    gKgq3Xph4u4ZiFhf

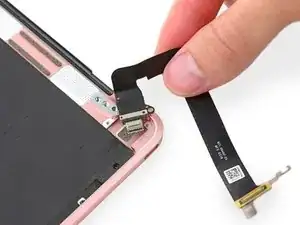

    • Am anderen Ende hat sich die USB-C Hardware anscheinend auch geändert. Das Kabel ist nun fest mit der USB Platine verbunden, so dass beide zu einer Einheit verschmelzen.

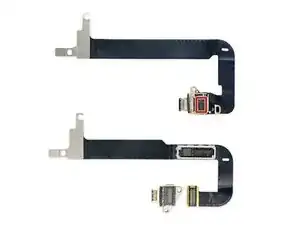

    • Das Silizium sind auch neu und wurde vom Kabel weg direkt in die USB Platine verlegt. Hier ist ein Vergleichsbild der neuen USB-C Hardware (oben) mit der aus dem 2015er MacBook (unten).

    • Parade Technologies PS8741A (vermutlich eine Fortschreibung des PS8740 USB Type-C Umsteuerschalters)

    • Diese neue USB- und Kabelanordnung ist eine Sache, die nicht mit vorherigen Retina MacBooks kompatibel ist.

    Any color on whether Apple redesigned the USB connector/cable such that it could be removed without having to remove the hinge? (In last year's model, the USB "module" is held captive by the hinge flange.) Esp in light of those tamper-resistant hinge screws.

    Scott -

    The redesign doesn't seem to have made the USB board any easier to remove.

    Jeff Suovanen -

    Not tamper-resistant - tamper evident.

    And that's a good point - hinge screws should be tamper evident because a loose or wobbly hinge puts strong forces where they shouldn't go and it's possible to damage a chassis and internal boards if they are not torqued correctly Screen hinges are subject to a lot of forces through use and abuse, and while they are strong, the get that strength when properly attached. Do it wrong and you'll put stresses where they weren't designed to be, which can be a cracked or bent case at the best, bent or cracked circuit boards or screen at the worst. So Apple puts it there to see if you've been fiddling with the hinge and possibly caused damage not covered by the warranty.

    Worf -

    can the USB-C port be replaced when it wears out/fail?

    Mike Liang -

    Hey any body know where I can find the USB C flex for the 2016 MacBook retina even used would be ok

    Sam Garesche -

    Is the 2016 connector compatible with the 2015 connector? The Logicboard part seems to be the same. Does anyone knows about that?

    Martin Kühn -

    For anyone wondering, no, you CANNOT install the 2015 flex cable in the 2016 Macbook, and vice-versa. While they look very similar in the pictures, the motherboard connection is actually slightly smaller on the 2016 model.

    Really sucks as the 2015 flex cable can be had online for ~$40, while the 2016 flex cable is easily around $100.

    Unfortunately a terribly designed computer in many respects…

    Dillon Dixon -

  6. 1Tr2vNtsTNHPhNeQ
    1Tr2vNtsTNHPhNeQ
    LAYP5PYDDeKV2OqA

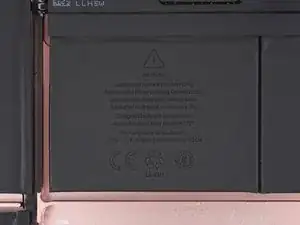

    • Der Form des Akkus scheint 100%ig identisch mit der Zellenvielfalt, die wir im MacBook 2015 gefunden hatten.

    • Und irgendwie hat Apple es geschafft, 4% mehr an Ladung in das 7,55 V 39,71 Wh Akkumodell von letztem Jahr hineinzupressen. Apple gibt an, das diese 7,56 V 41,41 Wh Li-Ionen Energiequelle für bis zu 11 Stunden iTunes Videospielzeit sorgen kann.

    • Wir vermuten, das dieser Kapazitätsgewinn durch verbesserte chemische Prozesse erreicht worden ist (es könnte auch sein, dass die Entwickler bei Apple grade so viel Material vom unteren Gehäuse abgeschabt haben, das der Akku etwas dicker werden konnte).

    • Leider haben sie keine von dem netten elastischen Zuglaschen hineingequetscht, die wir bei anderen iGeräten von Apple gesehen haben.

    • Davon abgesehen haben unsere Tests gezeigt, dass dieser etwas saftigere Akku mit dem letztjährigen kompatibel ist. Das ist nett!

    What are the "edge-shaped" cutouts on the lower corners of the upper two cells in the picture? Maybe needed for ventilation to work, or to ensure the book doesn't "flex" (or worse, squeeze the batteries too much, ending up with the Note 7 we all know and love..)

    jimwitte -

  7. Cvv54BcgvCC2HkUS

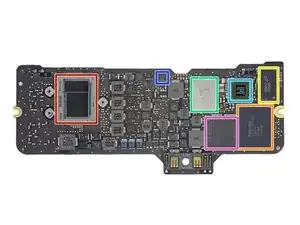

    • Das Logic Board! Welche Chips wird uns dieses MacBook servieren?

    • Intel SR2EN Intel Core m3-6Y30 Prozessor (4M Cache, bis zu 2,20 GHz)

    • Toshiba TH58TFT0DFKLAVF 128 GB MLC NAND Flash (+ 128 GB auf der Rückseite, also insgesamt 256 GB)

    • Micron MT41K256M16LY-107 4Gb DDR3L SDRAM

    • Universal Scientific Industrial 339S0250 Wi-Fi Modul

    • Broadcom BCM15700A2 (so wir in verschiedenen anderen MacBook Modellen)

    • National Semiconductor 48B1-11

    • F4432ACPE-GD-F (wobei der SSD Kontroller vermutlich darunter liegt)

    Will you disassemble F4432ACPE-GD-F to check if there is a "NEW" SSD controller under it? From the marking, the memory is probably LPDDR3 memory from Micron/Elpida. Perhaps, Apple has new NVMe SSD controller for Macbook 2016.

    JJ Wu -

    Please refer to http://abtronics.kz/components/EDF4432AC...

    There is 4Gb LPDDR3 from Micron/Elpida. The part number is "EDF4432ACPE-GD-F-R" that is similar to "F4432ACPE-GD-F" in the Macbook 2016. If it is LPDDR3 truly, probably the NVMe SSD controller in the Macbook 2016 is different from the one used in the Macbook 2015. The memory NVMe SSD controller used in the Macbook 2015 is 4Gb LPDDR2.

    JJ Wu -

    Agree with you, there should a new SSD controller for Macboo 2016. Can theifixit de-PoP the memory and controller for Macbook 2016 as you did fro Macbook 2015?

    CM YANG -

    Would the early 2016 logic board be compatible with the 2015 MacBook? E.g. Can you put the 2016 logic board in the old 2015?

    James -

    Does the retina MacBook have 2x2 or 3x3 antennae?

    David Ahn -

  8. fAnsEwIiTgpJQhdI

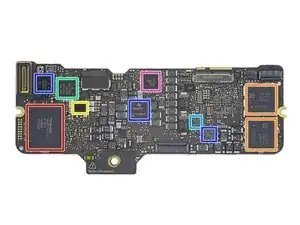

    • Warte, auf der Rückseite sind noch mehr Chips:

    • Toshiba TH58TFT0DFKLAVF 128 GB MLC NAND Flash

    • Samsung K3QF4F4 4 GB LPDDR3 RAM (x2, also insgesamt 8 GB)

    • Apple 338S00066

    • Texas Instruments/Stellaris LM4FS1EH SMC Kontroller (Ersatzcodename für den TM4EA231)

    • SMSC 1704-2 Temperatursensor

    • Texas Instruments SN650839, TPS51980A und CD3215B01

    • Intersil 95828

    Can someone tell me where the Power Pins are? Are they these two bits between the battery and keyboard connector?

    Does anyone have the exact size/data of it? I would like to render it…

    Yuna Braska -

  9. ENCAKSBKdslOQAf1
    ENCAKSBKdslOQAf1
    yucNbLCMpRRECOMf

    • Retina Macbook 2016 Reparierbewertung: 1 von 10 (10 ist am leichtesten zu reparieren)

    • Diese lästigen Tri-point Schrauben sind endlich Vergangenheit und wurden auch wunderbar normale Kreuzschlitzschrauben ersetzt— aber die Schrauben mit Manipulationsnachweis an den Scharnieren geben uns das Gefühl, beim Reparieren Einbrecher in unseren eigenen Geräten zu sein.

    • Prozessor, RAM und Flashspeicher sind immer noch am Logic Board verlötet.

    • Die Akkueinheit ist komplett und sehr fest im unteren Gehäuse verklebt.

    • Das Retina Display ist immer noch eine verschmolzene Einheit, die Schutzscheibe ist nicht separat. Wenn das Display ausgetauscht werden muss, wird das ganz schön teuer.

    • Es lässt sich zwar nicht leichter reparieren als die letztjährige Ausgabe, profitiert aber von vielen gleichen Ersatzteilen und Reparaturverfahren.

Tinte & Feder

Evan Noronha

Mitglied seit: 06/02/15

219164 Reputation

50 Kommentare

Step 8, Apple 338S00066 should not be the SSD controller. It might be the audio codec.
