Here is a relatively inexpensive and small guitar amp. This particular one needed some repair. So while I was waiting for parts, I figured I might as well make a teardown.

  1. aiWIrKaENYbwuY1n
    aiWIrKaENYbwuY1n
    dpBcLpKqGpINWo1V
    YdIIhDLrZSbWRMB5
    • Here is the front view of the Rogue G10 amp.

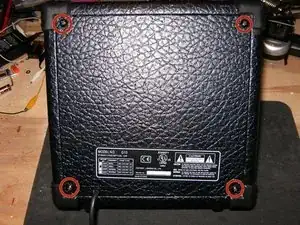

    • Back side shows 4 Phillips head screws that need to be removed.

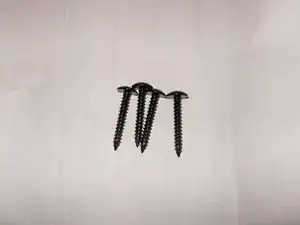

    • Here are the 4 #6x1" screws

  2. RGoqAvHbJ2VTq4DT
    RGoqAvHbJ2VTq4DT
    XPxRPsCfUVN14DkN
    1ZnhljJibZKOqsUG

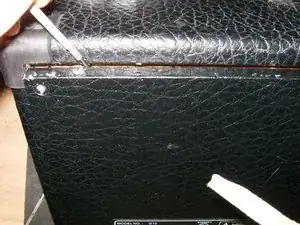

    • Use a small screwdriver or other small suitable prying instrument to remove the back cover.

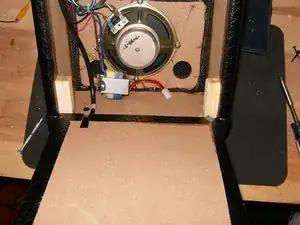

    • With the back cover removed the speaker and amp become visible.

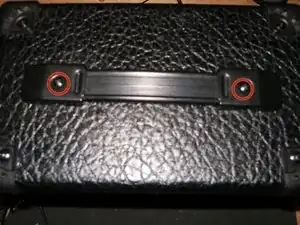

    • Remove the 2 Phillips head screws from the carrying handle. These two screws also attach the amp to the onside of the case.

  3. 6ToRh3NOLvv1BdQW
    6ToRh3NOLvv1BdQW
    eSITOGlK1ZpRTTvc
    NiCEslihHKGrTX2s

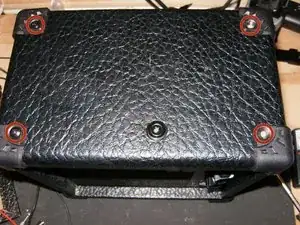

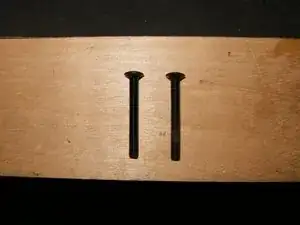

    • Here are the two screws from the handle. They are 1/8"x1 1/4"

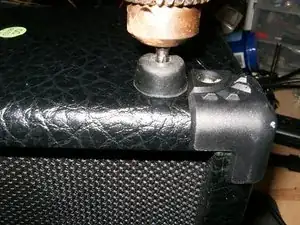

    • Remove the 16 screws from the plastic corners. These corners serve no purpose other than decoration.

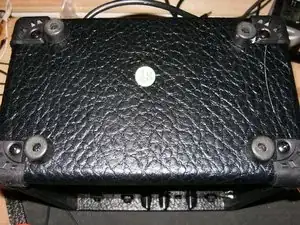

    • There are 4 rubber feet on the bottom of the amp.

  4. TWqU2eOlAiFY1nH1
    TWqU2eOlAiFY1nH1
    oAh3sJTvUUYTLkUH
    WCHXnRdMvLdWqdBU

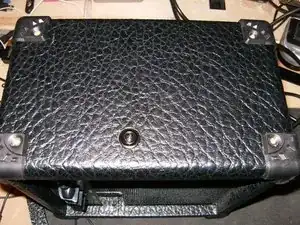

    • This shows the corners with the screws removed.

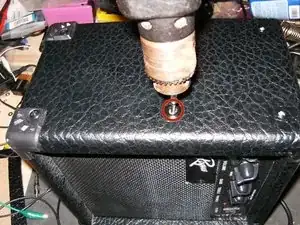

    • Remove the rubber feet by removing the Phillips head screws.

    • On the left and right side of the amp is a Phillips head screw, located 1/3 down from the top and to the front. These two screws hold the front panel to which the speaker is attached. Remove those.

  5. TEWAoPaNEXvKYkiT
    TEWAoPaNEXvKYkiT
    flREYeBjyKEHr4Zf
    MxFTZ3goDngeqnBW

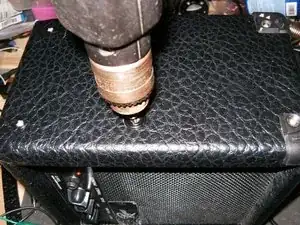

    • Here is the one on the right side, same location.

    • Remove it as well

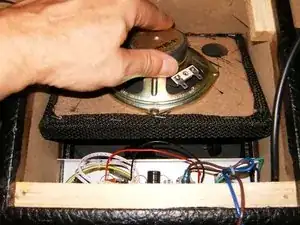

    • With those two screws removed, the front panel which houses the speaker, can be simply removed

  6. ONtHlpEJx3yjFUID
    ONtHlpEJx3yjFUID
    5EuEfWS3bSeT1Yky
    xfbOPgDh1nFG3Z2Y

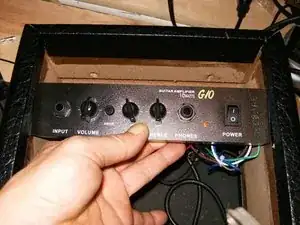

    • remove the front panel and place aside.

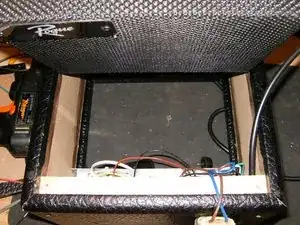

    • With the front panel removed, the amp will now simply lift out as well

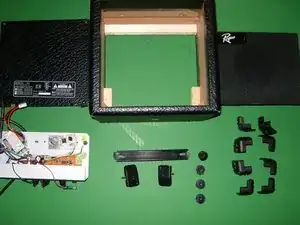

    • Here is the amp totally disassembled. Straight forward job. No glue, no hidden screws.
