Roku RC-MC1 remote Teardown

Veröffentlicht: 30/03/22

Teardown

Einleitung

The volume-down button stopped working, so I had to dive-in and check to see what the problem was.

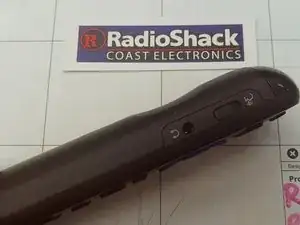

  1. u2BdvDGkGNdBaJxU
    u2BdvDGkGNdBaJxU
    SCYqZVIVFnLxlejl
    jPuQltMRclUN4FWf

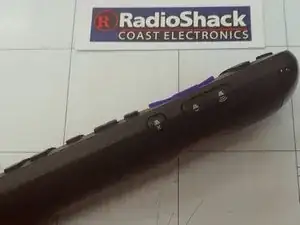

    • Nice design, simple and feature packed!

    Yeah, Radio Shack SLO!

    Radio Shack SLO -

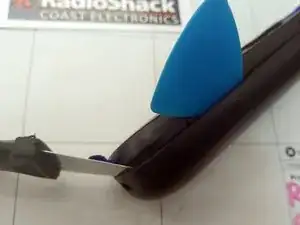

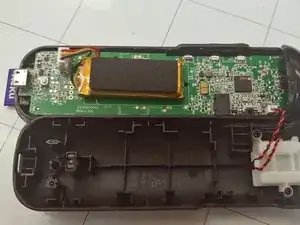

  2. HxlNhcPmZRrtHaeI
    HxlNhcPmZRrtHaeI
    ogQbJjxBlyTihffv

    • Starting from either side of the micro USB charging port, insert the tip of the Jimmy and pry back and pop the first locking clip.

    • After that it's like most other plastic shell devices in which you just work your way around, releasing the clips.

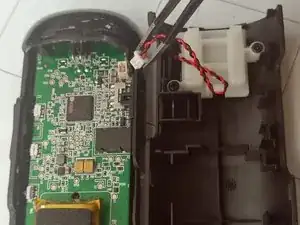

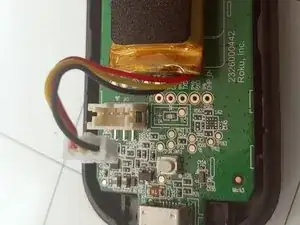

  3. 1LZtS2rhXJKwnU2o
    1LZtS2rhXJKwnU2o
    HZFbxpnXErtRTh3K

    • Remove the battery connector from the board. Then to free the back cover to remove the microphone connector.

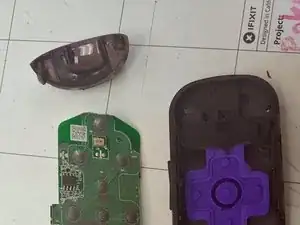

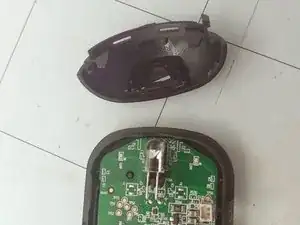

  4. ZdtXpjqPRYs42vND
    ZdtXpjqPRYs42vND
    dU2k4G12hnNPClrH

    • To release the circuit board you'll need to gently pry off the IR window.

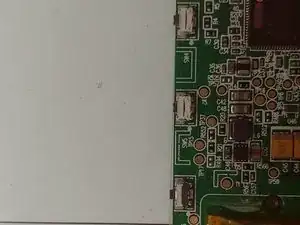

  5. ZZQwlsRvRWvh6opt

    • Now to find some replacement switches!

    • Surface mount soldering will be required to change these little buggers.

    • They can be salvaged from another circuit board.
