Rowenta silent force extreme RO5931 main brush Teardown

Geschrieben von: David
  • Kommentare: 1
Rowenta silent force extreme RO5931 main brush Teardown

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

The push button did not lower the brush properly : a broken plastic inner-piece was hindering the lowering of the brush. This guide explains how to tear down the brush and put the borken piece away.

  1. NS3mOJZ2uckEneJv

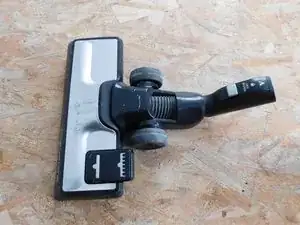

    • Turn off the vacuum and unplug it from the outlet.

    • Unmount the main brush head from the cleaner pipe.

  2. V3HI5UbcfUBhFAqT
    V3HI5UbcfUBhFAqT
    XCHseL5Z1kZUDTUp
    6HDubTQKOLVfhL5q

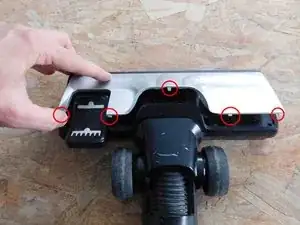

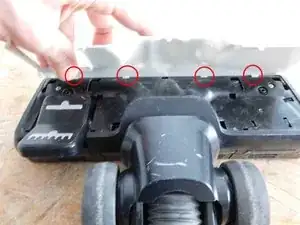

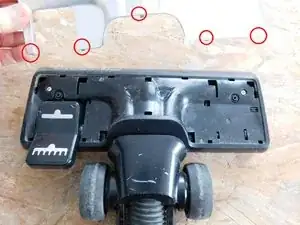

    • Unsnap the clips of the top cover with a small slot screwdriver.

    • Remove the top cover of the brush.

  3. Epc6ybenhlV5GUdY
    Epc6ybenhlV5GUdY
    ynxKQXbmcImIJPUY

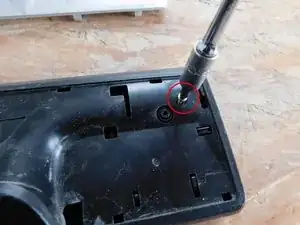

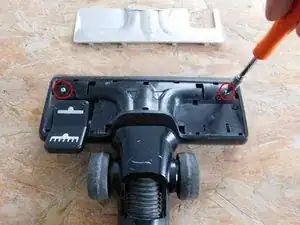

    • Unscrew both Philips screws from the top of the brush.

  4. dr5pPgiYEQ6OuENQ
    dr5pPgiYEQ6OuENQ
    eNoCIRUlnYea6Bak

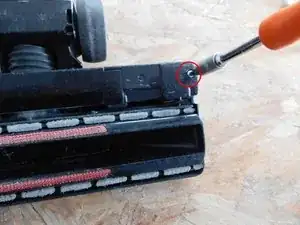

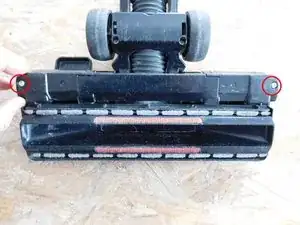

    • Unscrew both security torx screws.

  5. GYAkCRMfSucEy5CE
    GYAkCRMfSucEy5CE
    rFcfNZBeMpLnI464
    CuKoOVeEvBIJe2KG

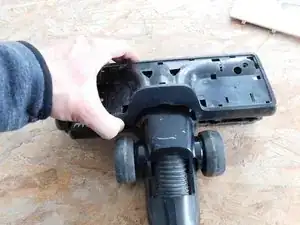

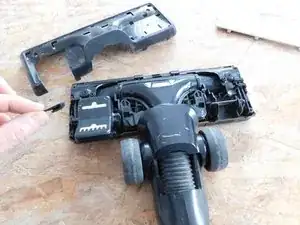

    • Smoothly and carefully take out the top of the brush head.

    • Take some time to search for the defect.

    • Remove broken pieces and repair if you can.

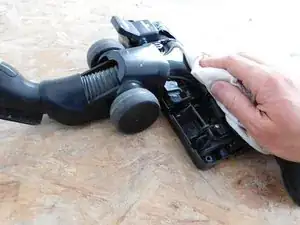

    • Clean up the inner parts of the brush with a smooth cloth. Remove dust, grains that could damage the inner parts of the brush.

  6. cXov36MLjqHfcIZI
    cXov36MLjqHfcIZI
    fFuZOynghuwSq2Rw

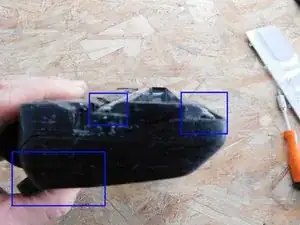

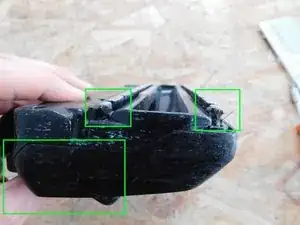

    • Push the retract button : the brush must be lowered.
