We stripped down the Samsung E60 eReader to its basic components!
Equipped with a Cortex A8 CPU, 256 Mb of RAM, 2Gb of Flash, USB OTG, Wifi, Bluetooth, SDCard slot and a 6" 600 x 800 e-Ink display, this device plays into the same category as the Amazon Kindle or the B&N Nook.
In Europe and in France particularly, its price has dropped from an introductory 329 Euros down to 99 Euros plus a 50 Euros refund, making it the cheapest available eReader available.
Many thanks to SegmentationFault for providing us with a device!
-
-
Turn the device upside-down and slide open the back panel
-

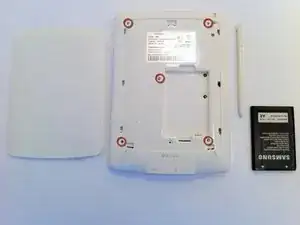

Remove all accessories, including battery, stylus and additional MicroSD Card
-
Remove the 5 screws using a Philips #000 screwdriver
-
-
-
Turn the device to have the screen up and slide open the keyboard
-

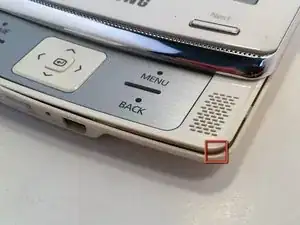

Gently twist the back cover at one of the keyboard corners to separate it from the keyboard top
-

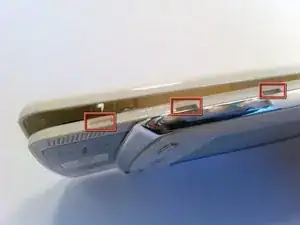

The back cover is maintained by 3 or 4 invisible hooks on each side of the device
-
Following the join, squeeze gently the back cover to open it
-
-
-
Gently pull up the 2 speaker connectors
-

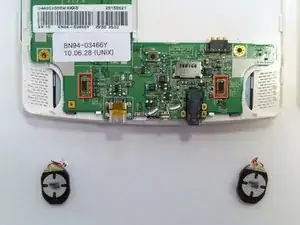

Take off the 2 speakers that are soft-glued into their cavity
-
-
-
The main PCB is maintained by 2 hooks at the top and 2 at the bottom
-

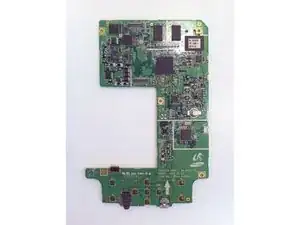

Press the 2 top hooks to release the PCB
-
There may be a sticker close to the 2 bottom hooks: peel it
-

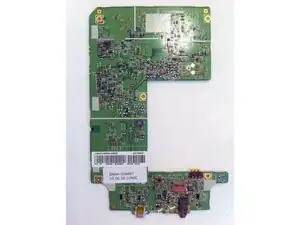

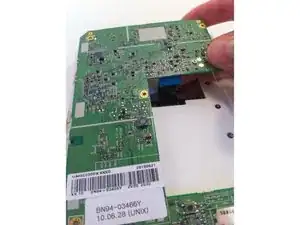

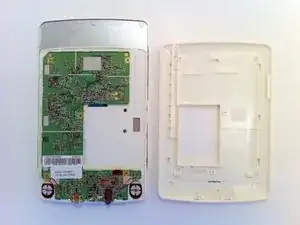

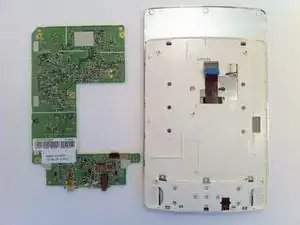

Lift the PCB up and disconnect the screen FPC cable, then remove completely the PCB from the plastic case
-
-
-

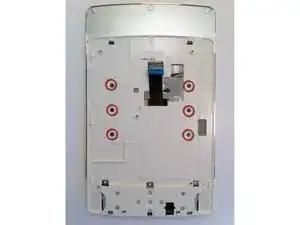

Unscrew the 6 short black screws using a Philips #00 screwdriver
-
Separate the plastic keyboard top from the screen assembly
-
-
-

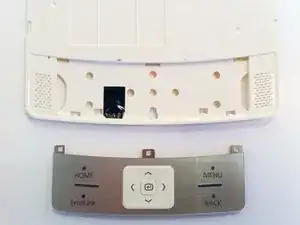

Push in the 3 small metallic hooks from the back of the keyboard to release the brushed aluminium keys
-
-
-

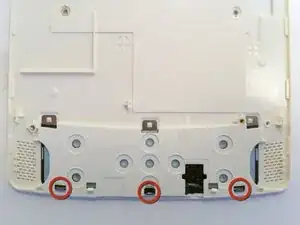

Remove the 3 top metallic stickers that hide 3 screws
-

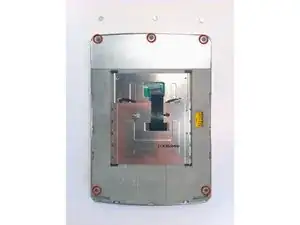

Remove the 5 screws usign a Philips #000 screwdriver
-

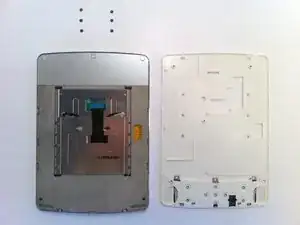

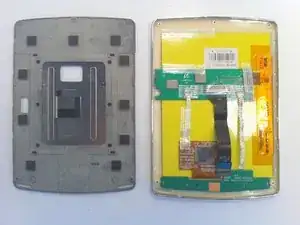

Separate the sliding assembly from the plastic top
-
-
-
Remove all the transparent tapes on the PCBs and connectors, keeping the top one holding the screen to the plastic case
-

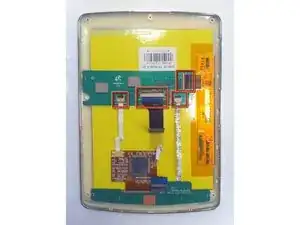

Pull up the small black lever on each connector (4 of them) on the intermediate PCB to release the corresponding cable
-
-
-

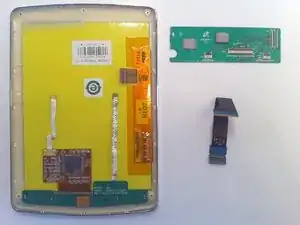

Remove the left touchscreen FPC by pushing the 2 ears on the tiny intermediate plastic part to remove it out from the touchscreen PCB connector, then pull apart the FPC cable itself
-
Remove the 2 screws that hold the "Next/Prev" key PCB in place using a Philips #000 screwdriver
-
-
-

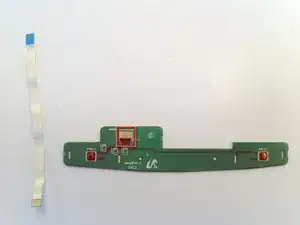

Turn the "Prev/Next" keys PCB up, remove the transparent tape from the connector
-
Lift up the small lever on top of the conenctor to release the "Prev/Next" FPC cable
-

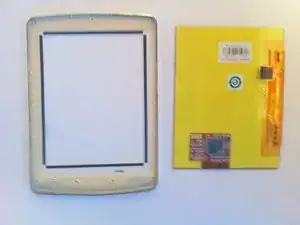

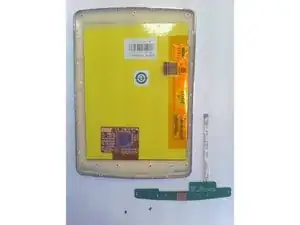

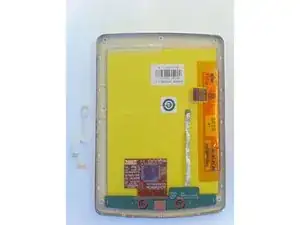

Remove the transparent tape that holds the screen to the pastic top
-
-
-

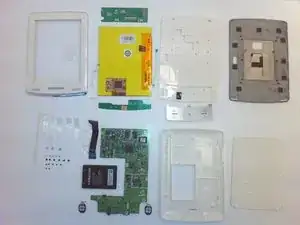

As always, we provide each device with a fitting final layout shot that it so greatly deserves.
-
