Tearing down the Samsung Galaxy Centura, a Tracfone / Straight Talk exclusive.

  1. XRKNUIbWuExLrrG2
    XRKNUIbWuExLrrG2
    XDbxGZPqTNlECEaY

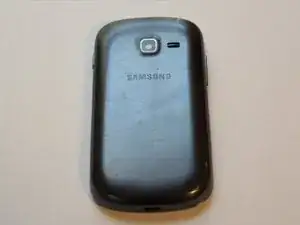

    • This is the Samsung Galaxy Centura, a low-end smartphone made for the Tracfone/Straight Talk networks.

  2. wCPAqAKPINVDDKrU
    wCPAqAKPINVDDKrU
    ERUXsCjhgBTNPNFS

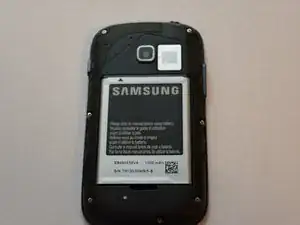

    • Remove the battery, and then remove the 7 Phillips screws surrounding the outer casing.

  3. gosYPytq55n5jhBm
    gosYPytq55n5jhBm
    5r2rPQBIyMLI6j6M
    Ar5qXDbKRwZMThid
    • Pop the 4 clips on both the left and right side of the phone. The outer casing should come right off by pulling.

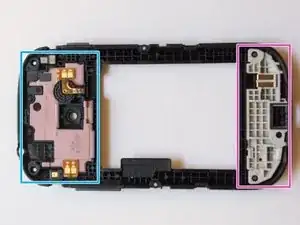

    • This antenna can be removed with a spudger or screwdriver.

    • This is the speaker assembly (with more antennas!)

  4. tThmMXTrdXjVyVAJ
    tThmMXTrdXjVyVAJ
    CxqIRNSnmx5mHDhI
    1H1areGEOaTL16LP

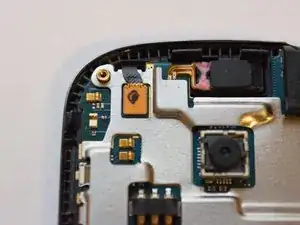

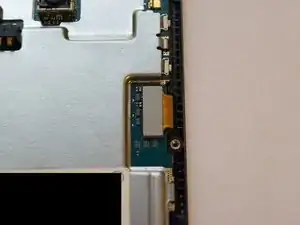

    • Disconnect the two flex cables with a spudger or plastic opening tool.

  5. tsmTxHMteIAhCpHw

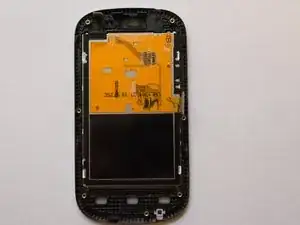

    • Now the display assembly is free.

  6. FqvgOSXsRyTxuFbk

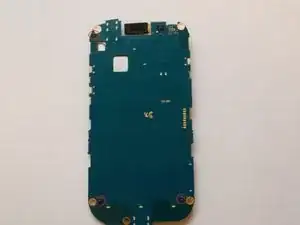

    • Remove the 3 Phillips screws on the back of the motherboard to remove the EMI shielding.

  7. uqm3RZCpNbpuBGWl

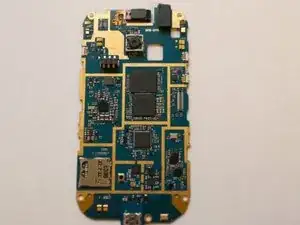

    • Congrats! You've torn down the Samsung Galaxy Centura.
