Samsung Galaxy Nexus Teardown

Geschrieben von: Jake Devincenzi
Veröffentlicht: 15/12/11
  • Kommentare: 49

Samsung Galaxy Nexus Teardown

Veröffentlicht: 15/12/11

Teardown

Einleitung

It's here, it's here, it's finally here! The sun is shining, the birds are chirping, and the ice cream truck is driving up the street, playing its joyful tune. We have our dollars ready, and we can't wait to grab ourselves some goodies. Join us as we unwrap our favorite frozen treat, the Ice Cream Sandwich-laden Galaxy Nexus.

Interested in getting the inside scoop on the latest teardowns? Follow us on Twitter!

  1. O2RkA1NfjdwjDQUM

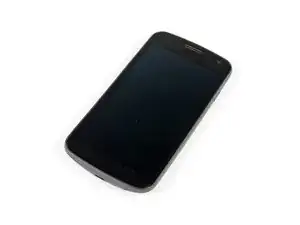

    • The Galaxy Nexus packs some serious hardware inside. Key specs include:

    • 1.2 GHz Dual-Core Processor

    • 1 GB RAM

    • 16 GB Internal Storage

    • 4.65" Super AMOLED Display

    • 5 MP (1080P HD) Rear-Facing Camera

    • Near Field Communication (NFC) and Wi-FI Direct

    • Android 4.0 Ice Cream Sandwich

  2. CTOrNEtBrsISaeAW
    CTOrNEtBrsISaeAW
    uTVF2UGBUsjAc6sY
    HMQ6sBZDwLBXDxfV

    • Like most of Samsung's smartphones, the Galaxy Nexus' 5.0 megapixel camera is perched in the middle of the phone's backside.

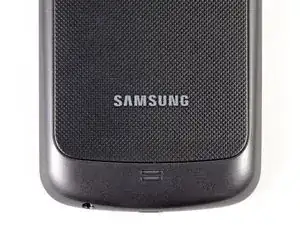

    • "Clean" is the word that comes to mind as we look at the rear of the Galaxy Nexus. You won't find any "1080p HD" markings or model numbers here.

    • Just like the Nexus S, the Galaxy Nexus features a Contour Display. The curved glass conforms to the side of your face and makes talking on the phone more comfortable.

    • Maybe, some time in the very distant future, phones will become so advanced that they fit perfectly to the user's ear and mouth.

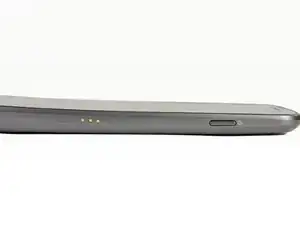

    • The power button and three gold pins for multi-media docking occupy the starboard side of Google and Samsung's flagship smartphone.

  3. Fqdbo4iYDulbE4t2
    Fqdbo4iYDulbE4t2
    wjrkSxaN3u4L2OrI

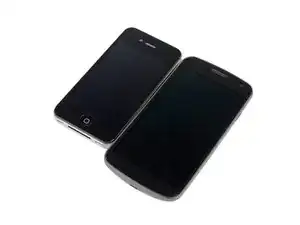

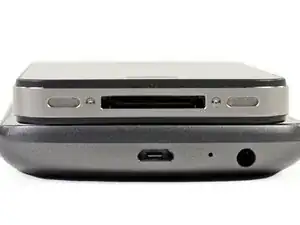

    • How does the Galaxy Nexus stack up to the iPhone 4S?

    • In terms of size, the Galaxy Nexus is big enough (5.33 x 2.67 x 0.35 inches) to devour the 4S, so hopefully you have large pockets.

    • Though it is larger than the iPhone 4S, this Galaxy Nexus is 5 grams lighter (135 compared to 140).

    This shot shows the fat chin and makes the nexus look much thicker when in actuality it is thinner throughout the majority of the phone. Needs a width comparison from the front and side to accurately show the thickness.

    rsjet -

  4. EwX5lGTZMh3oQmSi
    EwX5lGTZMh3oQmSi
    WXiWSqaX1RymQVN2

    • Insert finger here, wiggle finger thusly, and pop goes the panel!

    • OK, we'll come clean; the phone shipped with the battery removed. We first had to install the battery and back cover, and then we did some prying. This assuredly confirms one thing: the battery is user-serviceable.

  5. VTbDsRXHBHhAgABS
    VTbDsRXHBHhAgABS
    eBYegRmBLRY4orcf
    TDlQcM2OdFoNZ6JE

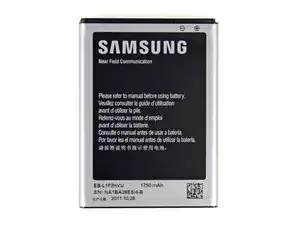

    • Not only does the 3.7 V, 1750 mAh battery power the phone, but the user manual states that it also doubles as the NFC antenna.

    • O RLY? We had to see this one for ourselves.

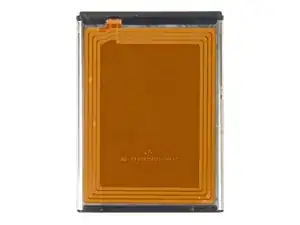

    • Lo and behold, there's a sweet antenna hiding underneath the battery's shiny wrapper. So if you ever want to buy a replacement battery (and keep NFC functional), ensure that the battery has the antenna.

    • Our battery says "Near Field Communication" on it, so that might be a good indicator if it will function as an NFC antenna.

    How does the Antenna on the battery work, is it attached to the charging circuit and then that attaches to the NFC chip? Or is the NFC chip combined with another?

    Danny -

    there are 4pins for battery connector; i think that 2pins for battery, others 2pins for NFC and battery signal indicator.

    Lai Zhijie -

    Galaxy nexus works only as a reader NFC or also transmits information?

    Fabio -

  6. EFasvEgGXuDWNBQJ
    EFasvEgGXuDWNBQJ
    HkIZkbDMSlMnUa1V
    qqCnaRuXSHnMhDXJ

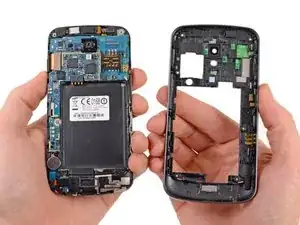

    • Whipping out our handy 54 Bit Driver Kit, we reach for a Phillips #0 bit and get to work opening the phone.

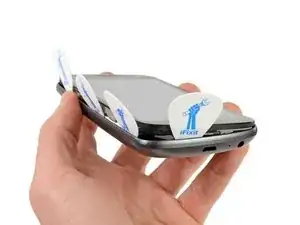

    • We wrenched our plastic opening tool till it was blue in the face and went through more guitar picks than Jimmy Page, but we managed to take off the back case. No device is too tough for the dexterous hands of the iFixit crew!

    Can I go up to Step 6 for cleaning purposes and reassemble without too much difficulty?

    ntejas -

    Removing the rear case (as shown in Step 6) took a lot of patience and care. I'd advise against it if you're just cleaning, since you might inadvertently scratch the case or glass. Anyhow, you're welcome to try; just know our teardowns aren't meant to be repair guides. Good luck!

    Matt Wiens -

    What is the thing directly below the SIM card container and above the battery container in the first picture?

    Antoan Angelov -

    Step 6 is *much* easier if you push up from the bottom in the slots along the edges with a flat head screw driver. Came out relatively easily, and no prying/picks required.

    gomtuu -

    uh be REALLY careful pushing into those "slots" with the screwdriver.. i just broke off a few transistors.. ^^ until now the only effect i encountered that my vibra seems to be dead...

    armin -

  7. HdDyP63RpHHEUHaU
    HdDyP63RpHHEUHaU
    NTOXRTqVGCwA2He2
    E2H5jcdTG1uNpcTm

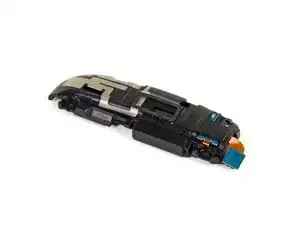

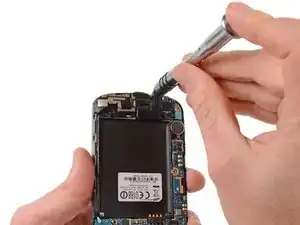

    • One little screw shackles the speaker and headphone jack assembly to the motherboard.

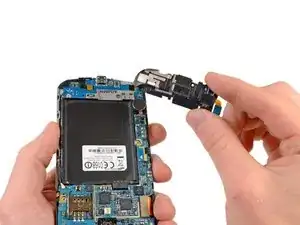

    • Goodbye, little screw; hello, speaker and headphone jack assembly.

    • With access to Google Music and high definition movies, there's no doubt that Galaxy Nexus owners will want their phone to make some beautiful noise. Unfortunately, our disassembled phone didn't make a single chirp.

  8. kQFOSBXfqBZ2CrkZ
    kQFOSBXfqBZ2CrkZ
    yt2CQSVPlSnJaUpa

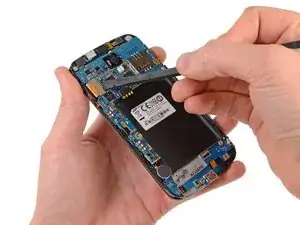

    • A few connectors here, some screws there, and a wee bit of glue everywhere…nothing stands a chance against our spudger! The motherboard dislodges from its home with moderate force, but nothing too extreme.

    Well &&^&.. ripped the flex cable for the volume buttons...

    David -

  9. yyUihLAmCkQFHLSs
    yyUihLAmCkQFHLSs
    AABoMsSDv4HwamGa
    AiNgQriIbMBt4eYZ

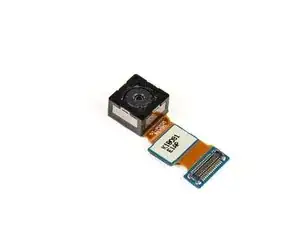

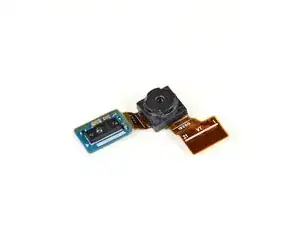

    • A flick of the spudger and out come the front- and rear-facing cameras.

    • The 5 megapixel rear-facing camera is optimized for low light conditions and has a handy continuous auto-focus feature that'll surely help keep those quick moments clear. If you prefer moving pictures, this camera can capture full HD 1080p "talkies."

    • The front-facing camera allows for video chat and will take pictures at 1.3 MP or videos at 720p.

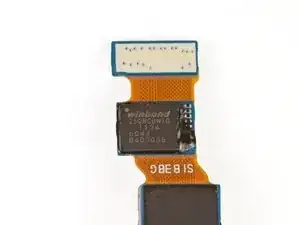

    • The rear-facing camera has a Winbond 8 Mb Serial Flash Memory unit in line to help it buffer all the data it collects.

    The 8Mb serial flash is too slow to be a buffer for the image, its probably to store some configuration information.

    anonymous -

    I need to remove the rear camera and using for another application, can anyone get the pinout of the camera connector, power and video signal?

    thanks,

    FJ

    Firas -

  10. 2QCobYGl5vVG2lgr
    2QCobYGl5vVG2lgr
    FSLQNMFE4IoTgAIs

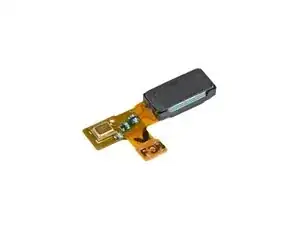

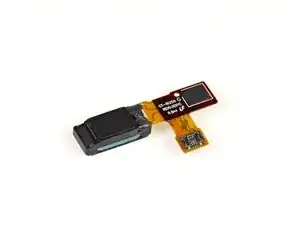

    • The ear speaker pops off the motherboard without much effort.

    • The ability to replace individual components inside the Galaxy Nexus impresses us, since this will make repair less costly.

  11. 2k6S4vvKPZh2IsB2

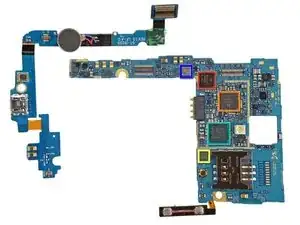

    • The primary internals of the Galaxy Nexus are held on two L-shaped boards. The small board on the left holds the vibrator motor and several connections. The large board on the right is the motherboard, which houses the volume buttons, SIM slot and the following chips:

    • Texas Instruments TWL6040 8-Channel High Quality Low-Power Audio Codec

    • Texas Instruments TWL6030 Fully Integrated Power Management with Switch Mode Charger

    • Invensense MPU-3050 Motion Processing Unit

    • Intel XG626 Baseband Modem

    • Bosch BMP180 MEMS Pressure Sensor

  12. noJObJXR2ZSfniZV

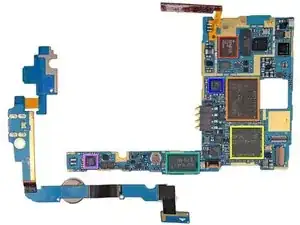

    • Flipping both boards over reveals a lot of nothing on the smaller board, but a ton of chips on the motherboard—a "smörgås-board," if you will:

    • RFMD RF6260 Quad-band Multimode Power Amplifier Module

    • Samsung KMVYL000LM Multichip Memory Package, which we believe to house 512 MB of RAM in addition to the main processor.

    • Samsung K3PE7E700M 512 MB DDR2 SDRAM

    • Samsung SWB-B42 BT 4.0 Dual Band Wlan FM Tx/Rx. Chipworks says the module is actually manufactured by Murata, and houses a Broadcom BCM4330 die inside.

    • NXP 65N00 Smart Card IC. According to Chipworks, this two-die package houses an MCU and a PN544 NFC controller.

    • Silicon Image 9244 MHL transmitter

    • SiRF SiRFstarIV GSD4t GPS tracker

    Please post unmodified picture. I need pictures of the resistors next to the processor

    AdamOutler -

    To check out unmodified photos, click on the Image metadata link in the top left corner of the image. Then you can choose to view the source image.

    Jake Devincenzi -

    I agree with Alex's comment: "The OMAP4460 is almost certainly underneath the K3PE7E700M-XGC1"

    It is also almost certainly a POP configuration - examination of the sides of both chips should clarify which one has a processor sitting underneath the memory package (It would be VERY interesting to know if the OMAP device was integrated fully into a memory package...)

    Curtis Barrett -

    Hi, great job with the teardown. I have wifi problem in my I9250, the wifi just won't turn on. Is it recommendable that i buy wlan part mentioned online and can I replace it easily without damaging the mother board? Will that solve my problem?

    Zoya -

  13. eFATMOEZKalliyMl
    eFATMOEZKalliyMl
    B11yCbJhX25kNd6O
    bUVGjthL1UNuOSKM

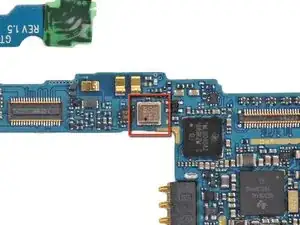

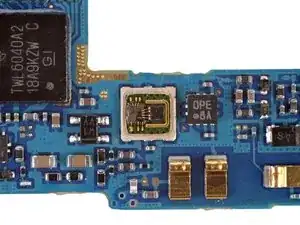

    • The chip labeled as 274 U141 031 hides the Bosch BMP180 MEMS Pressure Sensor, which should be responsible for the "Barometer" feature inside the Nexus.

    • The Bosch BMP180 is identified by its markings CMD 173 as noted by our friends at Chipworks.

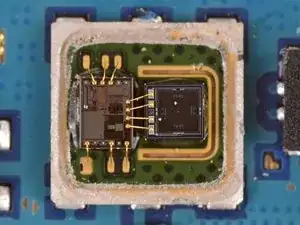

    • Check out the wire bonds on the third image. This is a very, very small chip.

    • Just how small is it? Well, here's how a U.S. dime looks like next to the chip (indicated by red arrow)

  14. KspEAW3JwAXHGS1l

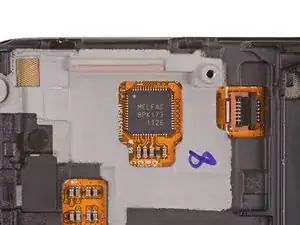

    What is the socket/connector next to Melfas 8PK173 1126 Touch Screen Controller used for? It sits under the volume ribbon on the motherboard but I cannot determine what it is connected to.

    jvonfeix -

  15. WeoSbMjXaNhocxh4
    WeoSbMjXaNhocxh4
    5cYlh2EIwNkewPfJ

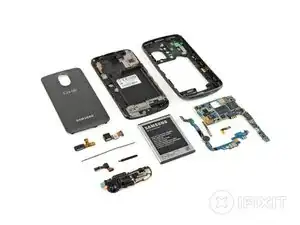

    • Samsung Galaxy Nexus Repairability Score: 6 out of 10 (10 is easiest to repair).

    • Battery replacement is incredibly simple thanks to the removable rear panel.

    • Minimal adhesive makes removal of the motherboard and other components a snap.

    • Headphone jack and speaker assembly are not soldered to the motherboard, so replacement is easy.

    • The only soldered components are the volume switch and vibrator motor.

    • Removing the rear case to access the motherboard and other internals requires a lot of careful prying and guitar-picking.

    • The glass is fused to both the display and the display frame. So don't crack the glass unless you're good with a heat gun, or you're fond of replacing the glass, display, and frame together ($$$).
