Samsung Galaxy Note 3 Teardown

Geschrieben von: matthew
Veröffentlicht: 08/11/13
  • Kommentare: 51

Samsung Galaxy Note 3 Teardown

Veröffentlicht: 08/11/13

Teardown

Einleitung

You can also learn how the repair the broken parts of your Note 3.

  1. DAPugPMqZX1quWqk

    • Turn the device off and use your finger to remove the back cover and battery. The Galaxy Note 3 battery is removable, making it easy to remove it without any tool.

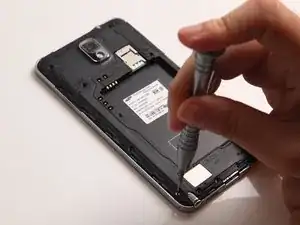

  2. RSFc6M3U2siEiDhJ
    RSFc6M3U2siEiDhJ
    LVRejY2541DjOh4G

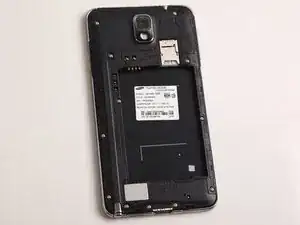

    • The back chassis is fastened by twelve Philips screws, so we have to undo the screws with the Philips screwdrivers.

    I found that for Step 2 my screws were too small for the #00 Phillips so the #000 worked perfectly. I do not see how the #00 ever fit unless it was forced into the screw head.

    rocket859 -

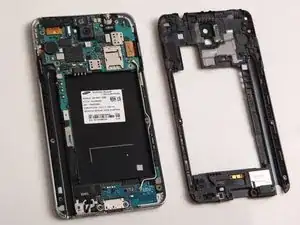

  3. RbiNyfour3bbLKIh
    RbiNyfour3bbLKIh
    6EXwPOOdPFCowNDV
    DMhGOcnXFQc4BG5s

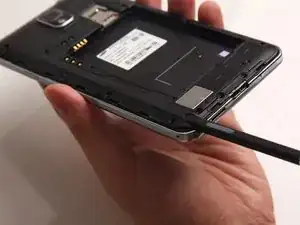

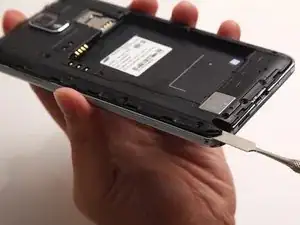

    • Pull out the S pen and use spudger to release the back chassis. Then the chassis is separated from the rest of the device.

  4. EarsuOcCwGTAMbwJ
    EarsuOcCwGTAMbwJ
    bnLwrBRGPmBFK1Ho
    SUHoTRBxvuUsg3fe

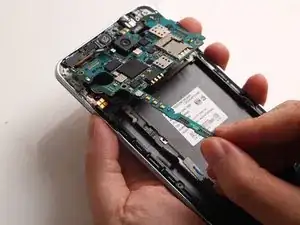

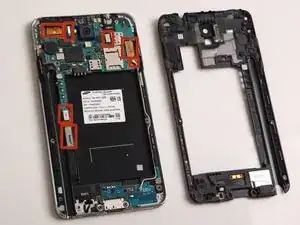

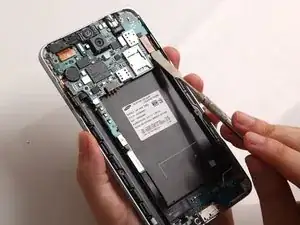

    • Disconnect seven cable connectors to remove the mainboard. Then the board is free.

    in picture you should mark where are the six connector which needs to be disconnected by no. 1,2,3 and so on

    rai -

    where is the gsm antenna located

    Jameal Holness -

    Can you explain about two connectors of LCD??why use 2 connectors in spite of with 1 connector LCD & digitizer work???

    Hani -

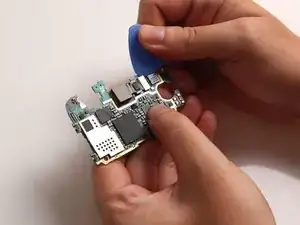

  5. dC3xoIPMMnSWRBZf
    dC3xoIPMMnSWRBZf
    GmkVaMHGm15kNiJ2

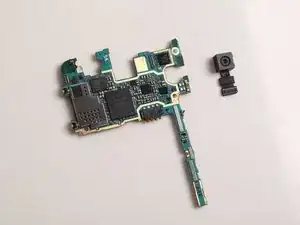

    • Take out the rear camera on the board.

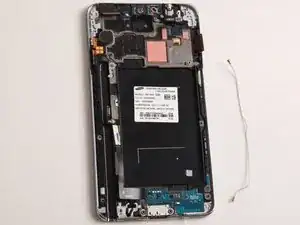

  6. 12QiZyqYlS6RBGLX
    12QiZyqYlS6RBGLX
    vk5LxCScJ1KJM2bZ

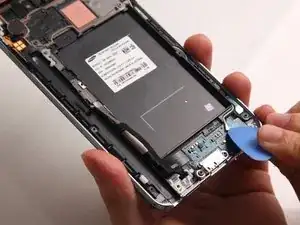

    • Use plastic case to release the antenna cable clips and remove the antenna cable.

  7. JsUmvSvKrsyQ2PUW
    JsUmvSvKrsyQ2PUW
    2iMgILMLHXNIjHIn

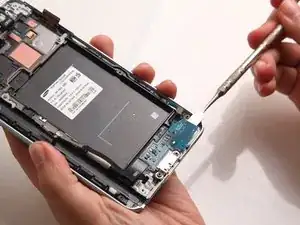

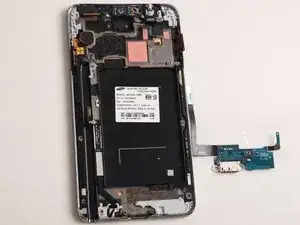

    • Use spudger to remove the USB board with proper strength because the USB board is stuck with glue.

    Hard!!! give more instructions!

    xenixii -

    Use a heat gun or hair dryer to loosen the glue if you need to. I worked a few different angles to slowly work it up. I also work mostly around charge port bracket because it’s the strongest point. I don’t want to break the circuit board or bend it too much.

    Andrew Hathaway -

  8. CUnPcpoPIoHcg2fW
    CUnPcpoPIoHcg2fW
    KA4MVDuMuBTPva3g

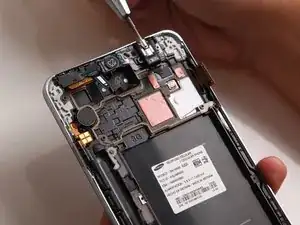

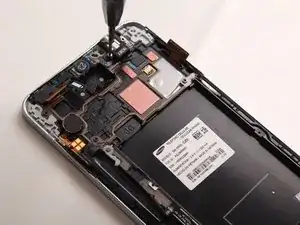

    • Undo the screw used to fasten the earphone jack and earphone and remove them.

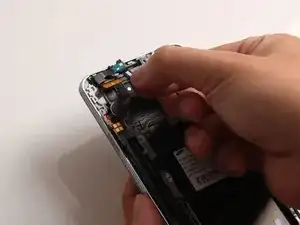

  9. wDMRZPUW2eSSxS1P
    wDMRZPUW2eSSxS1P
    XPCjENHYoNnRI12F

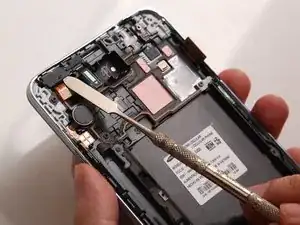

    • Remove the small metal bracket covering the front facing camera and sensor cable. Then remove the front camera and sensor cable.

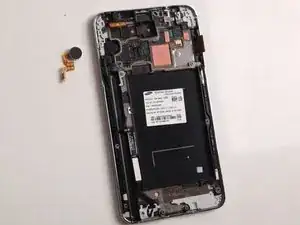

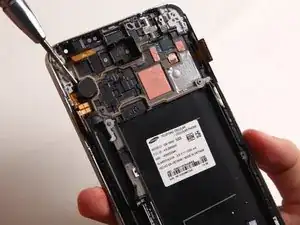

  10. WFVrlZbSVGAT5Kr3
    WFVrlZbSVGAT5Kr3
    jGYTFMbXCeEKDuXR

    • Use screwdriver to pry out the vibrating motor. Please be noted the motor is adhered to the front chassis and connected with the power button. Please lift it up carefully to avoid damaging the power button cable.

    Hard!!! very hard!

    xenixii -

    Very, very difficult. There is a small rectangle near the 4 contact pads; use this to help pry the adhesive backing off of the frame to reduce the chance of damage. Whatever you do, DO NOT attempt to pull loose using either the motor or the power button legs. These will tear and will require you to purchase a new one. Alternatively, save yourself some time and buy a new one to begin with if you’re doing a repair.

    Swimmer -

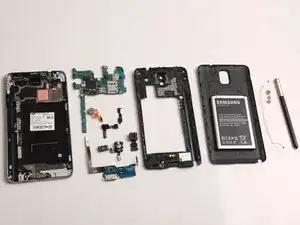

  11. 1jhqeLm5S4PKEgcN

    • The Samsung Galaxy Note 3 teardown is complete.

    Just used this guide to replace my screen, thanks!

    Trevor Krahn -

    If callers on the other side are hearing echos after you swap out your screen, make sure that the ear speaker and bottom mic/charging board are glued down good. I had this problem and fixed it by buying a new speaker and charging board (They came with new adhesive).

    Jason -

    You should add the step where you remove the screen in order to change the housing which includes the fake metal rims on the side. Please add it! Thanks

    Kostas -
