Samsung Galaxy Note 4 Teardown

Geschrieben von: Sophia
Veröffentlicht: 19/12/14
  • Kommentare: 31

Samsung Galaxy Note 4 Teardown

Veröffentlicht: 19/12/14

Teardown

Einleitung

This is complete Samsung Galaxy Note 4 teardown.

  1. 4ve2Cqpq5v2Ha1TN
    4ve2Cqpq5v2Ha1TN
    jN5HGaxZMCMqpVZF

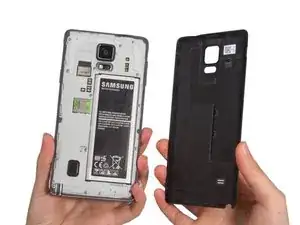

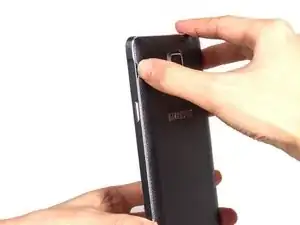

    • Remove the back cover. It comes off easily.

  2. lvXQHExQss4XFUtb
    lvXQHExQss4XFUtb
    OLphXw1d3QjNdLhC

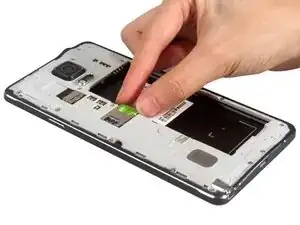

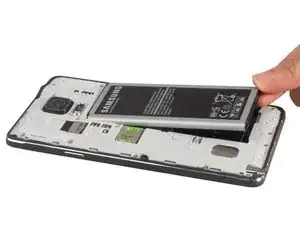

    • Remove battery, SIM card.

    • Don't forget the S Pen.

  3. nRXcxPMAkhZBfMs6
    nRXcxPMAkhZBfMs6
    oiQbEQijAXXqe1gv
    gYbfaSrUQKa3JLNP

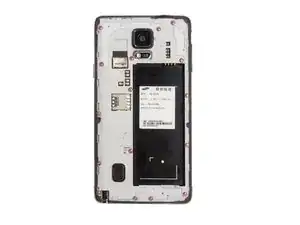

    • Remove the 16 screws all together on the middle housing. That is a lot of screws.

    My galaxy note 4 would not turn on. When it was opened up it had 15 screws and in the upper right hand corner there was a brass rivit. While trying to drill the display was broke.

    Have you ever heard of a rivit replacing a screw by Verizon or Samsung.

    The phone was a replacement under warranty.

    I mean, ... what the F xxxx !!!

    Steve Hartman -

  4. HGBvw4pRsoDOtJLl
    HGBvw4pRsoDOtJLl
    NPgdDXyMXdF2xwtM
    GlLTFQk3yrclXQ3X

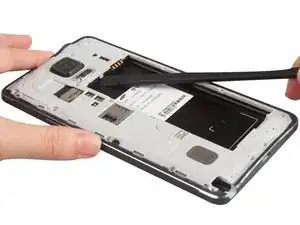

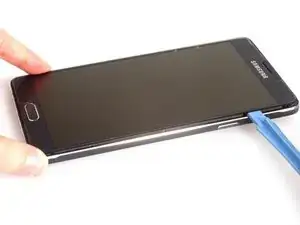

    • Cut the adhesive sticker between the screen and the middle housing. It will be easier if you apply low heat degree less than 85℃. Be careful to avoid breaking touch panel.

    • Carefully flip the housing over and loosen the hidden tabs around the battery slot.

    • Loosen the middle housing and then push the front assembly--this may take a little extra effort.

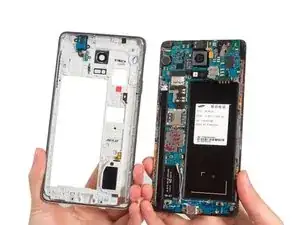

  5. Nde6w5aWZNPHPmcH

    • Separate front assembly from middle housing successfully.

    • The whole front assembly comes with motherboard, USB board, cameras, LCD screen and some other small components.

    • The back housing comes with power & volume button, headphone jack and loudspeaker. And except loudspeaker, other parts are easy to remove.

  6. OoHdibMHVYWeDBch
    OoHdibMHVYWeDBch
    Zs4h2pTYodN2gTcR
    jGmHkWMHNcHaZbja

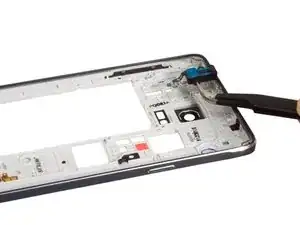

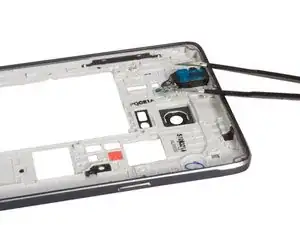

    • Get the flex free from the adhesive underneath and remove headphone jack naturally.

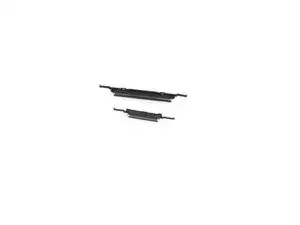

  7. a1YXEqpQB2XpaZq2
    a1YXEqpQB2XpaZq2
    ubANTsetKJ5EFoN4
    yjrABc3K4ZLl6Nqw

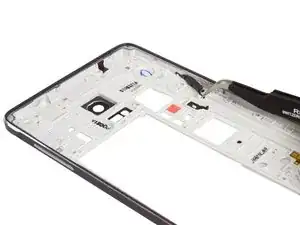

    • Unlike the Galaxy S5, the Note 4 power and volume buttons are easy to remove.

    Hi

    I bought back camera for note 4 from eBay but when I finish fixit its show me camera not found any one have idea how I fix this

    abdullah b -

  8. WfsF5SfN5GINUQ5a
    WfsF5SfN5GINUQ5a
    UPL2Rm5uPVVjOpqv
    bhSqILmZdcsHRMht

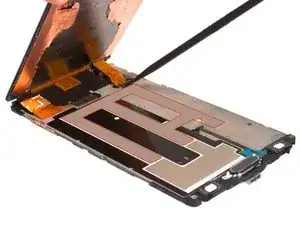

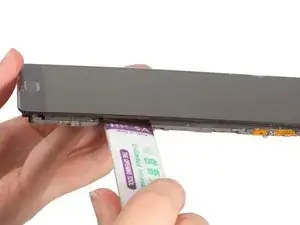

    • Cut the adhesive between LCD screen and mid plate carefully. Especially care about the position of the flex very much.

    • The adhesive is in the red scale, it's strong and we had damaged the foil film on the back of the screen when cut the adhesive. Heat with a low degree will make easier.

    • Release the connectors from motherboard. The right one is S Pen sensor film connector and the left one is LCD screen connector.

    • You also can see the soft keys on the bottom side. So be careful when cut the adhesive, don't hurt that part.

    • At last, remove LCD screen assembly carefully.

  9. AQZTr1u3dqgqUrEM
    AQZTr1u3dqgqUrEM
    TrGEjWNHirwVGbLT
    xRWovPMkVTfEQsvS

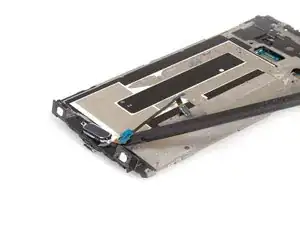

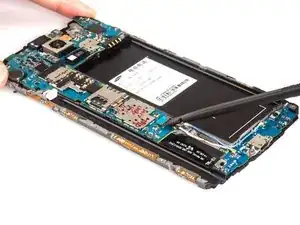

    • Release navigation button flex connector ,get it free from the adhesive on the mid-plate and remove it.

  10. CwnkNKUk6GuUPZSr
    CwnkNKUk6GuUPZSr
    qusjb1sFFH6fA4dT

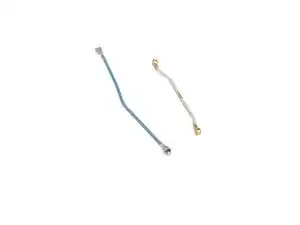

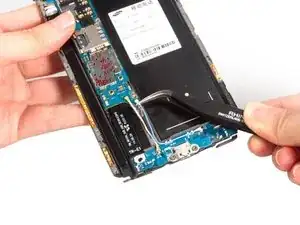

    • Remove 2 pcs of signal flexes. And maybe different versions Galaxy Note 4 comes with different numbers of signal flexes. Possibly one or two.

  11. FGpRTAFKWSwUqBFZ
    FGpRTAFKWSwUqBFZ
    K5LBQ3qg1LDGX6hh

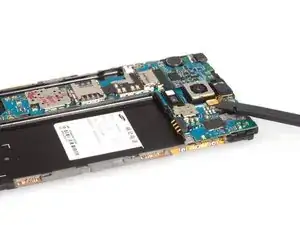

    • Twist off two screws securing motherboard and USB board at first.

    • Don't forget to release the earpiece speaker connector.

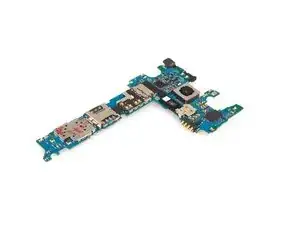

  12. YHc3dbUhHqtt6uBc
    YHc3dbUhHqtt6uBc
    yq5FhOMO1vqOCdpw
    46tZkSIWsQt3qkRI

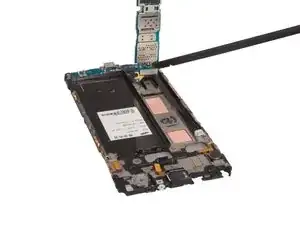

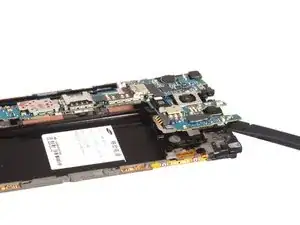

    • Pry up the motherboard.

    • Release USB charging board from motherboard.

    • Finally, remove Galaxy Note 4 motherboard.

    and what the names of these small circuits glued to the side of the chassis next to the volume button?

    elisangelodark -

    where can I buy a motherboard of my note 4? My motherboard is defective and needs to be replace. I bought my note 4 from Singapore 2 yrs ago. thanks for your help.

    Michael -

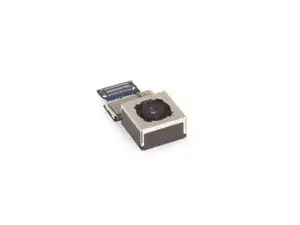

  13. rZAAWFWV4qobuSI4
    rZAAWFWV4qobuSI4
    yDwXMdy2sTKUXFwL

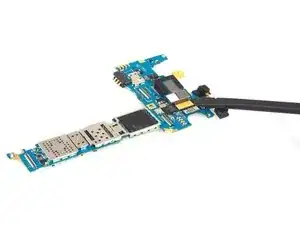

    • By the way, remove rear camera from motherboard. Release the connector and can take the camera away easily.

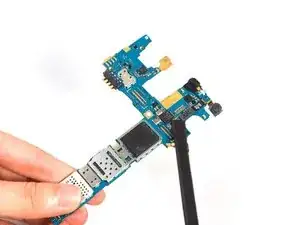

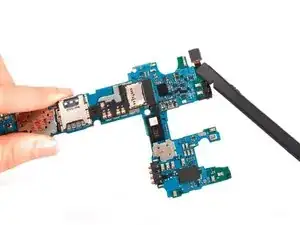

  14. xpqpJSiCOCCknq1T
    xpqpJSiCOCCknq1T
    eTWwOmUJgeHMS2T2
    nMjrjPbOnrpSQaJP

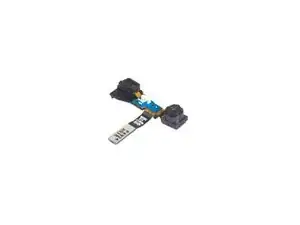

    • Now, it's the turn of front camera assembly.

    • Release the connector at first, and then get free the two clasps, at last remove the front camera with sensors together.

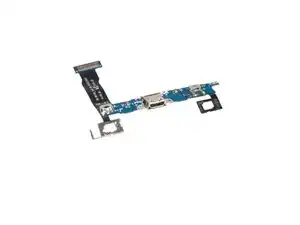

  15. ASvthOGvGFJwCWAS
    ASvthOGvGFJwCWAS
    vvkmthGFxZKCRbxa
    OaohHBvAoeROeA6r

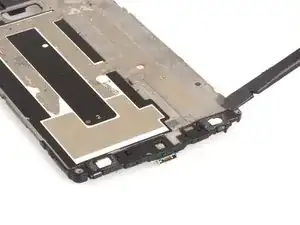

    • Get recent apps button and back button free from the adhesive on the mid plate.

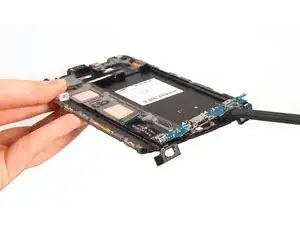

    • Pry up the USB charging board and remove it.

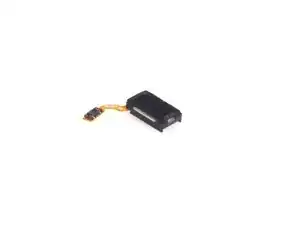

  16. eUx531XAdHSSLtdV
    eUx531XAdHSSLtdV
    PZlRphFDSkiMYmnp

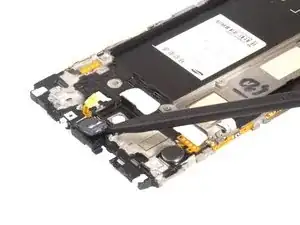

    • Pry up and remove earpiece speaker.

  17. dfaWjRWrpxGsqQ2m
    dfaWjRWrpxGsqQ2m
    sGOHpwAoTGZv2cSa
    hOwQu2HHNS3FJpKe

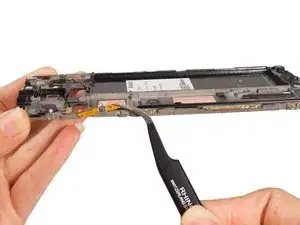

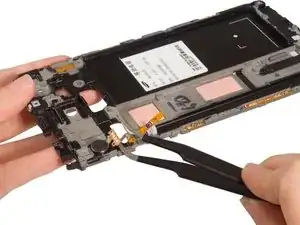

    • Vibrator comes with power button flex together.

    The screen repair place I went to used too much adhesive and it damaged my power button. Here's the replacement part: ttps://www.amazon.com/gp/aw/d/B0149VUM4E

    Steve -

  18. 1IWdyZOQBKViiEQh
    1IWdyZOQBKViiEQh
    145SJPOcc4beQIhF
    kBJWCGMLgVmpu3eW

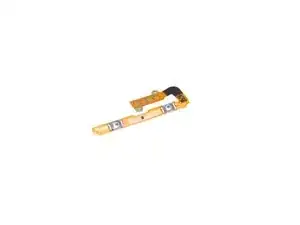

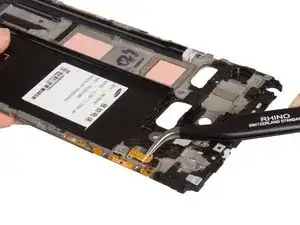

    • Remove volume button flex.

  19. ROIIyNDM1FLDJeZX

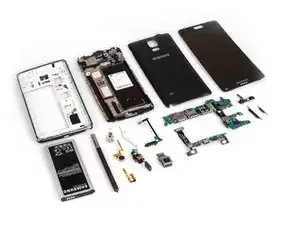

    • Done.
