Samsung Galaxy Note5 Teardown

Geschrieben von: Sophia
Veröffentlicht: 16/10/15
  • Kommentare: 31

Samsung Galaxy Note5 Teardown

Veröffentlicht: 16/10/15

Teardown

Einleitung

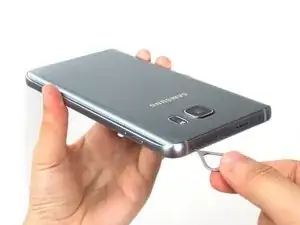

  1. 4OqXLl2mP5nmIHdJ
    4OqXLl2mP5nmIHdJ
    iWQlXPHIUgJSURBZ
    LKKQE5NNnDSPLFGg

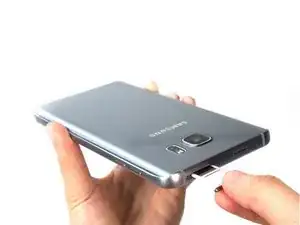

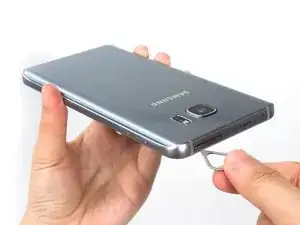

    • Remove SIM card tray at first. It's Samsung Galaxy Note 5 Duos, so there are two slots.

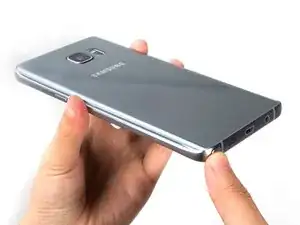

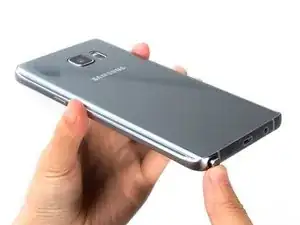

  2. TkjLpoZhVUS2ZJSP
    TkjLpoZhVUS2ZJSP
    fd1XD1LWGPT2E4jD
    HnXdgagv4xMEwHBJ

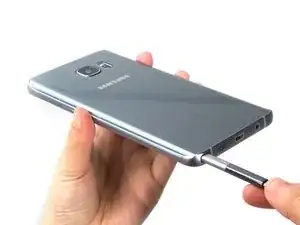

    • Remove S pen.

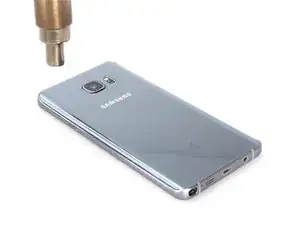

  3. V5knTEKqlSlEBYUR
    V5knTEKqlSlEBYUR
    Jyr4s2tUTWJEQoUZ
    PoANDsZKRIwwolF4

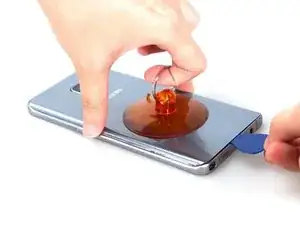

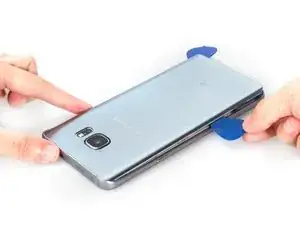

    • Heat the back cover and cut it sticker underneath. Really strong adhesive. Please be careful with the glass and edged back cover.

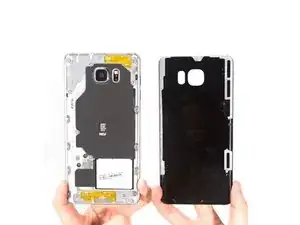

  4. oEUMIF1QIOfuhZCl

    • Remove the back cover. And the white strip is adhesive sticker.

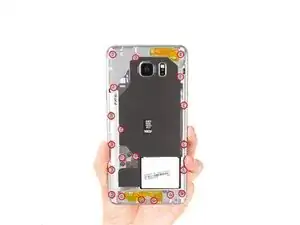

  5. AdD2GvudVWOcPM4M
    AdD2GvudVWOcPM4M
    eDCFcxCmC6PdSXOS

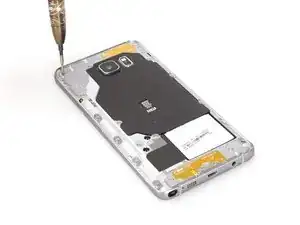

    • Twist off all 20 screws together.

    What is the dimension of the screw?

    Dillon Clark Tan -

    What are the size of the screws

    Rayyaan Shareef -

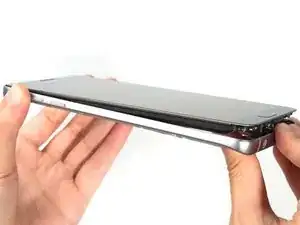

  6. hrE2CNt3BDQrTcfH
    hrE2CNt3BDQrTcfH
    5fb3q5jmKgLJFHOO
    NZLFPdUJebPsIaXe

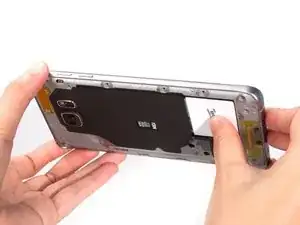

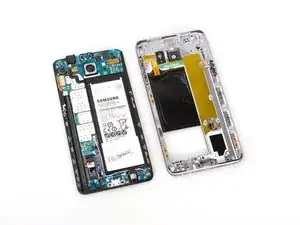

    • Push the front assembly out from middle housing. There are a little black adhesive sticker on every corners.

  7. wCd6IDxgyjmMnqaW
    wCd6IDxgyjmMnqaW
    wMyYTEoFThUUNkHD
    h2JCpTQV2U3RPvME

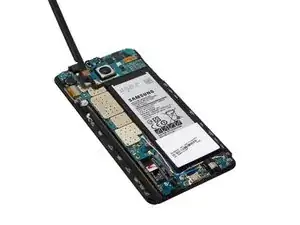

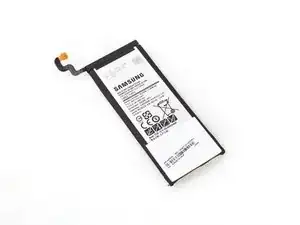

    • Release battery connector from motherboard and pry the battery up. Yes, there is also some adhesive underneath.

  8. 6fgMYkjkcOY3pdVj
    6fgMYkjkcOY3pdVj
    5ccSPmrhDWlytBoK

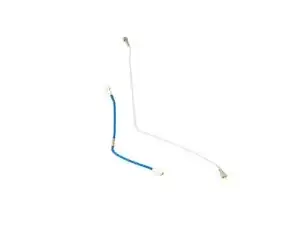

    • Remove two pieces of signal flex cables. And different versions Samsung Galaxy Note 5 may have only one piece signal cable.

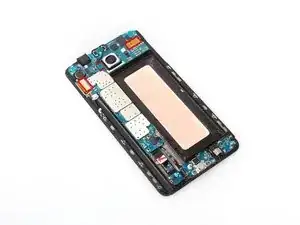

  9. gVb66xxp6JZVYUvX
    gVb66xxp6JZVYUvX
    OZRsQBjGqcHAhOdn

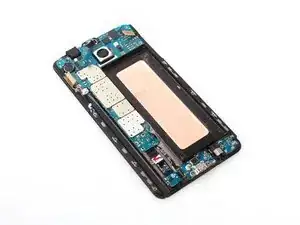

    • Release LCD connector, digitizer connector, earpiece assembly connector, home button connector on the motherboard.

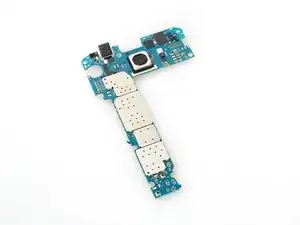

  10. Z3xCKqhjTPZTnVmf
    Z3xCKqhjTPZTnVmf
    JcgFiWT6uXZkVPD5
    5wEilvbGZKavSUo3

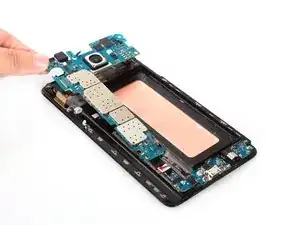

    • Release USB board connector on the back and remove the whole motherboard.

  11. XtO6dTvmIIhqqrKU
    XtO6dTvmIIhqqrKU
    4uycWUZAtODNXla1
    TVoqJkchkdJwHn2J

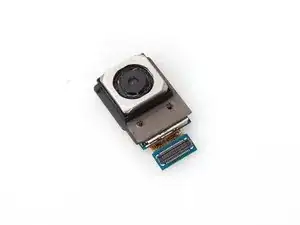

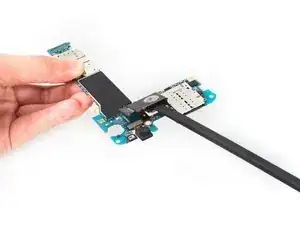

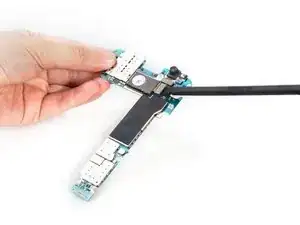

    • Remove the rear camera. There is a black plastic bracket around camera. So we have to remove them together. And there is a little adhesive underlying.

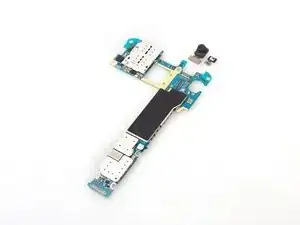

  12. SLgcmJlSApVyICgS
    SLgcmJlSApVyICgS
    XewBAQPxQNFmhX4g

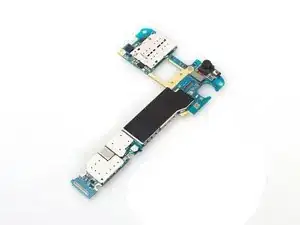

    • Remove front camera and noise-canceling mic.

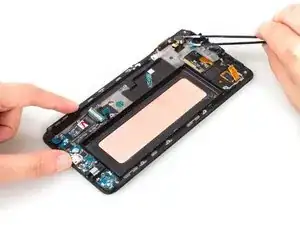

  13. GOc241XMQIVQqZIe
    GOc241XMQIVQqZIe
    BwUPf2MSQGODOErS

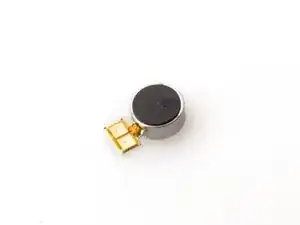

    • Remove motor vibrator easily.

  14. ECrRSTZh6DNPA5rk
    ECrRSTZh6DNPA5rk
    XYTbpkE6nK3Don2R
    NHwmuFU4CtSHbHCA

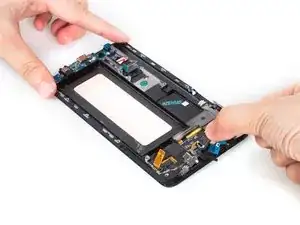

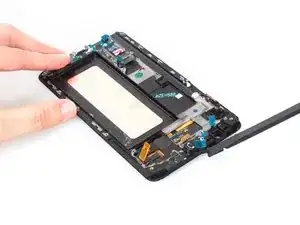

    • Remove earpiece speaker assembly.

  15. U1MVnyNQdkGOMajd

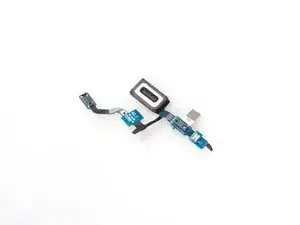

    • That's Samsung Galaxy Note 5 earpiece assembly. It's integrated by speaker and sensors.

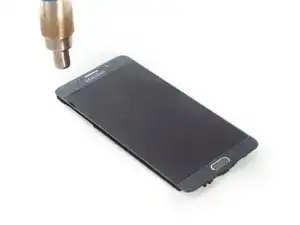

  16. EtwxuahWqBF2GwXp
    EtwxuahWqBF2GwXp
    TGIDWOGDbJJRILb4

    • Now try to separate LCD screen from frame. The difficulty and risk to remove screen alone are getting nearly 5 stars (5 scores all together)respectively. The screen is weak and the adhesive are strong as well too much.

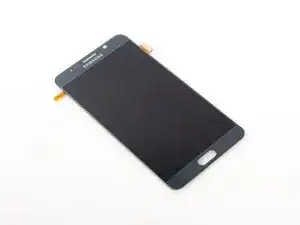

  17. fRGmBMhZMPrfICqG
    fRGmBMhZMPrfICqG
    ahMJgmJgDFRYpSbt

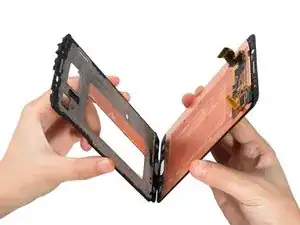

    • Since Samsung applied the design that the USB board come with soft keys together, DIY replace USB board and LCD screen alone become much more difficult.

    • Be careful with the soft sensor keys on the bottom especially the flex.

    • In fact, the replacement of Samsung Galaxy Note 5 LCD screen, USB board or home button nearly the same with that teardown.

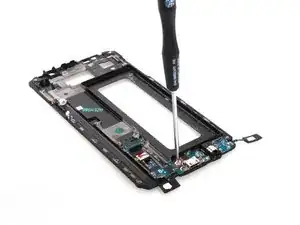

  18. bEo4BZ5EqXY152tY
    bEo4BZ5EqXY152tY
    1ZvrKMPHxNM1mEY1

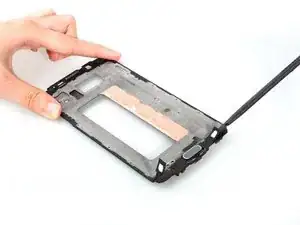

    • Loosen two soft sensor keys from frame carefully. And remove the last securing screw on USB board.

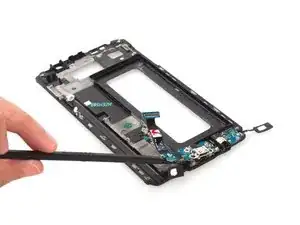

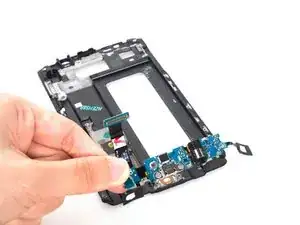

  19. Iq1tJouVmvd1JrSp
    Iq1tJouVmvd1JrSp
    nPfwoQEgfDRYM2Li

    • Remove the USB board finally.

    Is the mic attached to charging dock flex cable?

    Derek F -

    Is the mic attached the charging dock flex cable?

    Derek F -

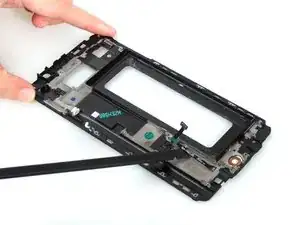

  20. QgHaD2kEpw4QFwCp
    QgHaD2kEpw4QFwCp
    UJDMYUIN2uK6Klqo
    DALZBdQAveisdBVk

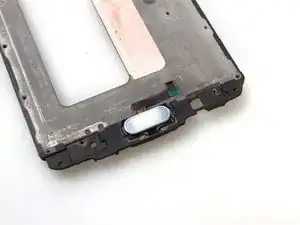

    • Could you see the mark on the right of the home button? Push the button as its direction and can loosen it from securing slot easily. And then cut the adhesive sticker under the flex.

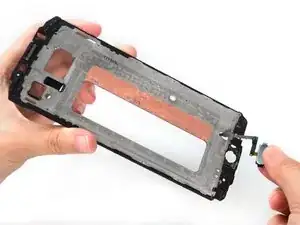

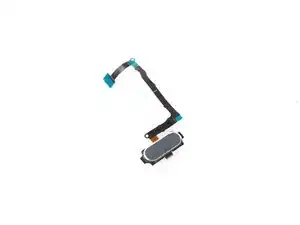

  21. gshwIkec11FZNC26
    gshwIkec11FZNC26
    KR2Rdab1bIDPUbDi

    • Remove home button flex. Though it's a small component, it's really complicated and difficult to replace, even at the risk to break the screen.

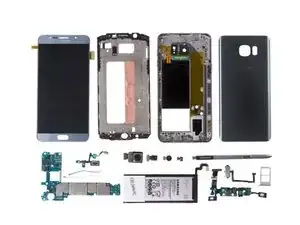

  22. JRTmYSYJQsZ3Bw2B

    • Done.

    That's great

    sajjadgharouni -

    please help me

    i cant find Direction of light sensor

    rezaabol750 -

    Is it possible to put the phone back together and still have it working like before?

    Jaychelle Taylor -

Tinte & Feder

Sophia

Mitglied seit: 25/03/14

43756 Reputation

24 Kommentare

the SIM reader can be changed. the SIM is external or integrated in the motherboard

hammadi -

Can the s pen be opened too? I wanna know because my s pen clicking mechanism gets stuck and doesn't click.

Alex akerez -

Yes it separates at the seam where the darker section with the Samsung text meets the light gray part. Here is a decent youtube video some guy made: https://youtu.be/ixNXUh2fnZo I would recommend trying plastic tools to open instead of a razor blade, also graphite is quite messy so I would probably use a small dab of light silicone grease. I buy it at the hardware store in the plumbing section (used for faucet seals). It's a good lightweight grease for rubber & plastic parts and anything sensitive to petroleum base grease. Good luck!

Andrew Kauffman -

Is the memeory stored on the motherboard? Or elsewhere?

ziefern n -

So did you find out where is the memory stored? My Note 5 dropped in water and circuit on the motherboard is fried. Is there a way i can still recover my data???

parag_oberoi30 -

So did you find out where is the memory stored on Note 5? I dropped my Note 5 in the water and it seems my motherboard circuit is fried. Is there a way i can still retrieve my data???

parag_oberoi30 -

Please ask this kind of question in the Answers forum.

As a quick answer, phones nowadays store files on a chip called an eMMC chip. In the case of the Note5, it’s a UFS-II chip.

Farie Indriawan -

Hi, My front glass lens cracked. Any step by step? I'm a home contractor/inspector with patience. I have limited experience repairing my PC's and Mac, etc. It looks like replacing it would have a 5 out of 5 difficultly rating. Would I be in over my head? Thanks!

Tino Barbati -

Please ask this kind of question in the Answers forum.

Although a glass replacement is possible, it won’t be worth because a small mistake (too much heat, too much force, etc) can potentially damage the AMOLED panel or Digitizer.

Farie Indriawan -

Hi in step 9 it shows where the ribbon cable connects to the mother board. When taking this piece out of the package i accidentally tore a little bit of that ribbon cable. Am i screwed or is there hope for me? Please someone helpppppp

Mike G -

Which ribbon cable? If it was he ribbon cable for the screen then you'll need to purchase a new digitizer. If it was one of the smaller components you may be able to replace just that piece on the mid-frame.

Josh Bonomini -

Anyone know how to repair the charging unit Hopefully without having to open it.

jrm14 -

Please ask this kind of question in the Answers forum.

If you’re referring to the charging coil, there’s a high chance the coil is toast at some part. The USB port might work again if you clean it with Isopropyl Alcohol with a swab or raising the “tongue“ part of the socket.

Farie Indriawan -

Can the cable for the antenna be moved outside of the phone by drilling a hole in the back and then be used to connect to an external antenna?

Pavel Zlatanov -

It looks like the cable, if not an antenna itself, connects to a part of the phone which is an antenna sticking in the plastic part of the bezel. It is doable, but it’ll look a bit ridiculous.

Farie Indriawan -

Stylus broke and is stuck inside my phone. Any way to fix?

Apricot Queen -

Please ask this kind of question in the Answers forum.

Disassembling the phone should reveal the broken stylus inside, although it may be a bit stuck when you try to separate the midframe.

Farie Indriawan -

is the top speaker easy to replace? I don't see it

Calvin Le -

I removed the gold strip next to the battery above the home button flex when removing the digitizer after front glass removal. Proceed or is all a loss?

Lainey Yancyfjgbmp -

Is there a wifi/bluetooth antenna that can be replaced?

Jose Carlos Rivera -

where is wireless charging section ?

Daniel Blackbird -

Also do not see the inductive coils… are they inside the battery?

Drew Hawkins -

So far I remember, the charging coils are sitting on top of the battery, sandwiched between the back panel. Probably covered because of different variants.

Farie Indriawan -

Note 5 Single sim panel is change with to Note 5 dual sim panel

Mubashir Mehmood -
