Samsung's line of phones-that-don't-fit-in-your-pocket is back! And in a Microsoftian move, they're going from Note5 straight to Note7. On the surface, it looks like an S7 Edge with a bigger screen and a fancy stylus, but we know better: no guts, no glory. It's teardown time!

Update: We added some sweet X-ray imagery, from our friends at Creative Electron.

Do you enjoy the odd teardown? We’ve got three (way cooler than two) ways to stay up to date with the latest repair news: find us on Twitter, join our inner circle on Facebook, and check out our Instagram!

  1. vCIwQdCXXnUMxJh5
    vCIwQdCXXnUMxJh5
    JyPFrZPNVbijUDnw
    kvTJb6IKugiJ3oXR

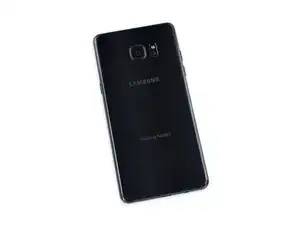

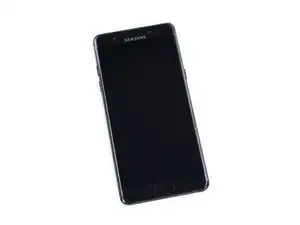

    • It's a mix of new and familiar as we peruse the Note7's specs:

    • Curved panel 5.7" Super AMOLED display with 2560 × 1440 resolution (518 ppi) and Gorilla Glass 5

    • Qualcomm Snapdragon 820 processor with 4 GB RAM + Adreno 530 GPU

    • 12-megapixel, ƒ/1.7 rear camera with OIS, dual pixel autofocus, 4K video; 5-megapixel/1080p selfie camera

    • 64 GB internal storage, with an additional 256 GB available via MicroSD expansion

    • Iris scanner, fingerprint scanner

    • S Pen stylus, USB-C, and headphone jack (phew)

    • IP68 dust and water resistance rating

  2. x6MSJCYX6VlqVbwt
    x6MSJCYX6VlqVbwt
    OxYcDRPTPXlDasa4
    AZr1WiOmota5Ymsp

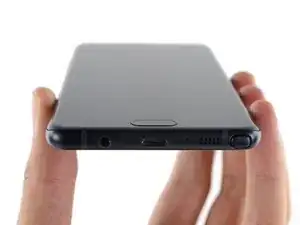

    • As we boldly go where no tinkerer has gone before, we come across some starports hiding out near the bottom edge. From left to right we observe:

    • Headphone jack

    • USB-C port

    • Microphone port

    • Speaker grille

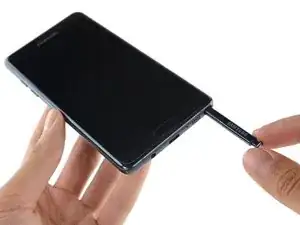

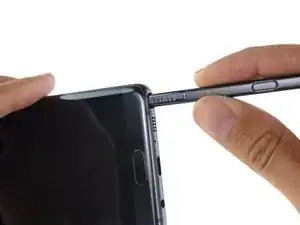

    • That last one's not a port at all, it's the illustrious S Pen. Removing the S Pen is as smooth as slicing warm butter.

    • Building off the Note5's mid-production design modification, the S Pen doesn't fit into its slot backwards. Now that's progress.

  3. IanfDraEkVrgHD4I
    IanfDraEkVrgHD4I
    tTNCFaOjWYTVXCQK

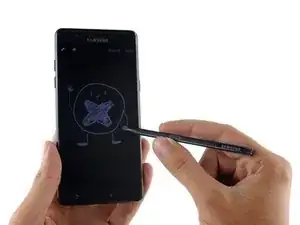

    • Our teardown hands are itching to get down to business, but we take a moment to test out the S Pen.

    • First impressions: this stylus stacks up pretty well against Microsoft's Surface Pen and Apple's Pencil.

    • The S Pen is smaller (and more stow-able) than either, but still has a scan rate of 360 Hz and senses 4,096 levels of pressure compared to the Pencil's 240 Hz and the Surface Pen's 1,024 levels of sensitivity.

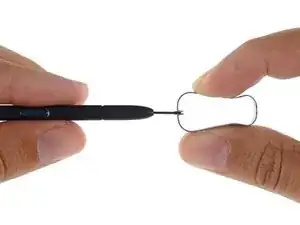

    • In an additional level of customization, the S Pen comes with two interchangeable tips: a soft tip for writing on smooth glass, and a hard tip for use with screen protectors.

  4. WhCVCNGjj1A3CTiL
    WhCVCNGjj1A3CTiL
    GwYUPPFgoqvPnsLg
    qdVOwxEiUw6UFtSW

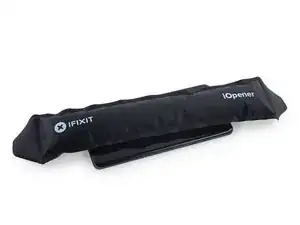

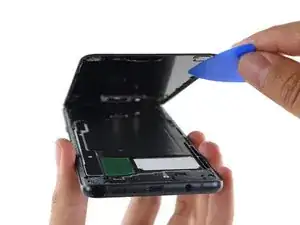

    • If opening stubbornly adhered Samsung devices was an Olympic sport, our teardown room would be filled with gold medals.

    • We take a minute to stretch while the iOpener works its magic, softening the adhesive under the rear glass.

    • Bang! The gun sounds. We fly off the starting blocks, iSclack and opening pick in hand. Pop! The rear glass dislodges from the chassis. Whoosh! The rest of the adhesive didn't stand a chance. Ka-pow! We're in.

    • And the crowd goes wild. Okay, but really. This is something of a delicate procedure, and we still miss the days of plastic peel off rear cases.

  5. j6ZbRieCZbyg1jb2
    j6ZbRieCZbyg1jb2
    sdCjDxObW5LHAvCb
    pHmgEwFNoQTnKyOY

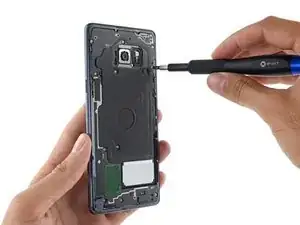

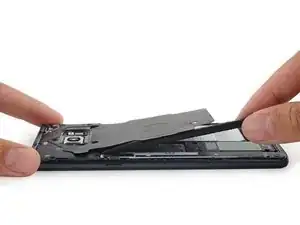

    • Tinkerers love Phillips screws. Seeing these good ol' familiar screws draws our focus down to what they're securing: a sweet wireless charging coil.

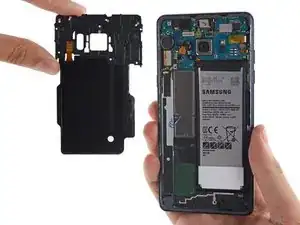

    • Samsung states that "once you've had wireless charging, there's no going back." It's like having the event horizon of a black hole right in your phone, with all the convenience that entails.

    • We suspect the NFC antenna is also bundled into this wafer-thin assembly. NFC is no stranger to Galaxy Phones.

    • With that, we get our first full reveal of the Note7. [Cue oohs and aahs]

  6. XQ1aWoF4dMneGBZK
    XQ1aWoF4dMneGBZK
    bSceuWuetVU2sFWc
    Kr4N12dEtXELJH5E

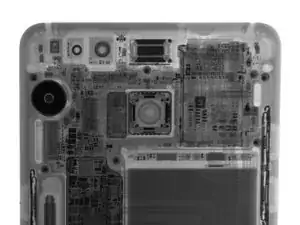

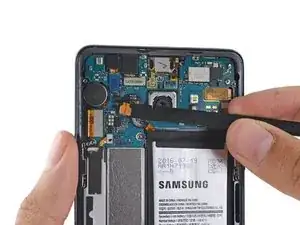

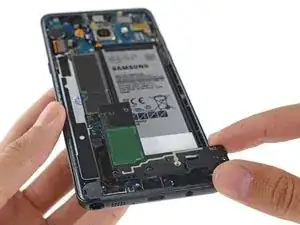

    • We come across an unusual battery cable design. At first glance, this is most definitely a slide. We're getting a little motion sick just looking at all of those winding curves.

    • Fortunately for us, a flick of a spudger is all it takes to pry the (off-kilter) battery connector cable off the motherboard.

    • With battery disconnected we delve deeper.

    • First victim: the single speaker, with built in antenna.

    • Of note, the speaker pass-through has a gasket and mesh liner, in addition to the grille punched into the case (likely a waterproofing measure).

  7. RAA5CtiElEDHEe5X
    RAA5CtiElEDHEe5X
    3AuffXsIkk4aUsLK
    WmuQx33scBxJHXFY

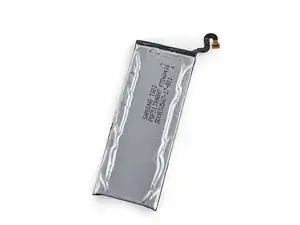

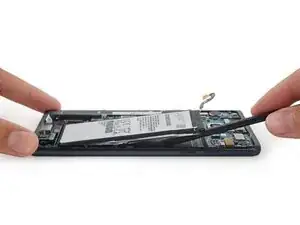

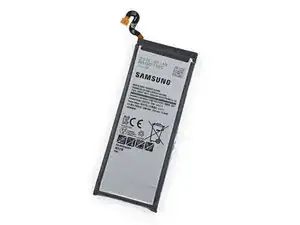

    • We could almost hear the battery laugh in our faces when we tried to pluck it out bare-handed—but our inner Hulk emerges as we muscle with all the might our spudger can muster.

    • This 3500 mAh, 13.48 Wh battery is significantly more powerful than the 10.45 Wh one found in the similarly sized iPhone 6s Plus, but it falls just a bit short of its smaller sibling, the Galaxy S7 Edge, which comes in at 13.86 Wh.

    • Curiously, the Note7's battery is fortified by walls carved from the rear case, providing extra structural integrity, and maybe even some water protection.

    Dongguan ITM Electronics Company LTD, interesting that this name never appears in all the news stories about the exploding batteries.

    Bruce Goren -

    That's because Samsung designs their new phones not to have replaceable batteries. It's starting to seem like a guaranteed way to make (most) people buy new devices every couple of years or so.

    Mike Hayes -

  8. KXXhSSQJaIhUXnL3
    KXXhSSQJaIhUXnL3
    W2MtCAeM6FTwUtRP
    Cd5qdhT3hkGMZulZ

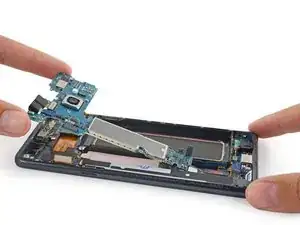

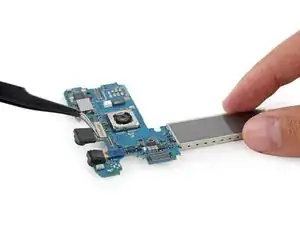

    • Out comes the motherboard, with three little cameras in tow.

    • Front and rear cameras are familiar fare on smartphones, so what's the third camera for?

    • That would be the Note7's trick iris scanner. It's actually a two-part system: a nearby infrared blaster invisibly lights up your eye, while the sensor captures an image that's said to be more secure than a fingerprint.

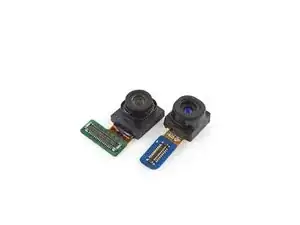

    • For comparison we have the iris scanner (right) with the Note7's 5-megapixel, ƒ/1.7 selfie cam (left).

    • And for the X-ray comparison, here we have the two cameras still in the device.

  9. fSefZW4WtwAoWDBu
    fSefZW4WtwAoWDBu
    1yTBUdwhLaXQ3DHA
    yAsbumR3EwDUlyfR

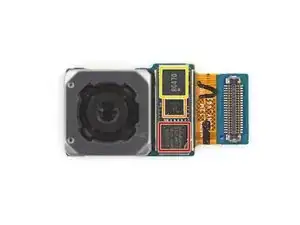

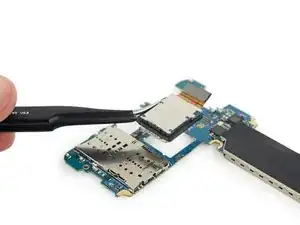

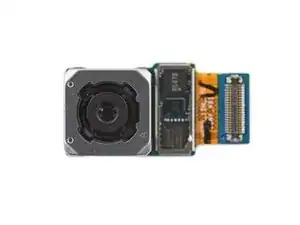

    • With the motherboard deftly extracted, we take our tweezers to the hefty main camera and line him up for closer look.

    • It's déjà vu all over again as we pull out what appears to be the same Sony IMX260-based main camera that we uncovered in the S7 and S7 Edge.

    • ... And the similarities go further, all the way down to:

    • the Winbond Q32FWXGIG serial flash memory

    • STMicroelectronics L2G2IS 2-Axis MEMS OIS Gyroscope

    • Renesas OIS Driver

    what is the GPS chip this device is using

    Jason Chuang -

  10. FjEXkvcDEJAIDD4k

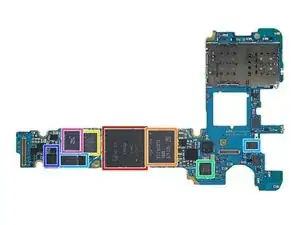

    • We're down to the meat and potatoes of this teardown, and it seems like Samsung unified more than their product numbering—this chipset is nearly identical to that found in the S7 and S7 Edge.

    • Samsung K3RG2G20CMMGCJ 4 GB LPDDR4 SDRAM layered over a Qualcomm Snapdragon 820

    • Samsung KLUCG4J1CB-B0B1 64 GB Universal Flash Storage 2.0

    • Avago AFEM-9040 multiband multimode module

    • NXP PN67T NFC controller

    • Qorvo QM78064 high band RF fusion module, TQF6260 front-end module and QM63001A diversity receive module

    • Qualcomm WCD9335 audio codec and DSP Group DBMD4 audio/voice processor

    • Murata FAJ15 front-end module

  11. Smf4EyYO2NPEDvkE
    • More note-worthy chips hide on the backside:

    • Samsung 3420S7 G707A3 Wi-Fi module (most likely contains a Broadcom BCM4359 Wi-Fi SoC)

    • Wacom W9018 touch control IC

    • ZF10 110630 0625 (likely NXP Semiconductor I/O expander)

    • Qualcomm PM8996 and PM8004 PMICs

    • Qualcomm QFE3100 envelope tracker

    • Qualcomm WTR4905 and WTR3925 RF transceivers

    • IDT P9221S wireless power receiver (likely an iteration of IDT P9220) + Samsung S2MPB02 camera power management + Maxim Integrated MAX77838 power management IC

  12. qblLj2Hnfsf6RhiJ
    qblLj2Hnfsf6RhiJ
    kEIxTBo5s1FExKtL

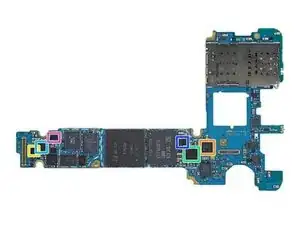

    • IC identification, pt. 2:

    • Infineon (previously Cypress Semiconductor) CY8CMBR3145 capacitive touch button controller

    • Samsung Image Processor (likely)

    • Samsung S2MM005X01 power management

    • Maxim Integrated MAX77854F power management

    • Maxim Integrated MAX98506 audio amplifier

    • Texas Instruments BQ25898S battery charger

    • ON Semiconductor FPF3688 load switch

  13. qT1WKpOlXFMERgFq
    qT1WKpOlXFMERgFq
    UUwEZSTwKmiFHWEk

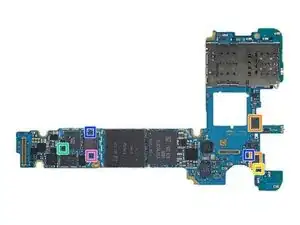

    • IC identification, pt. 3:

    • RDA Microelectronics RDA6213 FM radio transceiver

    • Antenna switch module (likely)

    • NXP Semiconductor BGU8103 GPS/GLONASS/Galileo/BeiDou low noise amplifier

    • NXP Semiconductor BGS8H2 LTE low noise amplifier

    • NXP Semiconductor BGS8L2 LTE low noise amplifier

    • NXP Semiconductor BGS8M2 LTE low noise amplifier

    • Infineon BGS12SN6 SPDT RF switch

  14. bKkHdcgkY6LXAulb
    bKkHdcgkY6LXAulb
    KEnxWs1DmCjSColF

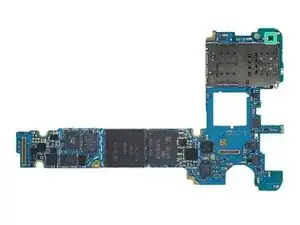

    • IC identification, pt. 4 (sensors):

    • Maxim Integrated MAX86902 heart rate sensor (likely)

    • STMicroelectronics LSM6DS3 3-axis accelerometer/gyroscope

    • Bosch Sensortec BMP280 pressure sensor

    • AKM Semiconductor AK09916 3-axis electronic compass

    • Seiko Instruments S-5712CCDL1-I4T1U hall effect sensor

  15. H1Mc43PcLS1wfFTW
    H1Mc43PcLS1wfFTW
    sGtXFxX1ENdRRtRH
    GAqZTLtjAIW22XS1

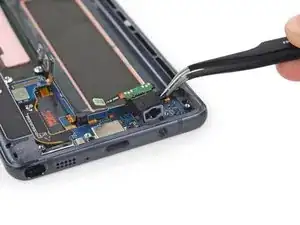

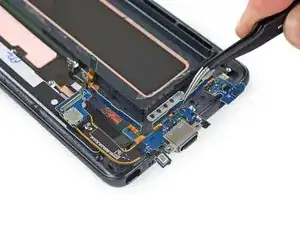

    • Heading south, we hit the modular headphone jack—ready to let the music flow while keeping water out, with a nice sealing gasket.

    • This phablet ships with an IP68 water resistant rating, meaning it is dust tight, and can survive under 1 meter (or more) of water.

    • The USB-C port is new to the Note line—and while reversibility is handy, change is hard. Samsung kindly includes a micro-USB-to-C adapter to keep your cables relevant.

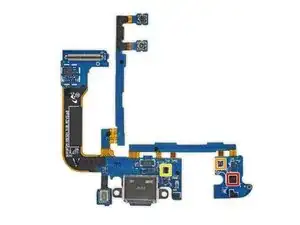

    • Out goes the daughterboard array! Unlike the one found in the S7, this board used rigid PCB interconnects. This keeps the spidery cable from being flimsy. No one likes flimsy.

    • IC identification:

    • Qualcomm QFE2550 antenna tuner

    • Seiko Instruments S-5712CCDL1-I4T1U hall sensor

    • Semtech SX9320 proximity sensor (likely)

  16. IvJUOBlDyosMCj6A
    IvJUOBlDyosMCj6A
    1HPZBCfgJFmb5uxQ
    MPurvOBQLZYWRhQf

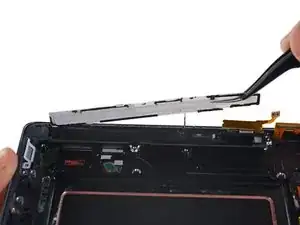

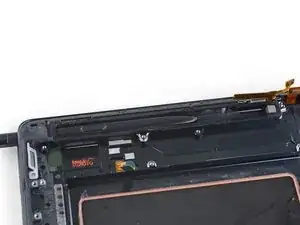

    • If you like tiny heat pipes, Note7 has you covered. This looks like the same "liquid cooling" copper heat dispersal apparatus we pulled from the vanilla S7 and S7 Edge.

    • Nearby, a note-able amount of glue secures this plastic cover over the S Pen chamber. It's probably there to help ingress-proof the stylus' slot.

    • We're not normally fans of glue—but this waterproofing effort doesn't seem to hinder repair much.

    • Inside, a simple clip grabs the S Pen notches, and a gray rubber bumper protects the nib.

  17. llJn2B5hSNKWvphO
    llJn2B5hSNKWvphO
    XiJTfnaoYB6AYCmY
    rBpalXL2BnfvLaSt

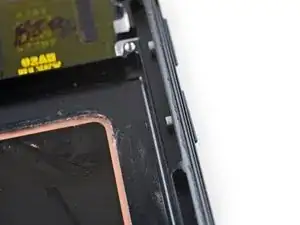

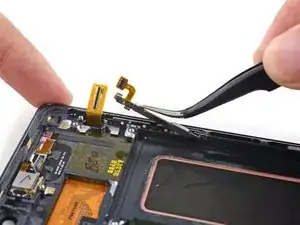

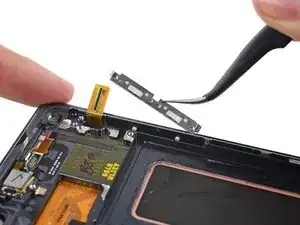

    • The volume buttons look pretty complicated, but that doesn't slow us down. Braced with years of experience plucking our unibrows, we dive in, a pair of tweezers in hand.

    • First out are the microswitches, followed by a reinforcement bracket full of rubber gaskets. Not quite the same, but similar to another waterproofing approach we've seen.

    • But...what's this? The button covers are oddly trapped within the outer case. We can't pop them out!

    • Could this mean the case is double-walled? Is this a waterproofing feature? Perhaps a structural feature? Your guess is as good as ours.

  18. GY4IeEkpVE2gUS4J
    GY4IeEkpVE2gUS4J
    LJeOJU4MPFxNDQPm

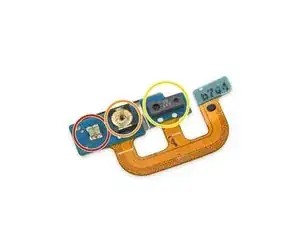

    • We're down to slim pickings, and the last component to surrender is this front-facing sensor array containing:

    • Status LED

    • IR blaster to enable iris scanning

    • We saw the iris scanning sensor earlier—this component provides the infrared illumination to really make your eyes pop.

    • Proximity sensor (AMS TMD4904 likely)

  19. rKFKrM43wJYqQkxm

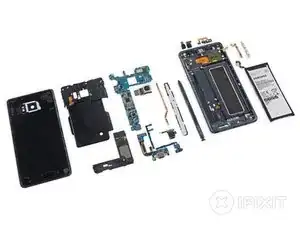

    • And here's the moment you've been waiting for—the exploded (edit: no pun intended) diagram of the Note7.

  20. PwKcjX1PuAQDF1Ie
    • Samsung Galaxy Note7 Repairability Score: 4 out of 10 (10 is easiest to repair).

    • Many components are modular and can be replaced independently.

    • Improved cable routing means the charging port board can be removed without disassembling the display.

    • The battery can be removed without first ousting the motherboard, but tough adhesive and a glued-on rear panel make replacement very difficult.

    • Front and back glass make for double the crackability, and strong adhesive on the rear glass makes it very difficult to gain entry into the device.

    • Because of the curved screen, replacing the front glass without destroying the display is probably impossible.
