Einleitung

This is a Teardown of my old broken Samsung Galaxy Pocket (GT-S5300)

  1. HPNBWE1kFOce5wqj
    HPNBWE1kFOce5wqj
    XWytc5Y51Kdc46nR
    1Pqp3ofCi2CVtrig

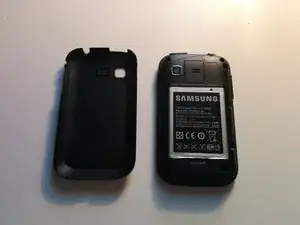

    • Remove the battery cover

    • Then remove the battery

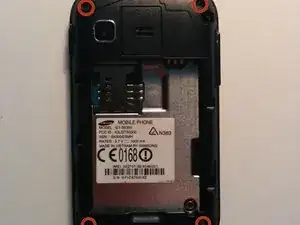

  2. Si5RoXKX1EiwYHXZ
    Si5RoXKX1EiwYHXZ
    ZqlL2LCHQvggR35K

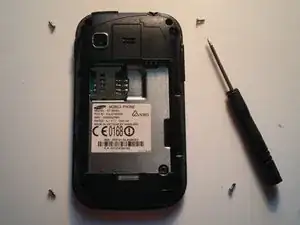

    • Remove all 4 screws

    what is the screwsize for this, please?

    Jett Jusay -

  3. psfstDlEhWnXUKyR
    psfstDlEhWnXUKyR
    LEXLHiOUGruY6XlB
    • Slide a guitar pick between the sliver bezel and the rear of the phone

    • Slide it all the way around until the rear is loosened from the logic board and screen

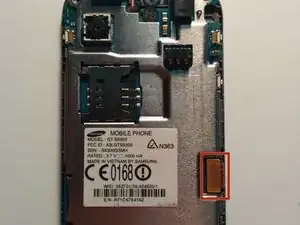

  4. g2nvVFoKO2Jmi1nk
    g2nvVFoKO2Jmi1nk
    ZW4NbTBCAat4Kv4L

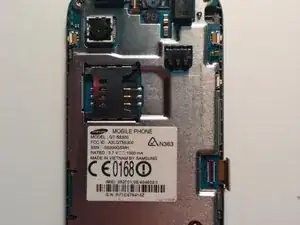

    • Remove LCD connector

  5. dmXoOW1XXWF3lAiF
    • Remove logic board from screen by lifting the logic board up and removing the digitizer connector

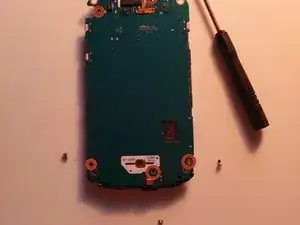

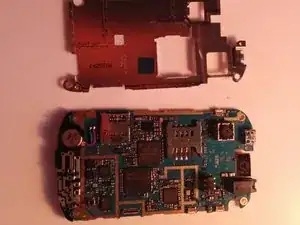

  6. ZZCFb1MoTCJwBPbN
    ZZCFb1MoTCJwBPbN
    BsK6Jam1MB5BVpb2

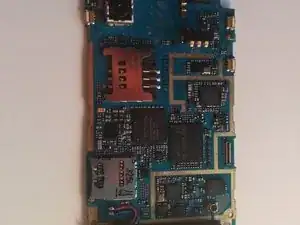

    • Remove the 5 screws to remove the shield

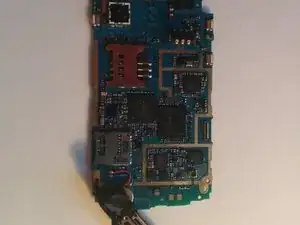

  7. 3l2I3nv5fjPkJCBN
    3l2I3nv5fjPkJCBN
    yrUcruMrKIgJLkT5
    duTdlgdwqJdDQQVs

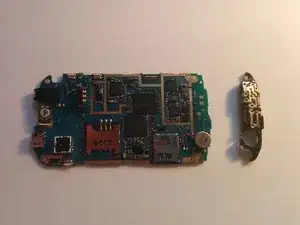

    • Remove what seems to be the antenna from the logic board

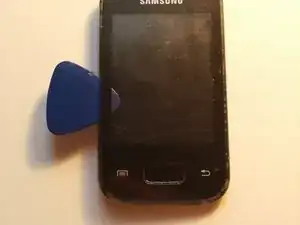

  8. UnRON3TQNBpFoaPs
    UnRON3TQNBpFoaPs
    SHqJcjDQqrokXOeH

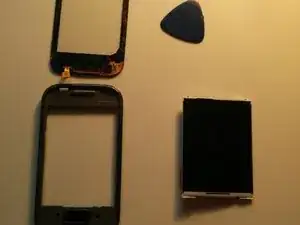

    • Slide guitar pick between the digitizer and lcd

    • Make sure not to get under the black adhesive on the back be the digitizer

    • At the top of the digitizer there is a circuit be careful up there

  9. 2oeRrCHBBCZGPuqa

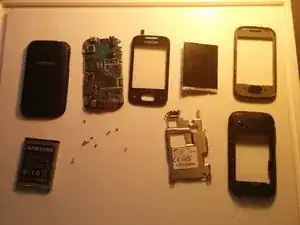

    • Então essa é a minha desmontagem para o bolso da galáxia Samsung (GT-S5300)
