Einleitung

Taking a Samsung Galaxy S Blaze apart in case you need to fix it, is not hard.

  1. VdtntyH2V3sW2G3e
    VdtntyH2V3sW2G3e
    A5ne6Ca5ErnaYO5R

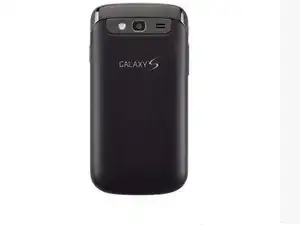

    • The Samsung Galaxy S Blaze is a 121.9 x 63 x 11.2 mm (4.80 x 2.48 x 0.44 in) phone.

    • Weights 127.6 g (4.48 oz).

    • The resolution is 480 x 800 pixels (~235 ppi pixel density).

    • Released on March of 2012.

  2. jpWQYWZZCoh1aWdG
    jpWQYWZZCoh1aWdG
    blDWFoZl2RyRnSOk

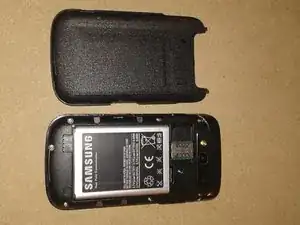

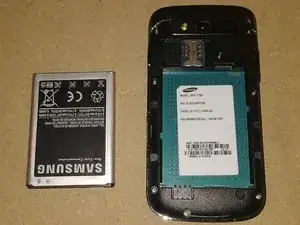

    • Take the back plate off.

    • Remove the battery.

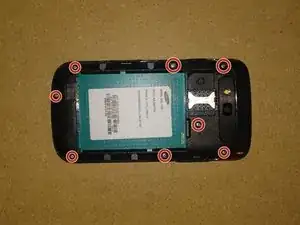

  3. G4DdWKNV2rgqRHyl
    G4DdWKNV2rgqRHyl
    inq5UBURrwd6vtwK

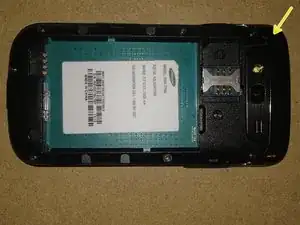

    • Use the Phillips size 00.

    • Remove the 8 4mm visible screws.

    • Then proceed to uncliping the back panel, starting from the top with the blue plastic opening tool.

  4. XJAQCbjaxGqikxlV

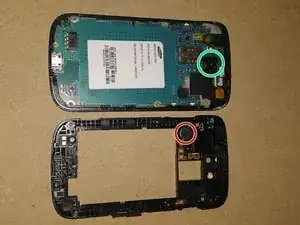

    • Once you have taken the back panel you should be able to see the back of the motherboard.

    • The vibrator.

    • The 5 MP camera.

  5. YvpiftvyvRBXJFrj
    YvpiftvyvRBXJFrj
    KAuJWHQ2bMlL3eNL

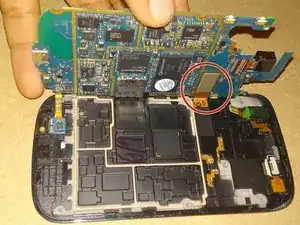

    • Unclip all 4 ribbons.

    • 3 of the ribbons are located on one side.

    • The 4th ribbon can be found when you flip the motherboard.

  6. hTiWN5N2YFtbQZVC

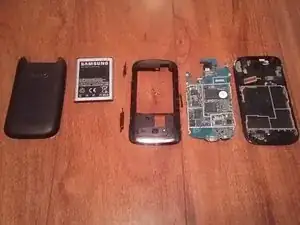

    • These are all the parts that will come from the phone if you decide to tear it down.
