Samsung Galaxy S II Teardown

Geschrieben von: lon
Veröffentlicht: 02/06/11
  • Kommentare: 35

Samsung Galaxy S II Teardown

Veröffentlicht: 02/06/11

Teardown

Einleitung

This is an unofficial teardown to iFixit of the great Samsung Galaxy S II, enjoy! ;)

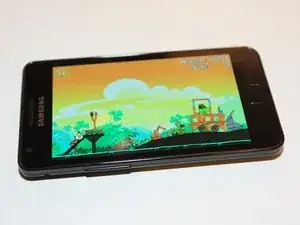

  1. Em6YK2cYjyjAJTeb
    Em6YK2cYjyjAJTeb
    aCyEocAexZIIauoa
    DqFxcmNZYDSAF2Qd

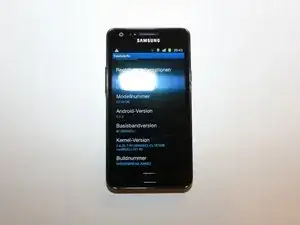

    • The 4.3-inch super Amoled Plus display is simply gorgeous!

  2. RkGbiqpeZTrjvMDO
    RkGbiqpeZTrjvMDO
    2QauR1KhZiCqvi5D

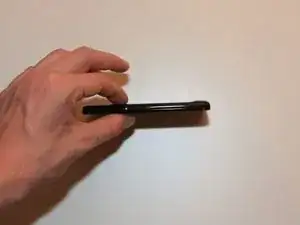

    • Look at how slim the phone is! Only 8.49mm thin!

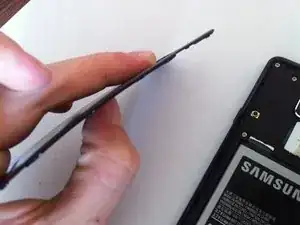

    • Back cover is flexible but don't worry it will not break. It also has a nice texture to it.

    The plastic cover is elastic, but hardly fragile. You can bend it 180° and it doesn't break.

    Roy Weiss -

    True, I tried to edit the guide to show this information but was denied!

    funkmasterta888 -

    I agree about the back plastic cover, it is very flexible and doesn't break that easily.

    alexman98 -

    Have a look at this video that shows how durable the battery cover is! Thin, light and durable, now we're talking!

    http://www.youtube.com/watch?v=ErXqnQKs-...

    A video about this amazingly thin, light and flexible battery cover! Try and beat that aluminum!

    funkmasterta888 -

  3. Ws1xOM5vjEJWNm23

    • Look at how compact everything is inside!

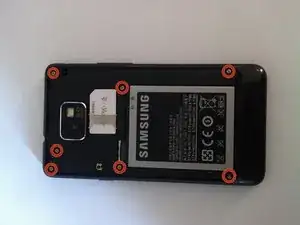

    • Remove the seven visible screws.

    • Then unclip the back panel starting on the left next to the audio jack. Go slowly.

  4. ecqad5OxALcxpuUO
    ecqad5OxALcxpuUO
    BgkG2O1smAbTGNl4
    4oRHw6Hmk1vgdWgb

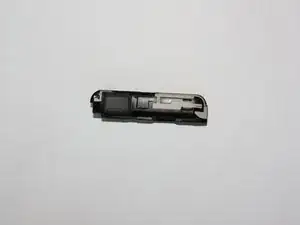

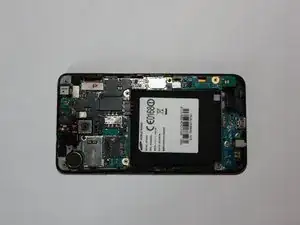

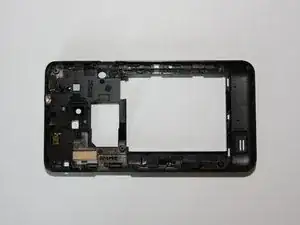

    • Removing the back panel gives you an impressive and sophisticated view of the internals.

    I’m trying to disassemble my second-hand Galaxy S II and am stuck at this stage.

    A piece of the circuit board directly beneath the audio jack is stuck to the back panel and I don’t want to risk breaking it by prying it off any further.

    Any help would be appreciated.

    [deleted] -

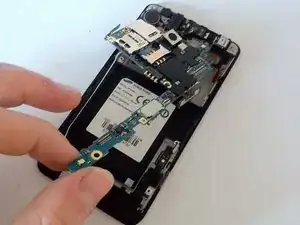

  5. oaWKJaZuVjyEkcse
    oaWKJaZuVjyEkcse
    sClIaf4edFuiah3i

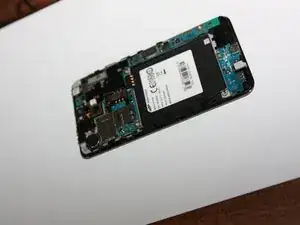

    • Removing the motherboard is as simple as it looks !

    • Unclip the 5 ribbon connectors and the antenna cable.

    • Then remove the 2 small black screws.

    • Don't forget to unglue the volume flex and power flex, they are attached to the motherboard. Otherwise the motherboard won't come out easily like it should.

    pry off the glued power and volume buttons before lifting the board because too much pressure will tear the ribbon from the board leading to much heartache

    John McGyver -

    I have a question. Where is the internal SD card located? Is it integrated into the motherboard?

    GrowlyCub -

    Thanks. I tried an external antenna in the port under the cover, to the top left of the battery, and now I get "mobile operator not available" when the antenna isn't in. I've read that a factory reset won't cure this but if I replaced the pcb part that should be me "back to normal"? Thanks

    nathanjh13 -

    I fixed it. Insert a SIM card from another operator, select "Automatic" from the mobile networks and the phone will work. Reboot with your regular SIM back in and choose "Automatic" again and back to normal. People elsewhere say you need a new motherboard (or send to Samsung etc for repair) as it's not possible to solve via software. I tried another SIM to test if it was hardware or software related and it most certainly is solvable via software. Unless I was very very lucky, which I never am.

    nathanjh13 -

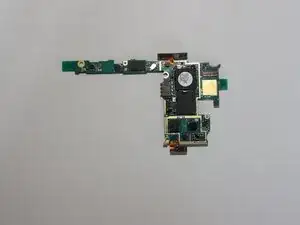

  6. GoqUvwLaH5xgDMfd
    GoqUvwLaH5xgDMfd
    BRebJ2BotcDekwph
    ciPPZWy4eTXhxwLO

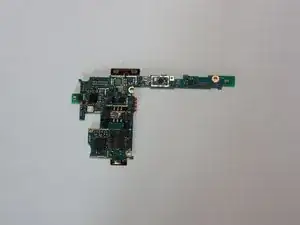

    • The board with removed EMI shields.

    • The front.

    • ..and the back.

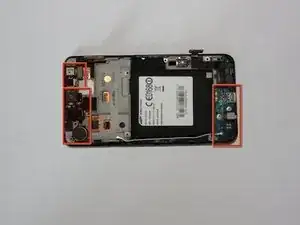

    • The front panel without the logic board.

    • The front facing camera part, the cinch-vibrator-1.mic part and the usb connection-2.mic-antenna board.

    HELP,PLease

    My Samsung S2 I9100G has Hard Brick Problem, for month ago i have visit technical center and they told me "the problem in the the IC" but they didn't specify which model (Power IC or Charger IC or CPU IC)!!

    Iam so confused because i didn't remember where exactly the technical guy pointed to! :confused:

    the expected area of the IC is the right side of the mobile, Please help me to know which part or piece should i buy to make my mobile working again

    please check the photo

    http://imgur.com/cAUF6lM

    Doraid Abo Salem -

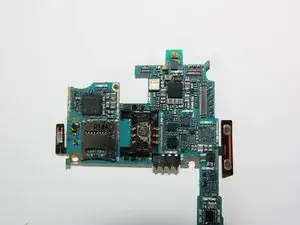

  7. dko2oBWWbgsSvhKq
    dko2oBWWbgsSvhKq
    GVUGCVdx2BMSHVe3

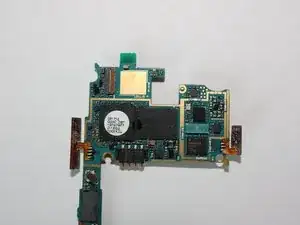

    • The camera connector is at the upper left corner in the second picture.

    • The power and volume buttons are soldered to the logic board.

    • View the picture in HQ if you want to be impressed!

    You can further enhance your 3g/wifi signal through the use of extension antenna - http://telcoantennas.com.au/site/patch-l...

    Tai Li -

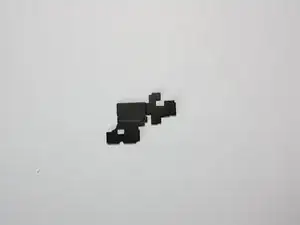

  8. MkQTVGmlFIDPOTt5

    • This EMI shield is nearly a heat sink.

    • Should be useful with a 1.2GHz dual core under it!

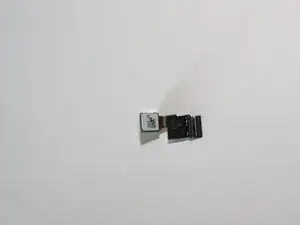

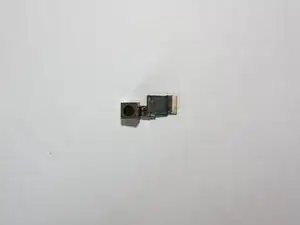

  9. rSkKouUPTnNgBFGO
    rSkKouUPTnNgBFGO
    lUvZQrgStunulSUI
    aDDHaqQfHPNvQuAa

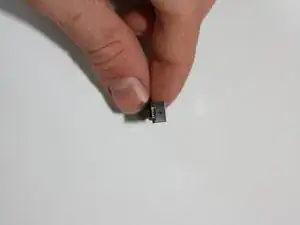

    • The (tiny) 8MP camera.

    • It's smaller than an iPhone 4 camera.

    Anyways to replace this camera module with Galaxy S3 camera module?

    Tai Li -

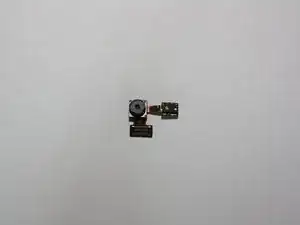

  10. EtWeqKV6RJbISJWn
    EtWeqKV6RJbISJWn
    pLKUNjnVoyLwYxry

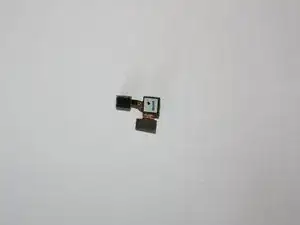

    • The front-facing camera and the light sensor are a single part.

    • The front-facing camera is 2MP, which is better than the iPhone 4's VGA camera.

    Can I replace the front camera with another 8 MP back camera?

    Tai Li -

  11. s6eLuGK2eFNvPXxL
    s6eLuGK2eFNvPXxL
    hoJQyWXAOgnrSbCU

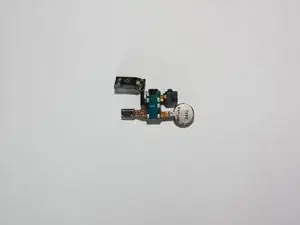

    • The vibrator, first mic (did you know there are two?), cinch plug and the earspeaker.

    I would like to know the part number for the ear speaker please. Thanks

    Hamza Bhavnagarwala -

  12. bOCjli3mGykCADXT
    bOCjli3mGykCADXT
    r3O6igm2KUAUjBSK

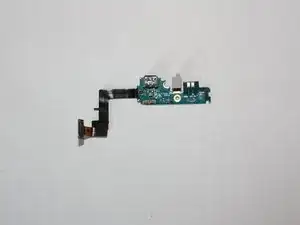

    • The USB-connection and 2 x mic board.

    • It's stuck with glue to the front panel.

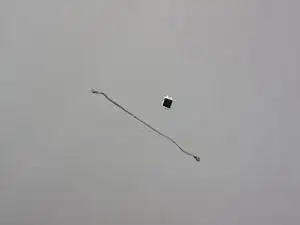

    • The (only) antenna cable and a metal shield holding the light sensor in place.

    Hello. How do you actually unglue the USB flex cable ? Do you use chemical products, heat, or simply tear it ?

    rgauthierventre -

  13. tYZyAWgOMx5iFkGI
    tYZyAWgOMx5iFkGI
    dmVw3gJPhTWHn6oA

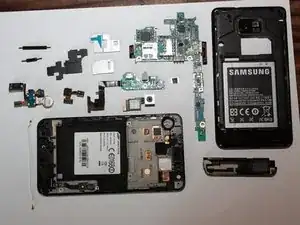

    • This is it.

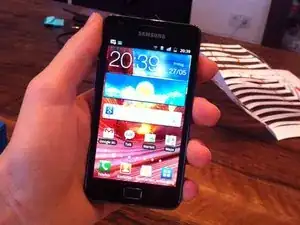

    • It still works after reassembly!
