Einleitung

I will teach you how to get down to the midframe. The steps are easy and fast.

  1. bZXKlHLkvUmFeRKn

    • Step 1- Use an opening tool, or your fingernail into the opening at the top near the headphone jack.

    • Use the tool or your fingernail to pry the opening open.

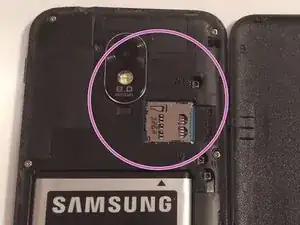

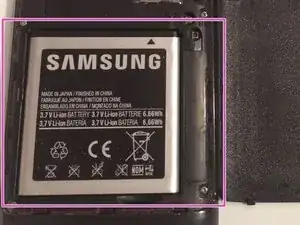

  2. CWrIT44MWS4X31Jw
    CWrIT44MWS4X31Jw
    FLQrNC6aAJGFQBNy

    • If an microSD card is inserted, use the flat end of a spudger and push it until you hear a click sound and it will release right after.

    • Once you reassemble the midframe, place the microSD card back into it's slot

    • Do the exact same thing with your battery and do not damage the battery in any way.

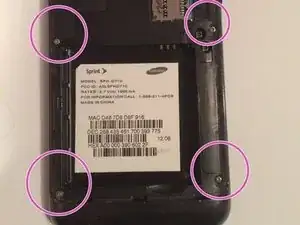

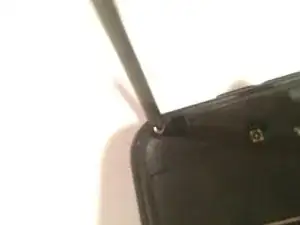

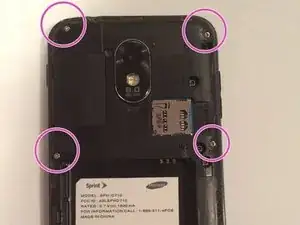

  3. n5Jh61TUCmQQLyVt
    n5Jh61TUCmQQLyVt
    UXdWJ6meYnmbH52A
    InlAIqNm6MJ5MVKL

    • Remove all six pf the 4.0 mm Philips #00 screws securing the back of the device to the front

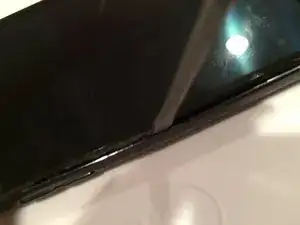

  4. J5MYxNF1QQUfDSta

    • Pry the midframe all around the device to carefully remove it

    • If you do not pry throughout the whole device, the midframe will be very hard to remove

    • A plastic tool opener would be better and it will not damage the phone.

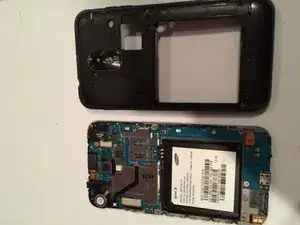

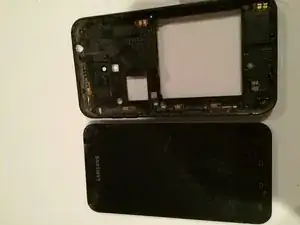

  5. 5LrjGsZ4pfkVvp6n
    5LrjGsZ4pfkVvp6n
    JUCUn3XEi3SQKQ2y

    • Remove the midframe carefully

    • If your previous midframe was broken, place a new one. When you hear a click sound throughout the device, you know you have snapped it into place
