Einleitung

  1. efaOIETIFadxoZl1
    • The Samsung Galaxy S5 camera will be torn down in this guide.

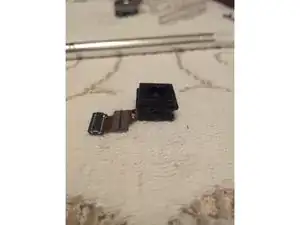

  2. 2I4IpP6rTijKTjhU
    2I4IpP6rTijKTjhU

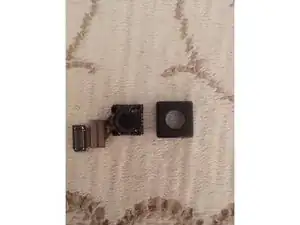

    Y6aNZMcuvPqggefI
    • After removing the black tape, we are left with a single clip on each side of the camera.

    • Remove the plastic bezel.

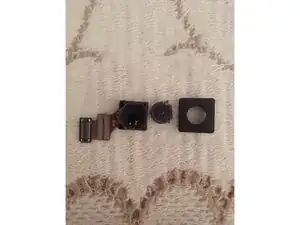

  3. caOpPgyFKnEWsjfb
    • Once the plastic bezel has been removed, we can take out the lens assembly.

    • Those tiny yellow spheres are responsible for bringing images into focus.

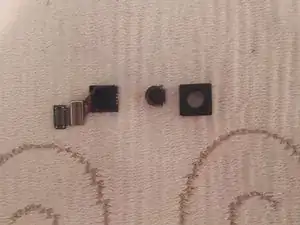

  4. NAoBOC2mmQAnwooK
    • All six yellow spheres have been extracted.

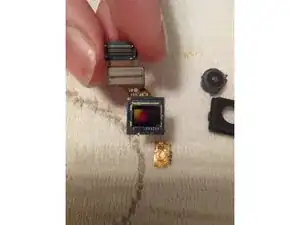

  5. rmCkmA5fchsbbLwG
    • We must now separate the blue film and casing from the camera's sensor. This is done by wedging an x-acto knife in between the sensor board and the casing.

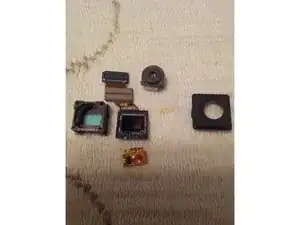

  6. iMOAvsmAYyanEvjf
    • With the camera fully torn down, we must now look over what it is made of.

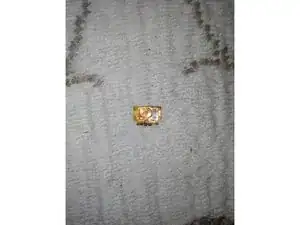

  7. NOVY2NMvWsYYBHV6
    • Hi.
