The Teardown is pretty much the same as other Samsung Slider phones

  1. S6wRG2owSGUYkPj2
    • Remove the back cover and battery

  2. oLF463i4ApibwjGu

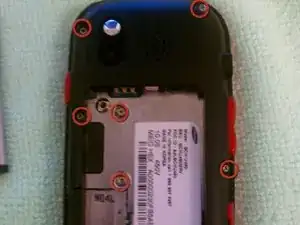

    • Remove the 8 screw that hold the back cover down.

    • Carefully pry back piece off

    • Start at the bottom and work toward the top.

  3. QyhiuQ2ruNN5UVeS

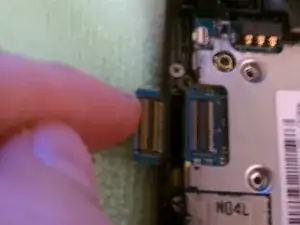

    • Use the ipod opening tool to disconnect the Connector

  4. xqZZwPAPGwkoAOjR
    xqZZwPAPGwkoAOjR
    L12E3E1Rhdwa4lYo

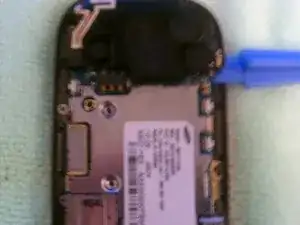

    • Carefully remove the main board

    • Make sure to not tear the microphone cable, pry it from the phone carefully

  5. URPigr1QEfeFH3hK
    URPigr1QEfeFH3hK
    IVCqlNCDxVifQ2OU

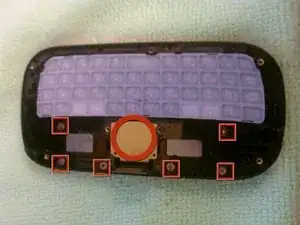

    • Remove the 6 screws

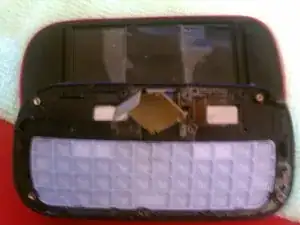

    • Pry to ribbon cable assembly loose from the slider

    • Its glued on the left and right side

  6. GhiTmWXaFwyEiIvo

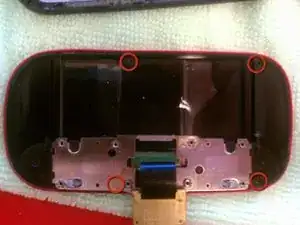

    • Remove the 4 screw the holds the slider to the phone assembly

    • one of the screws will be behind the hinge

    • Carefully pry slider assembly loose from display assembly

  7. AQpPDFhtxK2uIOLa
    AQpPDFhtxK2uIOLa
    SO5PeU1rv6CkamAu
    UEycg2j6rZRhEins

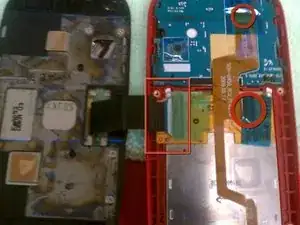

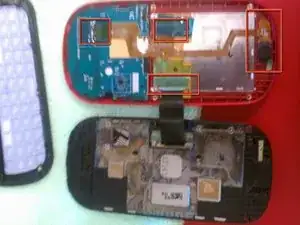

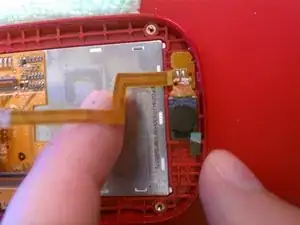

    • Remove the tape and pop the connectors and pull all the ribbon cables loose

    • Carefully pry the speaker loose from the case.

  8. hvsb2uUuIHe56QII

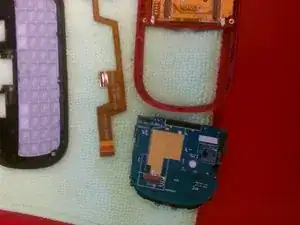

    • Carefully work the keyboard loose from the display assembly

    • There are a couple fragile clips that hold it in place

  9. uQPXW3MMepQywAD1
    uQPXW3MMepQywAD1
    rqn2LL5hZtJGWUEA

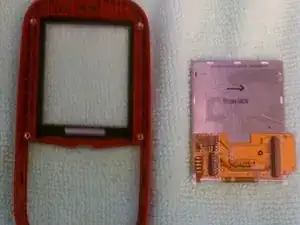

    • LCD comes out pretty easily

    • Pry it from the bottom and work up the sides to release it if stuck

    • The glass can be removed with a little heat from a heat gun or blow dryer

    • Pry it out from the outside edges working around carefully
