Samsung SCH-8500 Teardown

Geschrieben von: William Maddrey
Veröffentlicht: 20/04/13
  • Kommentare: 0

Samsung SCH-8500 Teardown

Veröffentlicht: 20/04/13

Teardown

Einleitung

This is a teardown of the Samsung SCH-8500.

  1. t1B14CQOKXcEPuro
    t1B14CQOKXcEPuro
    y5AeME4XPBaapPJn
    ZOY1ZNUORXqLRqow

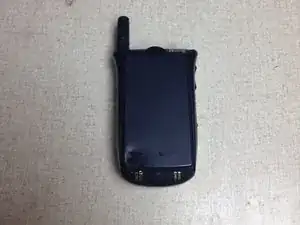

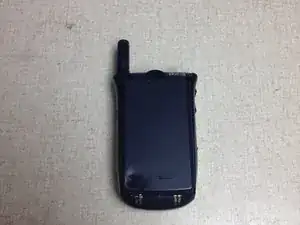

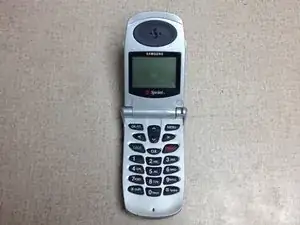

    • The phone we are taking apart today is the Samsung SCH-8500

  2. 4jHNoIvqtVBdStKF
    4jHNoIvqtVBdStKF
    pni1TolIHXUduSkg
    FE4WmAXdZFiI1amS

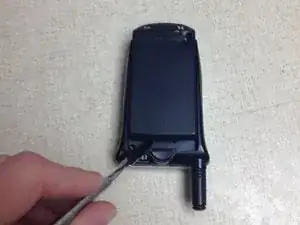

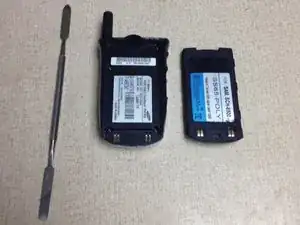

    • Press on black button next to battery and use metal spuger or other pointy object to pop the battery of the back.

  3. yMZP3gdwsfpnJI65
    yMZP3gdwsfpnJI65
    uTcMJUwiNtGJvAkM
    mTblQcsirHBujXCD

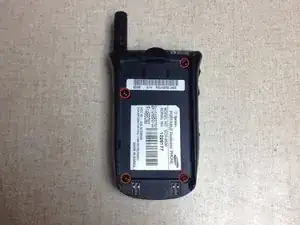

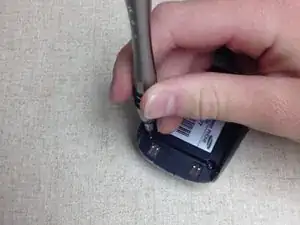

    • Remove 4 0.6mm screws with a T6 Screwdriver.

  4. Ei4Z2evoHKVVWulA
    Ei4Z2evoHKVVWulA
    wqfVvo3gjtFEcB4P
    ueTjEhx6vYr1dGuw

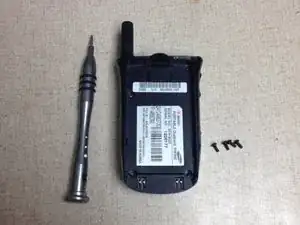

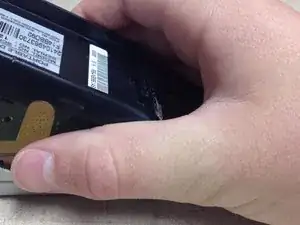

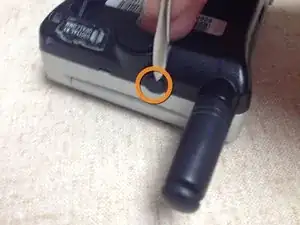

    • Remove the little rubber piece.

    • Then gently lift off back case.

  5. QCLaUj1BUw2NGRxq
    QCLaUj1BUw2NGRxq
    RZsV2nuGZ5HZKuSt
    IEtNpY3pFTbrUKUT

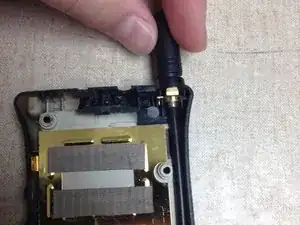

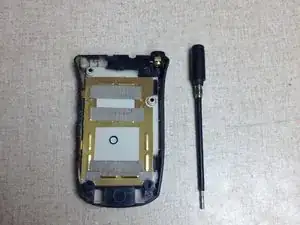

    • Unscrew the antenna from back case.

  6. nHF4rS1jPNHXPjOt
    nHF4rS1jPNHXPjOt
    UVZjqBLTVoHHk3SC
    2QxuRHxsQd2HYNv6

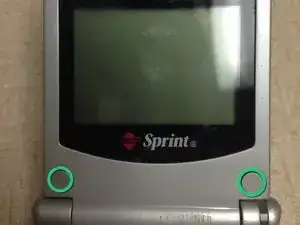

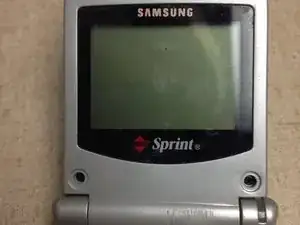

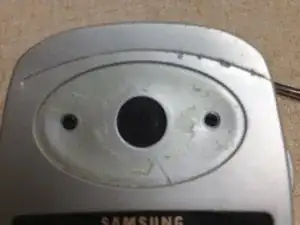

    • Pry off the 2 covers on the display.

  7. yvWF1p5cXAxeycYA
    yvWF1p5cXAxeycYA
    NkNlxlkCgI32JEl4
    UYT4mNdolqhVFa6Z

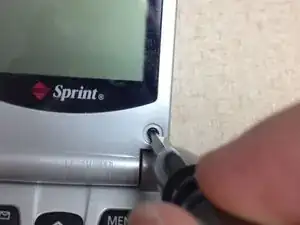

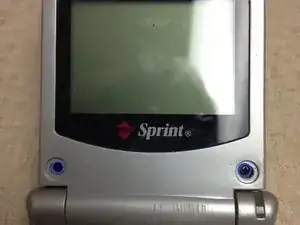

    • Remove the 2 0.3mm screws from display

  8. VbK11wi3LZKHTMno
    VbK11wi3LZKHTMno
    xktpHpZAqgyAfPtA
    IDn6Ob65TJotDGaX

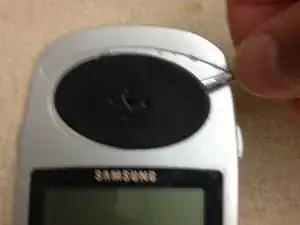

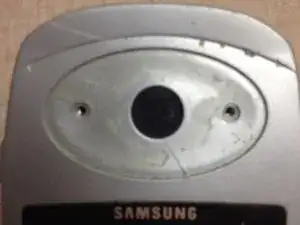

    • Pry the speaker cover off display, to reveal 2 screws.

  9. WI1m3ogOWVNHT2HV
    WI1m3ogOWVNHT2HV
    LNxMiD2vxWVb5Ze6
    pcYZVXaS6QBm1L4A

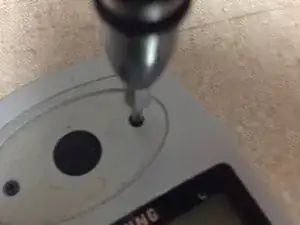

    • Remove 2 0.3mm screws.

  10. QPyajps2I5edxBjI
    QPyajps2I5edxBjI
    HqoQklBjcqM51hai

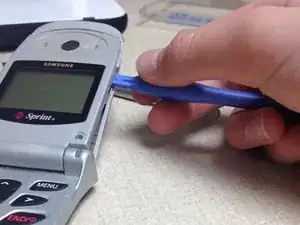

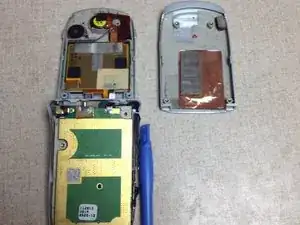

    • Use a case opening tool and pry the case of the display.

  11. lBW5fkfVowDelQBp
    lBW5fkfVowDelQBp
    MW2kCrLoeNCcJKwX
    EuhTAa5yOVsDVQje

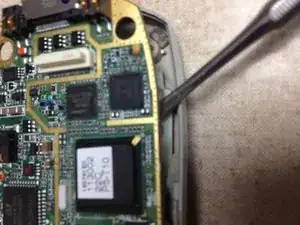

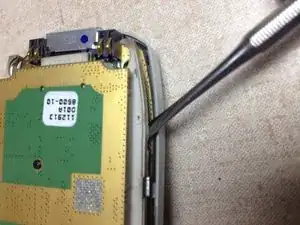

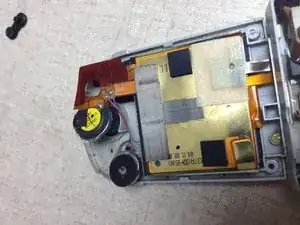

    • Pry the display, speakers, and main board of of phone

    • Take off the keys

  12. U3HWtULCs5Lh5VZB

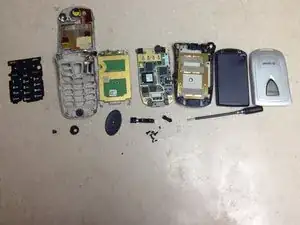

    • Voila! You're done.
