Samsung SGH-X450 Teardown

Geschrieben von: Bryan
Veröffentlicht: 27/10/12
  • Kommentare: 0

Samsung SGH-X450 Teardown

Veröffentlicht: 27/10/12

Teardown

Einleitung

  1. qLIw4cUerWgqmgSF

    • Take out the battery and SIM Card.

  2. qkGCWsZvDHlEgQpr

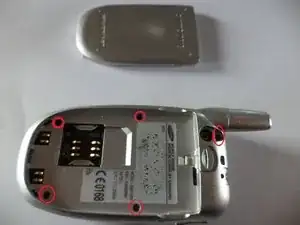

    • Remove these screws.

  3. DpyIAfDgWeNZCqgk

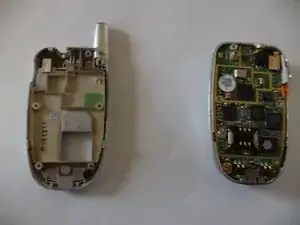

    • If the screws are removed, you can take the case of with your fingers or a small flathead screwdriver

  4. DEEFtxYBmgLrJKhg

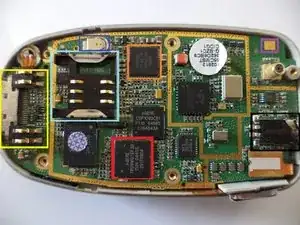

    • Now you see the PCB

    • Agere TR09WQTEF2B Processor

    • Agere PSC2106 Power Management IC

    • Battery contacts and power supply connector

    • SIM Card Slot

    • Back-Up battery

    • Antenna connector

    • 2,5mm Headphone Jack

  5. FN1g5PR1xYObLq3W

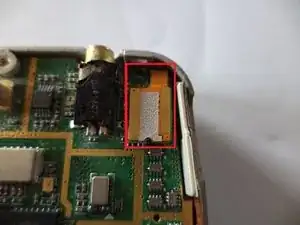

    • LCD Dispaly cable, you can release this connector with a small flathead screwdriver

    • Be careful here, You can break the flatcable!

  6. OajjCPSsNqPDrokN
    OajjCPSsNqPDrokN
    TtNEZZZeT12wTBiF

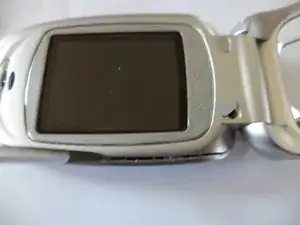

    • To take the LCD display out of the case, click the upper case open with a small flathead screwdriver or case opener. Under the two pads under the LCD Display are 2 screws.

    • Be also careful here, go not to far with the screwdriver so you can not damage the LCD display.

  7. hiRaicVD1ONNQelS

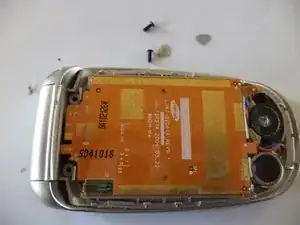

    • Now you see this.

    • If you want to remove the LCD display, lift the PCB of the LCD display up with a small flathead screwdriver.

  8. gZ5YjP3x6BvvuSKU

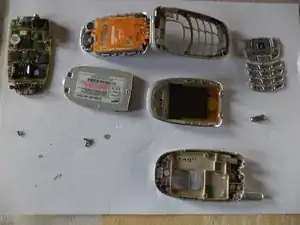

    • Finished!
