Samsung SPH-A660 cellular phone carried by Sprint. Comes with basic features: no camera, color screen, flip phone with extendable antenna.

  1. YBVSRcAfo6aQ3HDF
    YBVSRcAfo6aQ3HDF
    FpChcMC1sUyWXIXP

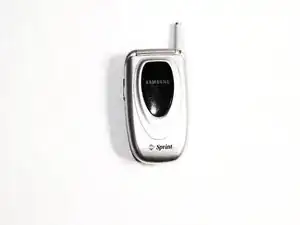

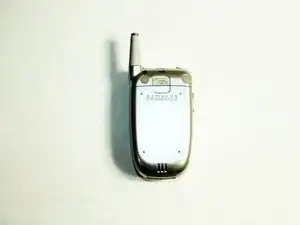

    • The Samsung SPH-A660 Cell Phone.

  2. 1BMJgEZ5fFBLcmOi
    1BMJgEZ5fFBLcmOi
    RaeMmJXQoumiE5GC
    cBPoFWJvLj54Ll3N

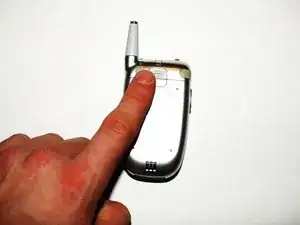

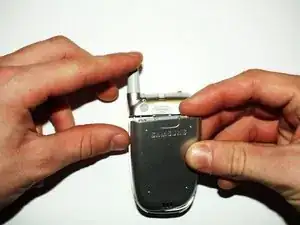

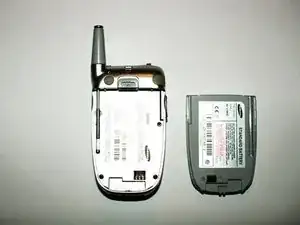

    • Slide the grey tab foreward and pry the battery up and out of the phone.

  3. WwqD2PVDPp4xZkZk
    WwqD2PVDPp4xZkZk
    CjMVYIpnhClLBF6e

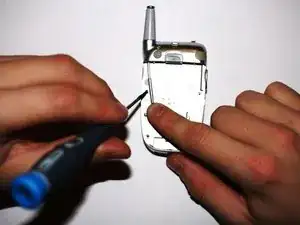

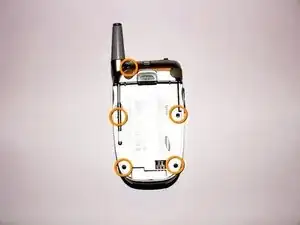

    • Once the battery pack is removed from the phone, remove indicated screws.

    • Bend back the antenna to access the left middle screw.

  4. xgFeOlKQgKHisvFY
    xgFeOlKQgKHisvFY
    VsVyctoIGwNarbUx
    tcxaHjaIyGu4ikkH

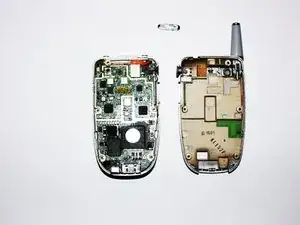

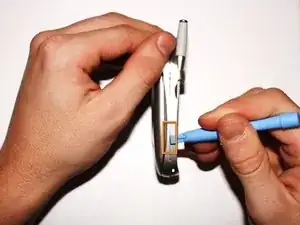

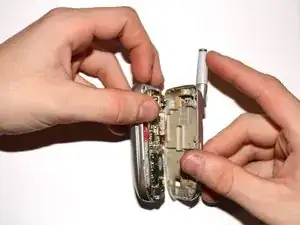

    • Insert the plastic opening tool into the slot that runs along the side of the phone. Slowly pry open the phone by working your way around the edges.

    • There are tabs which hold the phone together and you may need force to pry the phone apart.

    • During this step, the side volume key may fall out; this is okay.

  5. 4FOQTTCY4funrd4Q
    • Carefully remove the highlited connector between the logic board and the screen by using either your fingers or plastic opening tool.

    • Lift up on the tabbed connector to remove it.

  6. MpVCNK4YyEWGA5at
    MpVCNK4YyEWGA5at
    tORAuDv6B13SyTBS
    kkESeOJCqAyJpMGJ

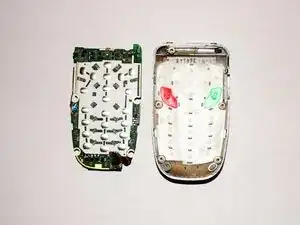

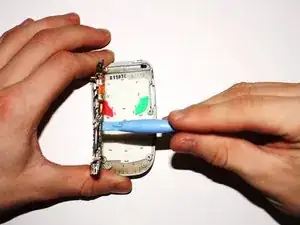

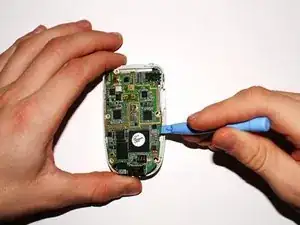

    • Remove the logic board from the phone by gently lifting up on the large green logic board with the plastic opening tool.

  7. SMCO14aYSJBHlx2V
    SMCO14aYSJBHlx2V
    pHpCufY4lYrGr3jT
    xMILGNw5sa6OsPRI

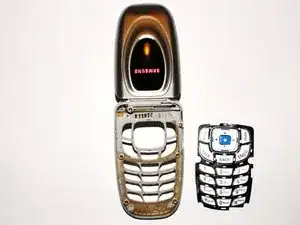

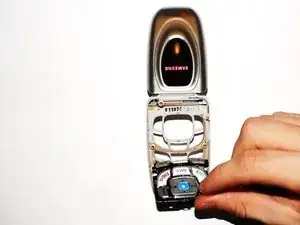

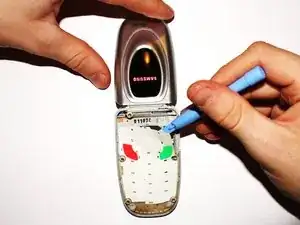

    • Remove the keypad from the body by grasping the white rubbery pad and lifting it off the phone.

  8. LqtZnVemHJ1dQ6xl
    LqtZnVemHJ1dQ6xl
    tcFu3IyQcXECvCky

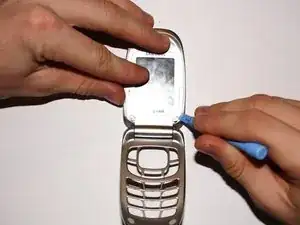

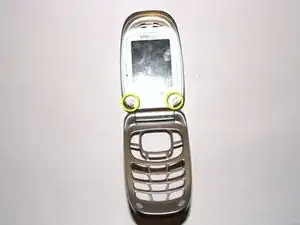

    • Remove the two sticky covers by using a flat edge to pry off the stickers in order to gain access to the screws.

    • Slide the edge under the stickers and they should come off with relative ease.

  9. QCEfBSEShHUOHTTy
    QCEfBSEShHUOHTTy
    f1pVmYeJQXjETiTN

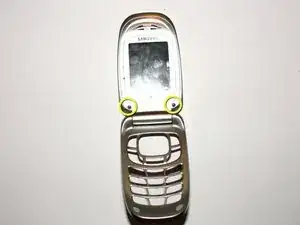

    • Remove the two highlited screws from the phone below the screen in order to open the display area.

  10. hX6CIaUsEcWNHNE3
    hX6CIaUsEcWNHNE3
    hfgK3ZjMgWirEQBF

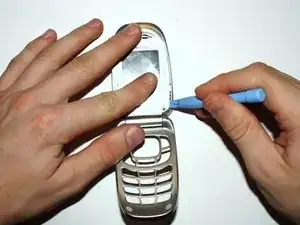

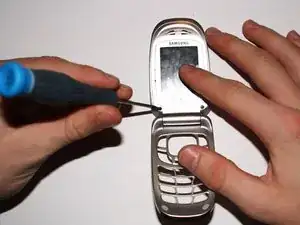

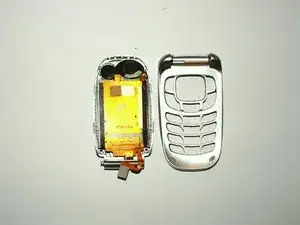

    • Pry the phone display open by inserting a plastic opening tool into the crack that runs along the side of the phone display under the screws.

    • Once you have the display cover wedged open, use your fingers to pry the whole cover off the phone.

    • Some force may be needed to remove the cover, as several tabs are there which hold the two parts in place. Therefore, be careful when prying the cover apart

  11. iEJG21ASoZGasBGN
    iEJG21ASoZGasBGN
    Nosgt2votuCXx6AC
    dX3YFcHJchABjEVC

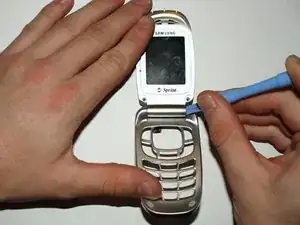

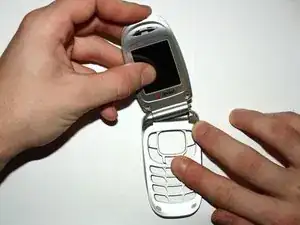

    • Be Extremely Careful in this next step as if you pry the hinge off too fast you may rip the connector between the logic board and screen.

    • Carefully wedge a plastic opening tool between the hinge on the body as shown in the highlited area in picture two. (be sure to insert the wedge into the right hinge when looking down onto the phone as in the picture).

    • Slowly pry the hinge off the body as shown in the third picture and set the phone down when you get to this step.

    • Next slide the connector cable out of the slot on the back side of the phone and the screen will be disconnected from the key pad body.

  12. RLRMwXZmJCu2nNw5
    RLRMwXZmJCu2nNw5
    EG6yDcttaSPRRKlP
    jaMHLQhCksRCTM4l

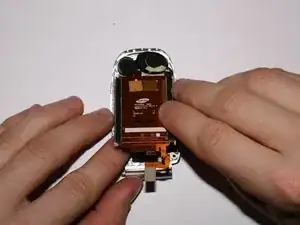

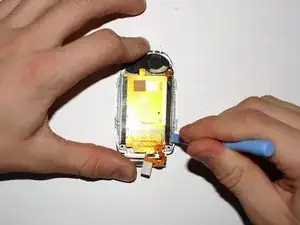

    • Next use a plastic opening tool to pry the screen from the cell phone cover.

  13. a2MME2JhdVoexlcw
    a2MME2JhdVoexlcw
    YukMflgTmTAjUR3l

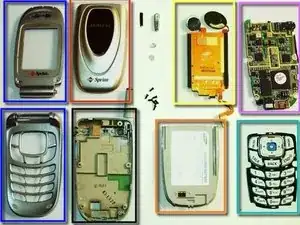

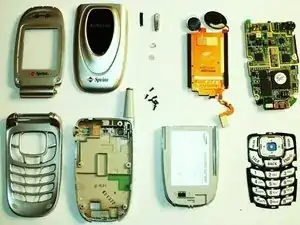

    • Congratulations!!! You have successfully disassebled the Samsung SPH-A660

    • Outer Casing

    • Phone Top Cover

    • LCD Screen

    • Logic Board

    • Phone Back

    • Battery

    • Keypad
