Einleitung

This is a Sega Genesis model 2. In this tear down you will be able to see what the inside of the Sega Genesis should look like.

  1. dNDdyKXYqJKXeqWo

    • Flip the system over

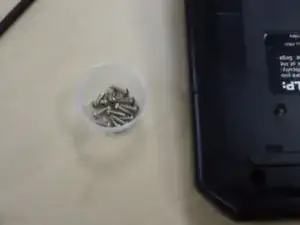

  2. rYBErMqoEt1CQYYP
    rYBErMqoEt1CQYYP
    gJmmLAAARujRMhIH

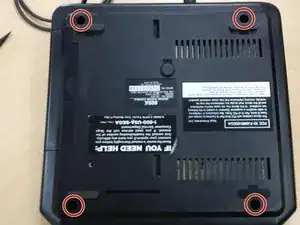

    • Remove the four outer screws (you may want a small cup to keep your screws in.)

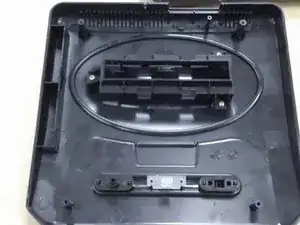

  3. xMcgiCFAeyyYYwK5

    • Take plastic top off.

  4. RQWoITRUJrefboXU

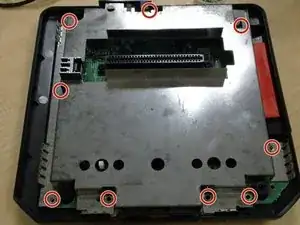

    • Remove the nine inner screws.

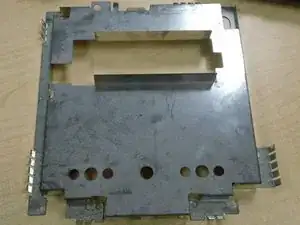

  5. 4f2vMw1ZoUQGcLOS

    • Remove metal piece.

  6. UkJpYBfcky11Xovp

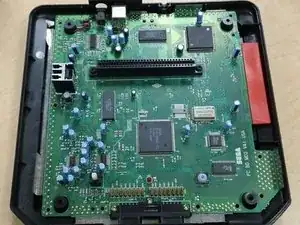

    • You now have access to your circuit board. (If you wish to remove the circuit board, continue.)

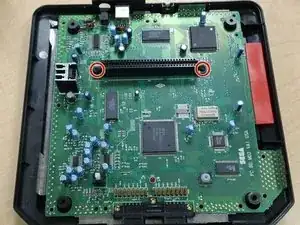

  7. RPdvEcVVPX5pXBGZ

    • Remove the two screws highlighted in picture to remove the circuit board.

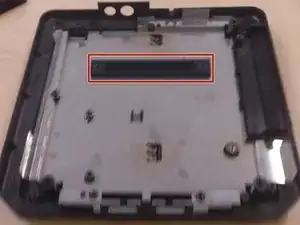

  8. Bg3hlSRwqKNZMZjm

    • Lift the black piece of plactic up.

  9. t5AU2ah23C2LXeeA

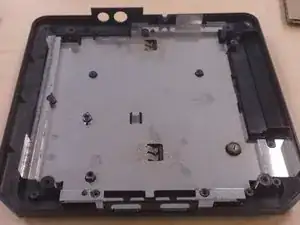

    • Lift up the metal piece.

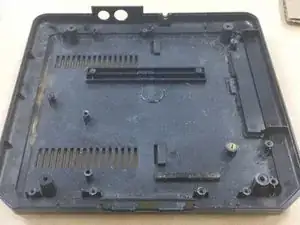

  10. BxBrBCImAMNDFYLr

    • You now have access to the inside of the bottom plastic piece.

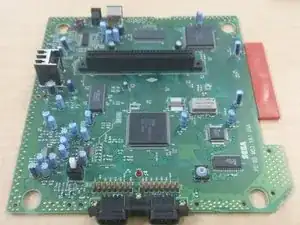

  11. CpZUWGVlpkhNIj4F
    CpZUWGVlpkhNIj4F
    LtrscIL5IkIfxY1D
    JhkvRNSwFxbHF53c

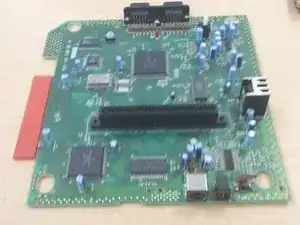

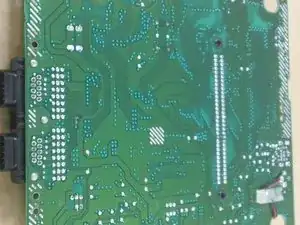

    • This is the circuit board.

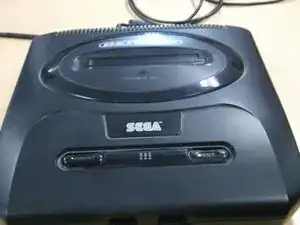

  12. I5c6UxuSQ2q1PDGQ

    • Do the steps backwards to reassemble.
