Alright. This guide is a teardown to show the safest and easiest way to take apart your genesis.

  1. IknJuv6YSqdM4Pnq
    IknJuv6YSqdM4Pnq
    WnhxQiZfdtrndiix

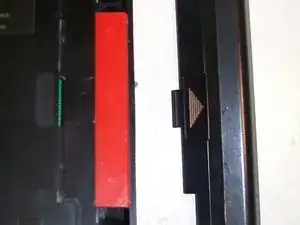

    • Let's start by taking the small door found on the bottom right side of your console

  2. JJpms1mamcqOywxs
    JJpms1mamcqOywxs
    cWewncvDLmsuf1uW

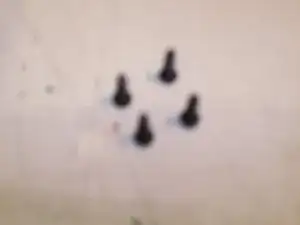

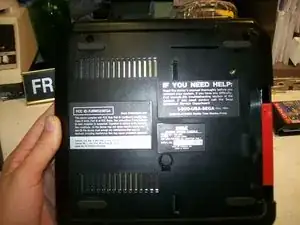

    • Next, remove the four, black 11mm screws from the bottom of your console.

  3. ABSlTgXy2AGVeAUY

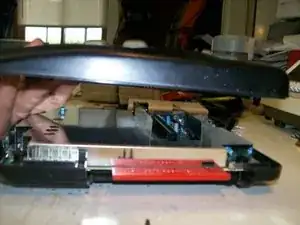

    • Carefully lift the top off of the console.

    • It should come off relatively easy

    • If it doesn't, ensure that all four screws are removed

  4. IcwSxhXrOcI3NPeX
    IcwSxhXrOcI3NPeX
    wLy2KIKMyFsfxyqm

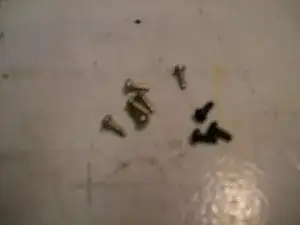

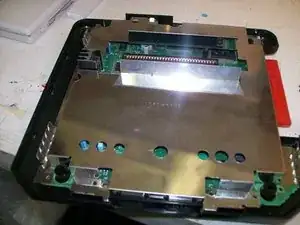

    • Remove the six, gold, 8mm screws and the three, black, 8mm screws holding down the EM shield

    • After removing the screws, the shield will come off very easily.

  5. EdYL3QXINZDfqXGB
    EdYL3QXINZDfqXGB
    wPPLP6eVQTVuCoBN
    YTTBMLHZ6CGyFpIF

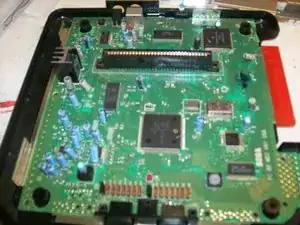

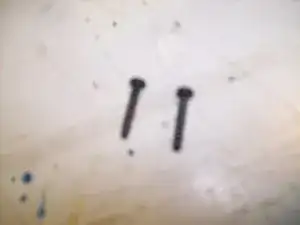

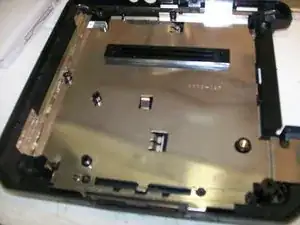

    • Remove the two 17mm black screws on the left and right side of the PIN to release the circuit board from the bottom EM shield.

    • After the screws are releases, the circuit board can easily be removed from the console.

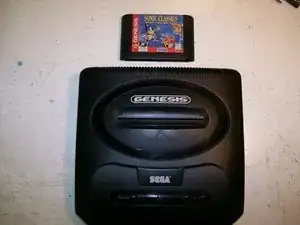

  6. 4PnKmYufAJc3ssK1
    4PnKmYufAJc3ssK1
    m3VZvPAPMowaaCVw

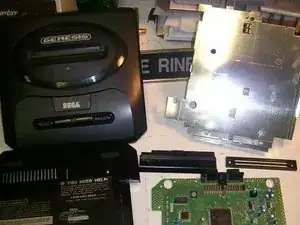

    • Well, there you have it!

    • One disassembled Sega Genesis. I hope this guide was helpful and informative. Good luck and Happy Gaming!

    • This guide brought to you by: Frankie's Video Game Console Repair and iFixit.
