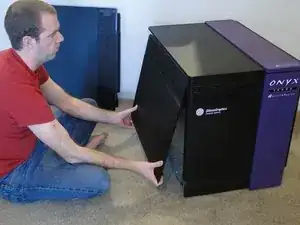

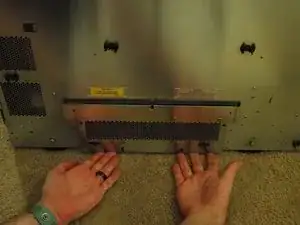

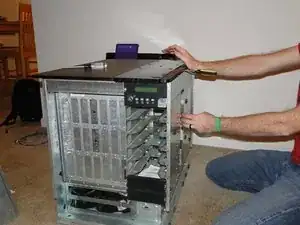

Begin by removing the back and side plastic skins.

To remove the back and side skins, pull the bottom of the skin off, and then slide it down.

This Onyx is not outfitted with side skirt skins.

We will remove the top skin towards the end of the teardown, as it is only necessary to remove the skin when it is being replaced.

Open the purple drive door.

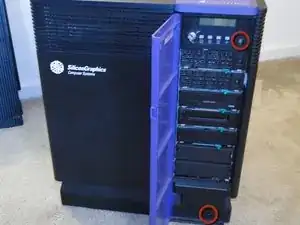

Two latches hold the front door closed. To open them, push the button with a screwdriver and the button will pop out.

To remove the front door, push the door up and swing it away from the bottom hinge.

The top hinge is spring loaded.

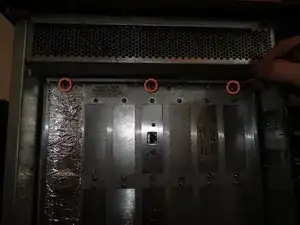

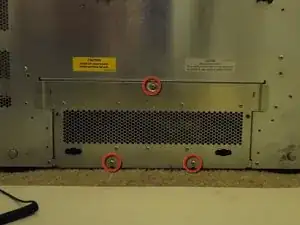

remove these three screws to open the I/O bulkhead door.

The bulkhead door is hinged and swings down for easy access.

Peripheral boards such as sound, network, or video, interface through this panel.

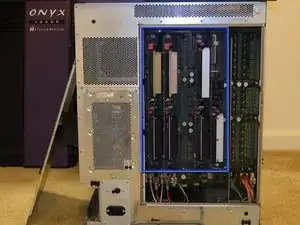

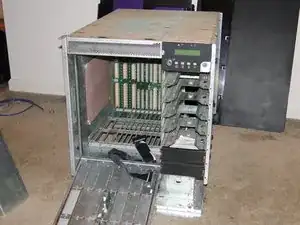

The bowels of the computer are now revealed to us!

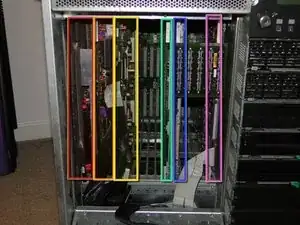

The card cage is 9U VME size, which means that each board is about 14 inches square.

Memory Board (MC3, 32x64MB (2GB)

Processor Board (IP25, 4x MIPS R10000 @195Mhz)

I/O Board (SGI IO4)

Geometry Engine (4x GE12 SGI-proprietary ASICs)

Raster Manager (20x "quad core" image engines- 80 total, 16MB)

Display Generator (Two Graphic terminal DACs and video I/O

Remove the Infinite Reality frontplane by pulling it straight out. This circuit board connects the raster manager boards (up to 4) to the display generator.

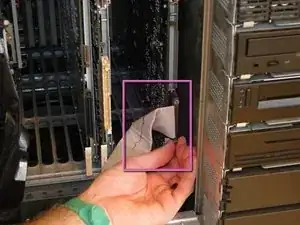

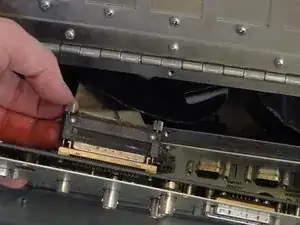

remove the SCSI and I/O bulkhead cables from the IO4 circuit board.

Pinch the side levers together and the connector will pop out.

Remove the graphics bulkhead cable from the display generator circuit board.

Two thumbscrews hold this cable in place. If these screws are stuck, a flat screwdriver can be used.

Hold these cables out of the way when removing circuit boards from the cage. They are fragile and can snag easily.

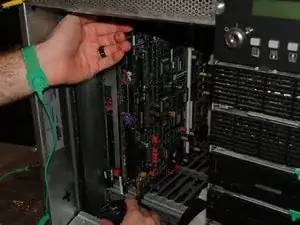

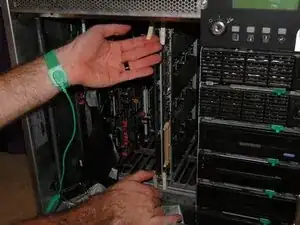

Remove circuit boards by pulling the top and bottom lever out simultaneously to disconnect the backplane connection.

When the card is disconnected from the backplane, slide the board out of the cage and store it in a safe place.

It is easier to remove a board next to an empty slot. If a board is sandwiched, especially the memory board (first slot) or display generator board (last slot), remove the adjacent board first.

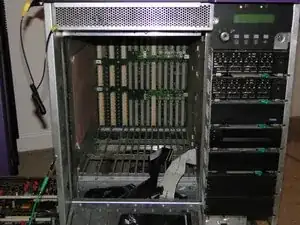

When all boards have been removed, admire the backplane and blower.

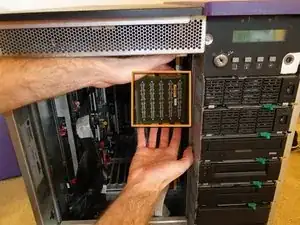

Let's take a closer look at all of that fancy circuitry we just pulled out. We'll start with the memory board, called an MC3.

Memory is available in 16MB (pink stripe) and 64MB (purple/green stripe) simms. The simms are removed just like some old-fashioned PC memory from the early 90s: pull straight up on the white handle, and pray that nothing snaps!

Board Layout:

Everest powerchannel bus ASICs

Memory slots

48V to 5V DC-DC power converter

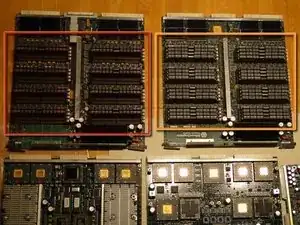

MC3 with 256MB memory (16x 16MB)

MC3 with 2GB memory (32x 64MB)

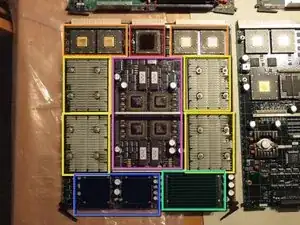

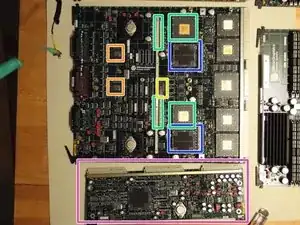

The IP25 board contains 4 MIPS R10000 processors, running at 195Mhz with 2MB of cache on-die.

Mips R10000 processor

Everest data bus ASICs

Everest address bus ASIC

5V power converter

3.3V power converters

glue logic and microcode eproms

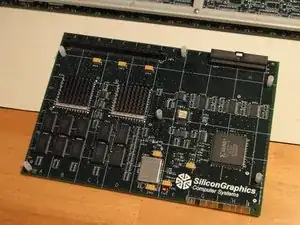

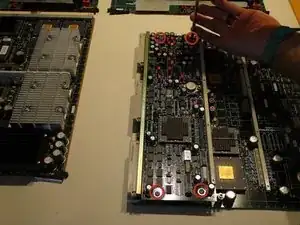

Remove these screws to separate the VCAM from the IO4 board

The VCAM interfaces the computer to the VME bus and graphics (PowerChannel bus)

PowerChannel controller ASICs and connection to VCAM board

HIO expansion connections for disk, graphics, audio, or other peripherals; and controller ASICs

Dallas real-time clock and battery backed NVRAM

WD33C95A SCSI controllers

VME interface and glue logic

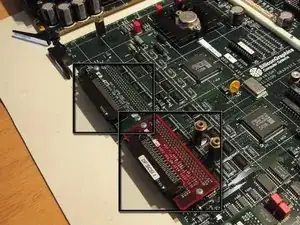

SCSI riser boards: red is differential, green is single-ended. The system can be configured for two diff, two SE, or one of each.

The geometry engine board contains 4 SiliconGraphics GE12 geometry processors

PowerChannel2 bus interface ASICs, FIFOs, and glue logic

geometry performance of 10M polys/sec - on par with the much newer Nvidia GeForce 256!

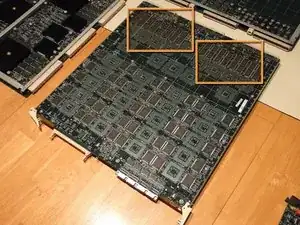

Empty solder pads. A GE with 8 processors was never created. Warm up the wave soldering oven, I smell an upgrade.

The graphics boards require 3.3 volts, and their power converters are on the opposite side of the backplane, on their own daughterboards.

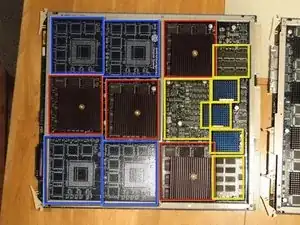

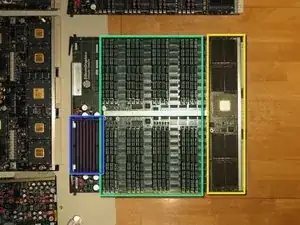

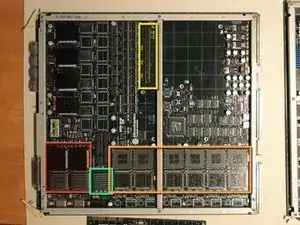

The raster manager processes the image raster and also provides texturing capabilities.

the RM6 is available with 16 or 64MB texture memory, this is a 16MB version.

InfiniteReality can run with 1, 2, or 4 RM boards. Raster memory will increase in size with additional boards; texture memory increases in speed via interleaving.

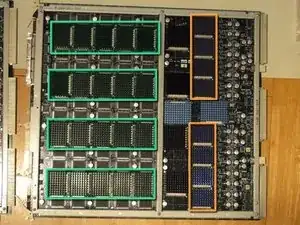

8 TM ASICs control 32 SDRAMs (on the back of the board) which make up the texture memory

80 "image engines" are on 20 quad-core ASICs. These control the raster memory (framebuffer) as well as providing many image operations such as blending, dithering, etc. They can be thought of as a precursor to the "shaders" or "stream processors" on a modern day GPU

With a fully-realized modern InfiniteReality4 system (with 4 RM boards per pipe and 16 pipes in a system), the system can contain up to 16GB texture memory and 160GB of framebuffer!

This makes for very nice pictures even on IMAX-sized curved screens with many projectors blended together to form a single image.

Such a system will fill many computer racks. They are still in commercial use throughout the world.

The display generator combines data from the raster managers and contains the DACs necessary to drive video output as well as 2 graphics outputs.

This DG4-2 contains circuitry necessary to drive 2 graphics monitors.

This DAC drives the video output, so InfiniteReality can output to a television or VCR via svideo or composite (BNC and RCA) connectors.

The optional DG4-8 can drive up to 8 graphics monitors. Outputs 2-7 have a reduced pixel clock of 180 MHz, whereas 0-1 run up to 220 MHz.

Sirius Video is an advanced video interface providing real-time video input, output, video-to-texture, and DMI capability. The daughterboard connects here.

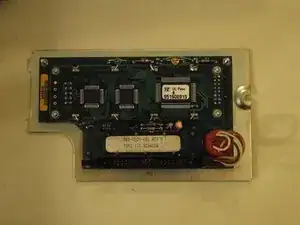

The PAB2 Sirius Video daughterboard contains two ASICs and an FPGA. It is used to send graphics information from the InfiniteReality pipe to the Sirius Video VME motherboard. This Onyx does not have the full Sirius Video outfit, only the PAB2 daughterboard.

With the computer history lesson out of the way, we continue disassembling hardware!

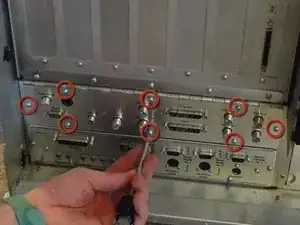

The Graphics and I/O bulkheads are held in place with 8 screws.

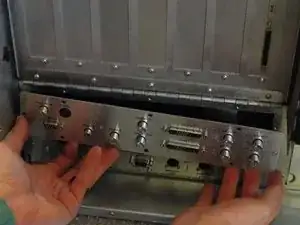

Remove the screws and pull the bulkhead out far enough to disconnect the cable, before removing it completely

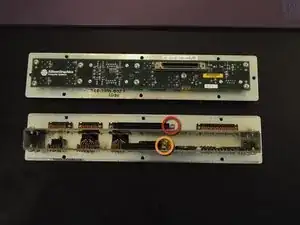

The bulkheads contain circuitry such as termination resistors.

This fuse protects the ethernet transceiver.

This fuse protects the peripheral power connections.

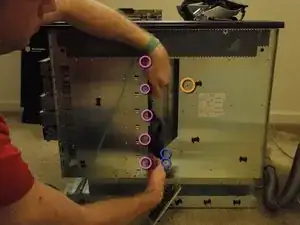

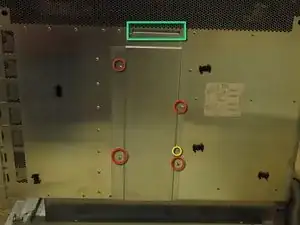

Removing the backplane cover:

Remove these screws fully

Back the bottom screws out, but don't remove them

Remove the top screw last. This will hold the cover in place until you are ready to remove it.

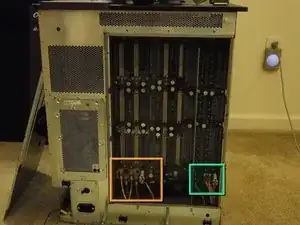

Power supply connections

System Controller, SCSI power, and blower connections

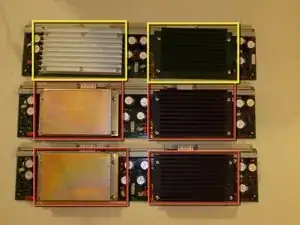

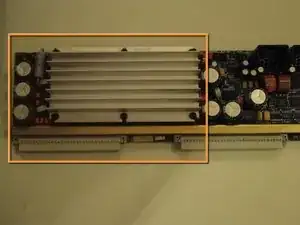

From left to right: graphics power converters (2), VME/IO4 power converter, system controller

Each 303 power converter board has two AT&T FW300 DC-DC 3V converters on board.

60 A per DC brick, 120 amps per board. This is screwdriver-melting stuff!

The 512T power board provides 5V and 12V DC to the VME bus and IO4 board.

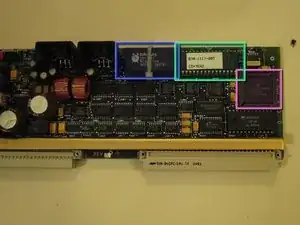

The system controller has it's own power converter as well as:

Dallas RTC and NVRAM

system controller EPROM

Motorola 68hc11 MCU

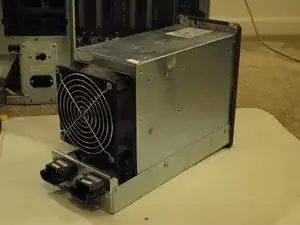

remove these screws to slide out the line power supply.

The power supply outputs 48V, 50A. 2400W.

Input power requirement is 120V, 16A (only 1500W output is possible, for minimal configurations)

Input power requirement is 208-240V, 13A for full power output

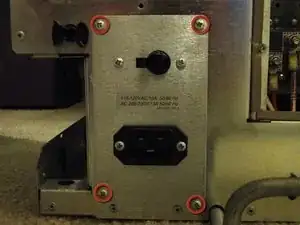

These screws hold in the circuit breaker and power receptacle assembly.

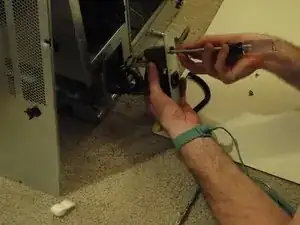

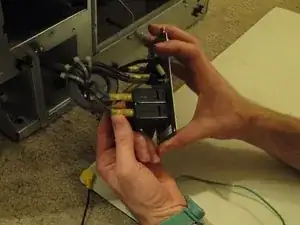

To remove the circuit breaker, disconnect the lines and unscrew the breakers from the panel.

The two lines that go to each breaker should match: blue to blue, and brown to brown.

The spade connectors to the circuit breaker seem to be in the advanced stages of rigor mortis, so we will not disassemble this part unless necessary.

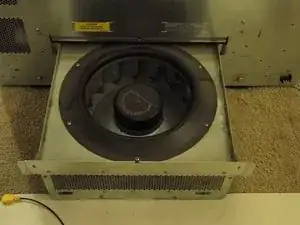

We will now move to the left side of the machine to remove the blower assembly.

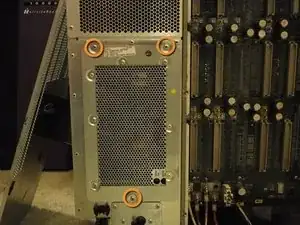

Three screws keep the blower secure.

Pull out and up to slide out the blower. The electrical connection to the blower plugs in when the blower is fully inserted in the chassis.

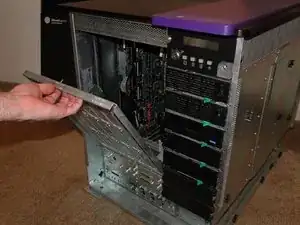

There is a cover on the right side of the chassis. Behind it, the SCSI backplane, auxillary fan, and line supply connections can be accessed.

4 screws secure the cover

This guide post holds the cover in place when the screws have been removed

The cover has a tab at the top. Slide it out and down to remove it.

With the cover removed

This screw holds the auxillary fan in place. The fan power connector plugs into the SCSI backplane.

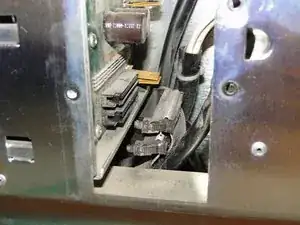

These screws hold the line supply connections in place. These connect to the system backplane and mains circuit breaker

These screws hold in the SCSI backplane. Remove the SCSI bus connections and power connector and hold them out of the way when removing the SCSI backplane. Remove SCSI devices before removing the backplane.

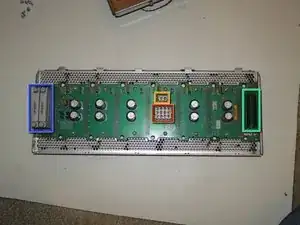

The SCSI backplane

SCSI disk power connector

Auxillary fan connector

SCSI bus connections

SCSI bus terminators

The SCSI devices are mounted on sleds. The sled can hold 3.5 inch and 5.25 inch devices.

Full-height devices can be accommodated but the bay above the bay in use will be inaccessible.

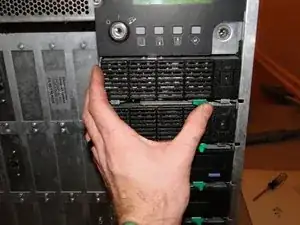

To remove a sled, slide the green lever to the left.

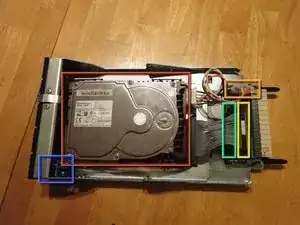

This sled holds the system disk, a 10k RPM 9GB Quantum. Slow and small by today's standard, it is typical for late 90s technology.

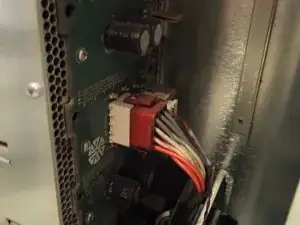

The sled's power connection.

Bus 0 connection (single-ended)

Bus 1 connection (differential signaling)

The Device ID can be set through a switch on the front panel. This switch plugs into the disk.

It is only necessary to remove the top skin when changing the top skin

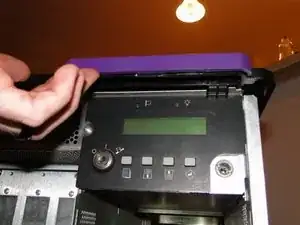

To remove the purple top hat, lift the front of the part and slide it back. Then lift off.

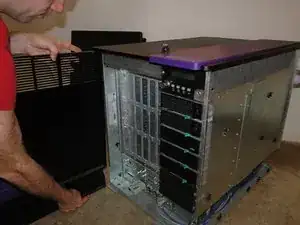

To remove the top skin, remove both side skins. Slide a blade screwdriver into the tab on the right side of the skin, and push the skin to the left.

The top skin will lift off. Our machine is looking quite threadbare now.

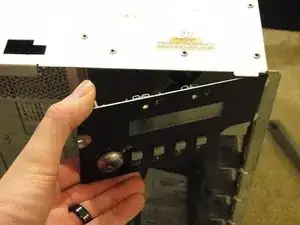

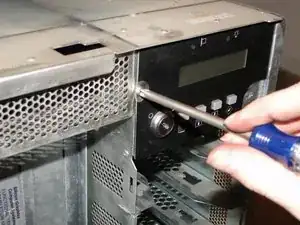

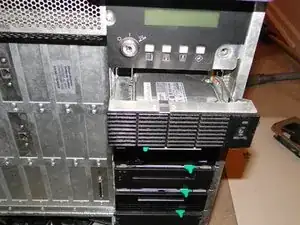

The system controller/ operator panel is held in place with one screw

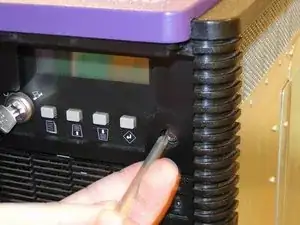

Remove the screw and pull the panel out of it's tabs.

The system controller contains a keyswitch to start and stop the machine, a LCD display that shows a nifty CPU usage graph when running, and 4 operator buttons to control the system controller.

This console can display fan speed and temperature, power supply voltages, and logged error messages.

How many computers do you know of that start up with an ignition key? :)

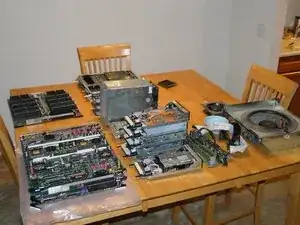

What's for dinner? Graphics Supercomputer!

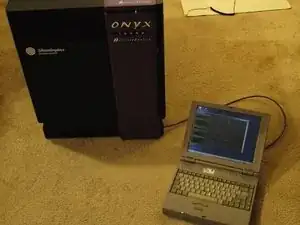

When your onyx has been re-assembled, it is a good idea to check out the machine, and make sure all components are working properly.

The power-on BIST does a good job of testing the memory and CPUs.

To fully test the graphics system, run irsaudit from a serial terminal. The full path is /usr/diags/IR/bin/irsaudit.
