Einleitung

  1. OoEdGHqjwVRSHmo2
    OoEdGHqjwVRSHmo2
    STw1LLS6AgUkwpE2
    bUQRht4BH1MnuZPT

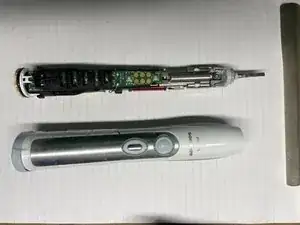

    • Using a screwdriver, pry the assembly out from the bottom. It snaps into the housing, so it may be difficult to avoid some damage to the plastic. Pull out the assembly.

  2. 61nn2WaFRtRsKYAG
    61nn2WaFRtRsKYAG
    jLDYDWBAnE6rJoZT
    NqBumZHF4bLMpkM2

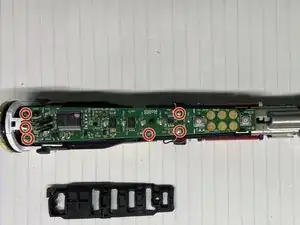

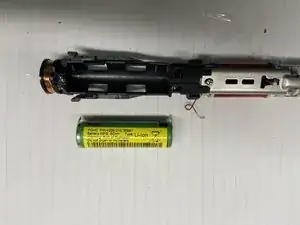

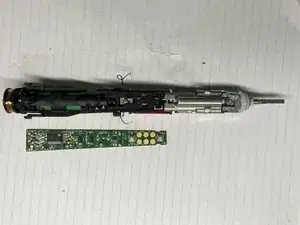

    • Remove rubber ckt board cover & pull off the white cap at far left. Then unsolder wires at 6 points shown. While applying heat, extract solder with solder pump & solder wick. Gradually pry ckt board off the soldered points while applying heat. Then pull out the battery from the other side.

  3. 5Vv4DfCnRXxFP4PY
    5Vv4DfCnRXxFP4PY
    TUSVOBU6XuK5BhdM
    SufPDJAXZOWmCIUH

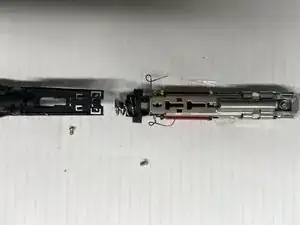

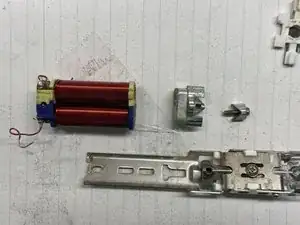

    • Detach motor assembly from battery holder. Cut through the spot welds (A Dremel tool and abrasive disk is what I used) and open the clamshell holding the motor assembly. Pull out motor, remove magnet attached to motor stator. This concludes teardown process.

Greg
