Sony Alpha 5100 Teardown

Geschrieben von: Kirill
Veröffentlicht: 11/04/17
  • Kommentare: 35

Sony Alpha 5100 Teardown

Veröffentlicht: 11/04/17

Teardown

Einleitung

You can find spare parts here:

https://sony.encompass.com/model/SONILCE...

I think this is fairly technical and difficult procedure. Please take extra notes!

And keep extra track of all the screws. I won't specify screw sizes since I do not possess that information!

  1. UIRodFVHaKpcGUTB

    • Turn your camera off

    • Remove battery

    • Remove memory card

    • Detach camera belt if you have it attached to the camera

    • You might want to disconnect camera lens as well. Just remember to keep your image sensor away from the dust and your own fingers!

  2. lC31A5HCIOFtVnv3
    lC31A5HCIOFtVnv3
    ESDUdDbKdabaWcL3
    FSC2V2yxOAtLNLJd

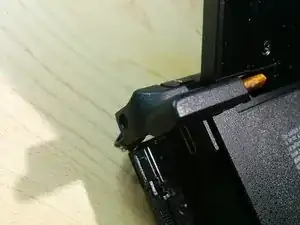

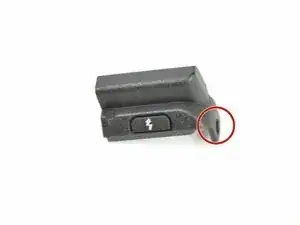

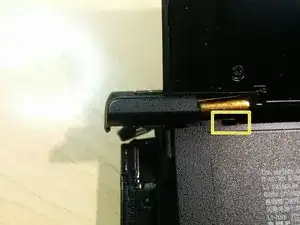

    • Removing single mounting screw of the flash plate cover

    • Using opening tool or guitar pick pop the plate off. There is a little hook so do not force it! Yellow square shows opening where the flash plate cover hook goes.

    • Gently slide the plate off the camera body. You might have to move display out of the way couple times.

  3. fjQbIM5QyS3wnbpn
    fjQbIM5QyS3wnbpn
    UG5CimaSJZYxnVyg
    JFJYQtVYJqqwwx1S

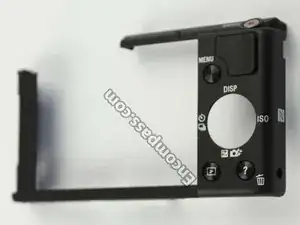

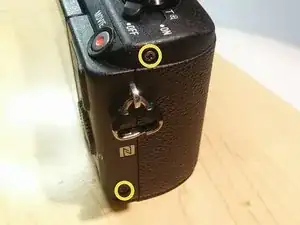

    • First picture illustrates what we are trying to remove

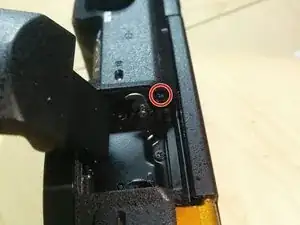

    • Pop the flash. And remove first screw

    • Remove 2 more screws on the side of the body

  4. cRCApDoekJdpP2NB
    cRCApDoekJdpP2NB
    QrJFDBBHqWLdogNf

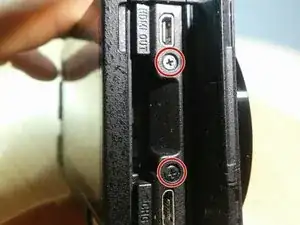

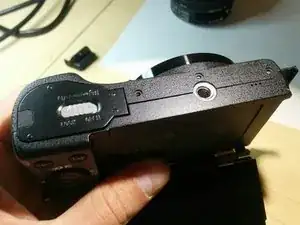

    • Pop the memory card door open

    • Remove 2 more screws

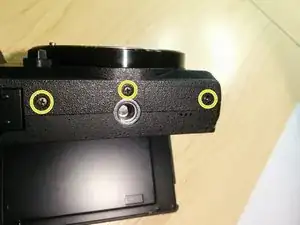

    • Remove 3 more screws from the bottom of the camera

  5. OWPbH14udlNCVYGw
    OWPbH14udlNCVYGw
    aDaWvHi2E2IoK5BT
    Z6liSCLVRX11eA3B

    • Use opening tool, guitar pick (or whatever else) to pop the front plate apart from the main body.

    • Be very gentle!

    • Remove the front plate

  6. BoVbhSBEeXiLalru
    BoVbhSBEeXiLalru
    xA1SSDOkV1PPsPPs
    tZCWO1DZLZKTBKS2

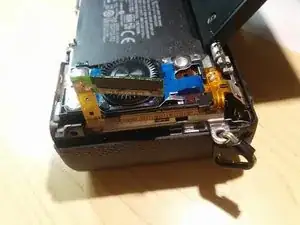

    • Gently separate NFC flex circuit from the body. It might be glued to the body so take extreme care not to damage it!

    • Continue separating circuit down the line. Should be pretty obvious procedure...

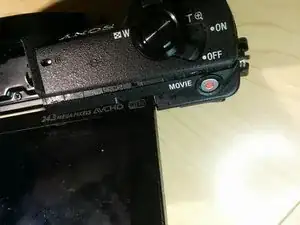

    • Remove movie button from the body of the camera as well. Move flex circuit out of the way.

  7. RxKLsfDZjwMZtxlR
    RxKLsfDZjwMZtxlR
    FMWYgmYJN3oYZjgK
    eEwBpHwGFZeLSJPH

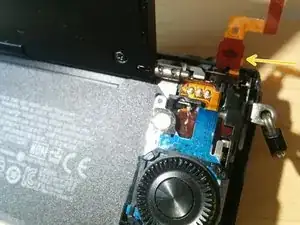

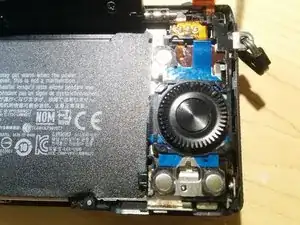

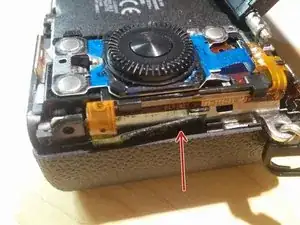

    • Pop little metal stopper of the button panel away from plastic body of the camera. (Look at pictures 1 and 2 to find a difference)

    • Slide the whole button assembly up until you can separate it from the body.

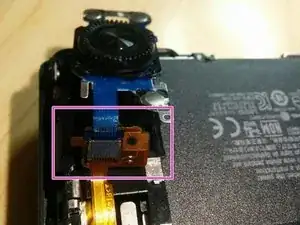

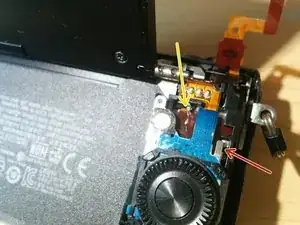

    • Gently pry green flex circuit assembly from the middle body. See picture #2.

    • Now you can remove button panel flex circuit from middle body flex circuit. (Read: blue flex from green flex). And separate button panel completely from the camera!

  8. TIQtQpTVtTZUf5IR
    TIQtQpTVtTZUf5IR
    mkPAHetIS3SZanOM
    QQ2y1BSSsMKLbb3H

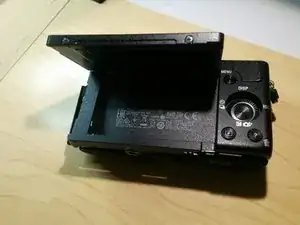

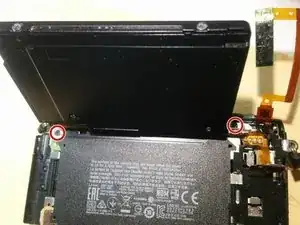

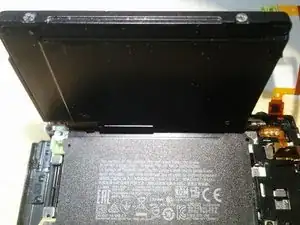

    • Remove 2 screws holding LCD screen assembly

    • Pry LCD screen assembly away from the camera body. Use opener tool, guitar picks, whatever. Be gentle!

    • Carefully move LCD screen away from the body. It will be still connected to the PCB via flex circuit!

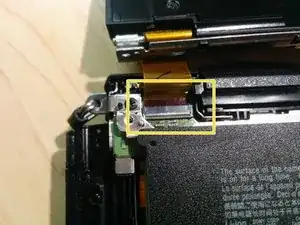

    • Pop little latch of the LCD screen connector and gently disconnect LCD screen from the camera body.

    Do you know how to replace the display panel? My camera fell down and it seems like either the display itself or some connector isnt working. Display shows only "wild color pixels". Got a new display panel and tools only and trying to replace it now. Thanks in advance!

    Martin Hiel -

    Yeah, just follow this guide to the step 8 and reverse procedure for the assembly process. Have fun!

    Kirill -

    How to pop little latch?

    Chatphong -

    Use a guitar pick to pry it open

    Kirill -

    Hey,

    Do you have more details of how to “pop the little latch” of the LCD screen connector? Maybe a video somewhere?

    I searched everywhere and can’t find anything. I have no idea how to disconnect this particular flex cable connector.

    Thanks!

    James Hustle -

    The “latch” for the display flex cable is in fact the thin strip on the OPPOSITE side to which the flex cable goes in. NOT THE WIDER PART. To release, or “pop”, the catch gently get your finger nail or small plastic tool under the edge of this on the side OPPOSITE where the cable goes in (the edge NEAREST the BOTTOM of the camera) and GENTLY prise upward. It hinges up towards the flex cable.

    To re-insert, the catch must be UP (vertical), slide the flex cable in CAREFULLY as far as it will go. Then while keeping it in position, GENTLY push the catch to rotate it down towards the bottom of the camera.

    George -

  9. 5YUX41nQkqUmqICI
    5YUX41nQkqUmqICI
    SUFAnrhleZWfClt5
    BLTwHMfmQHVO1eSU

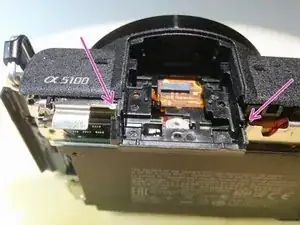

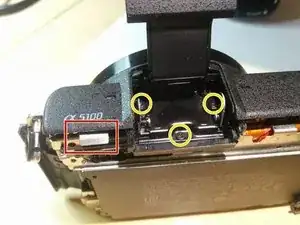

    • Pop flash once again. You won't have actual button but you still have metal lever to do so.

    • Unscrew 3 screws that attach flash to the camera body.

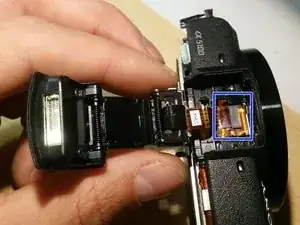

    • Gently move away flash from the body. Disconnect flash flex circuit from the camera body. No latches this time!

    • Carefully slide flash tray out of the camera. See last picture illustrating tray mid way out of the camera. Pull the tray completely away from the body.

    When replacing a failed flash unit with new Sony spare, DO NOT THROW THE OLD ONE AWAY.

    When you undo the two screws which secure the top cover of the flash - which does NOT come with the spare flash unit - you will see a small rectangular metal contact on the left side of the flash tube (when viewed as in the first of the three pics above). This is NOT a contact, it is in fact a very small neodymium magnet. Replacement flash units (including genuine Sony ones) do NOT come with this magnet.

    When fitting a new flash you need to gently prise this magnet out of the old flash and fit it in the same position on the new flash - it is just a press fit - BEFORE you fit the top over.

    If you DON’T transfer the magnet from the failed flash to the new one, the camea can’t detect when the flash is closed. This results in the flash triggering even when closed.

    George -

  10. kQCDDKHT2Dp2KyH1
    kQCDDKHT2Dp2KyH1
    AOJhGNcyaVni4oVv
    SMPeqk2jZl5xkxQf

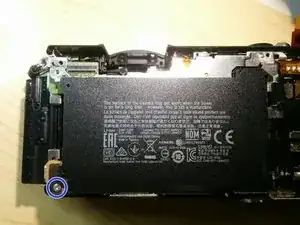

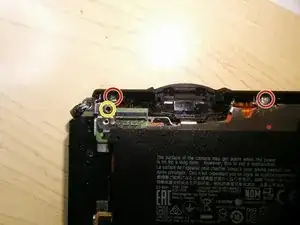

    • Remove 2 screws

    • Remove 1 screw. I am not 100% sure but I think it is black one. The rest of them are silver.

    • Remove yet another screw

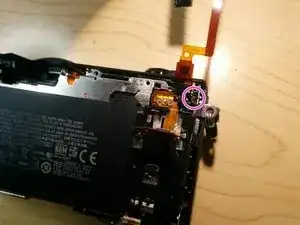

    • And the last screw, tucked away behind the frame. Might require pretty skinny screw driver...

    Hi there,

    I've removed all the screws, but the top left corner wouldn't come off!

    Any help?

    Thanks

    Rayan Phenix -

    I have the same. Have you got idea for top left corner ? My screw is on the bottom, not as on photo!

    Daniel O -

    pull rectangular flash until completely removed from camera to find top corner screw.

    Tabria Williford -

    I guess they might have variations or I might of left a screw undocumented

    Kirill -

    Has anyone come up with a solution? I have the same problem with the upper left corner solidly stuck in. I have levered it up a few mm on the outer edge but the inner part seems solidly stuck. No screws I can see to remove.

    Fred S -

    Be sure to remove the flash try. It is another piece, it brings the metal flash button with itself. Behind it you'll find the last screw, in the image is circled in red. After the 5th screw is out, the mid frame will slide out.

    Renato Carena -

  11. im2JiRDSHFAKRrMT
    im2JiRDSHFAKRrMT
    JHPMQaQ6NTARMwRU
    vGretQptUBhOgFts

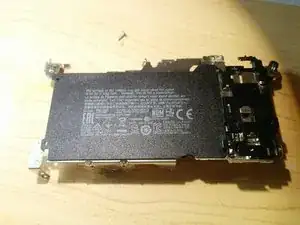

    • Gently pry the mid frame from the body. Make sure all the flex circuits are out of the way. This step might be tricky. The frame might be glued so take extreme care not to damage anything!

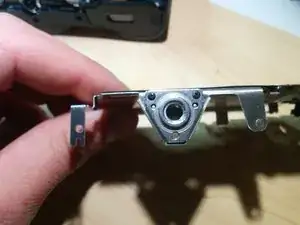

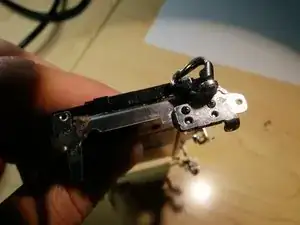

    • You probably do not have to remove camera mount. But I did so anyway!

    • You probably won't have to remove camera belt clip either. I would recommend using it as extra leverage while removing mid frame from the body.

  12. U1oCgafbMvELEXY2

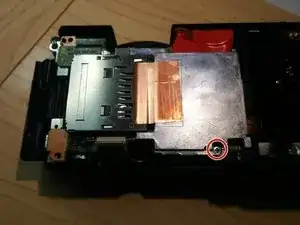

    • Unscrew single heat sink screw.

    • Detach sticker from the memory card connector.

    • Remove heat sink. It might be glued with thermal paste to the motherboard.

  13. VKMGKDJpRYhHZyW6
    VKMGKDJpRYhHZyW6
    KnFNbgyLnquKNNYh

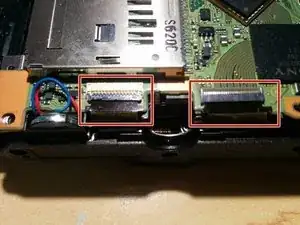

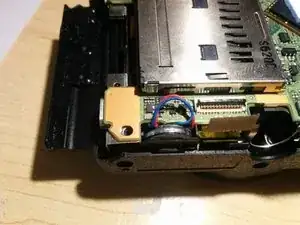

    • Open latches using guitar pick or opening tool.

    • Disconnect image sensor flex circuits from the motherboard.

    • Gently pry flex circuit from the connector! Be careful to apply just enough force!

    • You may pull the speaker out of the enclosure using tweezers while you are working around this area.

  14. XtScJOICQadrRCiV
    XtScJOICQadrRCiV
    GEaFxlYwZ1Wf6TEf
    LcRZNYkQY2m2PV1c

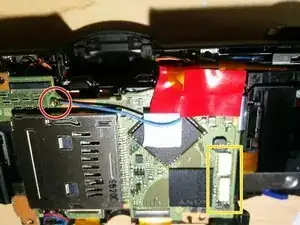

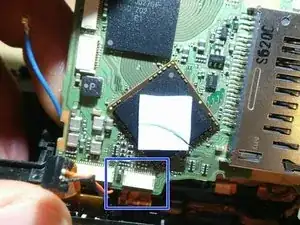

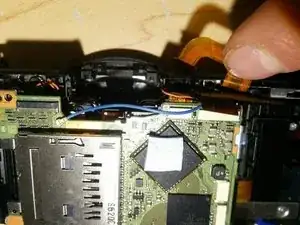

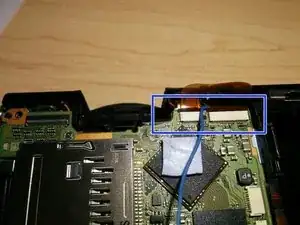

    • Disconnect WiFi antenna cable. Very gently pry it off!

    • Disconnect 2 camera lens flex circuits in the right bottom corner of the mother board. No latches here!

    • Lift masking tape away from the mother board. Most likely your masking tape is going to be black not red!

    • Disconnect 2 more flex cables. One of those is power flex circuit and the other one is either flash or buttons flex circuit.

  15. ujBcWMeHwqRpQFo6
    ujBcWMeHwqRpQFo6
    IZLMvausmYKhfkJZ
    3giXTBesmMGvBPWM

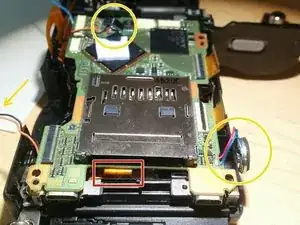

    • Disconnect shutter flex cable from the bottom side of the mother board. No latch here. Gently pry it off! I bet you are master at disconnecting those off by now!

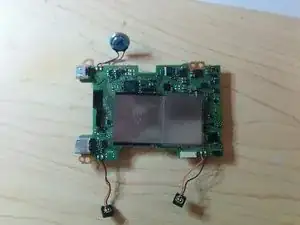

    • Make sure that both microphones and speaker is out of the camera body at this point.

    • Disconnect one more flex circuit connected to the bottom of the mother board. No latch here. It is either flash or buttons flex circuit.

    • Remove motherboard.

  16. JVW3VRsRnCwkywqE
    JVW3VRsRnCwkywqE
    GK4IuraWSXioC3LZ
    OkMl2JnqCEYsIZyW

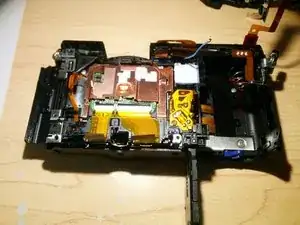

    • Gently remove plastic body assembly. Pay close attention to the flex circuits around the body. Make a note which ones supposed to stay with the body frame and which ones stay with the front assembly.

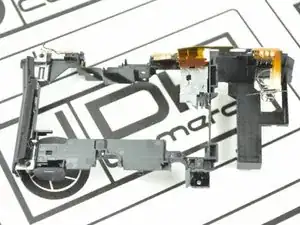

    • Plastic body frame is shown in the last picture. It is shown without battery door. You don't have to remove battery door!

  17. 2fvdkNEaM3IaGWtU
    2fvdkNEaM3IaGWtU
    iWCjjCS5oVtFQxXP

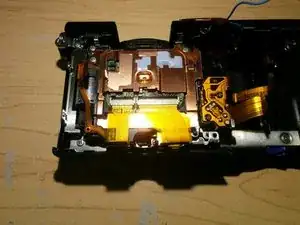

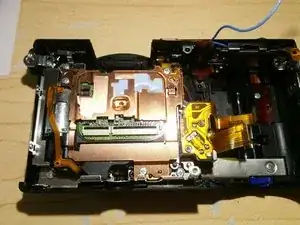

    • Open latches first. Gently remove both flex circuits attached to the image sensor. Take a note which one goes where

  18. 2OYWb4ym1mNifB5B
    2OYWb4ym1mNifB5B
    c6lIyKXVdKaCGjUA
    Wh4l4fjJn45Y1COg

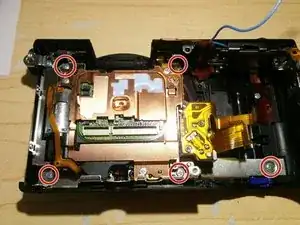

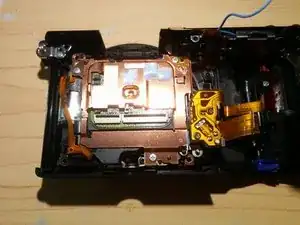

    • Remove 5 screws

    • Remove Front Metal Frame

    • Remove Image Sensor Assembly

    • You can continue disassembly if you want to separate image sensor from the shutter. I have not gone that far but I am sure it should not be too difficult to figure out.

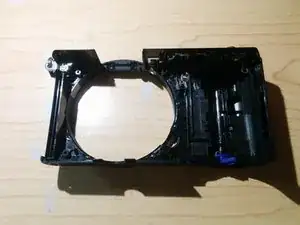

    • Last picture shows front case of the camera. It does not include flex circuit. You should have flex circuit still attached to the front case!

    • Note how camera belt clip is still attached to the front case of the camera. You don't have to detach it!

    Hi, thank you very much for detail instructions. I got some error message in my a5000 and this instructions set helped a lot to open up my camera. However, at this stage, I needed to further open up the sensor circuit to fix the spring latch inside that is connected to shutter. It could be fixed easily. But them while I was assembling the camera back, I found the following part that I cannot remember at all how/where to be connected. I cannot even figure it out where it came from. Altogether 3 metal frames I found from the sensor unit and I found how two of them can be set back, but this is the one I cannot figure out where/how to be set back. Please help me if you can. I understand the camera model is different but they have a lot of similarity.

    https://www.dropbox.com/s/r571jnr3yprv4z...

    https://www.dropbox.com/s/juuyf66myaasir...

    Please let me know if you need more picture.

    Thank you very much.

    Mahmudul Faisal -

    Kind of looks like cover for the shutter but I am not sure. Does it work without it? It looks like it does not serve any electrical purpose, strictly mechanical…

    Kirill -

    I also think similar. It is entirely mechanical. I paused my assembly there. I will try to assemble without it to see it works or not.

    Thanks for your reply.

    One guess, it seems that you are not sure of this component. So, either it is exclusively for a5000 model or it is from some area that you did not open. What do you think?

    Mahmudul Faisal -

    Exactly! I might of stopped too early! And yes different model should have different assemble/disassemble procedure! Good luck!

    Kirill -

  19. sayJWVJFg6RmU6hy

    • Reverse previous steps to assemble the camera! Pray you did not forget anything otherwise you camera won't be working properly!

    • I ripped one of the flex circuits while disassembling my camera. I got it replaced. I did not have this guide so I hope you won't make same mistake that I did!

    • Have fun! And good luck if you need it!
