Sony Audio System RM-S100 Remote Teardown

Geschrieben von: Aiden
Veröffentlicht: 18/10/15
  • Kommentare: 4

Sony Audio System RM-S100 Remote Teardown

Veröffentlicht: 18/10/15

Teardown

Einleitung

This is my first Teardown! Please don’t be negative about it. But, Constructive Criticism is welcome.

Werkzeuge

  1. BHbaVPGeswKJLwDP
    BHbaVPGeswKJLwDP
    5RQEAVpi4OKN63Dv

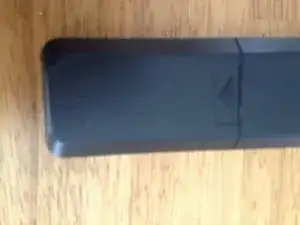

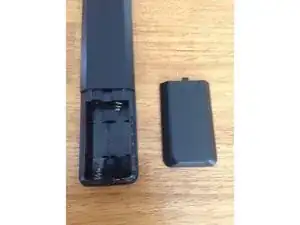

    • On the back of the remote there will be a battery cover. Open it up.

  2. 5dBwUqLBtfaAX5M2
    5dBwUqLBtfaAX5M2
    AGqKDQZgQvIwPZZB
    pDQoZNchdllHI3nH

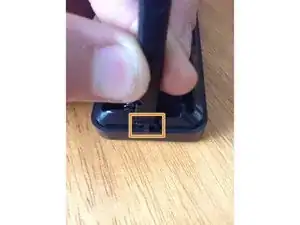

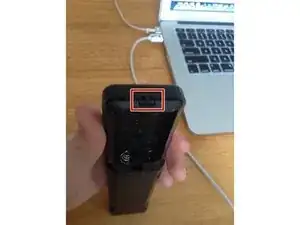

    • See the little tab?

    • Don't break the tab when you open it. That will make it un-close-able!

    • Use your Spudger to open it up

    • Don’t snap your Spudger!

    • This is so incredibly hard to open. I recommend also using a 3.5mm Flat Head so you don’t snap your Spudger.

    • Voila! (Whatever that means...) Its open!

    • This is very hard to open without breaking the tab or your Spudger. The repairability score will take a hit.

  3. CF3HxiSlPlbae4KD
    CF3HxiSlPlbae4KD
    vCwtPQGucUFS3IyB
    3Aqbol3dS1MU5yMn

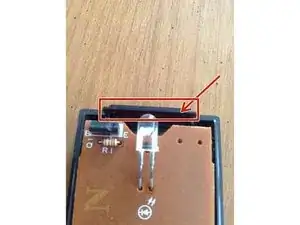

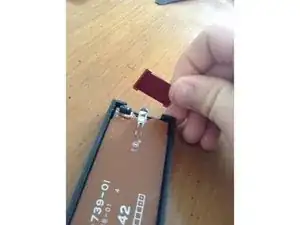

    • Let’s start by removing the red thing.

    • You can remove it with your fingers.

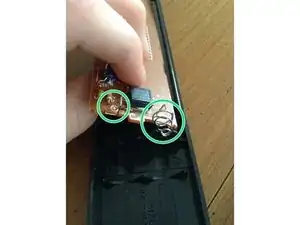

    • Now pull out the PCB. (It is best to pull by the springs.)

  4. bNsujwAIqrjbjPYE
    bNsujwAIqrjbjPYE
    n2UimwrNm6rdYSra

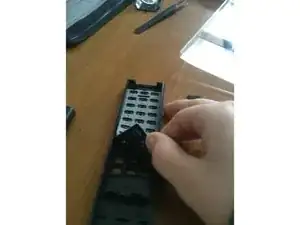

    • Pull out the button pad.

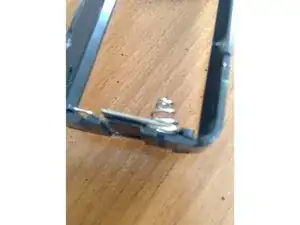

    • Now, pull out the spring.

    • And thats it!

  5. 5ooTMwEYYXnYetQP

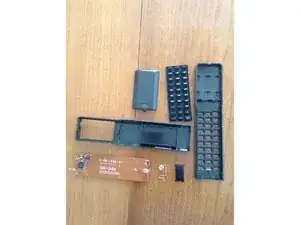

    • A total of 7 parts. (I was expecting more.)

    • I would give this a repairability score of 8 out of 10.

    • I almost Broke by Spudger =(

    • Insanely hard to open.

    • Easy to disassemble... once open.

    • No screws. (No Screws to lose! No need remember which screw goes where.)

    • Easy to assemble...unless the tab was broken.
