    • This is it. A Sony BD/CD/DVD player, A/V receiver, amplifier and tuner, all in a PS3 Super Slim-looking device! Will all of these functions make it difficult to repair? Let's see!

    • Unplug the device before opening it!

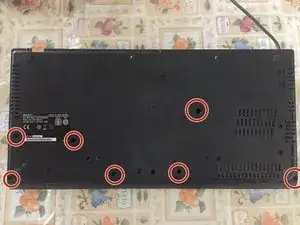

    • Remove the seven PH1 screws marked with the circle under the player (they're marked with two half arrows on the device).

    • On the back of the device, remove the five PH1 screws marked in yellow (they're the same as the ones in the bottom).

  2. 6JZUQFJALOPedAPC
    6JZUQFJALOPedAPC
    yBwMNSFhV1IPnY1V
    THiFGBpFVVCA21EI

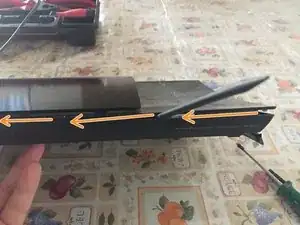

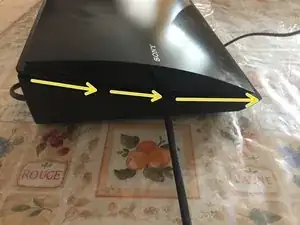

    • Insert a spudger (or other thin, plastic tools like that) in the small gap between the base and the top. Rotate it like in the picture and slide it across the side. You'll encouter some resistance where the clips are, it's normal.

    • Be careful not to break them!

    • Do the same for the front...

    • ...and for the other side.

  3. nCJFB3aJgVQtfKvp
    nCJFB3aJgVQtfKvp
    6rWJyoEmov5BlkBe
    ulkLg2qOgT5VwQse

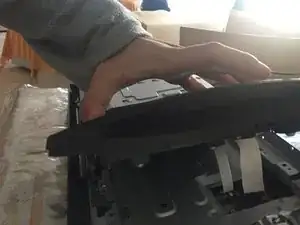

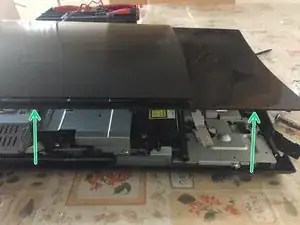

    • Lift the top cover about 5 cm (2 in) and place it in front of the device, with the curved side on the table.

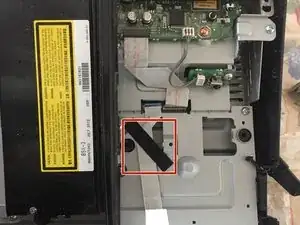

    • Gently, remove the black felt tape.

    • Remove the touch keys's cable.

  4. RyIBietBq1RRINOe
    RyIBietBq1RRINOe
    QRRSbEeni6cxolXe
    bQfCylSBUQ5DCAu5
    • Remove the two PH1 screws.

    • Remove the cable.

    • NEVER pull the cable from the wires! Always remove it by grabbing the connector.

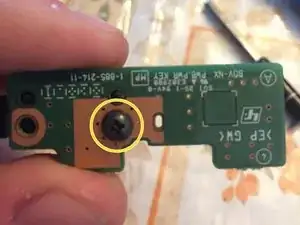

    • Remove the single PH1 screw and detach the board from the plastic.

  5. AYaZw1asRaJfuQMA
    AYaZw1asRaJfuQMA
    MAxEJG3aCUOjnav2
    XIvawjP5la6lLsOE
    • Now, back to the main device!

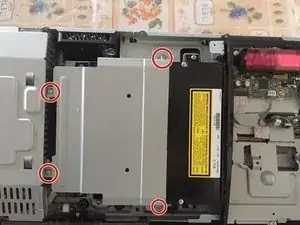

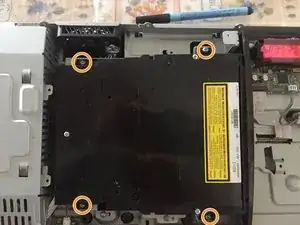

    • Remove the four PH1 screws and lift the shield out.

    • Remove the four PH1 screws (identical to the other four).

    • Gently rotate the optical drive 90 degrees.

  6. ihTFUiZxrGgdFNQg
    ihTFUiZxrGgdFNQg
    TZGRjHdnqiVQxJjm
    oaswg3W52JPbW6Xh
    • Remove the three cables.

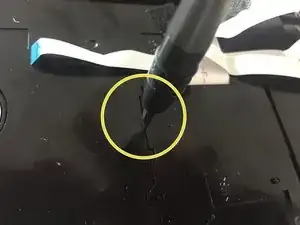

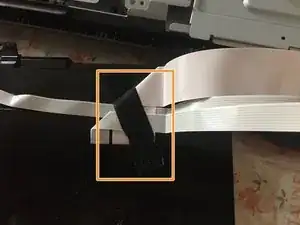

    • Remove the black felt tape

    • Insert a flathead screwdriver in the gap between the lower part of the optical drive and the little panel, rotate it and remove the panel.

  7. YkYyldnwZIwfTITq
    YkYyldnwZIwfTITq
    AWRhKPdpLqANoGYZ
    S1HLc1bVR31Dvdu2

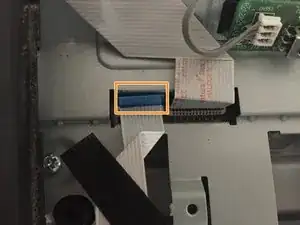

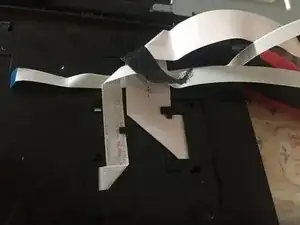

    • Gently remove the cables from their plastic support tabs.

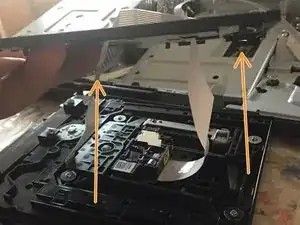

    • Insert a flathead screwdriver itn the hole near the L-shaped part. slightly rotate it downwards and slide the entire bottom of the drive right until it stops.

    • Lift the cover while being careful not to break the cables.

  8. wmZaVEVKCeLfYSWY
    wmZaVEVKCeLfYSWY
    EnOBUFfKvWSc1MVM

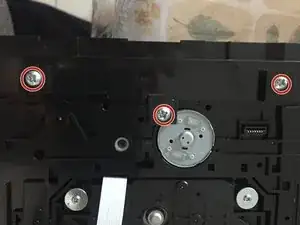

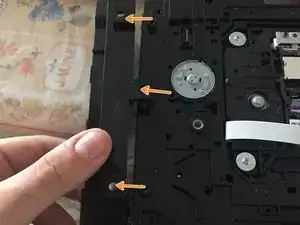

    • Remove the three PH2 screws.

    • Slide the inlet to remove it.

  9. B2wg3gmDbXi21VJ1
    B2wg3gmDbXi21VJ1
    ksPGMT3P6bPlxNZD

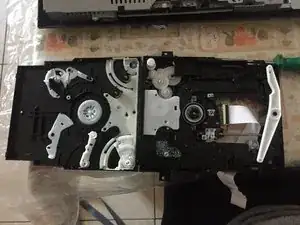

    • If you have a stuck disc, this is the step you are looking for!

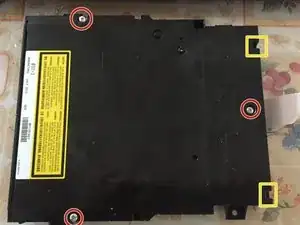

    • Remove the three PH1 screws.

    • (I forgot to take the photo...) Insert a spudger (or similar) in the gap between the two parts of the drive and slide it along the corners. Around the yellow squares there are two clips which will pop when you slide the spudger.

    • Rotate the top cover and remove any stuck disc. Be careful not to break any part on the top!

  10. fCs6tVWZgc6FWJrX
    fCs6tVWZgc6FWJrX
    vBtT4aGUITsEedQL
    • In the main unit, remove the display cable...

    • ...the IR sensor PH2 screw...

    • ...and the two PH2 orange screws.

    • Lift the display out of the unit.

  11. KKjNDxMBRIMQANb1
    KKjNDxMBRIMQANb1
    HQiH5UKUUYQtPVIA

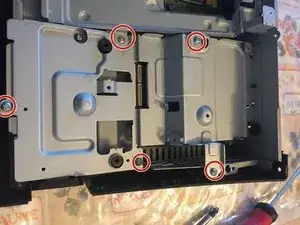

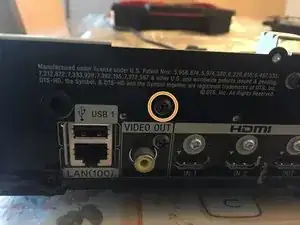

    • Remove the five PH2 screws (marked in the shield with double half arrows).

    • At the back, remove the single PH2 screw.

    • Lift the shield out.

  12. 2SOdgXKdHkrnwg5g
    2SOdgXKdHkrnwg5g
    YFkTBHYmlrBSZWso
    • Remove the three PH2 screws.

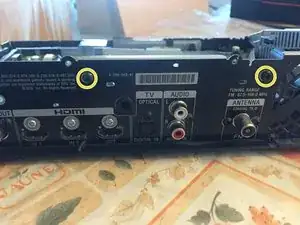

    • At the back of the device, remove the two PH2 screws.

    • Lift the shield out.

  13. KZtb3QusXbdEkgLp
    KZtb3QusXbdEkgLp
    kAmLSKqwPcBMJpmv

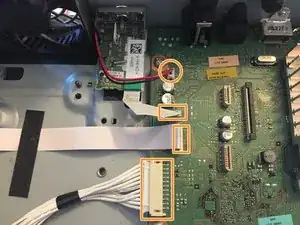

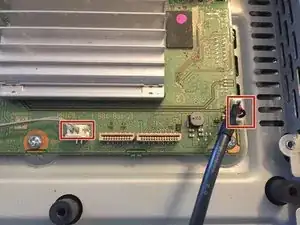

    • Remove the LED cable (grey) and side USB (black, fat).

    • Remove the fan, antenna, audio and power cables.

  14. 4fwGTPJNooCLJVW1
    4fwGTPJNooCLJVW1
    vOFyh5eArrN6jgFU
    jBrksMU5LxmrcheO

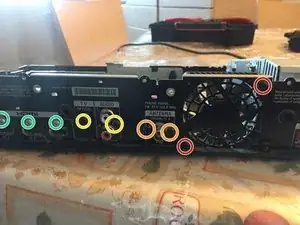

    • Remove the fan screws and fan...

    • ...the antenna connector screws and module...

    • ...the audio, optical and (not shown) video screws (all of these are black PH2)...

    • ...(silver PH2) HDMI screws....

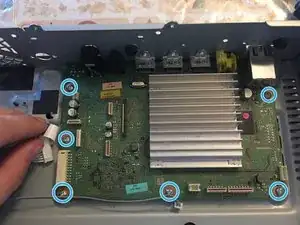

    • ...and finally the six PH2 logic board screws.

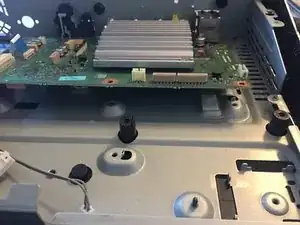

    • Last but not least rotate the board and slide towards you to remove it.

  15. GimXZbvWobVjawim
    GimXZbvWobVjawim
    FqRrsrv5UyYIyJuL
    fjutgAt2NTHf64nF

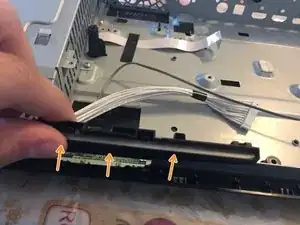

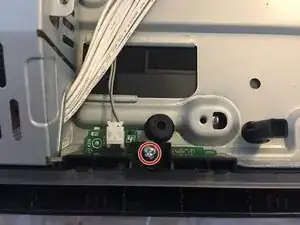

    • Remove the single PH2 screw holding the light guide.

    • Lift and remove the light guide.

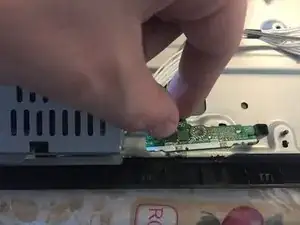

    • Remove the LED board.

  16. fZxcFecilYXrKthX
    fZxcFecilYXrKthX
    vP5eyP5BqCHBZZBW
    sIsNjAbthY3jVMca

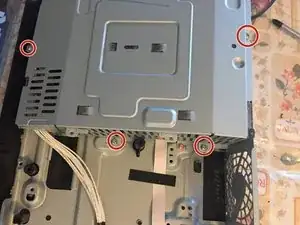

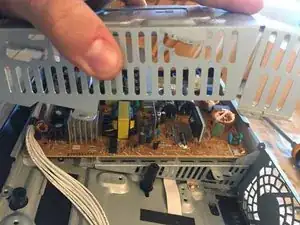

    • Remove the three PH2 screws on the shield.

    • Remove the shield by lifting it.

  17. JLEYVDAXQ23KBnKw
    JLEYVDAXQ23KBnKw
    RvqrquGUDKNH1SH1
    tNtAG6iBAOYtNojq

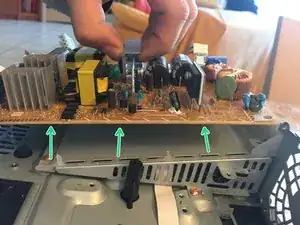

    • Be careful: the big capacitors may still hold a little charge! Don't touch their leads!!!!

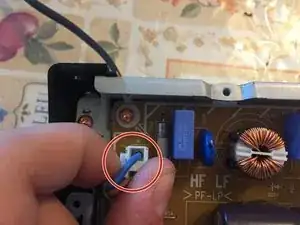

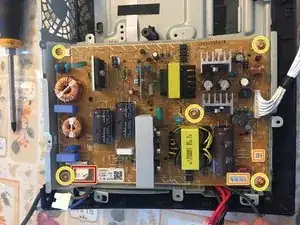

    • Remove the mains connector by pressing the little lever on it...

    • ...then the other two connectors...

    • And the five orange PH2 screws.

    • Grab the power supply unit by the central heat sink and lift it to remove.

  18. Hy6QfZAPG12genH3
    Hy6QfZAPG12genH3
    AkneoCjhvcFXqBbp
    WRLrJT1ZHIEIoyHR

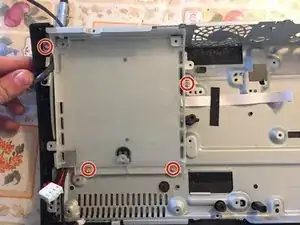

    • Remove the four orange PH2 screws.

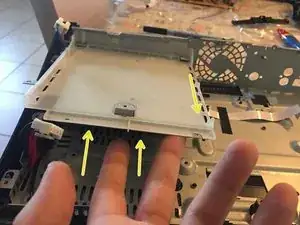

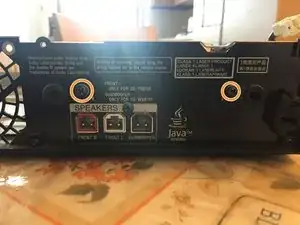

    • At the back, remove the two upper PH2 screws.

    • Rotate the lower edge of the shield and pull it towards you to remove it.

    • When you reassemble it, pay attention to the plastic over it, as it can move and not protect the base of the power supply.

  19. GORrT6XpZalOdUch
    GORrT6XpZalOdUch
    K2jF3JoQSCExG2BJ
    Jg5BSnWvHFcIcahh
    • Remove the black felt tape.

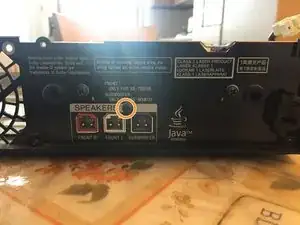

    • At the back, remove the single black PH2 screw over the speakers connectors.

    • Remove the bottom-left screw with wire-holder.

  20. amIRKyhePd5DcSeM
    amIRKyhePd5DcSeM
    v1GSPVodhmL2ZdV3

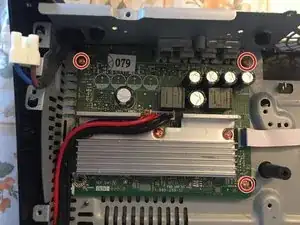

    • Remove the three orange screws at the corners of the board.

    • Lift the black and red wires and remove the three orange PH2 screws (they're the longest screws in the device)

  21. C5FLCgZLbqfilwkX
    C5FLCgZLbqfilwkX
    XASYlJlubaDMROVM

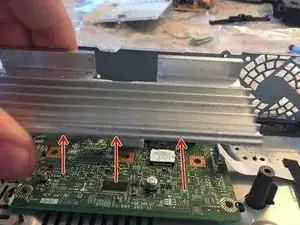

    • Lift the heat sink...

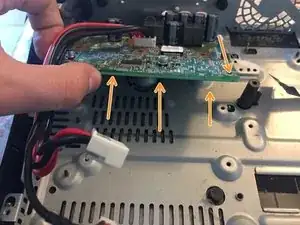

    • Then rotate and pull towards you the audio board.

  22. qjL1YtSPssJRVoFQ
    qjL1YtSPssJRVoFQ
    UvhCxJQwmPCRSHLQ

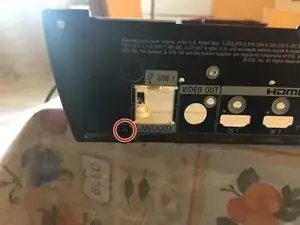

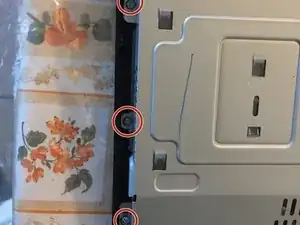

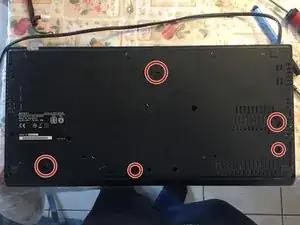

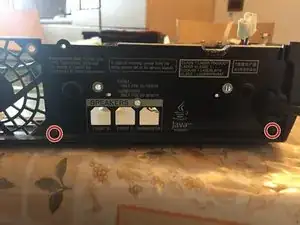

    • Remove the three remaining screws on the lower plastic of the device.

  23. syUyNnTQhPeR4ffK
    syUyNnTQhPeR4ffK
    yUQy1ORjWhhX1NWK

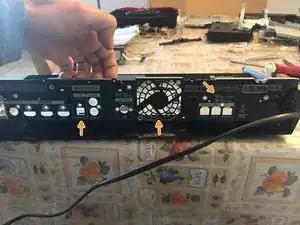

    • Rotate and lift the frame to remove it.

    • Congratulations, you've torn down the entire device!

  24. wNSPbrkwNANAbxrM
    • Thanks to iFixit for the 10/10 image.

    • I think that this device deserves a 10-/10, because everything is easily removable, there are only five types of screws (and three different sizes) and the cables aren't glued but there's the foam tape holding them.

    • I gave the minus to the score because the IR receiver hasn't a connector but it's soldered and because the touch "keys" are glued onto the upper cover.
