The inside story of a compact digital camera from sony. This one belong to a friend of mine, and is actually broken, the shutter button broke.

  1. cC4CUBUGe3dDjiaB
    cC4CUBUGe3dDjiaB
    B2aRVHVbHrFRyFQb

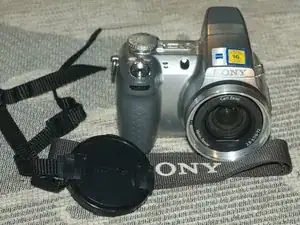

    • This is the Sony DSC-H2 we are going to tear down.

    • It's a 6.0mpix, 12x optical zoom compact digital camera.

    • It served well to the point at which the shutter button fell off.

    • To tear it apart, we need a #0 Philips screwdriver only, thats very nice of you, Sony!

  2. YWGPMrnoBKtuTxWp
    YWGPMrnoBKtuTxWp
    XE1ervEEPYqe3VUL
    FqaM1qXB62mWwuFB

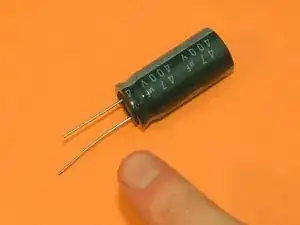

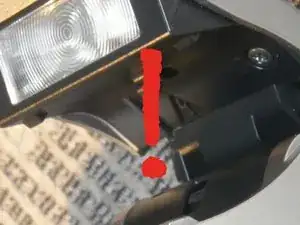

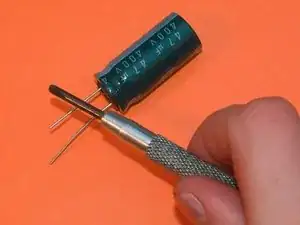

    • Almost all cameras have a high voltage circuit and capacitor to power the flash.

    • Before you disassemble any camera, remove the batteries and wait a full day to make sure the capacitor is discharged

    • Never use bare fingers or tools with metal handles near a high voltage capacitor which you are not certain its discharged!

  3. qmD5wNHKvPVX1XPY
    qmD5wNHKvPVX1XPY
    gJJOYhkpTDaKNlEO

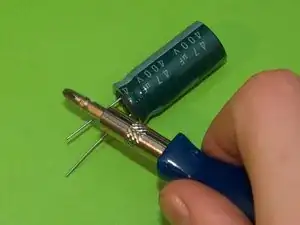

    • For safety reasons, find a screwdriver that has a plastic, wooden or other non-conducting handle

    • The second photo shows a spark and a plasma cloud created by rapidly discharging a capacitor similar to the one in this camera. (the picture was taken at the technical university of Łódź, Poland, do not try this at home!)

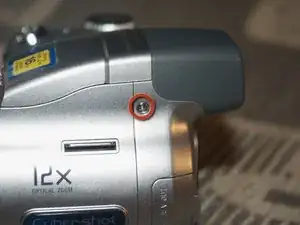

  4. iFFSNmITAHGIITXc
    iFFSNmITAHGIITXc
    jTKOG4WcybEGkIAs
    DJyQRClZQKZIGywJ
    • Now, let's start the ceremony!

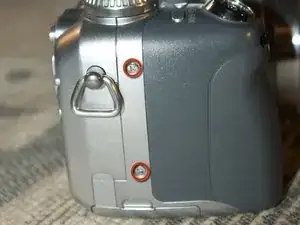

    • Remove the two screws at the bottom.

    • The two on the right side.

    • And the one on the left side

  5. uwKN26hKTCNly2GO
    uwKN26hKTCNly2GO
    c6oqROQNZxLEuiEZ
    DXNXNuFgJrUcUCH2

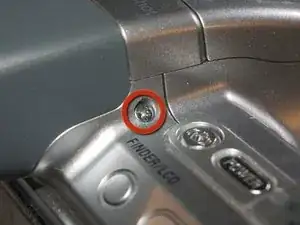

    • There is one more screw at the right side of the flash lamp

    • These 5 screws are identical, and unique to the outer shell of the camera.

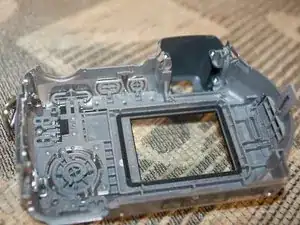

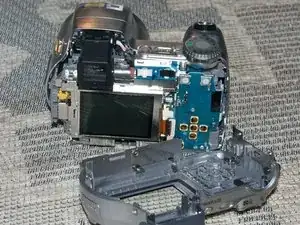

    • We may now remove the back shell, revealing the LCD and rear control panel

    • The body is thick and looks durable

  6. NaAutMbdXD3c4S3e
    NaAutMbdXD3c4S3e
    cuFYdq1IjJIQntTj
    YFuGqJDvaYAvTtAN

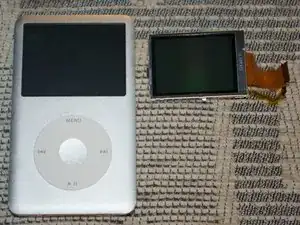

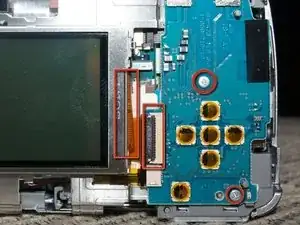

    • Remove the two philips screws, and the two ribbons.

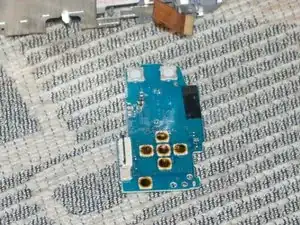

    • The button panel and the LCD is now free.

    • The camera has a 2.0", 85,000 dot LCD

  7. 1YwVSuaZDy2bU4Nk
    1YwVSuaZDy2bU4Nk
    AIqk1IyBFnsAntgt
    YcgSQX4NyQH2XtE6

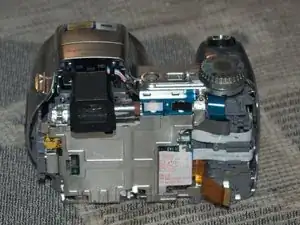

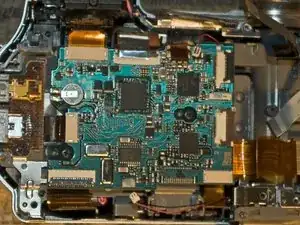

    • Under the LCD, we find a metal screen protecting the logic board.

    • Carefully unlock it at the top and left side

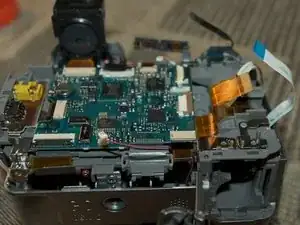

    • We're in

    • Remove all the ribbon cables. There sure is a lot of them.

    • Some of the ribbon cables have "Halogen free" singed on them. That's nice, but we are still not throwing the camera away, not just yet.

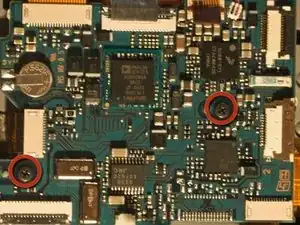

  8. VvSxD4GvJxMqqhQU
    VvSxD4GvJxMqqhQU
    dGWxTXmEQphuBMLX
    sYVc6D4MhOVoFClO
    • These two screws hold the logic board.

    • When removing the board, be careful about some remaining ribbon cables.

    • The board is out!

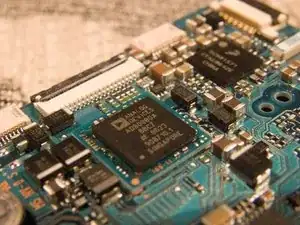

    • On one side we see the AD80080A chip from Analog devices responsible for capturing the analog signal from the CCD

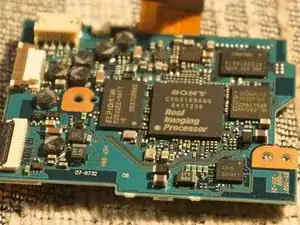

    • On the other side, we see the Sony "Real Imaging Processor" that converts raw photo data into nice and human-viewable .jpg files.

    • The analog cable connecting the CCD to the logic board is screened with some pieces of metal to reduce noise.

  9. mbESVqCCTEh5QTnl
    mbESVqCCTEh5QTnl
    PkURukKFosu6iGfI

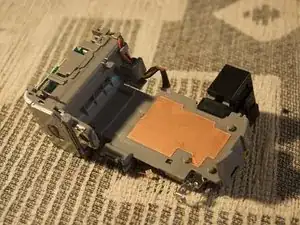

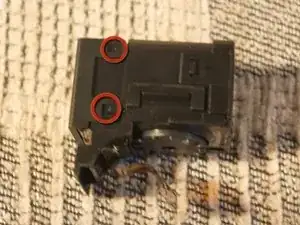

    • Under the logic board there is this piece of plastic, separating the lens and sensor from the rest of the camera.

    • It comes right out, no screws or whatsoever.

    • Detach the electronic viewfinder atop.

    • The plastic locks hold the lens and screen of the electronic viewfinder together.

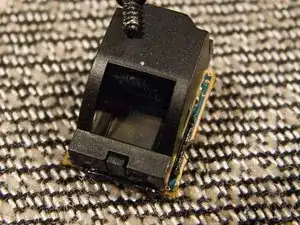

  10. CuGV16QEaEPekXHW
    CuGV16QEaEPekXHW
    D1UDbUVISOqjbkSm
    fBKXERnDElX25fYI

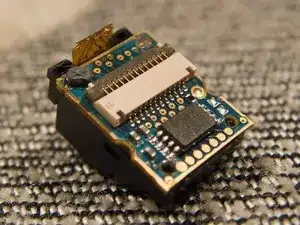

    • The viewfinder screen is sooooo smallll!

    • It has 200.000 dots, and about 30mm2 of area

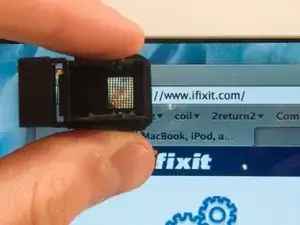

    • That is some insane pixel density, look what happens when the optics used to view this display are pressed against a typical laptop display - you can see the sub-pixels!

  11. nNEXC2jdWYcLfN4w
    nNEXC2jdWYcLfN4w
    x5CfCAZdrwiCQbUy

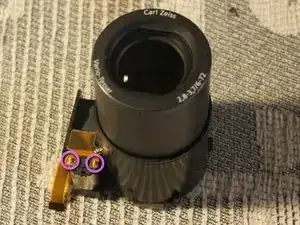

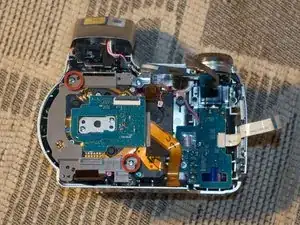

    • The next two screws hold the lens and sensor module

    • It's out, and it's huge.

    • You can even make it bigger, apply 3 volts to the marked terminals to extend the lens.

  12. 64KasPnEYWUHe3BW
    64KasPnEYWUHe3BW
    xKIvYOZrw4KhT2r4
    BtWKCmaMaVeJyv35

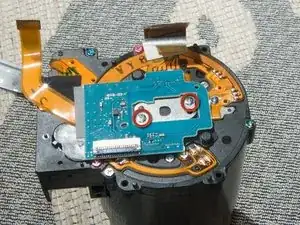

    • Remove these two screws to detach the sensor from the lens

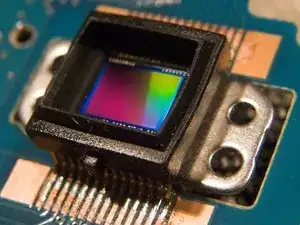

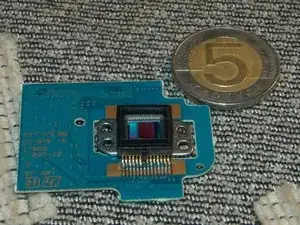

    • The sensor has a typical 1/2.5" size. That's not a big sensor.

    • Here you have a 5 polish zloty coin for comparison.

    • 5 polish zloty's is about $1.80, in case you don't grasp the size yet :)

    • The CCD is very shinny.

    • 6 megapixels from a 1 / 2.5" sensor is like expecting 70 megapixels from a 35mm film camera. It's still better then pumping 12 megapixels out of a pinhead sized sensor in mobile phones.

    • Manufacturers, please stop the megapixel war. Thank you.

  13. BnJpQvLApLKuIGfZ
    BnJpQvLApLKuIGfZ
    dHyJoTCSEPujC2rl

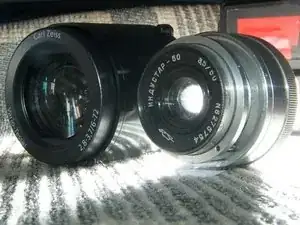

    • The Carl Zeiss lens from the sony camera alongside the lens from a Zorki-6 soviet compact rangefinder from 1960.

    • Unlike the Sony, the Zorka still works, despite being over 40 years older.

    • The back of the Zeiss has significantly more electronics, ribbon cables and servomechanisms than the Zorka lens

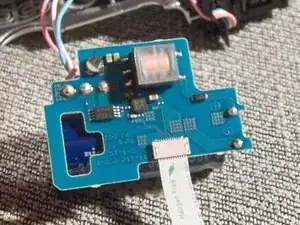

  14. jMJRmm6Jk3SQuRYB
    jMJRmm6Jk3SQuRYB
    JAE2yLYqtWK3wArB
    ubF2a5pjPaphsIcS

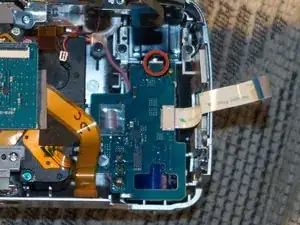

    • Lets get back to the body of the camera

    • Lift this plastic lock to remove the hight voltage chip powering the speed light.

    • 3 cables connect this board with the lamp and they are soldered.

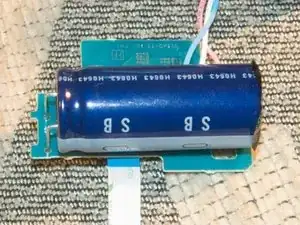

    • The capacitor has 320 micro farads of capacity and operates at 330 volts. That's 17.4 joules of potential electric energy, quite much for a speed light.

  15. ZVLjZZbgrZjm1mPs
    ZVLjZZbgrZjm1mPs
    XxoodfyWgSWvAqGG
    VQU4AtAAHi2UDFEp

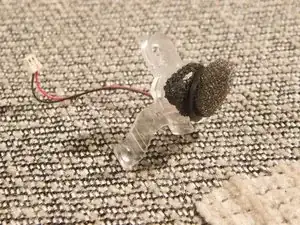

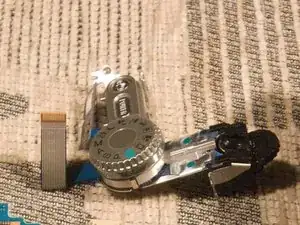

    • To get to the microphone and top button panel, unscrew these three.

    • Sony made sure that the microphone caches the sound you want, and not internal motor noise, or the sound of the wind. This is actually very impressive work, most camera manufactures don't care that much.

    • Finally the button panel, with the broken shutter button.

  16. 4pA1YQxQpy3eDhYL

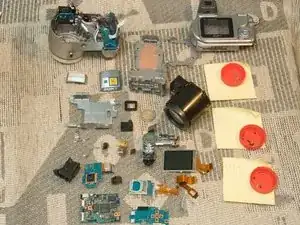

    • That's it. One Sony DSC-H2 in parts. Thanks for reading.
