Sony VAIO PCG-61411L Teardown

Geschrieben von: geekinthebasement
Veröffentlicht: 09/11/12
  • Kommentare: 2

Sony VAIO PCG-61411L Teardown

Veröffentlicht: 09/11/12

Teardown

Einleitung

  1. hHWRrVy4rhIuRNim
    hHWRrVy4rhIuRNim
    i6syPV6W2eWVwcXm
    2ta3SLvENpDFyHAK

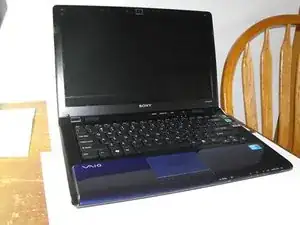

    • In this guide I'll be doing a full disassembly of a Sony VAIO PCG-61411L laptop. My hope is that you will find some helpful information here and possibly save some money! lets get started!

  2. lJT2KWpUFbtcCKHB

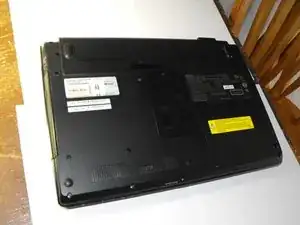

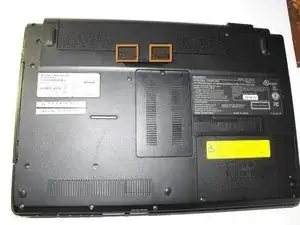

    • First unlock the battery with the sliding locks (marked with orange indicators), and lift battery up and out.

    • When working with laptops always remove batteries or charging cords first, if possible, as powering the unit while touching the components can be fatal to you or the device!

  3. MMHO5b3TmjhSmUsh
    MMHO5b3TmjhSmUsh
    FJJuCDcM2jtXi2tC
    BNcBiU4DOpTuaoOm

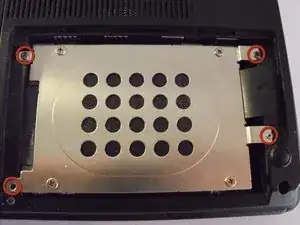

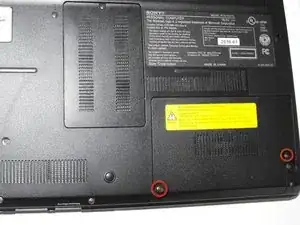

    • Next loosen the hard drive cover screws as shown (marked with red indicators picture 1) And remove the hard drive bay cover.

    • Remove screws from indicated areas (picture 2).

    • place screws in a safe location or container (I use powerade bottle caps to separate screws from different parts of a project)

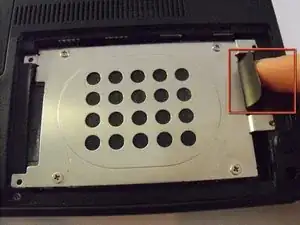

    • Use the tab (indicated in picture 3) to pull the hard drive to the side and lift it free.

  4. dCngyZrakMLghTYW
    dCngyZrakMLghTYW
    UTdGn6Kj6fySThCl
    ooAyWybiUuLRrJmN

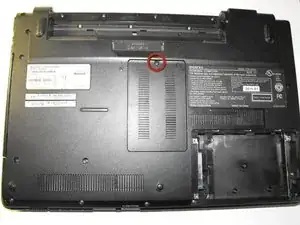

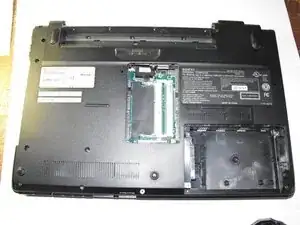

    • Loosen the screw marked (indicated in the red circle) and pull the RAM bay cover free. (the cover has plastic tabs on the sides and may take a few tries to free it.)

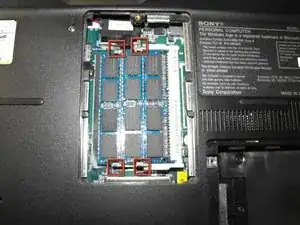

    • push the metal tabs on either side of the RAM chips, making them lean up slightly, and pull both chips free

  5. EPLhRstBxBUGBTol
    EPLhRstBxBUGBTol
    Ua1C6YG5ULYmlWgc

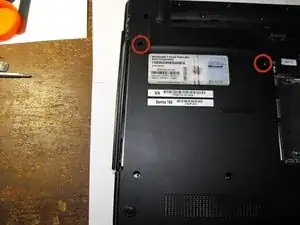

    • Remove 2 screws (indicated in first picture).

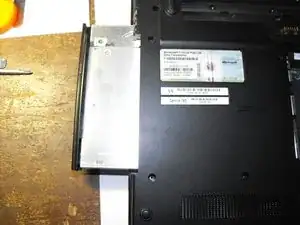

    • Pull CD drive from the laptop.

  6. ELbKJJClLdROQSm5
    ELbKJJClLdROQSm5
    PRCRTvGP4XEdUm2P
    PUGFvhIJvJoV5A6d

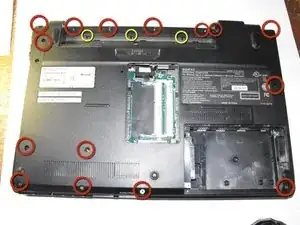

    • Remove the 15 screws indicated by red circles setting them aside in their own container

    • Remove the 3 screws indicated by yellow circles setting them aside in their own container as well

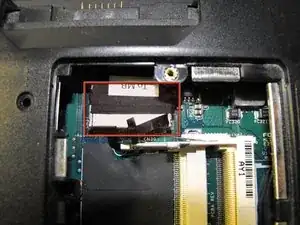

    • Pull up on tab in the RAM bay as indicated. (the black pull tab may detach, don't worry it will not affect performance)

    • Gently begin to pull the bottom casing free

  7. HXcHLqqqPRhFvQuw
    HXcHLqqqPRhFvQuw
    NGhDvB1QWWEFhNJE

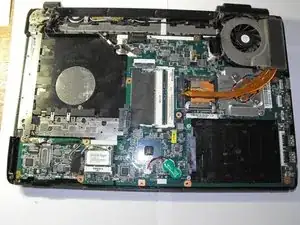

    • Begin unplugging cords from the motherboard in designated locations
