Sony VAIO VGN-T140P Teardown

Geschrieben von: Boricua
Veröffentlicht: 24/10/09
  • Kommentare: 7

Sony VAIO VGN-T140P Teardown

Veröffentlicht: 24/10/09

Teardown

Einleitung

As part of the Sony giveaway, I would like to contribute with this VAIO teardown. Bear with me as this is my first tutorial. This is a VGN-T12” wide screen laptop with an Intel Pentium Ma. It’s an oldie that still does the job. Well let’s get to the teardown.

  1. 2JVkZ2fXiuqllcQZ

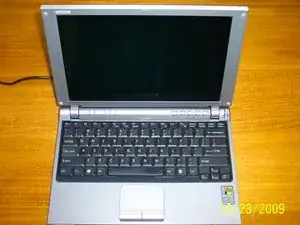

    • Let's start with the tools and the victim...

    Zitat von nicksmacandpchelp:

    would this run vista or 7

    I believe the requirements for Vista / 7 are 2+ GB of RAM (with 4 recommended). It certainly wouldn't run it fast, by any standards.

    Adam Hintz -

  2. Y1SaI6awHn6fRJjl

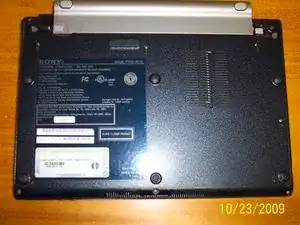

    • Remove the battery by moving the 2 release tabs.

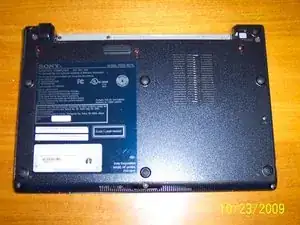

  3. ogDT2KMZnTf5jxwg

    • Remove 3 screws holding the keyboard.

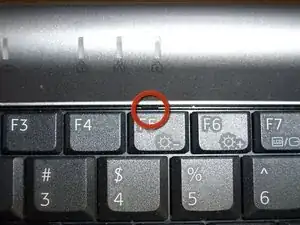

  4. RKvTfSADDNaV4HHj
    RKvTfSADDNaV4HHj
    QKoUvNry4WVIgeKW

    • Loosen 2 latches holding the keyboard down with the flat tip screwdriver, one by the F5 key, and the other by the Num Lock key. Move keyboard towards the touch pad and pull up.

    • Remove the ribbon carefully.

    • I added this step separate for the ones that just want to upgrade the RAM.

    You forget there a brown flip that hold the keyboard cable, All you had to do was to flip the brown clip to the left upper position...the cable is loose...

    trypticon31 -

  5. d6UC34NLnaZLH1O1

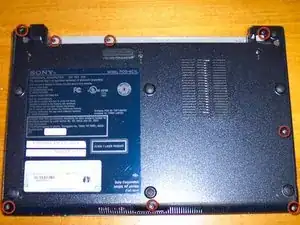

    • Remove 8 screws under the computer.

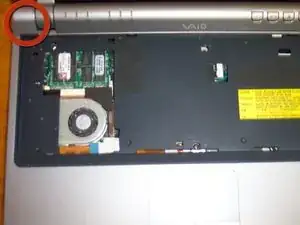

  6. CZGtFWhAMfcZHlPu
    CZGtFWhAMfcZHlPu
    GEemWFCXuF6AYTdK

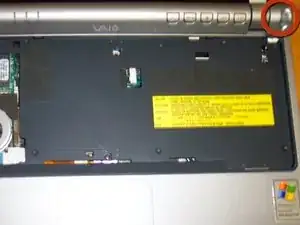

    • Remove the power button and cap on opposite side.

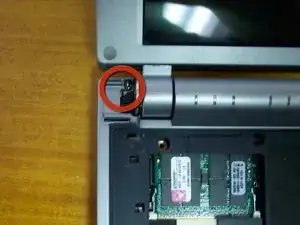

  7. tJOCxVTEH4E1jEBk
    tJOCxVTEH4E1jEBk
    lluGYrOobMslAxVo

    • Remove one screw from top and one from under cap opposite of the power button.

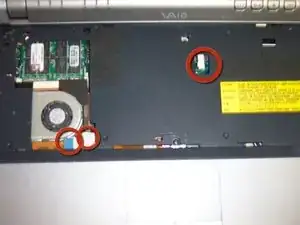

  8. XTxtUWs6WNaw1TrR
    XTxtUWs6WNaw1TrR
    RX4XqkJLcEXFBPTR

    • Unsnap the top cover carefully around the edges.

    • Disconnect 3 ribbons and pull top carefully towards the left side. Remove ribbon from the motherboard.

  9. SWiJDTvEnp3uNJuy

    • Remove the RAM.

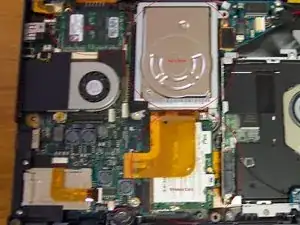

  10. xB2CeEMShnCl5FVK
    xB2CeEMShnCl5FVK
    o2HQOGPKabFSQZpV
    iLxMxrpJ1ahLUEqy

    • Remove the RAM.

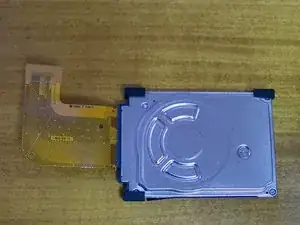

    • Remove the hard drive metal bracket. Mine had 2 screws but I believe there are supposed to be 4 (lost them when I replaced the hard rive last time). Disconnect ribbon from motherboard.

    • Remove the wireless card. There are 2 antennas connected to it, the back wire goes on the main, gray on aux.

  11. sxitDSMml6YUkwQe
    sxitDSMml6YUkwQe
    nBPESA5pySrldFS3

    • Remove one screw form the sound card. Disconnect one ribbon and one connector (under) from card.

  12. ZLCvAYRJasMYeQND
    ZLCvAYRJasMYeQND
    j2Abuv6FQSj2U1Tj

    • Remove the DVD drive by unscrewing 5 screws, make sure to open the drive with the paper clip to access the last one.

  13. bNDkJsSmDNiqYRe5
    bNDkJsSmDNiqYRe5
    wLYZSa1FnNaSRPsM

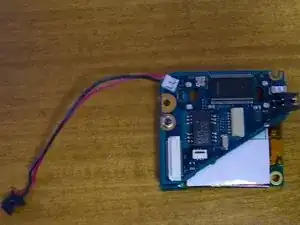

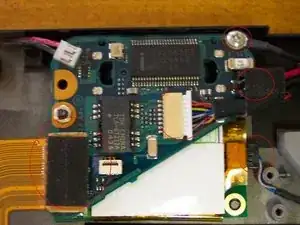

    • Remove one screw from the network/modem combo card. Disconnect 3 connectors and one ribbon from cards. There is an additional connector on the motherboard.

  14. aBSIpYP1lmXJ1w3D
    aBSIpYP1lmXJ1w3D
    kKsWSvrM2JC5Ggvu

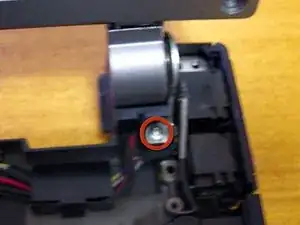

    • Time to remove the screen. Remove 2 screws holding the hinges down

    • Remove ground screw and wire.

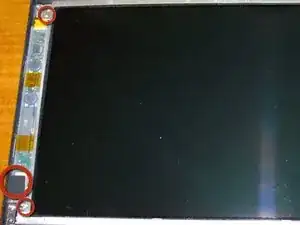

  15. dWwQcvqumvo4Ti4m
    dWwQcvqumvo4Ti4m
    qqMI3VEnisxgCOgW
    M3HiGH6YEjnmdKUJ

    • Remove 4 bezel screw covers. Remove 4 screws.

    • Remove 2 caps from hinges. Remove bezel.

    • Remove 4 screws holding screen. Disconnect one connector from the power module

  16. PIxXNVBVUNd1U2rX

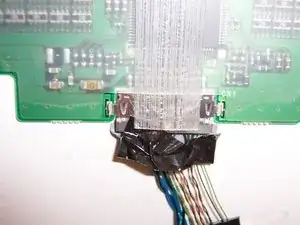

    • Disconnect one ribbon from the back of the screen.

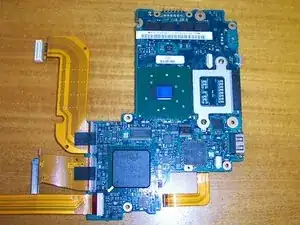

  17. RElUvOguHhERtNFS
    RElUvOguHhERtNFS
    iBfOcK3prq2pwNJI
    OXtpusbxR1TJPE1N

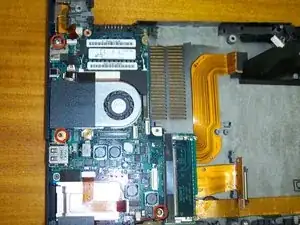

    • At last, the motherboard. Remove 2 screws holding a plastic bracket down.

    • Disconnect the ribbon connector and remove 3 screws.

  18. VYMNw41HNFMc3MNZ

    • Remove the memory stick reader.

  19. xqSXvmOBHaGsMRib

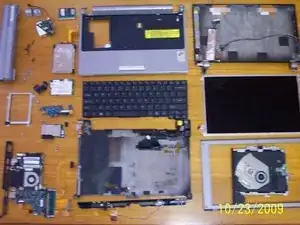

    • All done! Sorry for the crappy picture.

    • Just in case you are wondering, is back together and working like a champ.
