Sony Desktop Computer-

The Proprietary Force that is my Pentium 4 PC.

At the time it was released it was a very half decent computer. Sony Deemed this model a Digital Studio because of all its Audio and Video inputs and outputs. It has Video inputs on the front panel and optical audio and DVI Video outs on the rear. There is also a Mpeg Decoder/Encoder board for use with recording television via Cable Conection and an infrared remote to control certain programs with (Giga Pocket). I have Upgraded a few things including adding another Hard Drive and maxxed the Memory to a stunning 1.5gb.

If you use this information to upgrade this PC, take in mind that it may be easier to skip some steps say if your going to install new memory or another hard drive as I've done.

So here it is, The Systematic Disassembly

To Really be Blown Away By the Magic - Watch in Slideshow,

-Link Below-

  1. QBTkaJX3tLZuOHOa
    QBTkaJX3tLZuOHOa
    C2tqIMpo2souWJFH
    UDPbQL5jaKG2VC3b

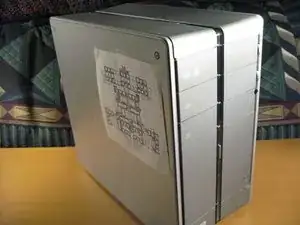

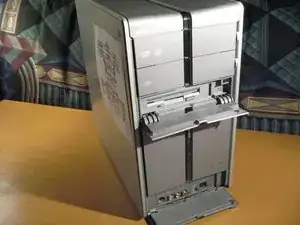

    • A few pictures of the front and side panels.

  2. yMACYsb3cHMcP2UP
    yMACYsb3cHMcP2UP
    yHvpc6yOoUGSUT4O

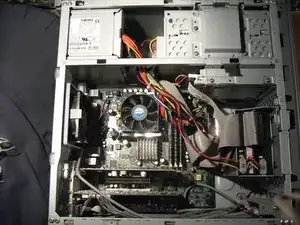

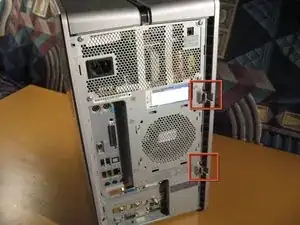

    • Remove all Cables and Connections (including power) from the rear of your PC if you haven't already done so.

    • Remove the side panel by unlocking the retaining clips on the rear of the PC and sliding the panel off.

    • You may want to put the PC on its side at this time.

  3. NsEeTrE2hysNrIWU
    NsEeTrE2hysNrIWU
    mFRmYqU11HyxIVjd

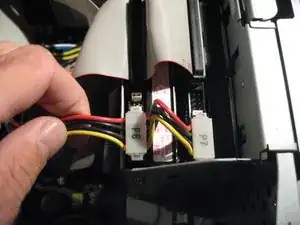

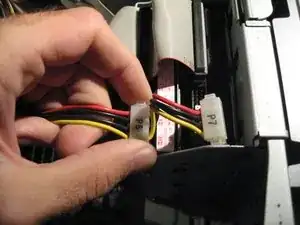

    • Remove the Power Cables from the Hard Drive(s). These are Molex Connectors

    • Do this by pulling the clip on either side - May require a little force

  4. GW2WjUZOELdIZHkR
    GW2WjUZOELdIZHkR
    bRN5nUYxcxog6Q5q
    GxhTrGqPnNWfOENu

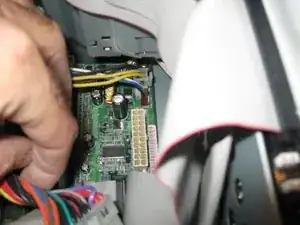

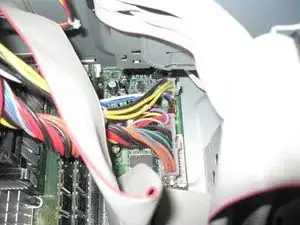

    • Remove power to the motherboard by finding the 20 pin Connector and disconnecting it.

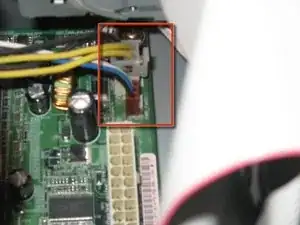

    • Also remove the 4 pin P3 Connector and the brown mini connection next to it.

  5. FbTTfqSWY3hOLrII
    FbTTfqSWY3hOLrII
    2EaGCfH3bU4bRM3J
    QSDttYNPTwMmUHUr
    • Now remove power from the two Cd/DVD Drives- these are the same Molex connectors as the Hard Drives.

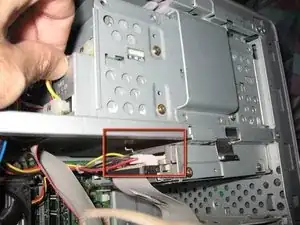

    • Remove Power Cable from the Floppy Drive. - this is known as a mini connector. As shown boxed in Red

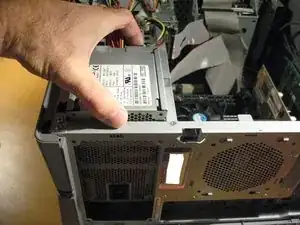

    • Now That all Power connectors are un-attached, we will remove the power supply.

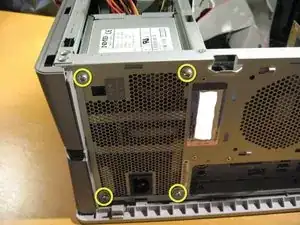

    • Unscrew four screws (labeled in yellow Circles) Then lift power supply out of Case.

    • **- Danger -** Never Attempt to disassemble a PC Power Supply

  6. TVgL3UZFB2S1ZbNU
    TVgL3UZFB2S1ZbNU
    jL1cGVXnA6UmGYTr
    QBqbgLeMTO6oEMdw

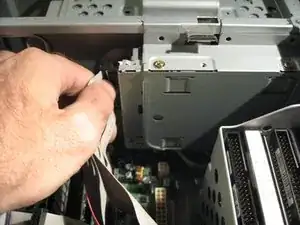

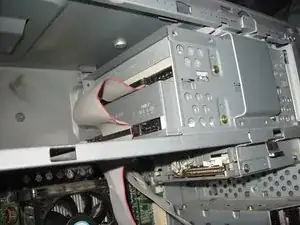

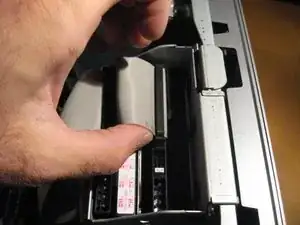

    • We can now remove the Data Cables- These are called IDE Cables

    • They are removed by simply pulling them out.

    • First from the the Hard Drives then from the Floppy and Disk Drives

  7. VHGblpOTTRwcLNHX
    VHGblpOTTRwcLNHX
    Tjw6p22GnHXiEHom
    D4QQ5MKB1phylCnd

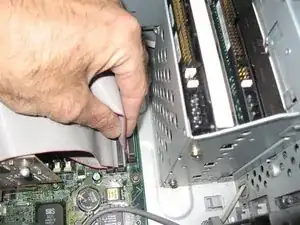

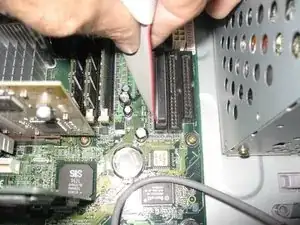

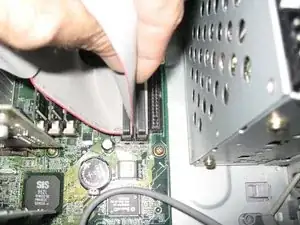

    • Then Remove the other end of the IDE cables from the Motherboard

  8. QRaRfjLqPbMUKTai
    QRaRfjLqPbMUKTai
    fnMZecwNYTvNVC3I
    qoAtWucoGCJroH3M

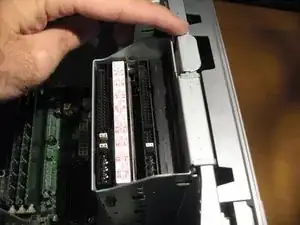

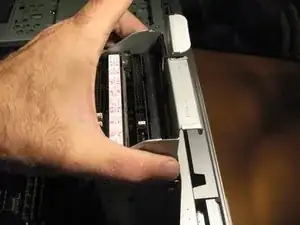

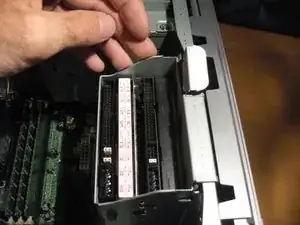

    • The two Hard Drives have their own seperate encasement

    • Lift up on the Latch as shown

    • Remove the Hard Drive assembly

  9. gm5PPLs1SCIYL2VQ
    gm5PPLs1SCIYL2VQ
    MQUOeQATTtLAFLlu
    WpQSMG5LqYkP3PeW

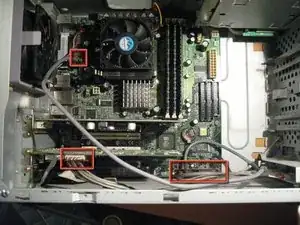

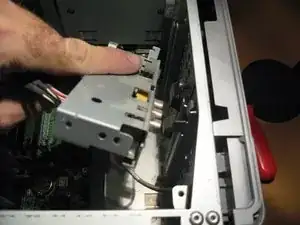

    • Remove all Connections from Front Panel assembly as shown in image.

    • Unscrew the one screw holding the front panel connectors to the case.

    • Pull Front panel connector assembly out of case

    • On this Panel is an S-Video in, Red, White and Yellow RCA inputs an Ilink S400 port and 2 USB Ports

    • I Link is Sony's S400 port. Similar to Apple's Firewire. They both fall under the 1394 Standard.

  10. sHpkJGDTIEtuE4lb
    sHpkJGDTIEtuE4lb
    J4etXFnKCMN6Cc1J
    I3OkGUNCTMGKZwGF

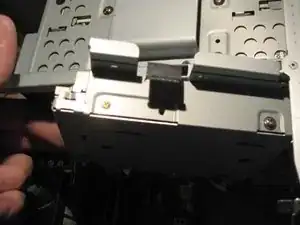

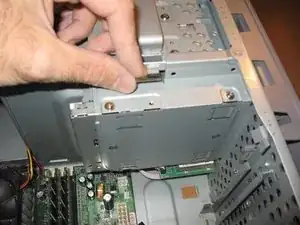

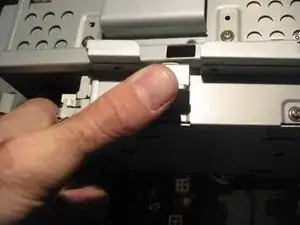

    • To remove Floppy drive, Unlatch Retainer and swing Drive outward as shown.

  11. MwZNNm5NpjANTWQ3
    MwZNNm5NpjANTWQ3
    lcKSREw2mYAlCfjQ
    ME1uEELobBg2ctZV

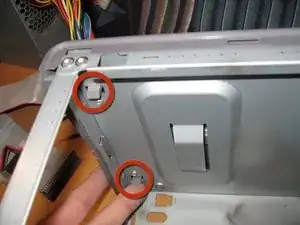

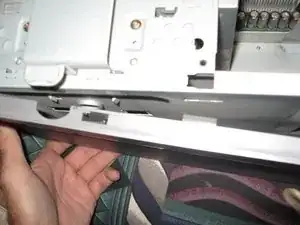

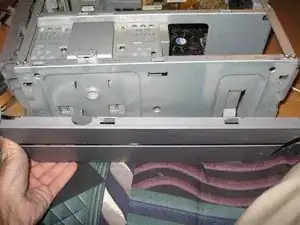

    • To Remove the top of the case, unclip the retaining clips as marked

    • Pull top from case

  12. Z2pQVGMvJPmkQMoA
    Z2pQVGMvJPmkQMoA
    EoeBDLieVVTQI3uC
    2huBCTfhn2vDBw3e

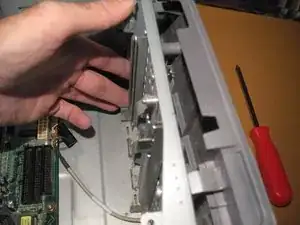

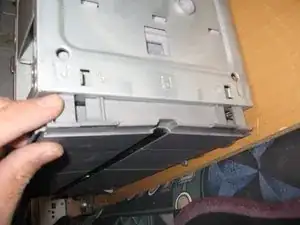

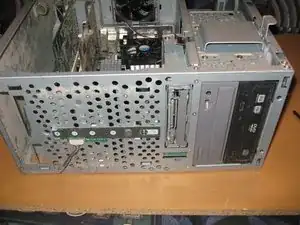

    • Next to remove the Front Panel of the Case.

    • There are retaining clips as with the top of the case, Unclip them and remove the Front Panel.

  13. iXgkswa5wRYgqKKO
    iXgkswa5wRYgqKKO
    eaBExK4nOOdmVwqi
    XfvaYwYABoy4lhOm

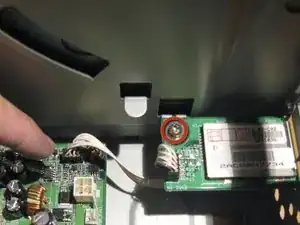

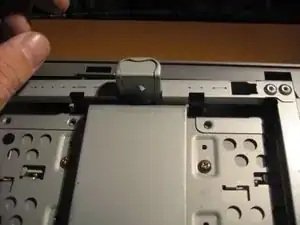

    • Remove the Sony Memory card reader by unplugging it from the motherboard and unscrewing the single screw (in red). Then simply slide it out of it's little niche

    • Our first little piece of proprietary MAGIC. Alot of Sony Devices at the time this was sold and still today have only SONY MEMORY STICK / Magic Gate Readers. I'm not sure if SD cards were really prominent as they are today. Regardless, they wanted it to work primarily with their equipment.

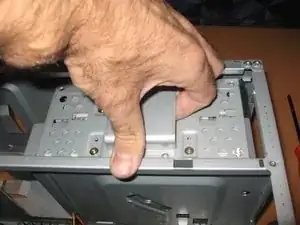

    • Next we will remove both of the Optical Disk Drives.

    • Pull up on latch, releasing the lock enabling you to pull up on drive box assembly and lift out of case

  14. 6t2RJ5rmpqJVQVGj
    6t2RJ5rmpqJVQVGj
    eC2MwTQhFXFKkvWX
    1QV5YgsdQA4TvITL

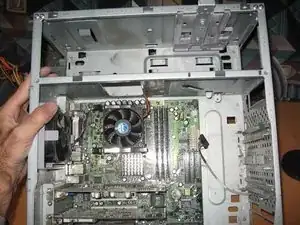

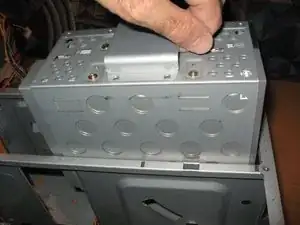

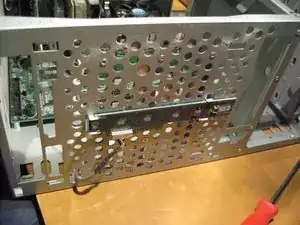

    • Removing of the Optical Drive Bay.

    • Then a quick look at the interior of the PC So Far

    • Now onto the Power button / Light panel in the front of the PC.

  15. RrYELAR2bX2pQkrc
    RrYELAR2bX2pQkrc
    2NMbmGcqn1GGuO6Z
    5mV3cd2bLaSTBlPp

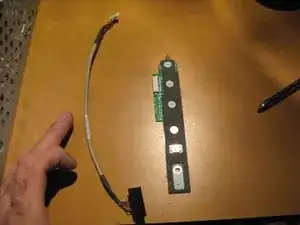

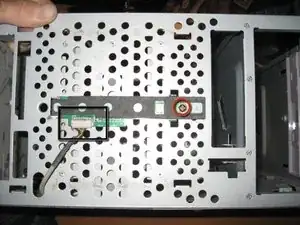

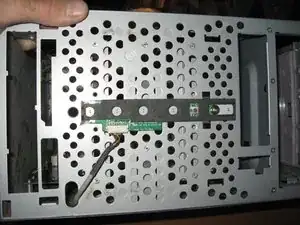

    • Unscrew single screw at front of PC to remove . Unattach connector on front side and pull cable through hole in Case.

    • The other side of the connector is too large to pull through hole.

  16. N5n6Py4tSpnwcY6f
    N5n6Py4tSpnwcY6f
    AxEmJASkhhOO2jbn
    C1FqXNG1su6T3RGk

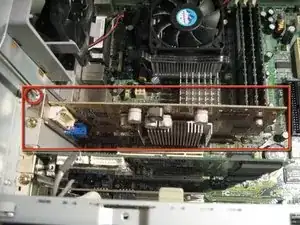

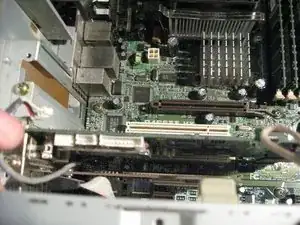

    • Now we will remove our AGP Graphics card by first removing the screw from the top left holding it secure to the card slot.(in Red)

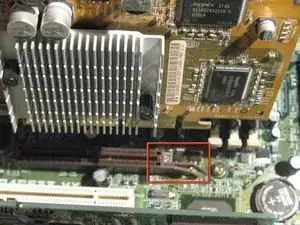

    • Before pulling the card out of it's placement you must unlatch this little plastic lever to release. (Second image in RED)

    • AGP stands for Accelerated Graphics Port.

  17. EqM3jBjQdjq4Md5P
    EqM3jBjQdjq4Md5P
    2es6fNRnhJwZ1SAC
    ERllImW6oAIHAKr4

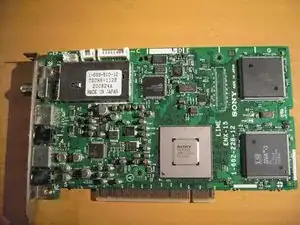

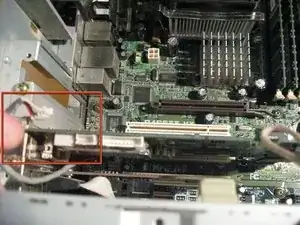

    • Next is the PCI Mpeg Decoder Board. Remove the Cable that connects from the motherboard to the card.

    • Unscrew and remove the Mpeg/Video In Board.

    • This MPEG ENCODER/DECODER board is another piece of Sony proprietary MAGIC. I say this because the only software that works with this Hardware is made by SONY. GIGA POCKET by the way, at this point in time was a pretty crappy combo.

    • And remove the Last PCI Card by unscrewing the single Screw. This card is a PCI -Serial Port adapter.

  18. ENSHeQphZOMHETB2
    ENSHeQphZOMHETB2
    ivwEuX1PFYq5wjxB

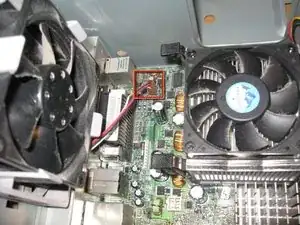

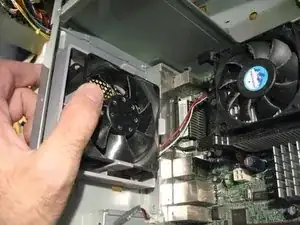

    • In order to remove the case fan, First disconnect its power cable from the Motherboard.

    • Then unlatch the Four Retaining clips to release the fan- and Remove.

  19. UJlQUCCCPsDiMISU
    UJlQUCCCPsDiMISU
    oKdFPSVuIjnPMGSQ
    I3YXjUsXcTIfqJpk

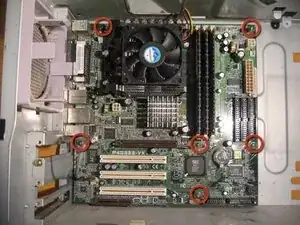

    • Now to remove the Motherboard-Remove Labeled Screws in image

    • Be Careful to keap mind of the connection ports on the rear of the Motherboard while removing. So your going to want to lift it out first on the right side then the side with the ports.

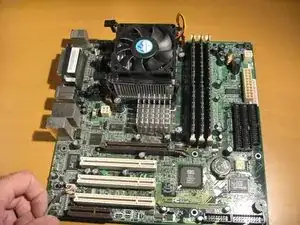

    • Now lift the Motherboard out of the Case

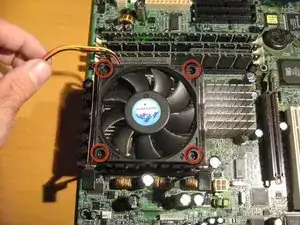

    • Disconnect the PC fan from the motherboard, Unscrew the four screws and remove.

  20. JOudtB3DV1RNpr5e
    JOudtB3DV1RNpr5e
    bujyIydDgtfyAWlB
    RsIC4ahfhXeHkw6L

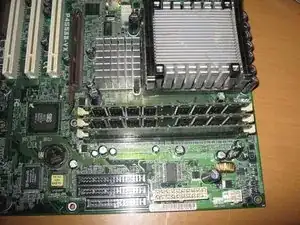

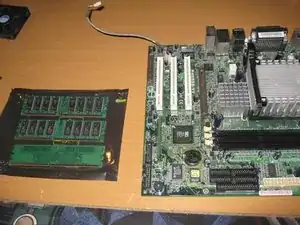

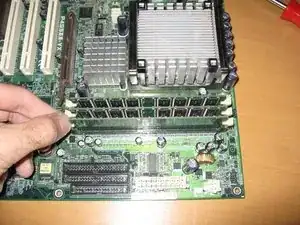

    • Unlatch the Memory Slots on either side.

    • Remove Memory Dimms by lifting out of slot

    • Keep memory in a safe place because it is prob one of the most volatile components of your PC and is known to get messed up easliy from Static Electricity.

  21. lyjAcknYhuOKtoWu
    lyjAcknYhuOKtoWu
    vx3DCQFP3YLggpav
    BDHOHfgTed2AMNrf

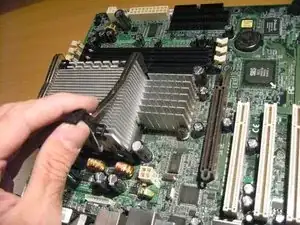

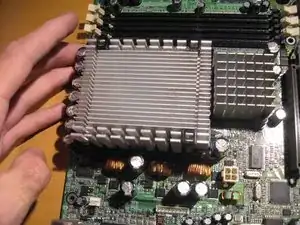

    • In order to remove heatsink, apply pressure to the far side and pull out of latch on near side (Use Both hands).

    • After Releasing clips lift up and remove heatsink.

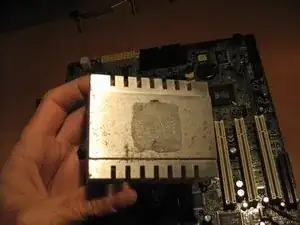

    • The underside of the heatsink will have thermal paste so when removed place on its top in order not to make a mess. And in this case it has a bit of dust accumulated.

  22. BTxdcLLWRcV3GBUV
    BTxdcLLWRcV3GBUV
    BQAHBGUxFVhKcpCy
    M5kiXARLiiGxA5Md

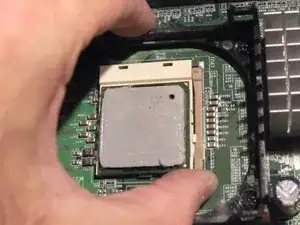

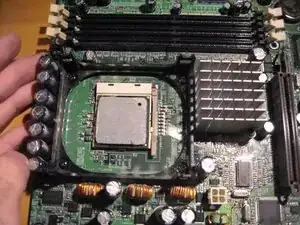

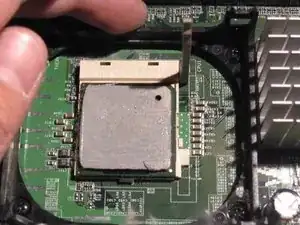

    • This particular Setup is called a Pin Grid Array (PGA)

    • In order to remove the Processor, lift the light brown latch out and up (as shown)

    • Careful, the top of the processor also has thermal paste on it.

  23. tHjBKhrG1ciKXJBs
    tHjBKhrG1ciKXJBs
    CWMp3MPxuqsZ5X3M
    VMwiIYs1NcbQrCij

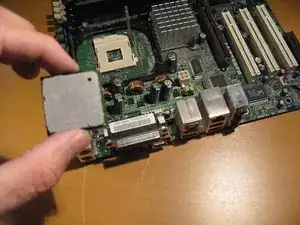

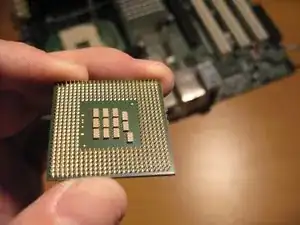

    • A look at the Processor topside and underside.

    • This Particualr Intel Chip is a 2.53GHZ Pentium 4

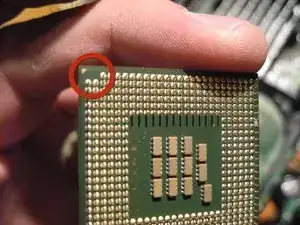

    • Take note of the one corner that has a few pins missing and a guide arrow. This processor chip will fit into the PGA one way and this serves as a guide.

  24. SIa41YIFPwMxEMXg
    SIa41YIFPwMxEMXg
    YvSpZvuxuWnPJGK1
    • Note , another guide arrow on the topside of the chip.

    • I am going to clean the thermal paste off of the Processor and the heatsink and add a new application. This is not particularly needed but in this case i felt i would.

  25. piYxECLfEeXY1q3L
    piYxECLfEeXY1q3L
    WlQ2Zau3NUDsJhmL

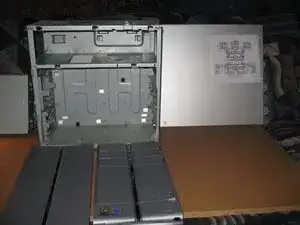

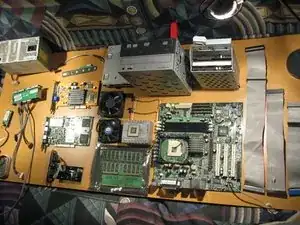

    • The Whole Enchilada!
