Before the introduction of MP3 players, people bought their own music. Sony Walkman WM-4 is a second generation cassette player, which was highly popular during this time. This guide tells you how to open a Sony Walkman WM-4.

  1. NQODFW46DBAHZbQK
    NQODFW46DBAHZbQK
    pPUPN5csKxgXFTWM

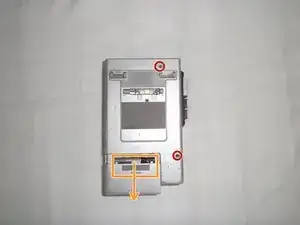

    • Flip the Sony Walkman so that its rear side faces you.

    • Use a screwdriver to remove the two screws from the surface of the Walkman.

    • Press the battery plate slightly with your thumb and slide it downwards. This will open the battery compartment.

    • Remove the batteries from the Walkman.

  2. eIsOoxI3WXnbbH65
    eIsOoxI3WXnbbH65
    XhGVHwpUMhTM1XxH

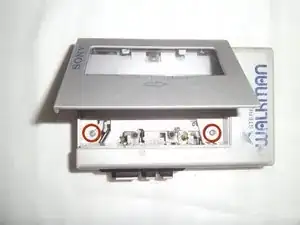

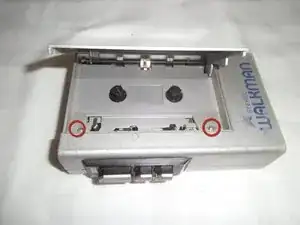

    • Turn over your Walkman and gently press the cover to open the cassette holder.

    • When the cassette holder is opened, you can see two more screws.

    • Using a screwdriver, remove the two screws.

  3. modtlIjmnpNOUNYs
    modtlIjmnpNOUNYs
    y3iTUDYMjPlQdSGj

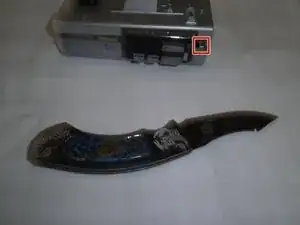

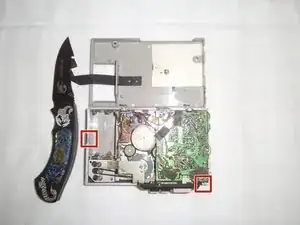

    • Use a plastic opening tool or a spudger to push the tabs. This will remove the cover and open the Walkman.

    • Be careful so you dont break the tabs!

    • Once the Walkman is opened, you can troubleshoot for any issues, remove the old wires and attach new ones, or even reassemble the Walkman.
