Sony Xperia U Teardown

Geschrieben von: Anthony
Veröffentlicht: 29/07/14
  • Kommentare: 0

Sony Xperia U Teardown

Veröffentlicht: 29/07/14

Teardown

Einleitung

The aim is simple, to teardown the Xperia U to allow you to see the internals to find out the issue and resolve it or to full your curiosity. And only containing 9 screws.

You will need a T5 Screw head and a small + screw

  1. fqRLB6dtIHsW1fEH

    • Remove the back cover and the bottom clip. And also remove the sim card and battery.

  2. yyaAIj3JUFkVvDQW

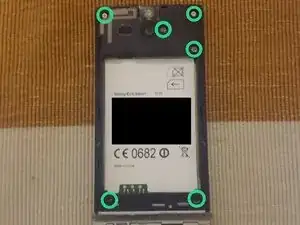

    • Remove the 6 T5 screws

  3. Q2HAMLxhRWDWI6bf

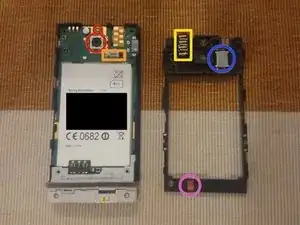

    • Remove the back piece, reveiling the headphone jack, speaker and the Liquid contact indicator.

    • Camera and flash

    • Vibrating motor

    • Headphone jack

    • Speaker

    • Liquid contact indicator

  4. LMtYwHQTQGVc4kRr
    LMtYwHQTQGVc4kRr
    erKo1tCBvXSM5DON

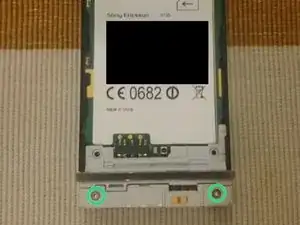

    • Remove the 2 T5 screws.

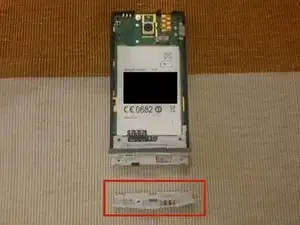

    • Remove the lower antenna.

  5. MHJQxdID1S3AeEQD
    MHJQxdID1S3AeEQD
    YBWq1ROmywwmy1Sg

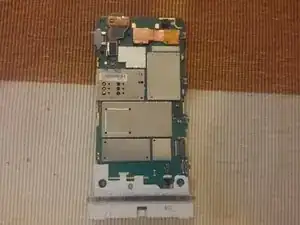

    • Carefully remove the motherboard being aware on the lower left edge, there is the display connector.

    • Be aware of the display connector on the lower left.

  6. IVikYscMfmS6bB1K
    IVikYscMfmS6bB1K
    QkHDRBDZZZMklVBL
    hfwwlexPLQ3Yq5WM

    • Removal back and bottom cap

    • Screen + main case, motherboard + antenna, battery

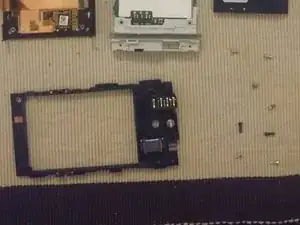

    • Back casing holding the headphone jack, speaker and liquid contact indicator.
