Have a look at the inside of Sony Xperia Z3 Dual and let you know where is component when need repair.

Witrigs is specialized in cellphone accessories and kinds of replacement guide.

  1. SombIvgxYRwYfFRD
    SombIvgxYRwYfFRD
    looudtqvFQXaxJm2
    MbXmCCCeZNFahpDr
    • Remove two SIM card trays.

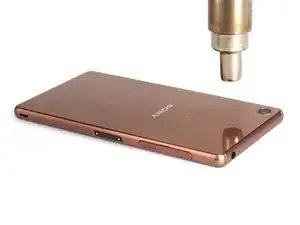

    • Heat the back cover to soften the adhesive sticker.

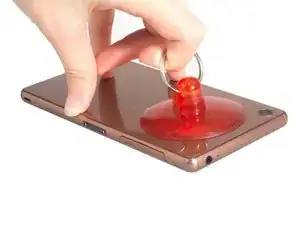

    • Place the suction cup and to open a gap from top side.

  2. skKAuaResHRfafOu
    skKAuaResHRfafOu
    GRGhCMsCEdPY2QS5
    gKotIrVfG6is4Eqj

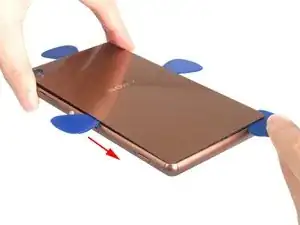

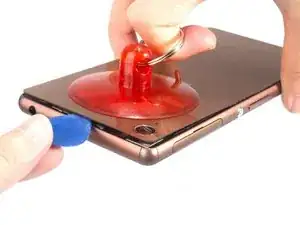

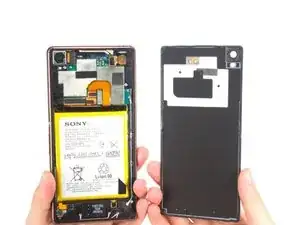

    • Insert the guitar pick into the opening gap.

    • Slide the guitar pick to cut the adhesive sticker. Attention: when deal with the left side, the guitar pick would better go as the direction of the mark.

  3. NyCXX4KyJ4VnbOFX
    NyCXX4KyJ4VnbOFX
    iykjcB3TpIeOkbCg
    • Release battery connector.

    • Free the fastening sticker.

  4. seOWmXjXNsIrDCEM
    seOWmXjXNsIrDCEM
    mDojfQgpvCWmlkwq

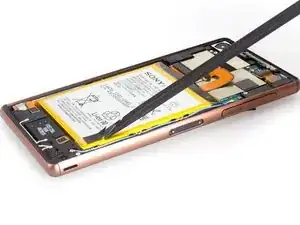

    • Pry up and remove the battery.

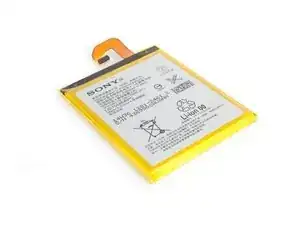

    • 3100mAh battery.

  5. ljZqRpPQhppRuks1

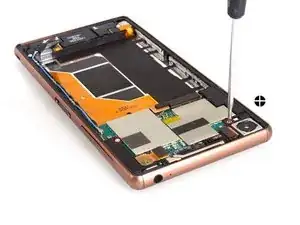

    • Twist off screws.

  6. X5NbY2TvaTAyUGqr
    X5NbY2TvaTAyUGqr
    GwhajVhCBo3W1L4K
    lxCBjmPoKiCCZ3F4

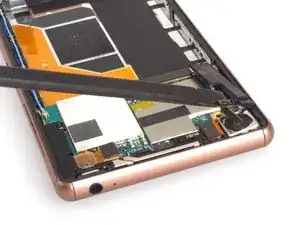

    • Remove three pieces of securing bracket.

  7. UE6eyV4MTi6iu4AZ
    UE6eyV4MTi6iu4AZ
    jBYkLAHiE2sHtWi6
    3pNUlXVZaFgkiI3R

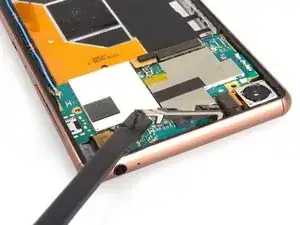

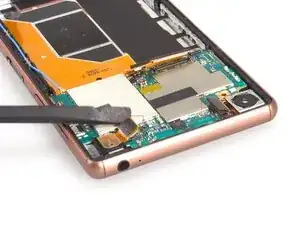

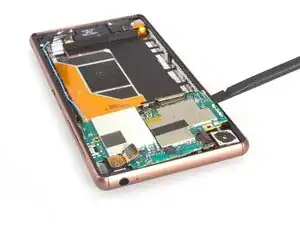

    • Release all the connectors.

    • Remove sim tray before removing motherboard.

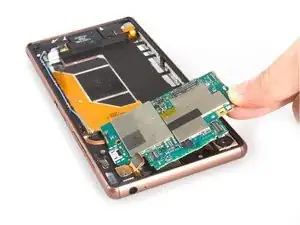

    • Remove the motherboard carefully.

  8. cHfnByS2OulKtcuO
    cHfnByS2OulKtcuO
    gbyxAHdmCKmhZZRU
    skOiClPWuK5SETpY

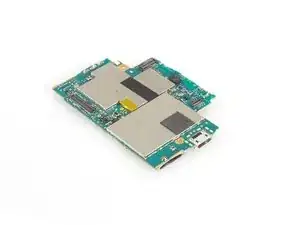

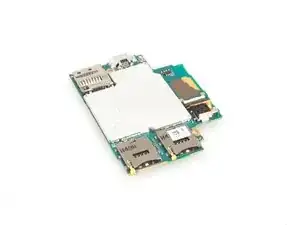

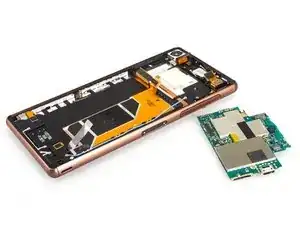

    • That's Sony Xperia Z3 Dual motherboard.

  9. bNWJciHpZMQwJxZx
    bNWJciHpZMQwJxZx
    DGMFWvIMAyxHoeEH
    eGlelhPxjyCdjLZH

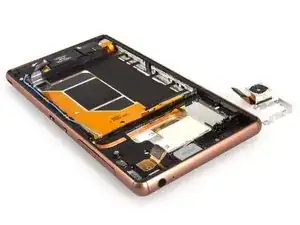

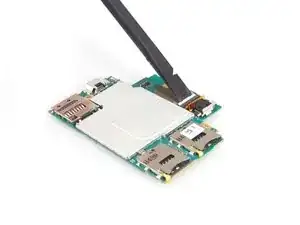

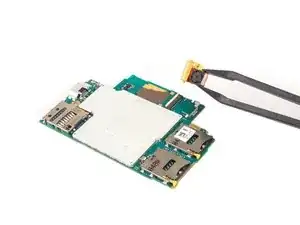

    • Remove front camera and rear camera.

  10. bRdJbpeuMPvgjCi2
    bRdJbpeuMPvgjCi2
    2CbWHcvppJ1ETK4N
    gpdpBIfL5RpHPdX4

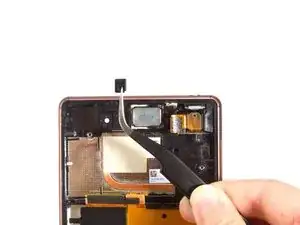

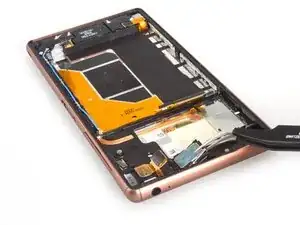

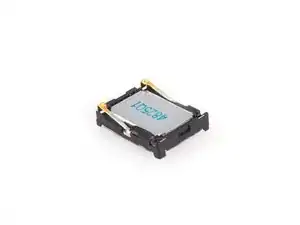

    • Remove that blocker beside the earpiece speaker at first.

    • And then you can pry up the earpiece speaker and remove it.

    This is bullshit. I broke my speaker by following those instructions. The part of the speaker facing away is glued to the front glass so trying to “pry up” separates the plastic case that holds the magnet and delicately attached membrane. The membrane is held to the magnet frame with glue, on the other side entire speaker is glued. It is obvious the weaker glue will fail first.

    If I was doing it again I would simply remove the blocker and leave the speaker in its place and remove it after detaching lcd with front glass. Alternatively use heat on the top of front glass to weaken the glue before attempting to pry the speaker. I'm quite lucky I managed to buy a replacement speaker or I would have a useless phone after following those “instructions”.

    Lukasz Olszewski -

  11. MWWbqfhl4quOdt6d

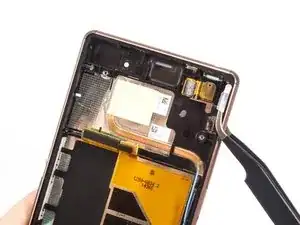

    • Remove transparent securing cover beside of earphone jack.

  12. F1wJ2YomRJ3NDygn
    F1wJ2YomRJ3NDygn
    pKcrFRslDZ6aMpaR
    MJwSdI6ZY3ilFgqp

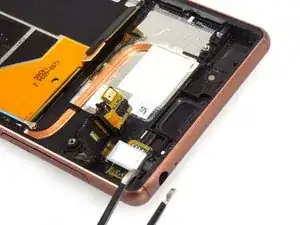

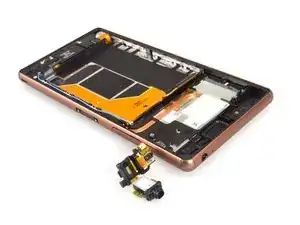

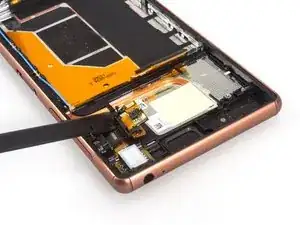

    • Pry to turn the flex cover on the earphone jack. But it's a part of the earphone jack assembly.

    • Cut the adhesive sticker between the earphone jack and midframe and remove the assembly.

  13. WvGIlU5oPoUCY36d

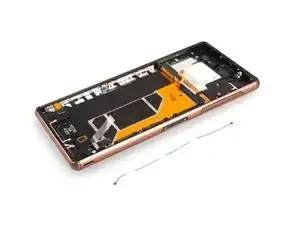

    • That's antenna signal flex.

  14. 2YQxO3XTpENHetHk
    2YQxO3XTpENHetHk
    H2NkiTA6UCRxCTRk
    1uZJIKXoEALleAMa

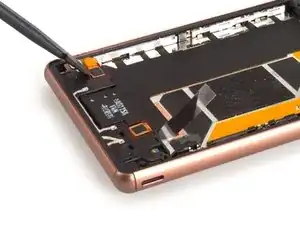

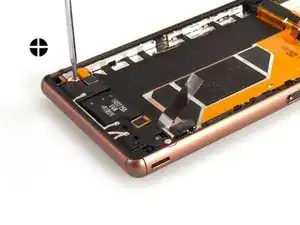

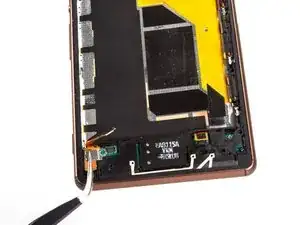

    • Twist off screws.

    • Release connectors.

    • Remove vibrator securing bracket.

  15. Z3Sf5V3goLBaNoHZ
    Z3Sf5V3goLBaNoHZ
    c2V4RQkVYIVWfLdr
    ynN2LHT5oBBWMHKc

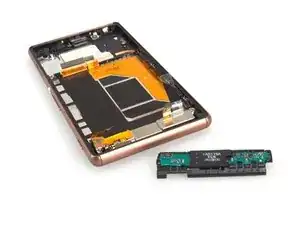

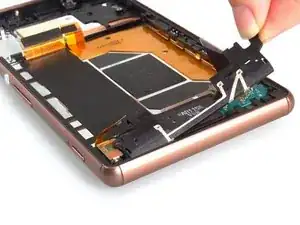

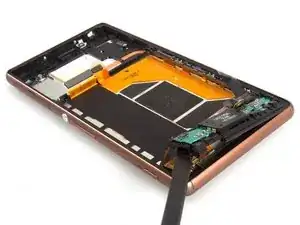

    • Remove loudspeaker assembly securing bracket. And there is no any adhesive.

    • Pry up and remove the loudspeaker assembly. No adhesive, too.

    The bracket as well as speaker assembly is very difficult to remove from a never disassembled phone. You have wiggle it, pry it, and bend it slightly to remove. Don't use force or it can be broken.

    Also there IS adhesive surrounding the speaker aperture gluing it to the front glass. It is not a lot, but one has to be aware of it.

    Removing those elements is the most difficult part of the entire disassembly.

    Lukasz Olszewski -

  16. LoAYZPvibVqRRGBx

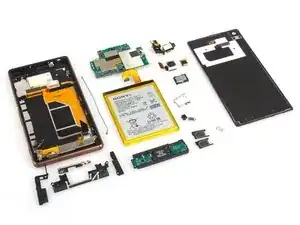

    • Done.

    This guide doesn't describe what is where on the phone. For example if you are replacing the screen no need to disassemble anything near the motherboard. Only the bottom. To disconnect lcd remove the metal bracket that is under the loudspeaker assembly. A piece of copper foil with glue on the connector might prevent access. Unstick sides of the foil and disconnect the connector. Then you need to gently heat the front glass to 80C (I used a hot plate and infrared thermometer - a piece of paper between the phone and hot plate) and then gently use plastic wedge to separate the lcd ribbon cable from the metal plate under it. It is held by some sort of metallic glue. Then you can u glue the front lcd glass same as you did the back.

    Lukasz Olszewski -
