Sony Xperia Z4 Teardown

Geschrieben von: Sophia
Veröffentlicht: 07/09/15
  • Kommentare: 5

Sony Xperia Z4 Teardown

Veröffentlicht: 07/09/15

Teardown

Einleitung

  1. EEywfBZZipy5OdWB
    EEywfBZZipy5OdWB
    ccUWWqMjLLioNFwR

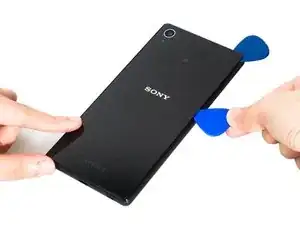

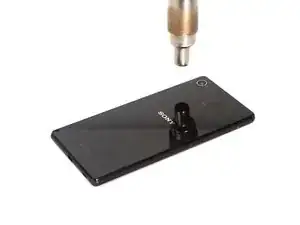

    • Remove back cover.

    How much heat needed to melting down the back cover adhesive…

    Aspar Riansyah -

    it is no need to heat too much.

    Snowflake -

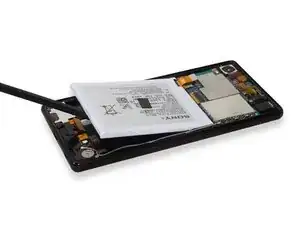

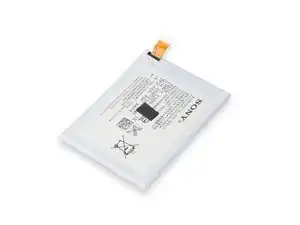

  2. vQcNvVb5dTXnuXD3
    vQcNvVb5dTXnuXD3
    xu1SCKrBcHCOGSDj
    LB5Ngb6xGnRGshi1

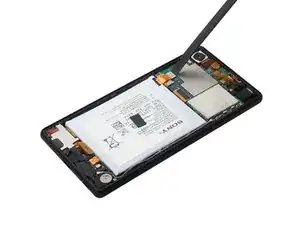

    • Remove battery.

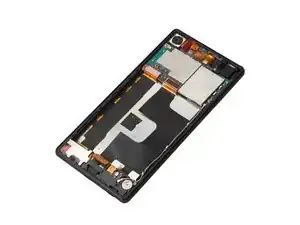

  3. FqKx2jJ2ohryLLZC
    FqKx2jJ2ohryLLZC
    It1EM2QkEIKP2aBA

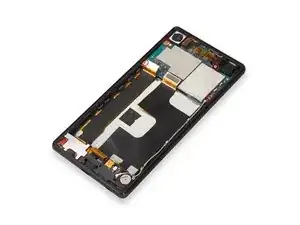

    • Release all the connectors on board and remove the screws there.

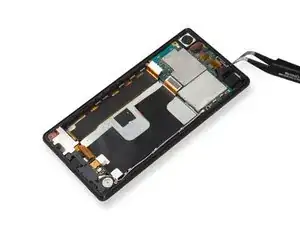

  4. TmEFkG44dNcNuLNc
    TmEFkG44dNcNuLNc
    hePHuNFEGjSAGmaj

    • Remove that small securing bracket.

  5. hfwSryw1GSkMoXR6
    hfwSryw1GSkMoXR6
    vTpBvQRNWHEuJkDZ
    g2N2SV41UpBuqDFB

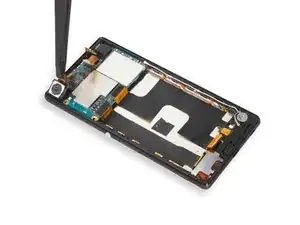

    • Remove rear camera and front camera.

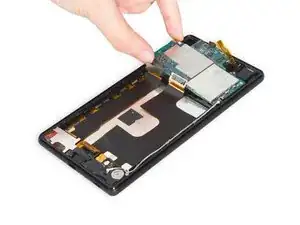

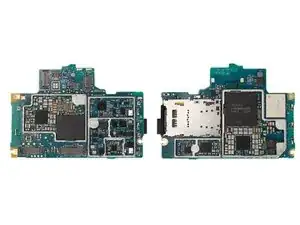

  6. svtcMjZQB3jGHasE
    svtcMjZQB3jGHasE
    I1TIdGEHMpQFNVbJ

    • Remove motherboard.

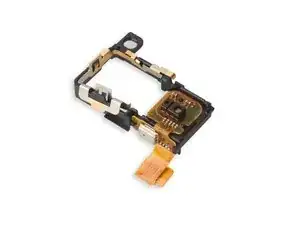

  7. KyDaQJkixBDDAV2N
    KyDaQJkixBDDAV2N
    GGfpFLPeYvwOPrgM
    RPEdOUxM2ZlfTueW

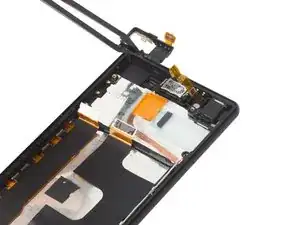

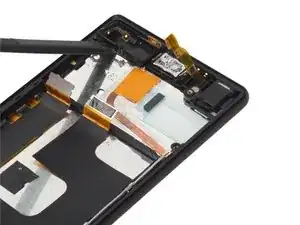

    • Remove sensor flex.

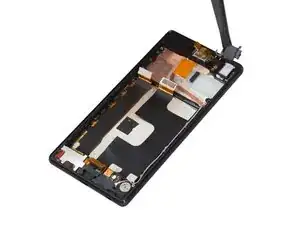

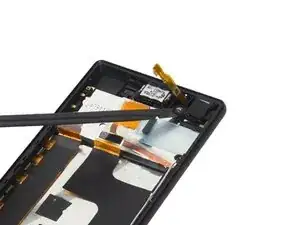

  8. MFDFJe6YKC6AZtEr
    MFDFJe6YKC6AZtEr
    WnYCfDYnepBPSfrp
    YSVYqNfbAMtVRQd1

    • Remove two pieces of cover brackets on the audio jack.

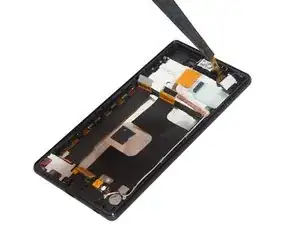

  9. xRkFVioIrNCxBMQf
    xRkFVioIrNCxBMQf
    a4Hlhxwjnbec3IkW

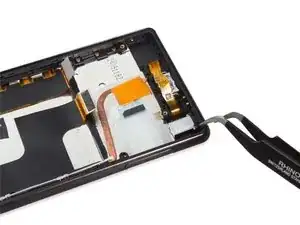

    • Cut the adhesive on the top of the audio jack and remove the audio jack assembly.

  10. gJpfNBMeWkjZT3LY

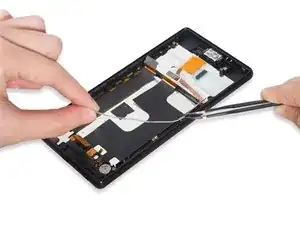

    • Remove signal cable.

  11. qOSrE5gqMfbu6sgx
    qOSrE5gqMfbu6sgx
    RY4kxHqQqeE4mj6w
    Owh15YEVcAcYYEIt

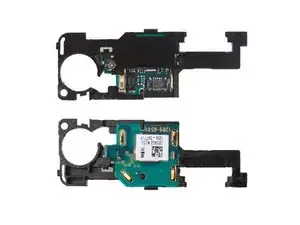

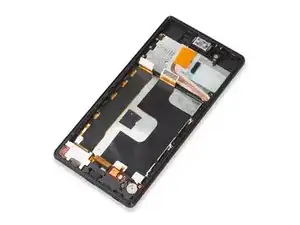

    • Release connectors connecting on the antenna logic board and finally remove it.

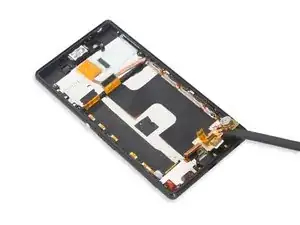

  12. vXbRZMWCupZCOxeh
    vXbRZMWCupZCOxeh
    mLTanysHHPRVetAM

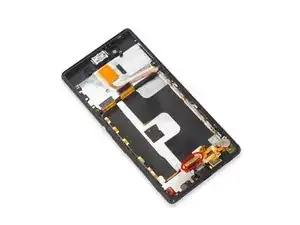

    • Release LCD connector there and loosen the bottom of the whole flex.

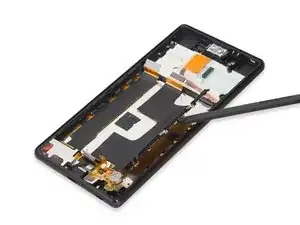

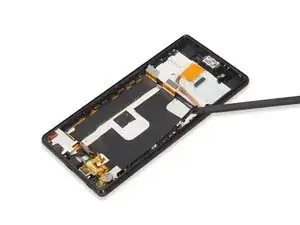

  13. AeMcjcn26UbfQEjD
    AeMcjcn26UbfQEjD
    OCDdlUDmO2SOlttb
    XD4g3rYXX1dtnC5M

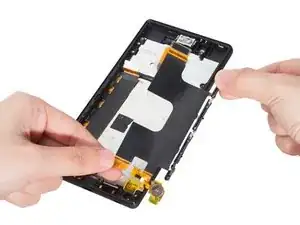

    • Remove main flex.

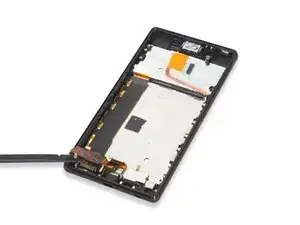

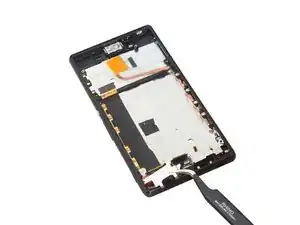

  14. 5mvfXNUAHpYlvERP
    5mvfXNUAHpYlvERP
    3cb1J1ylpiOPL4Li

    • Remove loudspeaker securing bracket.

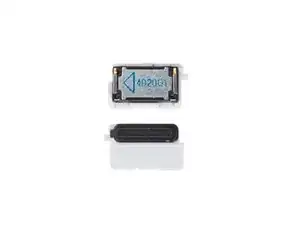

  15. SwbJsM5jdmhIcMap
    SwbJsM5jdmhIcMap
    TXLCfXMq23ffAOAS

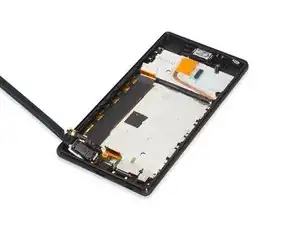

    • Remove loudspeaker hidden under the flex.

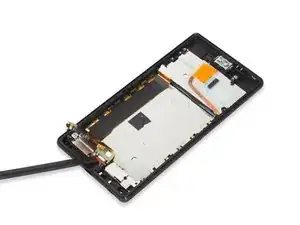

  16. q6c22vpmTIYMgvEN
    q6c22vpmTIYMgvEN
    GukUsJO12S1QUfoK

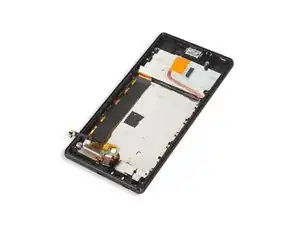

    • Push the USB port out of the slot.

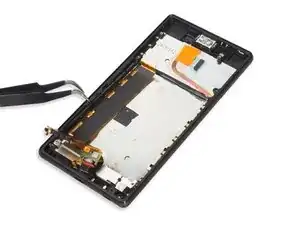

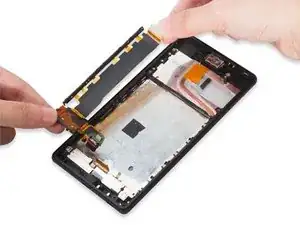

  17. 5TwrCCauqyLuRNdY
    5TwrCCauqyLuRNdY
    yKs4qwVd3BKoLLtF

    • Remove USB charging flex assembly.

  18. 33xTymIXtDffleEw
    33xTymIXtDffleEw
    Rl3igDfDI3FrLkXa

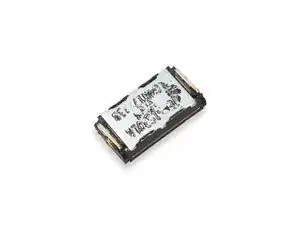

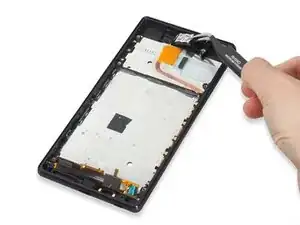

    • Remove earpiece speaker.

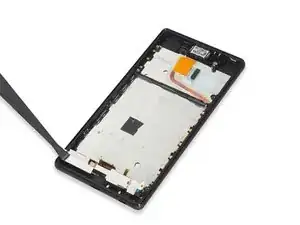

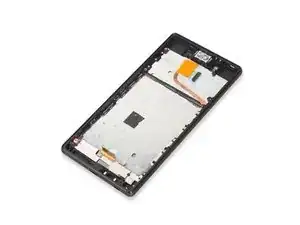

  19. 2X1bjfF6bioXjBBX
    2X1bjfF6bioXjBBX
    NdP5uH1BEIOMV4Qv

    • Remove the metal bracket covering on the screen flex.

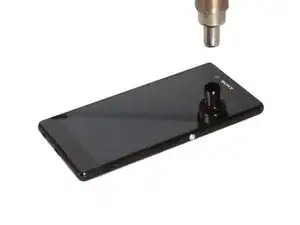

  20. BAIKVLtLXIIDJwMd
    BAIKVLtLXIIDJwMd
    G1jvT6ZUca5RHmo5
    kAyYxOIDXcKUJmEw

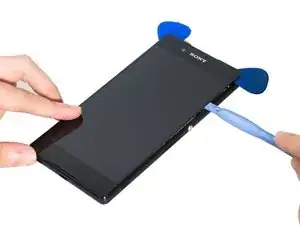

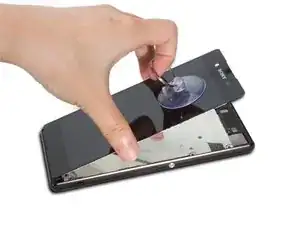

    • Remove LCD screen carefully.

    Gerade so ein schwieriger Schritt, wie das Entfernen des Displays, bei dem auch echt viel schief gehen kann, sollte ruhig etwas detaillierter beschrieben werden. Die Mühe ist man der Community echt schuldig.

    Davon mal abgesehen ist das Bildmaterial echt gut gelungen!

    Gerdi -

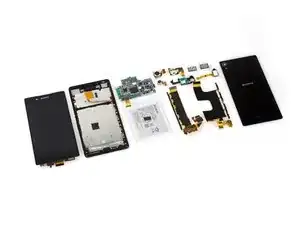

  21. TBwCYWEcUTfEXKRr

    • Done.
