Sony Xperia Z5 Teardown

Geschrieben von: Lenka
Veröffentlicht: 06/11/15
  • Kommentare: 26

Sony Xperia Z5 Teardown

Veröffentlicht: 06/11/15

Teardown

Einleitung

This guides will show you how to disassemble Sony Xperia Z5.

  1. WiWxfoKEVkLx2wQt
    WiWxfoKEVkLx2wQt
    BqB4B4MkWFqcNgrX

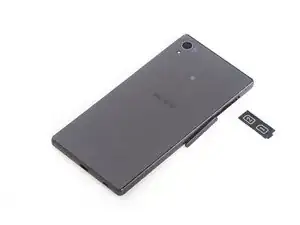

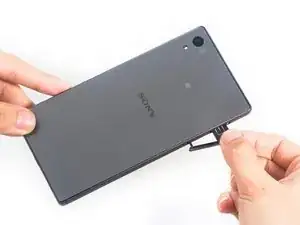

    • Remove SIM card tray.

  2. ussACdQWFBShhFIF
    ussACdQWFBShhFIF
    kHBJZfeo2HQDKRZ5

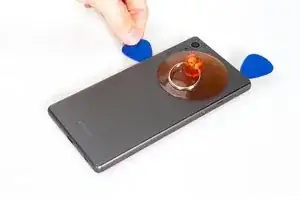

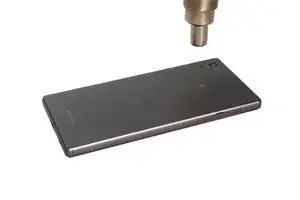

    • Heat the back cover to soften the adhesive.

    • Place the suction cup and insert metal opening tool to open a gap from top side.

  3. VlALyqFVLjXIF4pK
    VlALyqFVLjXIF4pK
    dVNXMomlJmGAPsNW
    QsL31Pnyg5RsW4nc

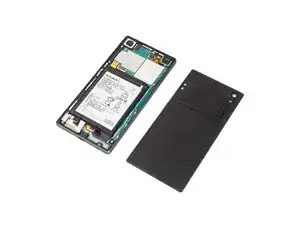

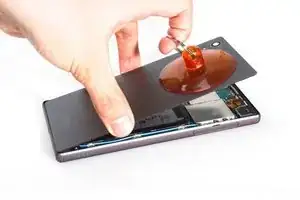

    • Insert the guitar picks and slide it to cut the adhesive underneath.

    • Remove back cover. The back cover is glass, so only use a sucker if you're experienced. otherwise use a small blade to lift off the back while the glue is soft.

  4. ECkFXYg1tnDu5LZn
    ECkFXYg1tnDu5LZn
    kGkHfHnIjjXaUCap
    L6dI4grHjyNRXvMG

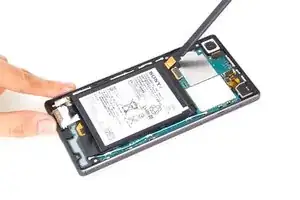

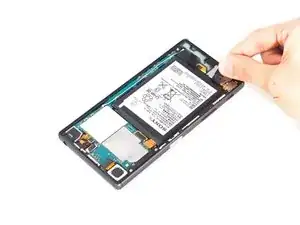

    • Release battery connector and pull off the adhesive tape underneath.

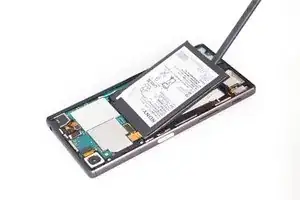

    • Pry up battery.

  5. iiHmZXAZ1SFmG43H
    iiHmZXAZ1SFmG43H
    hp2QPpcXiH4XyUZT
    xDeGPVRVW2eIbwY3

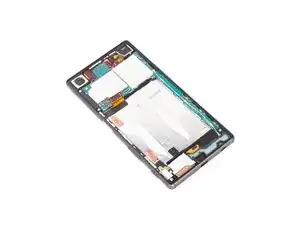

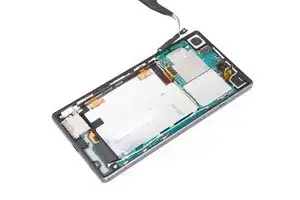

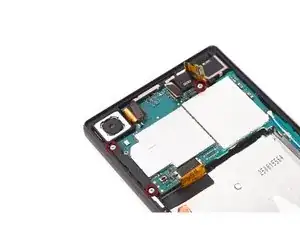

    • Release rear camera connector, front camera connector, audio jack flex connector and main flex connector on the motherboard and remove the screws there.

    • Take away the plastic bracket.

  6. TQBWLLoSOaFVrEBA
    TQBWLLoSOaFVrEBA
    AZDZlEHSNBHUDFGb
    2HtdfBUnKBscAeQ1

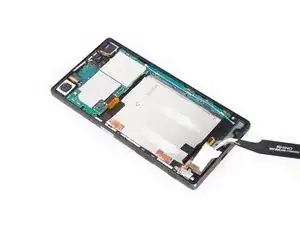

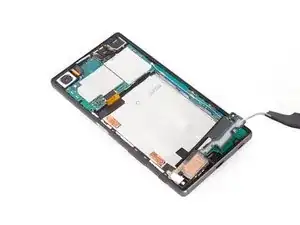

    • Remove metal cover securing loudspeaker and twist off screws.

    • Pry up and loosen the bottom side of main flex assembly.

  7. KeIDIDeGRSNMAEKo
    KeIDIDeGRSNMAEKo
    vYZLmHAjF54DFw6o

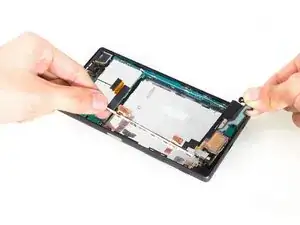

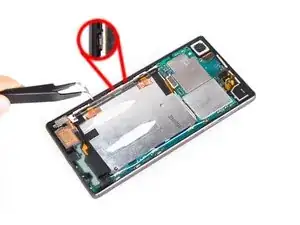

    • Remove main flex. ( Attention: the fingerprint sensor connector is here, be careful to loosen it)

  8. M2pSk21VdfO3VWUP
    M2pSk21VdfO3VWUP
    mXjfgHscHIRBm3DE

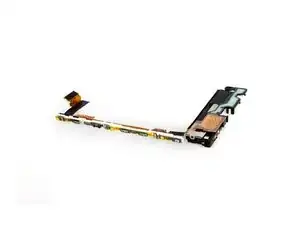

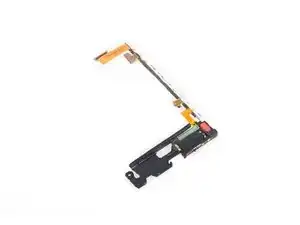

    • This is main flex assembly. (It comes with loudspeaker and vibration motor )

  9. TlsvFVM32P4ivucb
    TlsvFVM32P4ivucb
    OtE5GKYOV61YHVHB

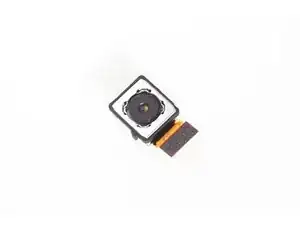

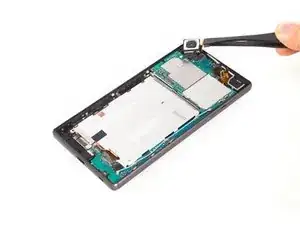

    • Remove rear camera.

  10. 6cPJLxscEy2OLPFZ
    6cPJLxscEy2OLPFZ
    PfZ1JidaBpLGgZIZ
    pYn1RjKOqJ4bjRxT

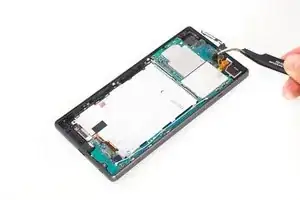

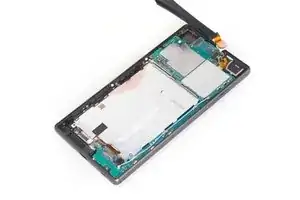

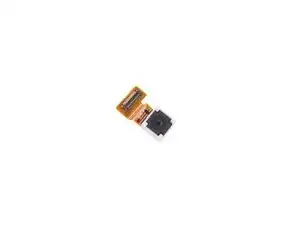

    • Remove that securing bracket, then remove front camera.

  11. WcQfbPMUwUwNO2VD
    WcQfbPMUwUwNO2VD
    ovfuXj35GbgRie3F
    o4m3gNvJFHqHu3yB

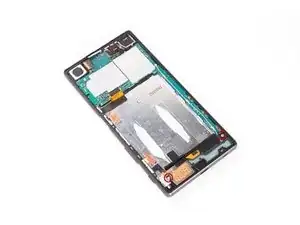

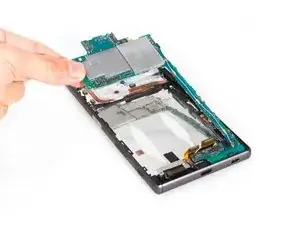

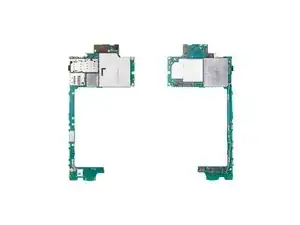

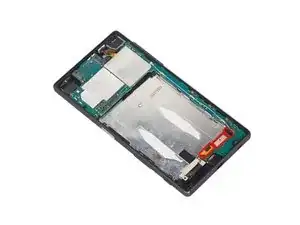

    • Release connectors on the motherboard.

    • Remove motherboard.

    Motherboard may be stuck around near battery connection on opasite side of the board ( helps with cooling )

    Applecake “Applecake” -

    Can I buy a motherboard

    Rajae Hasbou -

  12. QUUjGVkGsNDUkn4Q
    QUUjGVkGsNDUkn4Q
    tPqZrRLJxoVT2N6m
    qATBWCQnKafXdGqm

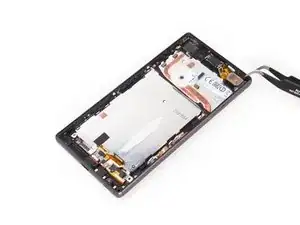

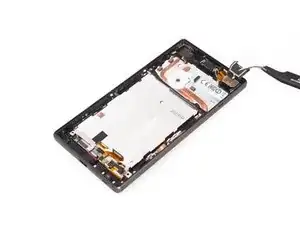

    • Remover cover bracket on the audio jack.

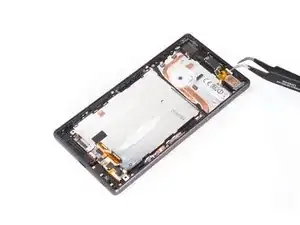

    • Cut adhesive at the top of the audio jack and noise canceling mic, then remove it.

    If my noise cancelling mic is broken, do I need to do all the steps before or can I cut straight to this point?

    Dany Chamoun -

  13. MRIVvjXClcLTBIak

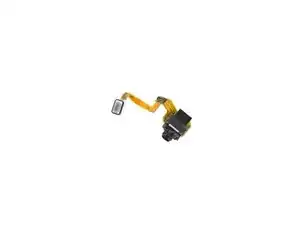

    • This is audio jack flex coming with noise canceling mic.

  14. WNnPsa6GnNX5NwWt
    WNnPsa6GnNX5NwWt
    kFVGlUABwEDunJpP
    IXaY1ffQxZLoS3le

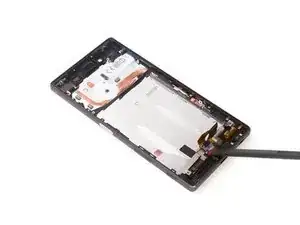

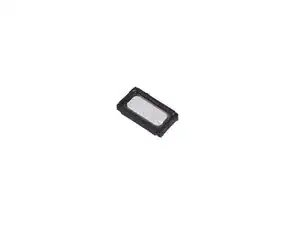

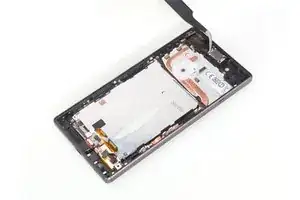

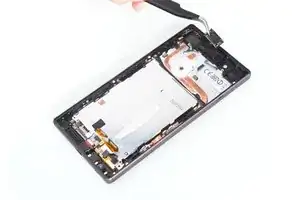

    • Cut the adhesive underneath the earpiece and remove the earpiece.

  15. SHI4Bm6cxwrBjhUe
    SHI4Bm6cxwrBjhUe
    Z2I1MnN6BiHRsUtu
    yYcfxtS4C2SLFgXr

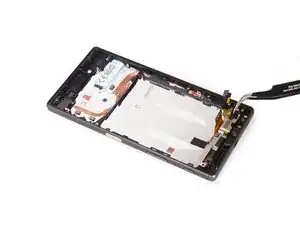

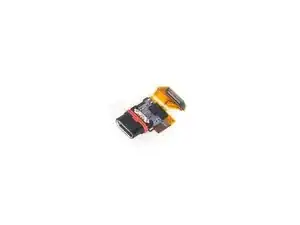

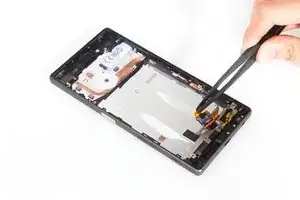

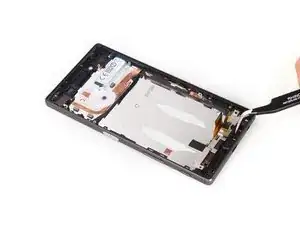

    • Push the charging port flex out of the slot and remove it.

  16. AQUPfETrORf1QL6G
    AQUPfETrORf1QL6G
    uBpKB5mqyIKydtPo
    YigsYHC3xLMqVEZC

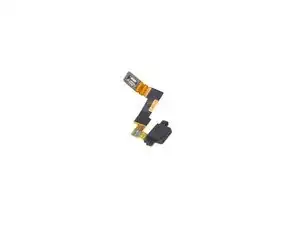

    • Remove the microphone.

  17. oPvKPUKJbIyejq5m

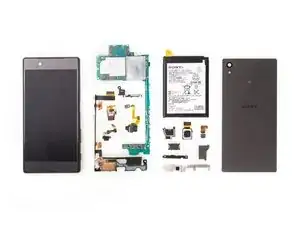

    • Done.
