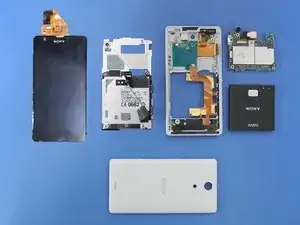

This article tells you how to disassemble Sony Xperia ZR (C5503). It's not hard to disassemble at all, but still need carefulness to avoid tearing some fragile cables or cracking the screen.
Contributed by Fix4U, an iPhone, Samsung Galaxy, and other smartphone Repair Shop in Auckland.
-
-

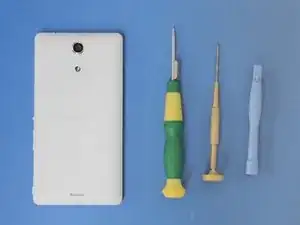

To teardown, you only need 3 tools:
-

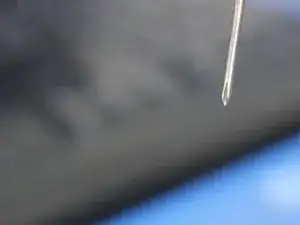

T6 Torx Screwdriver
-

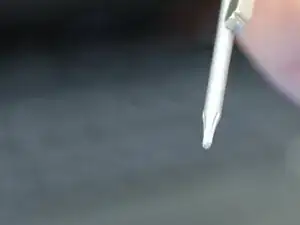

Phillips #00 Screwdriver
-
Plastic Opening Tools
-
-
-

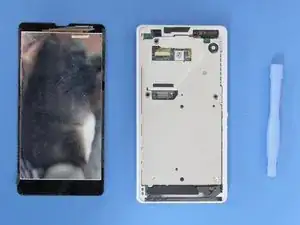

Use plastic opening tool to get the screen off.
-

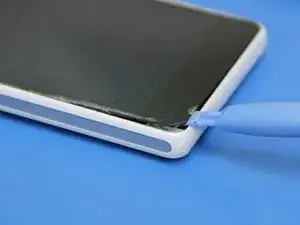

Insert opening tool to the bottom edge of the screen. Then go along the edge slowly to separate the screen.
-
Try several times to get an easy point to insert opening tool. Don't force, although this screen is not that fragile.
-

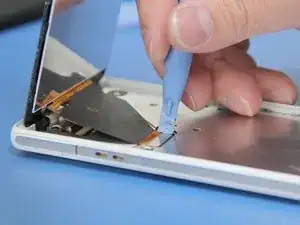

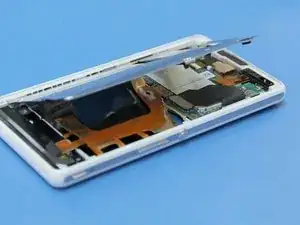

Finally use opening tool to detach the screen panel connector.
-
-
-

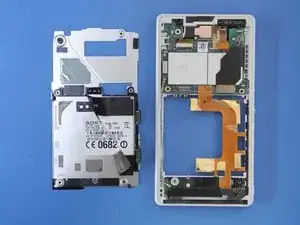

Get the partition between screen panel and motherboard out.
-

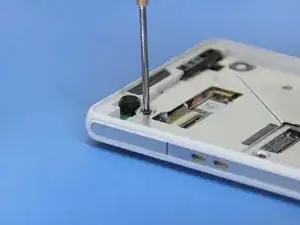

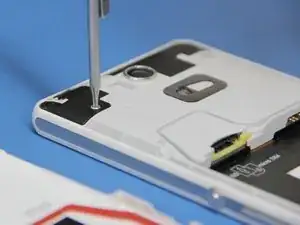

Firstly, use Phillips #00 Screwdriver to remove all the screws you can see on the partition.
-
-
-
Gently pry the partition out a little, you can see there's volume button flex cable sticking on the partition panel. So if you pry too hard, these flex cable may be torn.
-
Flip the phone.
-

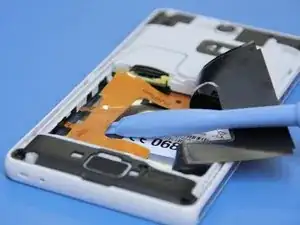

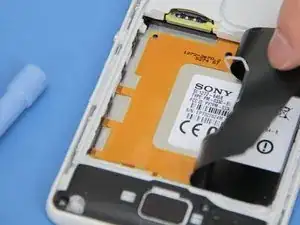

Lift the black sticky plastic paper slowly and then you'll see the flex cable sticky on the partition.
-
Use plastic opening tool to separate the flex cable.
-
-
-

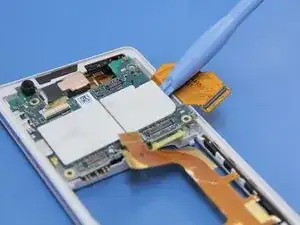

Use opening tool to open connectors on motherboard gently.
-
Volume button / power button flex cable connector
-
Antenna on the left
-
Front camera flex cable connector
-
And another connector on the right
-
That's it!
-
10 Kommentare
Will my phone still be waterproof after this?
I;m afraid it's not...
You'll have to replace all adhesive stickers, it's still won't guarantee it to be completely waterproof afterwards, but chances will be much higher.
