This is actually a reverse teardown -- a build-up, you could say -- of a Suzuki FA50's throttle cable. This was the best method I could think of to describe the stuck throttle cable problem I've been experiencing with my moped.

  1. HcQiFZORCQsQLjGn
    • Here is the assembled throttle cable. It seems to be assembled correctly, but certainly does not function properly.

  2. WIMarQY6sYBeuEhD
    WIMarQY6sYBeuEhD
    QxOkg1OlbxeRTUAv

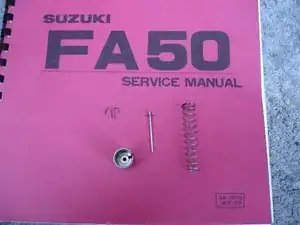

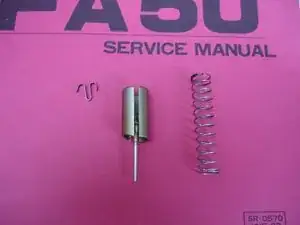

    • The throttle parts.

    • The only logical way for me to assemble these parts were:

    • Insert needle into gold-colored cylinder.

    • Insert retaining clip on top of needle.

    • Then compress and insert the spring (see following steps on how the spring was inserted).

  3. u3Yf5R1AjV6kpsUM

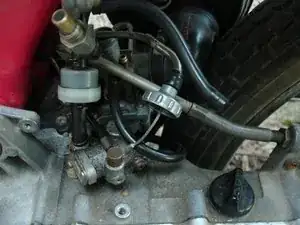

    • The throttle cable without any parts.

    • The round, gray top screws into the carburetor.

  4. JbJLUdjgJdmcHXsB
    • To assemble the throttle cable:

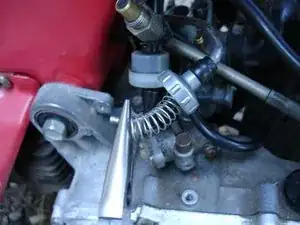

    • I first use a pair of needle-nose pliers to compress the spring as much as I can.

    • This allows me to insert the throttle cable into the gold-colored cylinder without having to meddle with the spring too much.

  5. 2o4TUs2NyZxOeDAP
    2o4TUs2NyZxOeDAP
    UvrUMSEHmS3oVtml

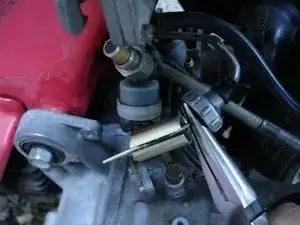

    • I attach the throttle cable to the bottom of the gold cylinder and then route it through the cylinder's side slot.

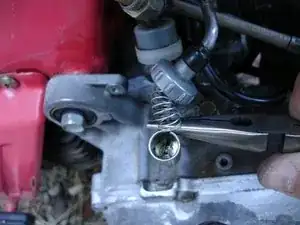

    • The alternate view (picture 2) shows how everything looks internally.

    • After the throttle cable is in place, I let go of the spring into the cylinder.

  6. lBUVFYluhNBjUNCE
    lBUVFYluhNBjUNCE
    OgxUJYKkKVKiQJeW

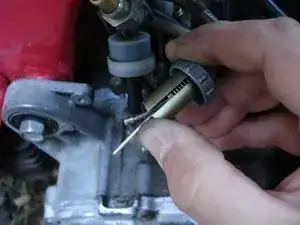

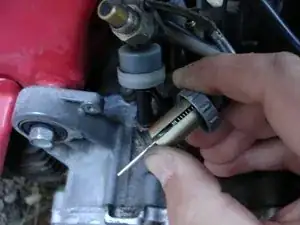

    • I'm simulating screwing on the throttle to the carburetor by compressing the gold cylinder against the gray cap. As you can see, the spring compresses, and the throttle cable pops outward.

    • When I twist the moped's throttle, the throttle cable goes inwards. I believe this is the desired action for the cable.

    • There are two problems, however:

    • Nothing pushes the throttle cable back out when I release the moped's throttle.

    • The throttle needle does not move, but to my understanding it should go upward when I apply the throttle.

    • Please check out my Answers question if you can help me solve this problem! Thanks a lot!

Miroslav Djuric

156735 Reputation

2 Kommentare

which way does you set the throttle when you put it in

ladell -

It appears to be correctly assembled however the cable isn't bottomed out on the cup to allow for free movement, I think you may have put a flat spot in to the cable itself that's not allowing the cup to bottom out on it and giving you the return movement.

Ken James -
