Sylvania SMPK4230 Teardown

Geschrieben von: Steve Crawford
Veröffentlicht: 22/11/10
  • Kommentare: 4

Sylvania SMPK4230 Teardown

Veröffentlicht: 22/11/10

Teardown

Einleitung

This 4GB 3.6" Touch Video MP3 Player can be found at BigLots for only 45 dollars. I'll show you how to disassemble it.:Update By htimreimer

  1. CZATAuXssLXLkaUO
    CZATAuXssLXLkaUO
    CgRILMheV3Nd5rqN
    CFtCirrbXZxYcL5n

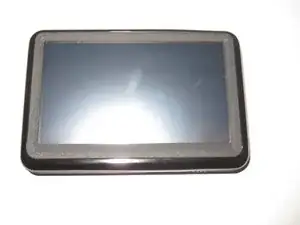

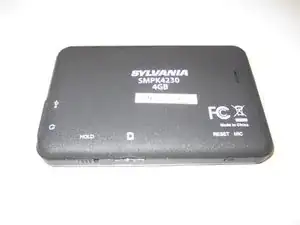

    • The Layout

  2. Y4l3tdksc1Qegn6g
    Y4l3tdksc1Qegn6g
    xvUgLZFJMRXvvOVb
    L5skWMOlToqlxjYB

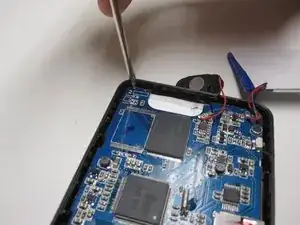

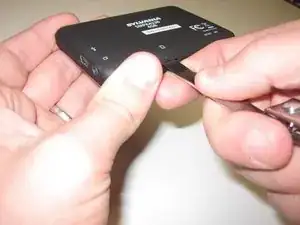

    • I used a pair of fingernale clippers to gently pry open the case at the MicroSD card slot. A slight twisting action will pop it off. Just be sure not to go to far in and damage the unit.

  3. 5VN4kVnaQXSXQZep
    5VN4kVnaQXSXQZep
    jsj2MQ5kUFH2drfH

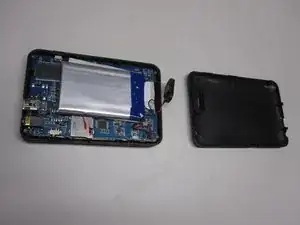

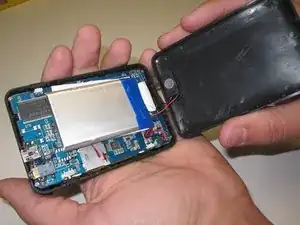

    • Be careful when opening the unit. The speaker is attached to the back cover and the wires are fragile. The speaker is held in by some double sided sticky tape. Just use your fingernale and pull up on the edge. DO NOT PULL ON THE WIRES...

  4. eMMEIUP4sLReRTLJ
    eMMEIUP4sLReRTLJ
    CAgn1vahTv2AJpTB
    Ol6G2PqLKpTrTdIc

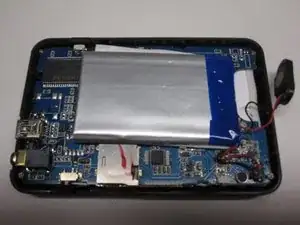

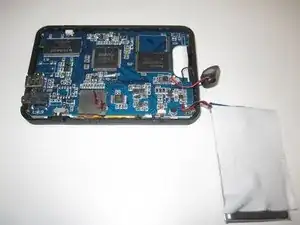

    • Once you have the back cover off you can see that the battery is help in by double sided sticky tape. Gently pull up on the battery and move it to the side.

  5. ZQWeS1BDJxVHTZF4
    ZQWeS1BDJxVHTZF4
    GA13YPfUCRecsrkV
    KNRCMYEoWBfZjgQT

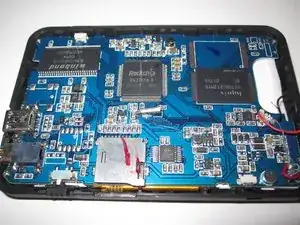

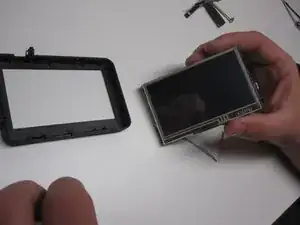

    • There are four screws one in each corner. Remove them and gently pull out the LCD Screen keep in mind for the buttons.

  6. bUa2rQLtnXFOApm2
    bUa2rQLtnXFOApm2
    PTUajuDHpXuIlhip
    MUYe5d3hAuYH2yUU

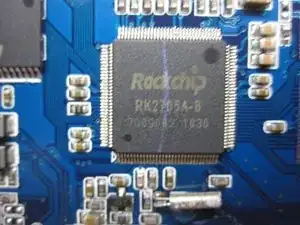

    • RK2705 200MHz CPU By RockChip

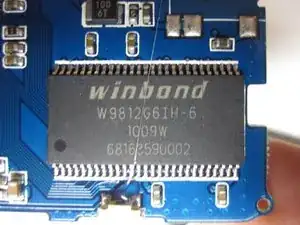

    • 128MB SDRAM 166MHZ 54-TSOPII By Winbond

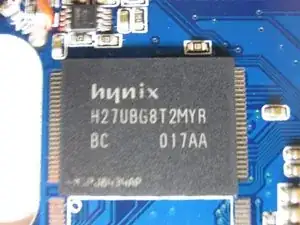

    • Hynix H27UBG8T2MYR-BC 32G bit Nand Flash 4Gx8 Delivery

  7. llPTIBf4pcyFbMQ4
    llPTIBf4pcyFbMQ4
    QSRP5DMCXoyQxFRJ

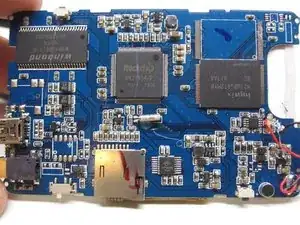

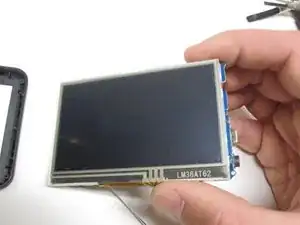

    • A closer look at the LCD and Board.

Tinte & Feder

Steve Crawford

Mitglied seit: 18/09/10

39 Reputation

4 Kommentare

hi ... my screen is damaged, it crash, so, i can't handle, is fact fixit or buy another one??? my e-mail is betito_1126@yahoo.com

ROBERTO LLAMAS -

My screen is damaged. How can I purchase another one? my Email is Harelijah@juno.com

Bernard Harland -

Hi, I wanted to know what the measurements (width,length and thickness), volts and mah of the battery. Even a link to a replacement battery would work. My e-mail is micro065@msn.com

Jim -

The battery is 3.7v 800mAh. Its dimensions are 60mm x 37.5mm x 3.6mm

There appears to be enough room in the case to replace it with something similar to: www.sparkfun.com/products/339

But I have not tried it, so I can't be 100% sure (the thickness may be a problem)

Elexorien -
