Einleitung

This is a Tandberg remote for use with a video conference system. It is very simple to teardown with many individual parts.

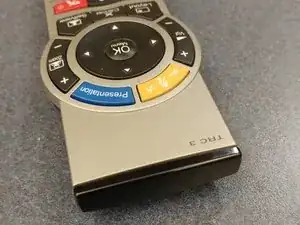

  1. 3gUIeiJmrYIlXurQ
    3gUIeiJmrYIlXurQ

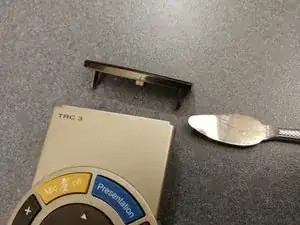

    mIKLweIowccYgFXI

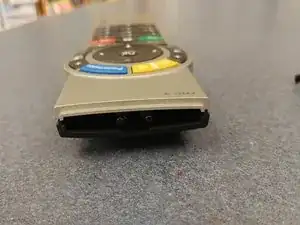

    aKWKtOUmbDlRt6rQ
    • Pop off the front cap with the metal spudger.

    • There is no adhesive; the remote and cap are just snapped together.

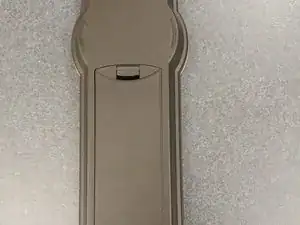

  2. DH6UcsUnelATGbfC
    DH6UcsUnelATGbfC

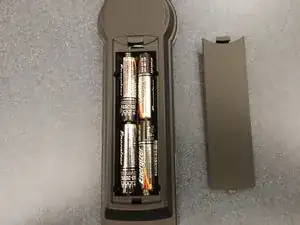

    KWRvQXE3EFNAXUdy
    • Remove the back cover from the remote and take out the batteries.

  3. NBVDXEaFNUcRklrg
    NBVDXEaFNUcRklrg

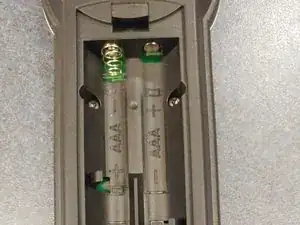

    tJNelEaHayoKF4Ir
    flpsrutaX4JHbVlq

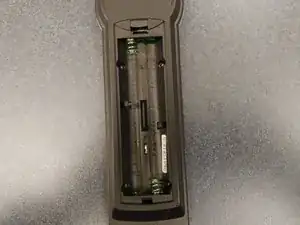

    • There are four screws underneath where the batteries were. Unscrew all four screws.

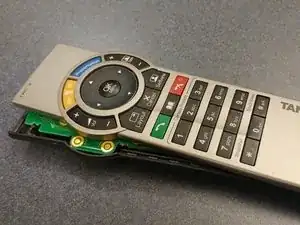

    • After unscrewing these four screws, proceed to pull the top apart from the bottom of the remote. This should be relatively easy, and the motherboard will now be clearly visible,

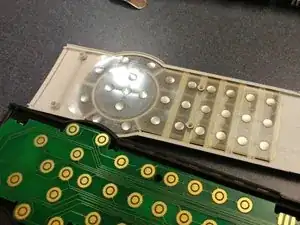

  4. DFMlQQmACMCZlPU3
    DFMlQQmACMCZlPU3
    BGRjMFZ1dcZfimYR

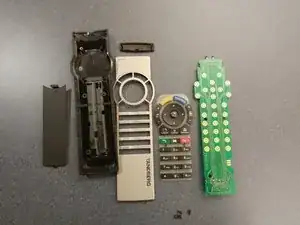

    wCHjULKxbUIOuOHp
    • Finally, after the top cover is removed from the remote, pop the buttons out from the plastic top shell. These buttons can be a great source of stress relief.

    • Finally, remove the motherboard. The motherboard is a single unit without daughter boards or connecting wires. However, do be careful when removing the battery terminals from the back cover.

    • Congratulations! You completed the teardown!
