Teardown des MacBook Pro 15" mit Retina Display von Ende 2013

Geschrieben von: Sam Goldheart
Veröffentlicht: 25/10/13
  • Kommentare: 59

Teardown des MacBook Pro 15" mit Retina Display von Ende 2013

Veröffentlicht: 25/10/13

Teardown

Einleitung

Wir haben das neue MacBook Pro 15" mit Retina Display auseinander gebaut, in der Hoffnung, dass Apple es reparaturfreundlicher gestaltet hat, als das Anfangsmodel von Mitte 2012. Leider haben sich die Dinge für uns nicht zum Guten gewendet, im Gegenteil, sie haben sich (eher) zum Schlechten gewendet.

Jetzt ist sogar die Kopfhörerbuchse am Logic Board festgelötet, und das ist definitiv ein Bauteil, das sich mit der Zeit abnutzt. Der Nutzer muss nicht einmal sonderlich unachtsam oder brutal bei der Verwendung dieser Buchse sein, eine regelmäßige Beanspruchung führt in jedem Fall zu seiner Abnutzung.

Diejenigen unter uns, die sich für Reparaturen interessieren, sollten wissen, dass dies die einzige 15" Option ist. Apple hat den Verkauf von 15" MacBook Pros ohne Retina Display eingestellt.

Willst du mehr über Reparatur lernen und Inspirationen für Reparaturen finden? Dann gehe auf iFixit.org.

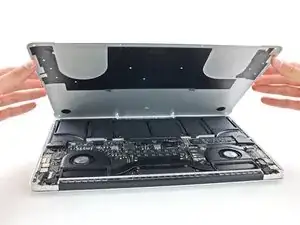

  1. EAPEmUgOPbcWbckO
    EAPEmUgOPbcWbckO
    jjGHKlpIteBKbe5P
    h5tRgwQLNyEbKBZ3

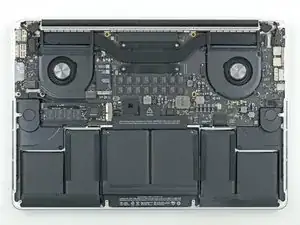

    • Dieses hochrangige Apple Gerät verfügt über eindrucksvolle Spezifikationen:

    • 2.0 GHz quad-core Intel Core i7

    • 8 GB 1600 MHz DDR3L integrierter Speicher

    • 256 GB PCIe SSD

    • Intel Iris Pro Graphics

    • 720p FaceTime HD Kamera

    • 802.11ac Wi‑Fi drahtlose Vernetzung

    • Bluetooth 4.0

    Does anyone noticed that the bottom cover and the bottom case is actually linked with the black plastic near the battery?! After the first time you open the cover, it will be impossible to put it back to the original place. Does the critical?! Thanks a lot for informing

    jamiegan835 -

  2. SDssM3DBqI4h3gvT
    SDssM3DBqI4h3gvT
    L2vRSAgGFhZvmL1T
    5CmjsV6U5q24npYk

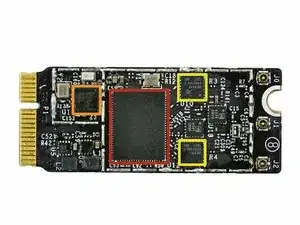

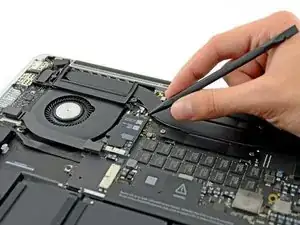

    • Einfacher Upgrade Nummer 2: Füge eine neue AirPort Karte dazu, die 802.11ac Wi-Fi unterstützt.

    • Apples Standard 802.11ac Provider ist wieder mit dabei. Das Broadcom BCM4360 auf dieser AirPort Karte ermöglicht ein Betreiben auf 5GHz Bandbreite bei einer Geschwindigkeit von bis zu 1,3 Gbps.

    • Ein Broadcom BCM20702 Single-Chip Bluetooth 4.0 Prozessor kümmert sich um alle Bluetoothigen Sachen.

    • Ebenfalls mit von der Partie sind ein Paar Skyworks SE5516 dual-band 802.11 a/b/g/n/ac WLAN Frontmodule.

  3. 41qbWaL1wpDiM4Q5
    41qbWaL1wpDiM4Q5
    FXdAeroYCwbXuqVE
    JU4LODjdJhmwtGNN

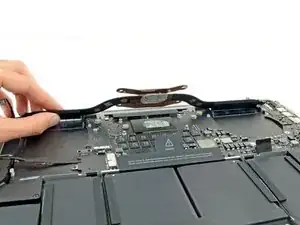

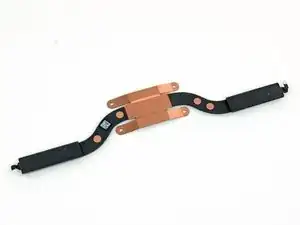

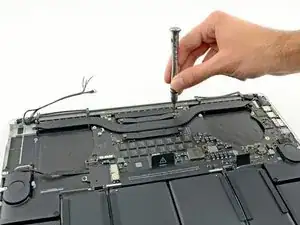

    • Einer von mehreren Unterschieden: Das MBP 15" hat jetzt dank der enger integrierten GPU einen schlankeren Kühlköper mit nur einer Wärmefalle, was wir dem, wie wir ihn nennen "Haswellifizierungs"-Prozess zuschreiben.

    • Das "Haswellen" deines MacBooks hat eine weitere Auswirkung: Dieses Modell soll bei der gleichen Zellenkapazität über eine zusätzliche Stunde Akkulaufzeit verfügen. Der effizientere Prozessor trägt viel zu dieser extra Stunde bei, die du zum Beispiel nutzen kannst um Katzenfotos im Internet anzuschauen.

    Hello, I want to ask about the screws model that use in the thermal pad. Do you know what types of screws this could be?

    Dale Lin -

    One of the housings for the screws has broken off. What can I do to repair this?

    Andy -

  4. Jxqp6l2cEQn4olWQ
    Jxqp6l2cEQn4olWQ
    UKXOdnyfCEmQIQwG

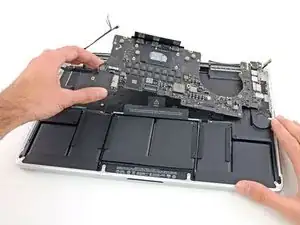

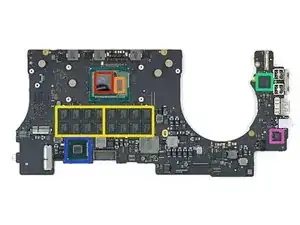

    • Die nennenswertesten Änderungen befinden sich auf dem Logic Board, dazu gehören der neue Haswell Core i7 Prozessor, Iris Pro Graphics, und Thunderbolt 2 Support:

    • 2.0 GHz quad-core Intel Core i7 Prozessor (Turbo Boost bis zu 3.2 GHz) mit 6 MB geteiltem L3 Cache und Iris Pro Graphics

    • 128MB eDRAM Cache

    • Elpida J4208EFBG 512 MB DDR3 SDRAM (16 chips für insgesamt 8 GB)

    • Intel DSL5520 Thunderbolt 2 Controller

    • Intel Platform Controller Hub

    • Cirrus 4208-CRZ Audio Codec, ähnlich wie der Cirrus CS4207

    The chip marked by Orange is the Crystalwell eDRAM, 128MB in total. This can be used by both the CPU cores and The Iris Pro GPU that is still integrated in to the main core chip (the one marked by red).

    Magnus Rydningen -

    Yep, Magnus, tried to fix it, but edit was denied by Miroslav Djuric.

    Martin -

    Does anybody know what kind of SSD Apple uses for the MBP. Are this TLC, MLC or SLC cells SSDs?

    Paul -

    See step 2. The Part number of the Samsung chips has a link which leads to the spec. The third character is an H which leads to this conclusion: MLC.

    LetMeGoogleThatForYou -

    Yeah, "2.0 GHz quad-core Intel Core i7 processor (Turbo Boost up to 3.2 GHz) with 6 MB shared L3 cache

    Intel Iris Pro Graphics" is wrong, the larger die is actually the eDRAM for both processor and GPU, the smaller die is both the processor and the GPU.

    tipoo -

    Just edited it, then saw this comment. Been bugging me since this teardown was made. Unsure why they keep on disallowing the edits.

    simonhowes -

    i have a 15" MBP (recent one with GT 750m discreet graphic), and i MIGHT wanna open it up and change the thermal compound with a better one (arctic Mx-4), bcos the laptop get heats up quite abit. this teardown is gonna be my guide, but b4 opening it, whats ur thought of the thermal compound applied to it? is it too much like the previous MBP? need to know :) and IF i open it up, i might take a picture of the GT 750m, bcos everyone wan to look at it :D

    Shynn Ng -

    The bigger one in CPU is GPU+CPU, smaller one is eDRAM Crystalwell cache, not other way around.

    Jarno Matikainen -

    I wondered what's the model # of the intel i7 quad core cpu was used for this laptop? It's an i7-4702mq or other model? Why you mentioned the model # of cup, i5-4258u, in the Macbook pro 13" Teardown report, but not mentioned in this report?

    gwo jong -

  5. dDw1DsR3UbxJiGbS

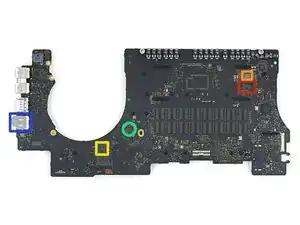

    • Auf der Rückseite des Logic Boards sind zu finden:

    • SK Hynix H5TC4G63AFR 512 MB DDR3 SDRAM

    • Broadcom BCM15700A2

    • Cypress Semiconductor CY8C24794-24LTXI Programmierbares System-on-Chip

    • Texas Instruments TPS51980

    • Der Kopfhöreranschluss ist jetzt auf dem Logic Board festgelötet, falls er kaputt geht (was bei einer normalen Benutzung zu erwarten ist), kannst du dich auf eine Reparatur von fast tausend Euro einstellen.

    Just like the new 13" MBP, there's 512M of RAM hanging out near the GigE controller. Still no idea what it's for, and a GigE controller certainly doesn't need half a gigabyte of RAM.

    Scott Morrison -

    It is a packet buffer. Unsure why it is so large, is the controller capable of 10GigE? Just wondering if we may see some 10GigE Thunderbolt Ethernet adapters? I also think this is controller for USB3 as well.

    simonhowes -

    How does a soldered-down headphone jack equate to a thousand-dollar repair? Get me a sub-$5 headphone jack, 10 minutes with a soldering iron and all is well again.

    no1unorightnow -

    I have a black screen problem when I use my graphics application, where is the graphics card power supply?

    floryb -

  6. P1EcYIGkc6XgslKw
    P1EcYIGkc6XgslKw
    SWUVkQ5ODARErfGp

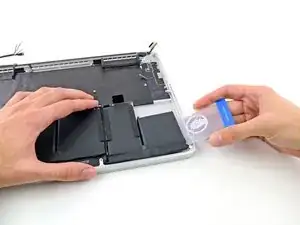

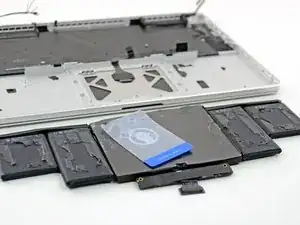

    • Das ist der Augenblick der Wahrheit: Ist der Akku leichter zu entfernen als das vorherige, fürchterlich verklebte Disaster?

    • Mit angehaltenem Atem testen wir vorsichtig mit einer Plastikkarte ....

    • ... und eine halbe Stunde und mehrere zerkratze Fingerknöchel später atmen wir mit einem großen Seufzer der Enttäuschung wieder aus. Der Akku ist mit der gleichen übermäßigen Menge an Klebstoff befestigt, und es ist praktisch genauso unmöglich ihn sicher zu entfernen wie vorher.

    • So viel zur Evolution des Designs.

    Why evolution of design? I as a design engineer would do the same thing. I would never make my products easy to be taken appart. So it might not be easy for none profesionals but the authorized repair 'handlers' will know how to remove the battery. It is surely not 'user' friendly for repairs yes that is true.

    Tibidor -

    That's probably the most important thing about that battery. An uncased battery such as what Apple uses can be very dangerous if damaged. The average consumer doesn't know exactly how delicate those are, so Apple tries to limit access with pentalobes. Also the adhesive is there to help the battery from moving around in the casing, further reducing the possibility of damage. Sure it's hard to repair, but it's much safer.

    Bryan Elliott -

    @Tibidor: the philosophy of making products easy to take apart (note spelling) worked for manufacturers like Citroen and Land Rover in the engineering domain. In the case of Land Rover, the primary reason that they won military contracts was that an untrained soldier could pull the damaged bits off, add replacements and get going without resort to authorised repairers. And these so-say authorised repairers are not immune from error - most of the time I've found that a generic skilled mechanic was a far better bet for servicing than main dealerships, who were over-priced and arrogant with it.

    An example: I lost a control dial; an authorised repairer told me I needed a new centre console at £200 plus £200 labour, the skilled and theoretically unqualified mechanic fixed the problem for £30 all-in.

    I honestly don't believe electronics is any different.

    James McLaren -

    I want one but the only thing that is holding me back is the evolution of design. I have a early 2011 13 inch Macbook pro that I have added a 1.5 TB drive and 16gb ram. Nice to be able to do that inexpensively and later. The $3K price tag for a machine with 1TB drive and 16gb soldered ram is also a key point. I need the machine for work but having to get the everything now and not being able to replace hardly anything myself is holding me back. Battery, Ram, SSD minimally should be user replaceable, processor would be nice but not as necessary. SSD should be the best you can afford and in a common format to keep down costs.

    abrahambloom -

    I've read somewhere that the batteries can be removed easily when pulled the glue stripes like Tesa power strips. have you tried this?

    Great job - doing all the tear downs and repair manuals. they are very helpful! Thank you!

    riessi -

    Ever thought of using Isopropyl Alcohol? It would dissolve the glue.

    cjmillsnun -

  7. tFHaDvvCPpY626UL
    tFHaDvvCPpY626UL
    CEmwyCAHn14fCbxW

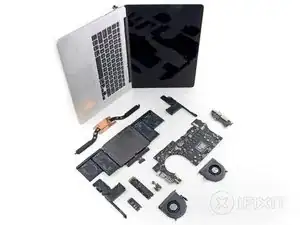

    • Das MacBook Pro 15" mit Retina Display Ende 2013 erhält ein Ergebnis von 1 von 10 Punkten auf unserer Reparierbarkeits-Skala (10 ist am einfachsten zu reparieren).

    • Die proprietären Pentalobe Schrauben verhindern den Zugang zum Inneren des Gerätes.

    • Wie beim MacBook Air ist das RAM am Logic Board festgelötet. Entscheide dich jetzt oder nie für 16GB, ein späteres Upgrade ist nicht möglich.

    • Die proprietäre SSD hat jetzt ein PCIe Format, aber es handelt sich immer noch nicht um ein Standard 2,5" Laufwerk. Es ist jedoch eine separate Tochterkarte, und wir hoffen, in naher Zukunft ein Upgrade anbieten zu können.

    • Der Lithium Polymer Akku ist in das Gehäuse eingeklebt und nicht geschraubt, das Risiko, dass er beim Ausbau kaputt geht, ist daher größer. Der Akku bedeckt außerdem das Trackpad Kabel, was für den Nutzer beim Ausbau des Akkus das Risiko ungemein vergrößert, dieses Kabel aus Versehen durchzuschneiden.

    • Die Display-Einheit ist komplett verschweißt und es gibt keine schützende Glasabdeckung. Falls irgendetwas im Inneren des Displays kaputt geht, muss die gesamte, extrem teure Einheit ersetzt werden.

    Is the display assembly compatible with the early 2013?

    Tiago Ferreira -

    Does the circuitry change if i have the one with a higher-end graphics card? Mine has 16GB RAM, nVidia GeForce GT750M and a 2.6GHZ processor. Also, where is the battery located on this device? I have the exact same macbook, but with better specs

    Dhiren Sajjan -

    I have just taken my Macbook Pro 15" w retina late 2013 in for a repair and have been told I need to replace the logic board? Does anyone know if this is something I can do myself otherwise apple are charging $330. I'm frustrated that a laptop thats barely 14 months old has this kind of hardware issue. Of course I didn't buy the extended warranty.

    tracey -

    @Tracey: I had my 512GB SSD fail about 13 months after I bought my rMBP and was quoted 824 euro by the Dutch Apple store. Like you I did not have Applecare (and sorely regretted not getting it). So I called Apple USA, sweet-talked my way up the chain, got a new quote for $300 and eventually had it replaced for free!

    So definitely try calling Apple Customer Service, they might surprise you. Be polite, friendly and have patience. The first people you talk to probably can't do much for you, but their supervisors can. Good luck!

    appel78 -
