This teardown is done as to comply with the task 2 IDES 2171. Photographed and written by Ashley Mutandiro and Aisyah Azmi, first year students of Bachelor of Industrial Design UNSW Sydney, Australia.

  1. qRE46GOT5UBnQLic
    • Breville Toaster.

    • The toaster before the teardown process.

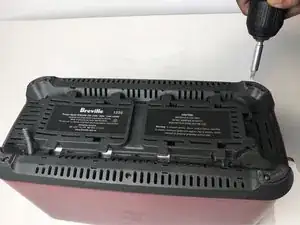

  2. S3IFYpkJXwDNPcjV
    S3IFYpkJXwDNPcjV
    wSyAWgKjXDmXchCx
    AqQa6MXFwPhPk6bZ

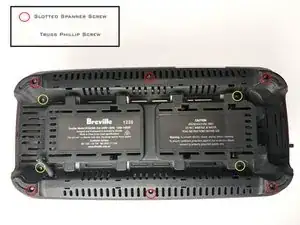

    • Turn the toaster upside-down.

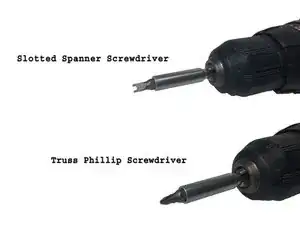

    • Use the drill to unscrew the six slotted Spanner head screws

    • Use the drill with corresponding screwdriver bit to remove the Truss Phillip screws

    • The Slotted Spanner head screws hold the four rubber feet at the bottom of the casing.

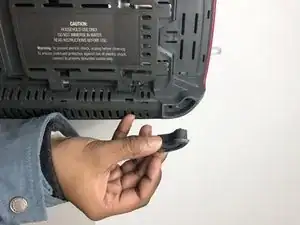

  3. KM3BwZpLkUfaYC2U
    • Unattach the four rubber feet.

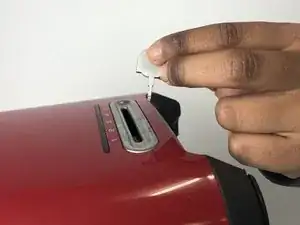

  4. xAb1Q4ylUKy1tunY
    xAb1Q4ylUKy1tunY
    cFBE2W3OTsLonoQi
    Jk6ILWOXHx6gsMes

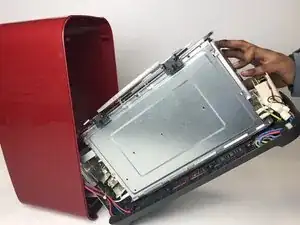

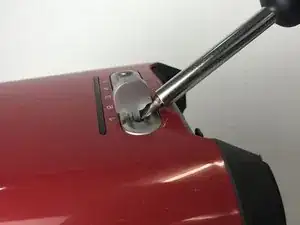

    • Detach the timer knob using a flat head screw driver

    • Remove the internal components from the red casing

    Is this indicating that the lever is pried off, or that a metal spring is being released by the screwdriver?

    David -

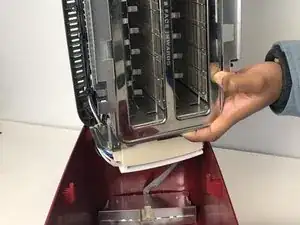

  5. 45oajK4WdAMfhOsZ
    45oajK4WdAMfhOsZ
    rBdGyGlYhwtikcpJ
    kB3BnG4nKV1AuH3d

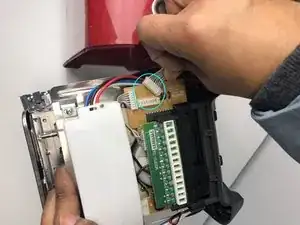

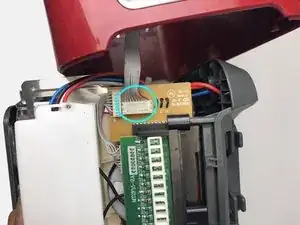

    • Note: Red casing is still attached to the interior body of the toaster.

    • Detach electric circuit housing from red casing

  6. GYoTedEtLYdxqsoK
    GYoTedEtLYdxqsoK
    dLFuBLNBTA3REwoV

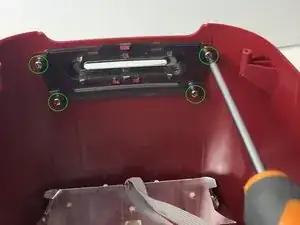

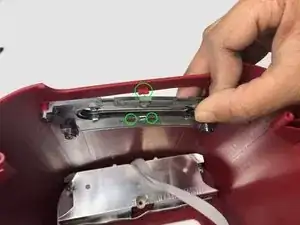

    • Firstly, unscrew the four Pan Phillip head screws

    • Then snap off the three welded plastic studs to detach the timer knob housing from the red casing

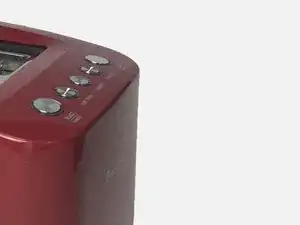

  7. PBlvXhENZL5sgTfw
    PBlvXhENZL5sgTfw
    HVPB1M25FHw6lZJO
    F3roxtGNeBPA6F5u

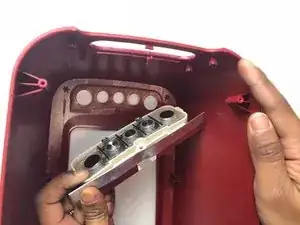

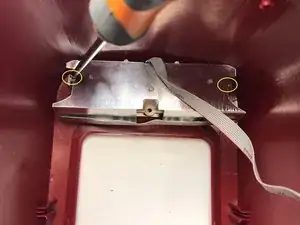

    • Unfasten the two Pan Phillip head screws to detach the buttons' housing

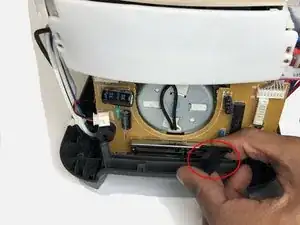

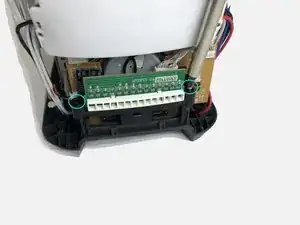

  8. YnYVCkU3YSODENDB
    YnYVCkU3YSODENDB
    Udx1wDsGktMtno6n
    cb2v42VASDeSCxde

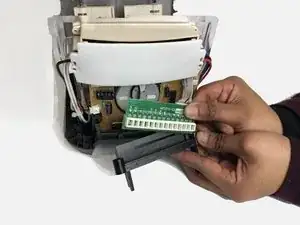

    • Note: There are two housings attach to both side of the interior body of the toaster.

    • Remove the two Pan Phillip head screws to detach the circuit board from the heat controller housing.

    • Then, remove the slider as well.

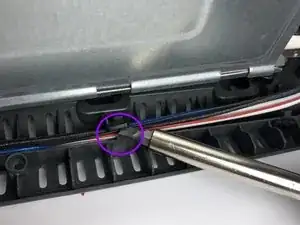

  9. GQiGmEBrukpvGK2t
    GQiGmEBrukpvGK2t
    KNibXTP665ehX4nS
    21YPjFYHEYoPC55H

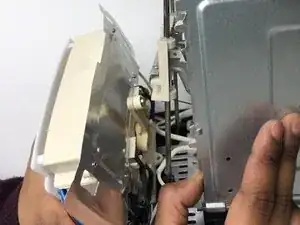

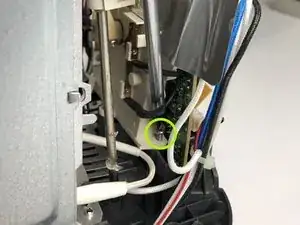

    • Remove the circuit board housing for the heat controller from the interior body of the toaster by unscrewing two Pan Phillip head screws

    • Remove the cable fasteners using a flat head screw driver

  10. UMoMvXLQElceb2IC
    UMoMvXLQElceb2IC
    uF1VTwSGJuZ5H4ao
    ukqAXCBYljQ4PqLk

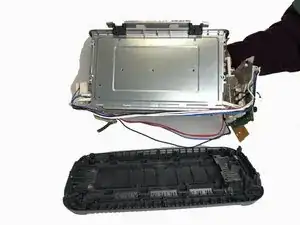

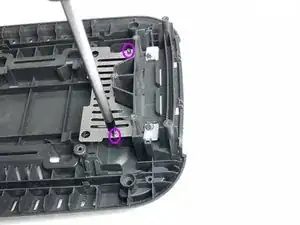

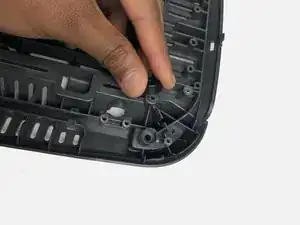

    • Separate the interior body of the toaster from the bottom cover.

    • Remove the screw caps

    • Unscrew the two Pan Phillip head screws to detach the aluminium vent

  11. GIX2Olydu1SxGkwQ
    GIX2Olydu1SxGkwQ
    YQPYrCyBbaQwHnBX
    Y5UHRMKs1pydIKpO

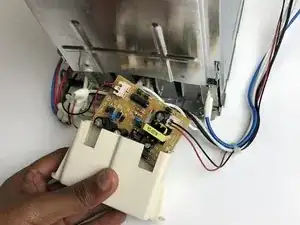

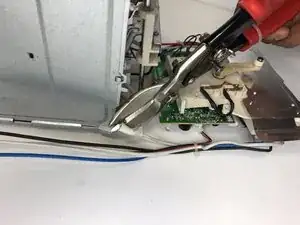

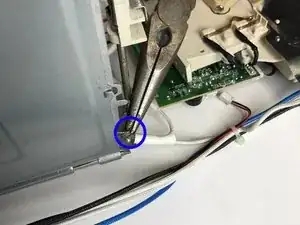

    • Use pliers to break apart the welded wires from the interior body.

    • Snip off the rest of the wires still attached to the interior body using a wire cutter

    • Remove the circuit board from its housing

  12. 1AE2GHMWWYLjGWOC
    1AE2GHMWWYLjGWOC
    NT4Hc1wqrsGwZaAJ

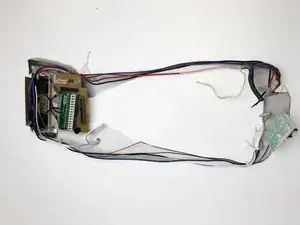

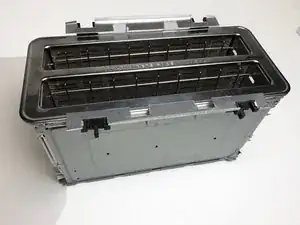

    • Separate the electric components from the interior body

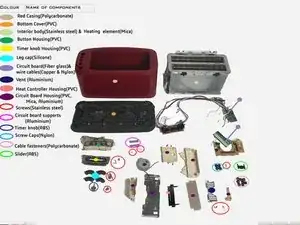

  13. 6XyPASPuMxknhQ61
    • Insert wisdom here.
