Einleitung

Teardown of the TI BA II Plus calculator.

  1. UrXUrX6LsMWAE3Lw

    • The BA II Plus Professional calculator.

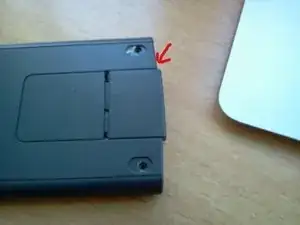

  2. EBUeJ432oyHCBDFO

    • Remove the battery cover by sliding it out.

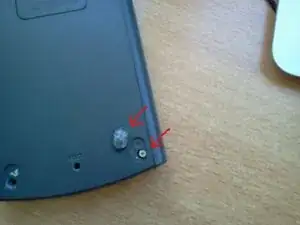

  3. FqAInQH5F4JKFkOp

    • Firstly on the back cover, remove the small sticky soft cushioning material covering the recess with the screws in it. 4 of them in total. Unscrew them.

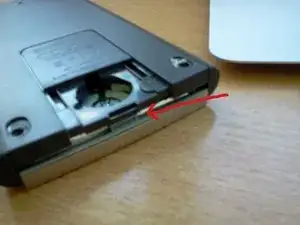

  4. HaBHnP1KOnNgMoD2

    • Use a flathead screwdriver to gently part the bottom and top cover at the hinge on the top.

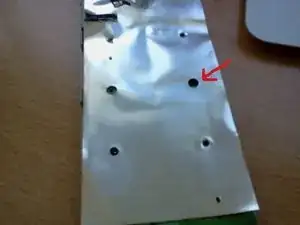

  5. tqFUAckMpdtAH4wT

    • Removing the back cover to reveal the foil, unscrew the 4 screws holding the foil and 4 other holding the printed circuit board to the front cover.

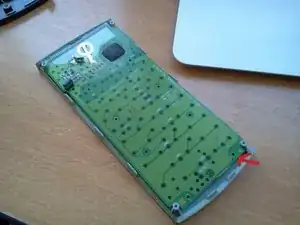

  6. FnEZ2fsZy1S2dqld

    • Remove the foil. Ensure all screws are off.

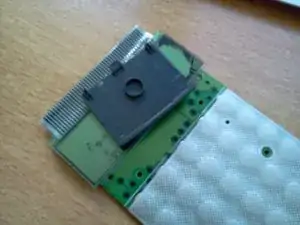

  7. WiEBoHFpoubyFsmn

    • This must separate the front cover from the board. Remove the board and turn it over to view the front side with a soft black cushion cover over a smooth shinny mesh.

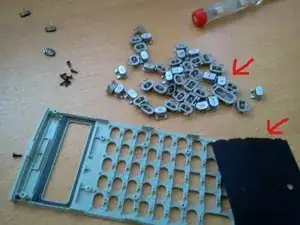

  8. gqMFkeUOaqbuVMIm

    • The keys should fall out of the front cover when you turn it over as well. Thats it!!!
