Toshiba Click 2 Pro P35W-B3226 Teardown

Geschrieben von: Sasa Macura
Veröffentlicht: 19/03/15
  • Kommentare: 5

Toshiba Click 2 Pro P35W-B3226 Teardown

Veröffentlicht: 19/03/15

Teardown

Einleitung

This guide will show how to take the back housing off the Tablet portion and the keyboard cover.

  1. YGYUUMPomdkCHXCG
    YGYUUMPomdkCHXCG
    Vc5MkiKxKLXrJXXN

    • After this procedure there seemed to be more back light bleed on my tablet. Not sure if it was there before so be careful.

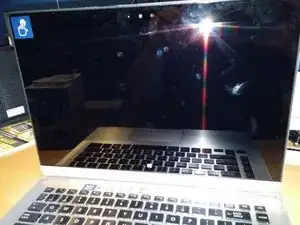

    • Remove the tablet from the dock.

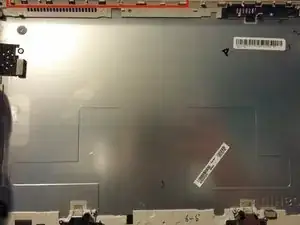

    • Find the best place to insert your plastic pry tool (I used the Micro-SD slot). Carefully go around the perimeter of the tablet and unclip the back cover.

    • Take note off all the clips. The back cover is held in place with a ton of these all around.

    Where is the memory chip? Thank you.

    J L -

  2. 2cSCpnYNiKBZ3QbK
    2cSCpnYNiKBZ3QbK
    mnrDsFBe651xePAt
    fTlLGiKXvdtmxBww

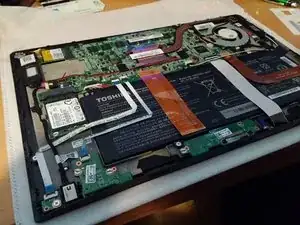

    • Once you have the back cover off you are free to replace what you'd like.

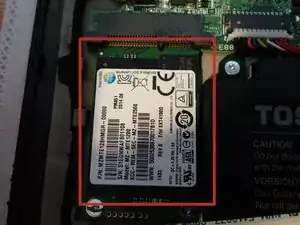

    • Msata SSD Part #MZMTE128HMGR-0000

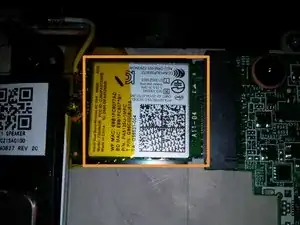

    • M.2 2230 WiFi Model #7260NGW

  3. giGua21WZ5Nm5Mlg
    giGua21WZ5Nm5Mlg
    nNPtfkqbsKK4SjED
    bWeQUPiGKdSctpXZ

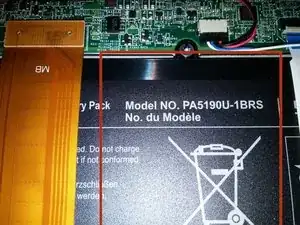

    • Battery Model #PA5190U-1BRS

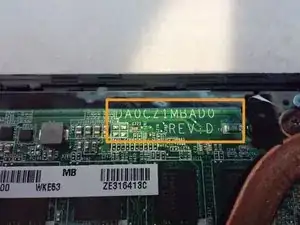

    • Motherboard Part #DAOZC1MBADO REV:D

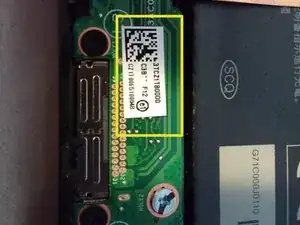

    • Capacitive button/dock board Part #3TCZ1T80000

    • Re-assembly in reverse order.

  4. IDsHnQtuYoAcvErc
    IDsHnQtuYoAcvErc
    GbvnJveGQRfuDbJu
    LoBxjYdjTmBhWMfR

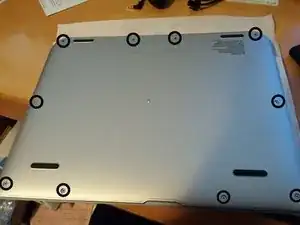

    • With the keyboard separated remove all the screws in the bottom. The top 4 screws are longer then the bottom 6.

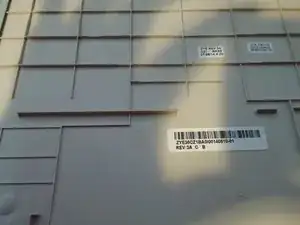

    • Keyboard back cover Part #ZYE35CZ1BA0100140810-01 REV:3A

    • Keyboard boards and weights.

    Where can I buy the screws? email me back at nkaur20@uic.edu

    Neha Kaur -

  5. aWrFLPvScQWhNlbI
    aWrFLPvScQWhNlbI
    E6rWLUHPMOQdkRAZ
    hMJqufAUGRJMFAKQ

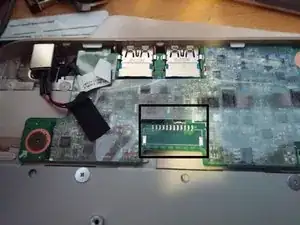

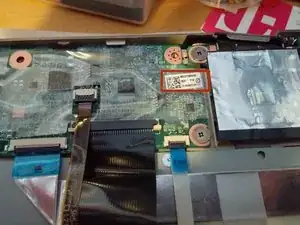

    • The keyboard dock board. Looks like there is a way to add a second HDD/SSD here but the connector is not soldered on.

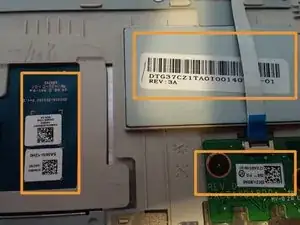

    • Keyboard board Part #CZ1D30E51001CC

    • Mouse board, left-hand weight, front LED board.

    • Re-assembly in reverse order.
