Einleitung

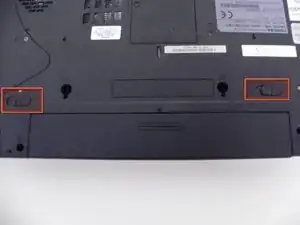

  1. PrKWQ6TlJ4mHvKeW
    PrKWQ6TlJ4mHvKeW
    HqntDjcGxNCbEfa5
    ZsnYe61sdyPNLAAH
    • Make sure device is off and power supply is disconnected.

    • Flip the laptop to the bottom side.

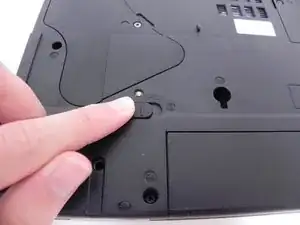

    • Locate and slide the two battery locks to disconnect the battery.

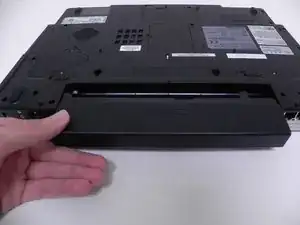

    • Remove the battery by sliding it out away from the computer (horizontal with the casing).

  2. V4hAXUMOpkJsHNN4
    V4hAXUMOpkJsHNN4
    ZUcChSCi2V4ZQTRX
    rIOBZUU6C5ncFAqD

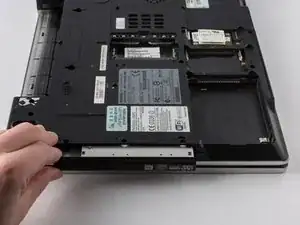

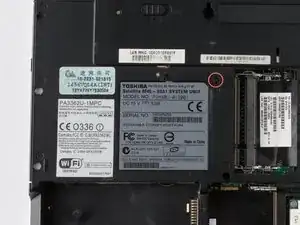

    • Use the #1 Phillips head screwdriver remove the Optical Drive screw.

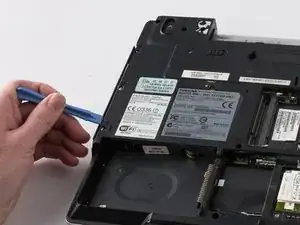

    • Use the blue iFixit Opening Tool to pry the Optical Drive out of the slot from the side of the casing.

    • Use your hands to pull the rest of the Optical Drive out.

  3. VXVRUK43ihACoccx
    VXVRUK43ihACoccx
    JfrPqafpDLvqDnqB
    vJEv1vweVjph1Wvk

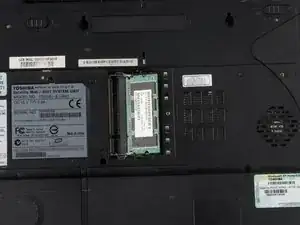

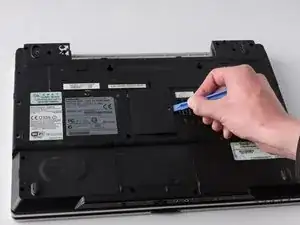

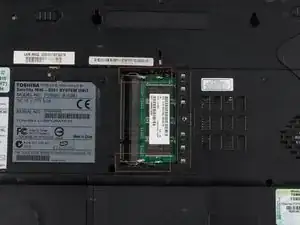

    • Use a #1 Phillips head screwdriver to remove the screw on the middle right of the RAM's cover panel.

    • Then, use a the blue iFixit Opening Tool to pry the cover panel off.

    • Push on to the RAM tabs to disconnect the RAM form the device.

    • The RAM will pop off from the socket. Gently pull the RAM out of the socket.

  4. fFKImyJRxd4nuALp
    fFKImyJRxd4nuALp
    CFhcSnZUNh1ojfO1
    XFGJV1YUOw2rxhUT

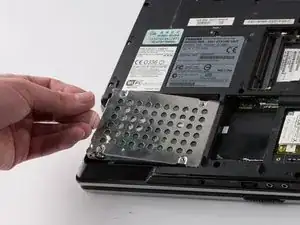

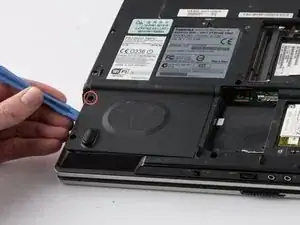

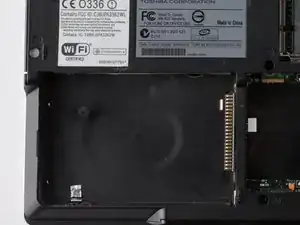

    • Use the #1 Phillips head screwdriver as to remove the hard drive screw.

    • Use the blue iFixit Opening Tool to pry the cover off.

    • Use the plastic flap to pull the hard drive out of its slot.

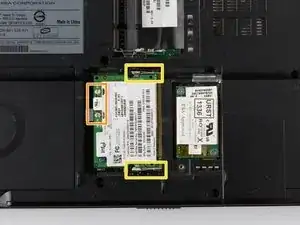

  5. TW4hHNGDLrjrEKF2
    TW4hHNGDLrjrEKF2
    B6SNsJkCXXBM2XQB
    Y2b5XtYpRBJhFnXg

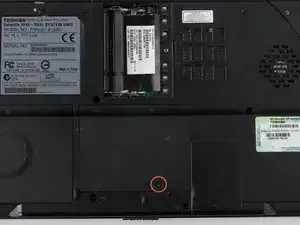

    • Use the #1 Phillips head screwdriver to unscrew the panel.

    • Disconnect the black and white wires.

    • Push on the tabs to disconnect the Wi-Fi card.

    • Use the blue iFixit Opening Tool to pull the Wi-Fi Card out.

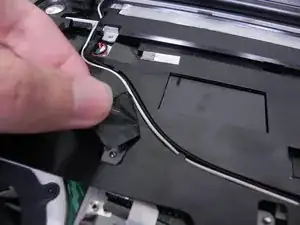

  6. QnZbVSg1RDmKcExY
    • Remove the 2-3 pieces of black electrical tape covering the black-and-white antenna cable.

    • Close the display, flip the laptop over, and disconnect the black-and-white antenna cables from the Wi-Fi card.

    • Flip the laptop back over and open the display.

  7. ZtgiPag6ScQNZQZD
    ZtgiPag6ScQNZQZD
    oH2aPbxDDQivYKVE
    3bDxODFNGZNuQrbB

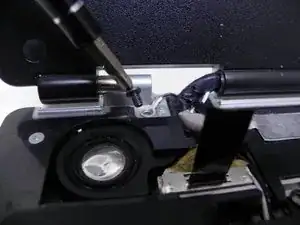

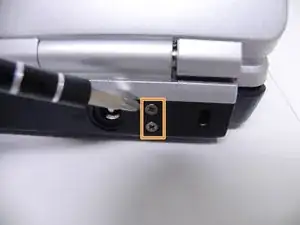

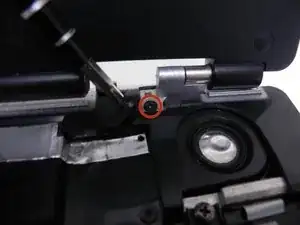

    • Remove the two Phillips #1 screws securing the display hinges.

    • It is recommended to keep the screws in a small cup so that you don't lose them.

    • Remove the four Phillips #1 screws on the back of the laptop.

  8. lGlT2ZMOryMsxOPs

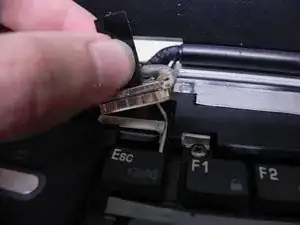

    • Gently pull up on the display's video connector to remove it.

    • Remove the black-and-white antenna cable from the groove.

    • Your display can now be removed.

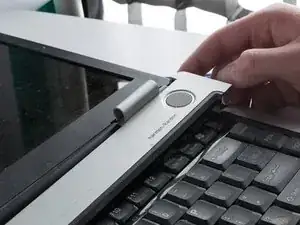

  9. UZEfNNEY5MAxKCZp
    UZEfNNEY5MAxKCZp
    hl5MK4qmuHQcPvNS
    mEdIc3bHlkCPVC2k

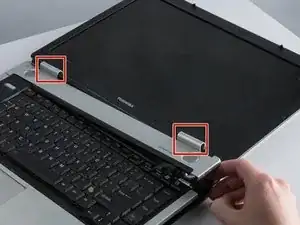

    • Carefully use the blue iFixit Opening Tool to pry the panel above the keyboard from the left and right side.

    • Push back the screen until it is flat with the laptop.

    • Gently remove the clips that connect the panel to the screen.

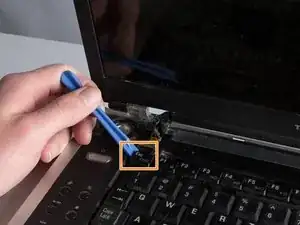

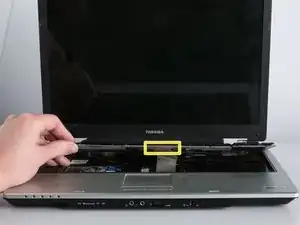

  10. PVeBrncxEFN3AnJP
    PVeBrncxEFN3AnJP
    xWkX3XISltTikg5n
    P1h6phvIMPfgDXM1

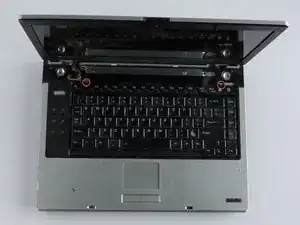

    • Use the Phillips #1 screwdriver to remove the two screws.

    • Gently pry the keyboard from the laptop using the blue iFixit opening tool.

    • Slowly lift the keyboard away from the laptop.

    • Remove the ribbon that connects to the laptop.

    • Ensure you remove the keyboard slowly to avoid damaging the ribbon cable.

  11. wZfuUvDQoaTQOcvC
    wZfuUvDQoaTQOcvC
    JvNltD3rAesW6MYL
    eyNdyJHOHkcNeU6n

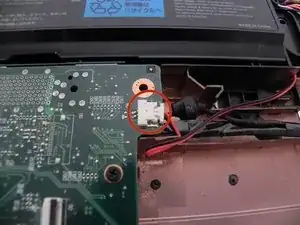

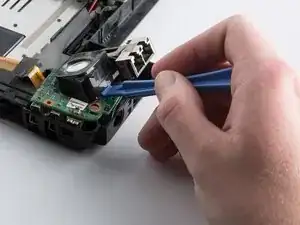

    • Located near the upper edges of the motherboard you will find the 2-speaker wires that trace to the speakers. You will see these white tab with black and red wires.

    • Unscrew the 2-screws located above the speakers to remove them. Slowly pull up on the speakers as there are other port connectors are located near the wiring.

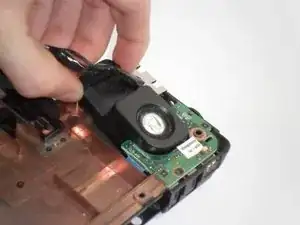

  12. JvmcrZjYMQk6RXBD
    JvmcrZjYMQk6RXBD
    OSJADmvJdpZKJBw2

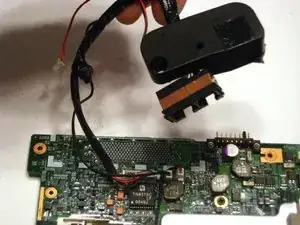

    • To remove the left speaker follow the motherboard repair guide to complete this step to keep this guide concise.

    • Reverse the order after installing the new speakers.

  13. cOsYXsvAsfSLILUR
    cOsYXsvAsfSLILUR
    3PBLBUSi5ELQuykK
    ZelKW5Hld3oNYXn2
    • Remove the cover from the cooling unit.

  14. 55AdH5Jy5SiMbVC5
    55AdH5Jy5SiMbVC5
    x5QYkuo53QZNy2nN
    • Unscrew the copper heat-sink using a #1 screwdriver, and then lift it free. Do not get any thermal grease on any components. This part can now be replaced.

  15. RM4U3LriQTw612Qj
    • Follow the tear-down guide until you have access to the fan unit on the motherboard.

  16. CAfWsF1YCZEPF5f3
    CAfWsF1YCZEPF5f3
    B5XAvkKGyfBJPvdR
    jvEhbqRofotTmUgQ
    • Unscrew the fan unit from the motherboard using a #0 screwdriver. Once the fan is unscrewed and unplugged from the motherboard, it can be replaced.

  17. CgChvEpdF1OQjF4X
    CgChvEpdF1OQjF4X
    MaOcGmbevRbJQQRG
    TraGYlCssrtG5APi

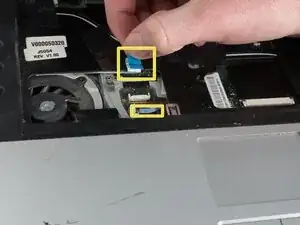

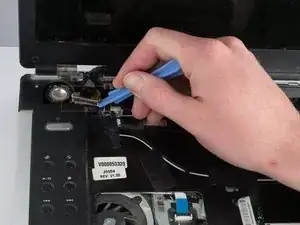

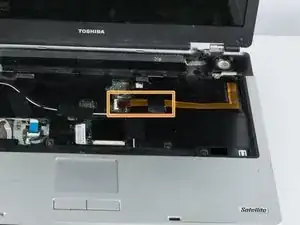

    • Disconnect the video cable, then slowly and firmly pull the video cable upwards.

    • Disconnect the brown ribbon located in the middle area of the laptop.

    • Disconnect the two white ribbons located in the bottom left of the laptop.

    • Firmly pull out the two white ribbons.

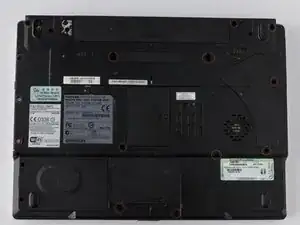

  18. FNKRd6Ei1myW4kTG
    FNKRd6Ei1myW4kTG
    NxqUXamwOXERpT5H
    • Use the Phillips #00 Screwdriver to unscrew all the screws.

    • Unscrew three additional screws through the three holes on the optical drive.

  19. J3RQEilKx4ucZYlU
    J3RQEilKx4ucZYlU
    UF22665qTEH6Fh13
    KNokQQEEb2CNDlnq
    • Turn the laptop upside down.

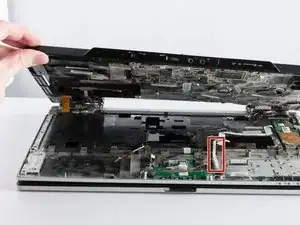

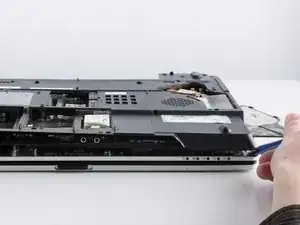

    • Use the blue iFixit Opening Tool to slowly pry the case upward.

    • Remove the white ribbon

    • Make sure to completely remove the white ribbon and set it to the right side of the motherboard. and not on top of the motherboard.

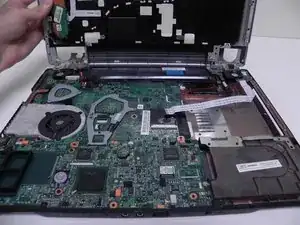

  20. dXRqGVvKaC3XV42E
    dXRqGVvKaC3XV42E
    pT2mBamWFbjndN3Q

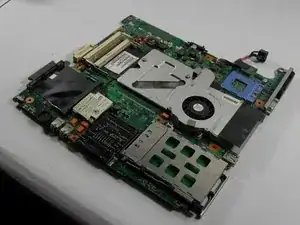

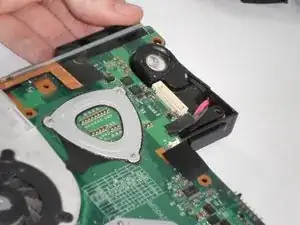

    • Lift up the motherboard.

    • Be careful not to rip out small components on the motherboard. Carefully remove the motherboard.

    Super boulot, très bonne présentation ; Regardée rapidement mais le lien est enregistré ; Mon soucis est le remplacement de la pile du BIOS, que je vois sauf “à changer mes lunettes”, clairement sur la photo de l’étape 10 ; Dommage que Toshiba ait fait en sorte de devoir tout démonter pour y accéder ! Bref, je vais oeuvrer ; Cette vidéo devrait aussi être dans la rubrique M40 !! Très utile, MERCI !

    le profane -

  21. 4CMNyvap6hrYLoxR

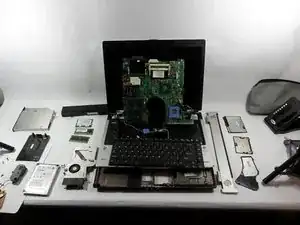

    • Congratulations, your computer has been completely dismantled!

    • Now, reverse the steps to reassemble.
