Einleitung

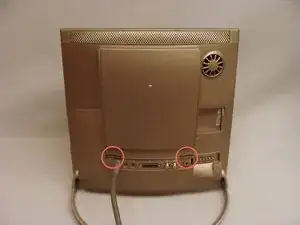

  1. s5TiUZLiuqAvjoUu
    • Use the release tabs to remove the rear cover

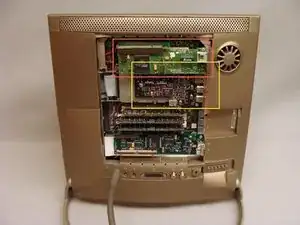

  2. DwuHAKwoyWlWITS2
    • Remove any ComSlot II or PCI cards that may be installed and their risers.

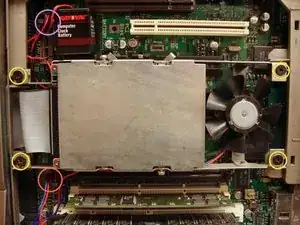

  3. 36WiDI2rRWKfYCAE
    • Unplug the logic board connections to the PRAM battery and fan.

    • Remove the PRAM battery from it's Velcro mounting.

    • Remove the four #0 Philips screws securing the hard drive and processor fan assembly.

    • Remove the hard drive and processor fan assembly.

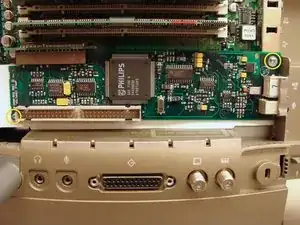

  4. Nf2AIxtdClDKquXV
    • Remove the two T6 Torx screws securing the A/V input board.

    • Remove the A/V Input board

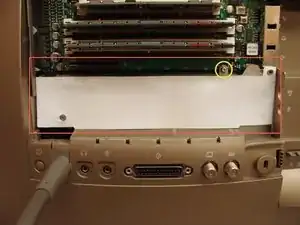

  5. EJUosGVOZFYVtCyC
    • Remove the white plastic shield

    • Remove the T6 torx screw securing the logic board to the frame.

  6. VXPeTfQeWUbBtuyH
    VXPeTfQeWUbBtuyH
    NxnbksXpaDQEcDKa
    • Turn the TAM around with the front facing you.

    • Use a spudger to gently loosen the speaker covers from their press-fit snaps. Remove the speaker covers.

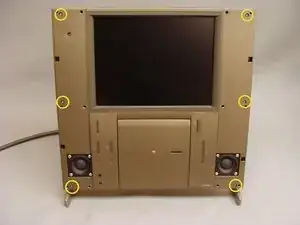

  7. WxRINO2dJv5CBBxJ
    • Remove the six T6 torx screws securing the front case to the rear case.

    There are also two similar screws at the top back of the computer. You need to remove the upper vent cover (easy)

    plb -

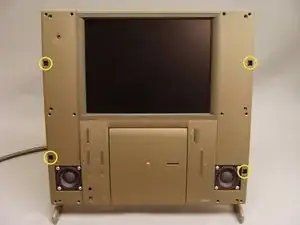

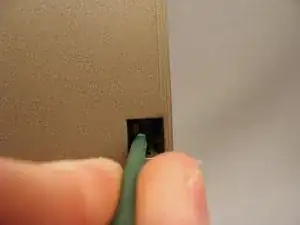

  8. tvDBm3ByB5uYEFNu
    tvDBm3ByB5uYEFNu
    2RH1X2ZgEdUYJAfo

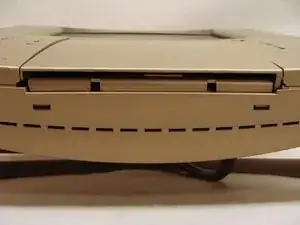

    B6ErqCLwRGU3UXoa
    • Gently pull the tabs toward the center to release the latches hold the front and back together. These tabs are fragile but release easily. Use caution.

    • Lean the top forward and lift up to pull the front case from it's bottom latches.

    • DO NOT TRY TO REMOVE THE FRONT CASE. It is still connected to the back case by several wires and cables.

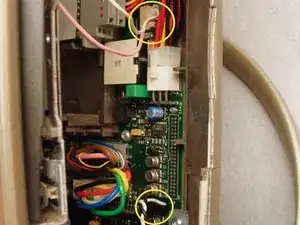

  9. Fl5JXAVdtOnDrhjD
    Fl5JXAVdtOnDrhjD

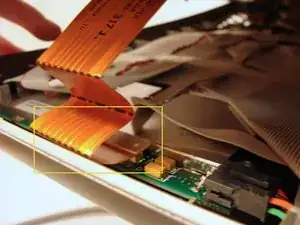

    SOpKWN3tuhMSWD1Z

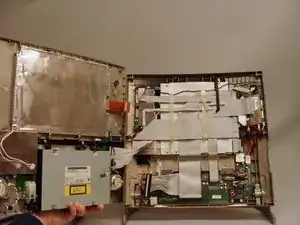

    UgV6Ht1SDrodSe1S
    • Disconnect the pink and white backlight inverter cable and the black and white right speaker cable from behind the floppy disk drive on the right side.

    • On the left side, disconnect the 50-pin SCSI ribbon cable, analog audio cable and power cable from the CD-ROM drive.

    • Disconnect the black and white left speaker cable.

    • Disconnect the flat, orange display data cable.

    • Open the top case to the left like a book. There will be one more 50-pin cable to disconnect from the front control panel board.

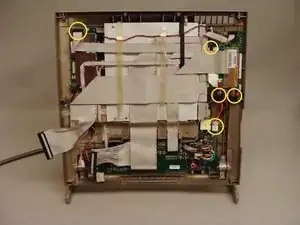

  10. ZbBsRbDlmdbRESIj
    • The easiest method to remove the logic board is to remove it with the tuner card and cabling.

    • Disconnect the five cables illustrated.

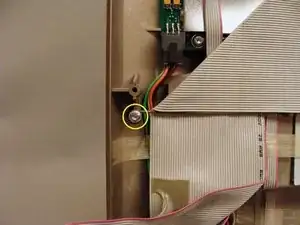

  11. y1ONUlKYIDXfAuDY
    • Remove the T10 torx screw and extract the stiff wire cable brace from the left side

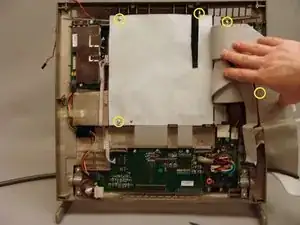

  12. QmKFBZtEWkQtcrRD
    • Carefully peel back the tape securing the cables to the white, plastic logic board cover. Pull the cables back to reveal the back side of the logic board.

    • Remove the five T10 screws holding the logic and tuner boards to the back case.

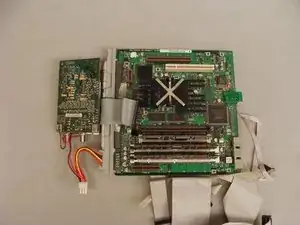

  13. sgsZQ2cFMcXgmOQg
    sgsZQ2cFMcXgmOQg
    l6GaIDRr1UrTT6rh
    YoUxHeUMLXYfUJKS

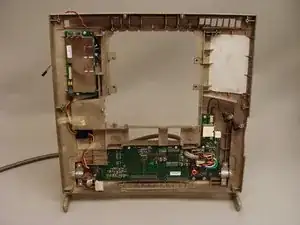

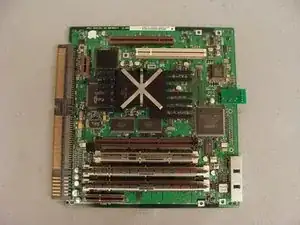

    • Lift the logic board from the left edge then straight up to remove it from the rear case.

    • The logic board slides out of the cabling connector.

Abschluss

To reassemble your device, follow these instructions in reverse order.
